Supermicro 7048GR-TR Manuale del proprietario

Information for Lot 9 of ErP (Ecodesign)

For 7048GR-TR

This addendum addresses European Union (EU) Ecodesign requirements for servers and storage

products. All data and ratings within this addendum are in reference only to the Supermicro product(s) in

the manual. The below information conforms to requirements laid down in Annex II of the Commission

Regulation 2019/424.

3(1)(a): See Section 1.1 of the system manual for the product type.

3(1)(b): See the title page and preface of the system manual for the trademark and

manufacturer’s address.

3(1)(c): See the title page of the system manual for product model number(s).

3(1)(d): See the serial number on the physical system to determine the year of manufacture.

3(1)(e-j): PSU Efficiency and Power Factor Value (Table) (From 80 Plus report)

PSU Model #: PWS-2K04A-1R

Watts: 2000W

PSU Efficiency

Power Factor

% of Rated Load

10 % 20 % 50 % 100 %

50 %

Single Output (AC-DC)

94.06 %

95.75 %

96.30 %

93.84 %

0.99

System (EUT) Efficiency in Idle State Power (Table)

Representative

Configurations

Measured Idle State

Power (W)

Calculated Idle Power

Allowance (W)

High-End Performance

Configuration

297.84

1309.08

Typical Configuration

N/A

Low-End Performance

Configuration

71.618

1233.76

System (EUT) Efficiency in Active State Power (Table)

Representative

Configurations

Active State

Efficiency Score

(Effserver)

Minimum Active State

Efficiency for 2-Socket

Server

High-End Performance

Configuration

167.488

Typical Configuration

N/A

9.5

Low-End Performance

Configuration

81.417

3(1)(k): The operating condition class is A2.

Dry bulb temp °C

Humidity range, non-condensing

Operating

condition

class

Allowable

range

Recom 

mended

range

Allowable range

Recommended range

Max dew

point (°C)

Maximum

rate of

change

(°

C/hr)

15- 32

18-27

–

12 °C Dew Point (DP) and

8 % relative humidity (RH) to

17 °C DP and 80 % RH

–

9 °C DP to

15 °C DP and

60 % RH

5/20

10-35

18-27

–

12 °C DP and 8 % RH to

21 °C DP and 80 % RH

Same as A1

5/20

5-40

18-27

–

12 °C DP and 8 % RH to

24 °C DP and 85 % RH

Same as A1

5/20

5-45

18-27

–

12 °C DP and 8 % RH to

24 °C DP and 90 % RH

Same as A1

5/20

3(1)(l): The idle state power at the higher boundary temperature of the operating conditions

class is 297.84 W.

3(1)(m): The active state efficiency and performance is 81.41.

3(1)(n): There are two methods by which a user can securely delete data from this system. The

user performing secure data deletion should be an IT professional.

The first is with a Unified Extensible Firmware Interface (UEFI) shell utility. This utility

works on X10/X11/H11/H12/M11 motherboard series with onboard SATA/NVMe devices.

Any user may access and download this utility through following link:

https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wftp/utility/Lot9_Secure

_Data_Deletion_Utility/

Download the shell utility package and extract it to a USB flash drive, then plug the drive

into the server for which secure data deletion is necessary. Then turn the system on.

Navigate to the BIOS setup menu, then place the server system into the UEFI shell

environment. Follow the instructions in the README file to invoke the utility and

complete the deletion.

The second method is through the secure data deletion tool provided by the original

manufacturer of the hard drive. This should be used in a scenario where the shell utility

is not applicable. Each manufacturer should have the tool available on their website. If

needed, please look on the hard drive label for the name of the manufacturer and model

information.

3(1)(o): List of recommended combinations of blade servers with chassis: N/A.

3(1)(p): List of all current SKUs within this product family: N/A.

3(3)(a): There is no use of cobalt in batteries in this product.

The indicative weight range of neodymium in the HDD is 0.0 if manufactured by Western

Digital, and is between 5-25 grams if manufactured by Seagate.

3(3)(b): Please see the disassembly instructions on the next page.

Illustrated System Disassembly Instructions

Please note: All the illustrations in the below disassembly instructions are for demonstration only.

Components shown here may not match exactly with the components in your system.

CAUTION: Always power off the system and unplug the power cord(s) first before

disassembling the system!

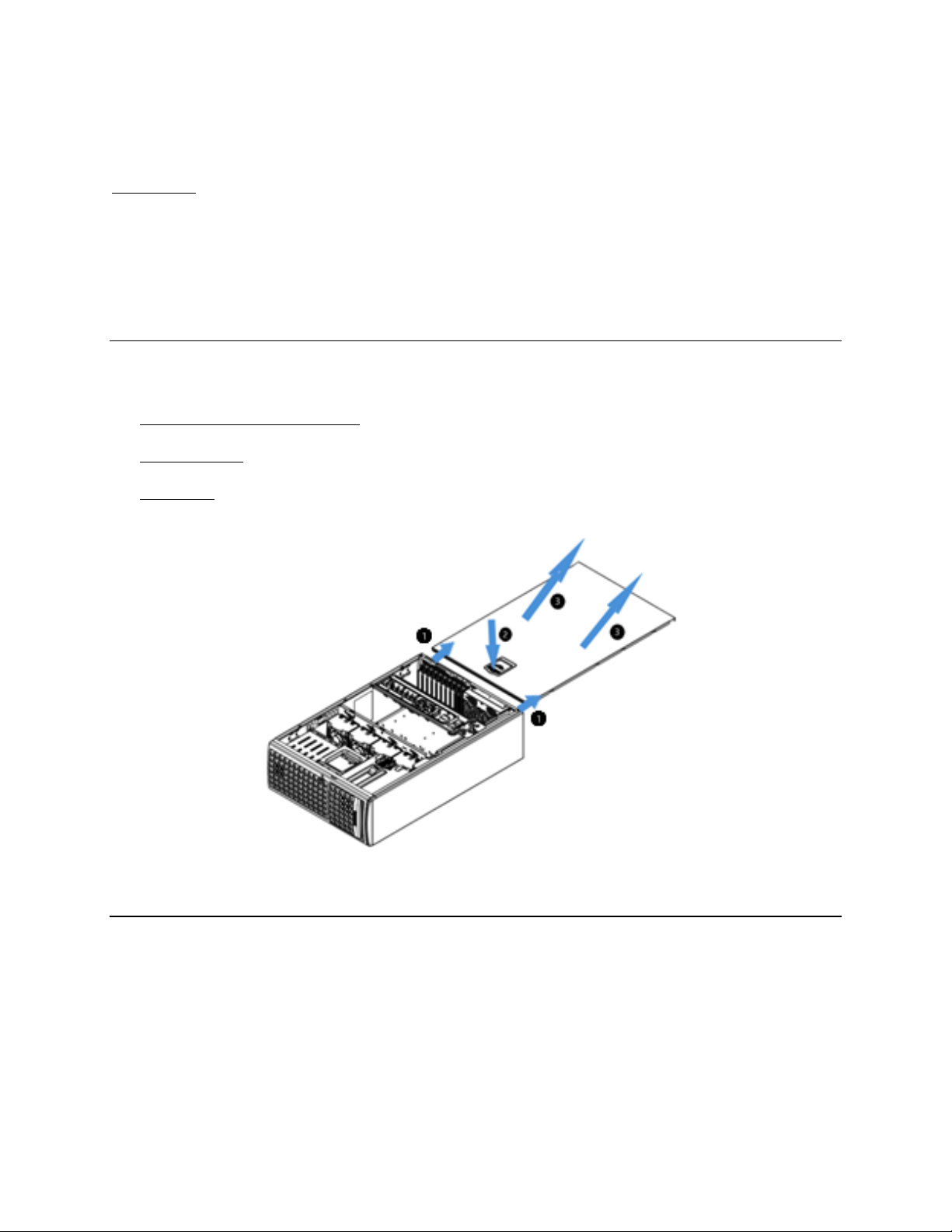

1. Chassis Cover

Type and number of fastenings:

One (1) latch and two (2) Phillips screws.

Tools required:

Screwdriver with PH2 bit.

Procedure:

Remove the two screws at the rear securing the cover to the chassis. Push down on the

button to unlock and pop the lid off the chassis. Slide the cover towards the rear of the chassis and

lift the cover from the chassis.

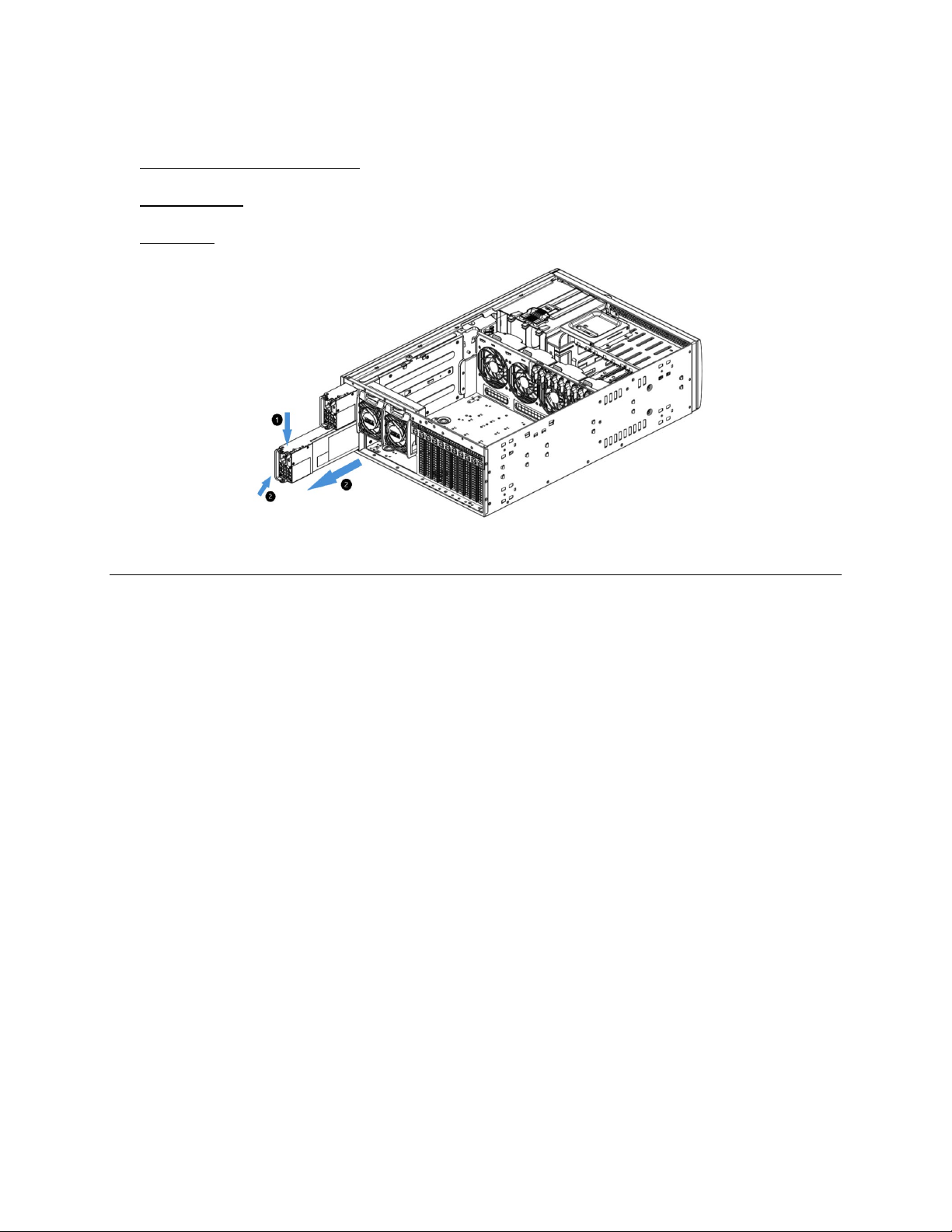

2. Power Supply

Type and number of fastenings:

One (1) latch.

Tools required:

None.

Procedure:

Unplug the power cord from the power supply. Push down on the release tab on the back

of the power supply module and pull the module straight out.

3. Processor

Type and number of fastenings:

Four (4) Phillips screws per processor.

Tools required:

Screwdriver with PH2 bit.

Procedure:

Remove the screws in the sequence of 4, then 3, then 2, then 1. Unscrew and remove

the heatsink screws, starting by loosening each a little at a time. Hold the heatsink and gently wiggle

it to loosen it from the processor. (Do not use excessive force!) Once the heatsink is loosened,

remove it from the processor. There are two levers on the LGA 2011 socket. Press the “Open 1st,”

then “Closer 1st” load lever to release the load plate from its locked position. Remove the CPU from

the socket.

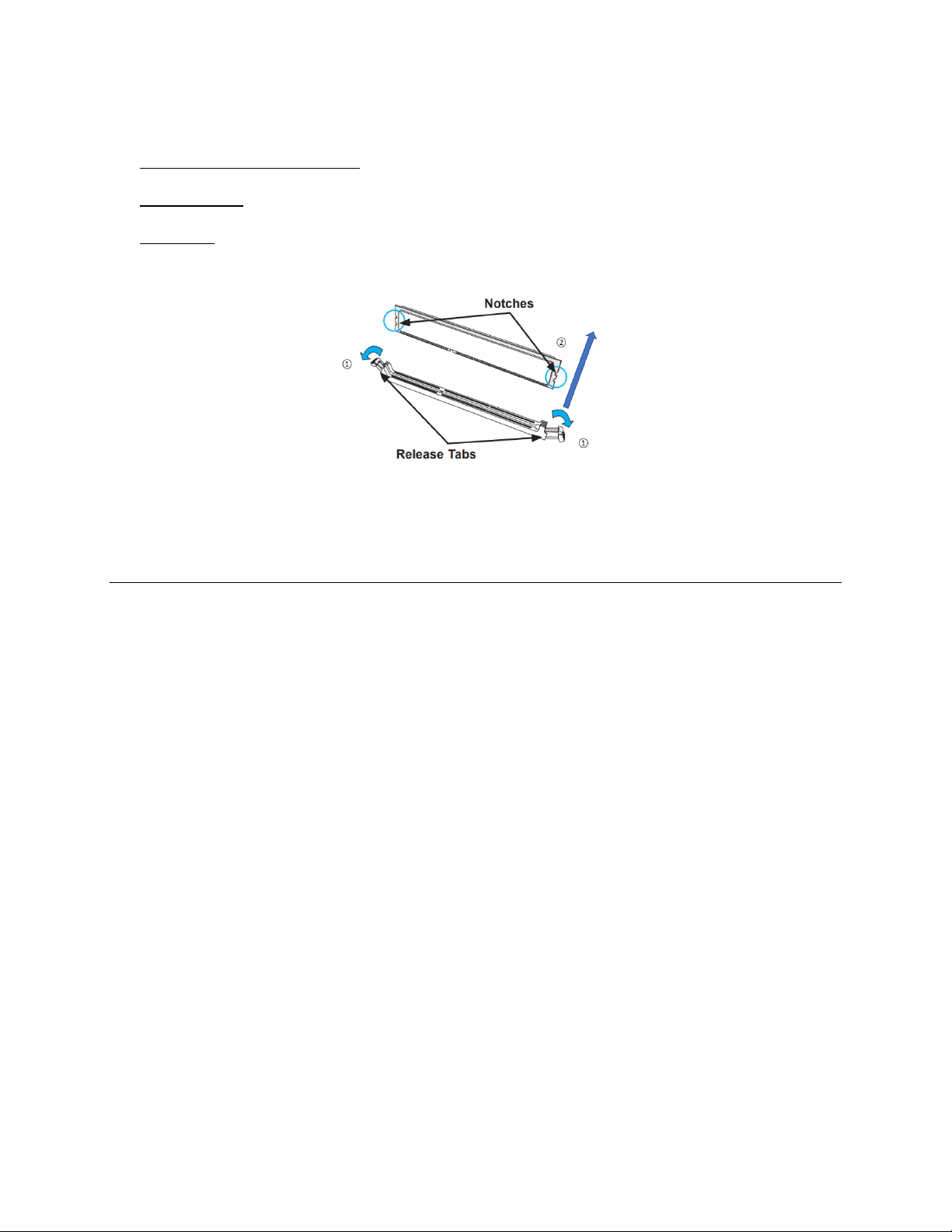

4. Memory

Type and number of fastenings:

Two (2) latches per memory module.

Tools required:

None.

Procedure:

Press both release tabs on the ends of the memory module to unlock it. Once the module

is loosened, remove it from the memory slot.

5. Expansion Card/Graphics Card

Type and number of fastenings:

One (1) or two (2) Phillips screws per add-on card or graphics card.

Tools required:

Screwdriver with PH2 bit.

Procedure:

Move the slot bracket to the upright and unlocked position. Remove the Phillips screw(s)

securing the card bracket to the chassis. Grab the card, push on the PCIe slot latch to unlock it, and

carefully lift it up to remove it from the slot.

6. Backplane

Type and number of fastenings:

Two (2) Phillips screws.

Tools required:

Screwdriver with PH2 bit.

Procedure:

Remove the two Philips screws securing the backplane to the chassis. Grab the backplane

and lift it up as shown to remove.

7. Fans

Type and number of fastenings:

One (1) fan header per fan.

Tools required:

None.

Procedure:

Disconnect the fan wiring from the fan header on the motherboard. Grab the release tab

and apply slight pressure in the indicated direction. Lift the fan in the indicated direction to remove it

from the fan tray.

(mid fan)

(rear fan)
