Supermicro SuperServer 6013P-T Manuale utente

2 Gigabit LAN ports

PCI-X/PCI card release latch

1 Low-profile PCI-X/PCI expansion slot

1 Standard PCI-X/PCI expansion slot

5. 1 Slim CD-ROM drive

4. Hot-plug SATA hard drive, ID 3

6. 1 Slim floppy drive

10.

11.

12. Reset button

13. Power SW button

1X5DPR-TG2+ Serverboard

2JD4: Gigabit LAN Enable/Disable

3JP24: SMB header

4JP35: Keylock header

5 IPMI 1.5 socket

6Super I/0

7WOL: Wake-on-LAN header

8 WOR: Wake-on-Ring header

9 USB2 port

10 JPS1: SATA 1 Enable/Disable

11 JPS2: SATA 2 Enable/Disable

12 JL1: Chassis intrusion

13 JP37: Watch dog En/Disable

14 PWR LED

15 Speaker

16 JD1: Speaker Enable (pins 6-7)

17 SATA LED

18 SATA 2 controller

19 SATA 1 controller

20 FPUSB0/1 ports

21 SATA #0 port

22 SATA #1 port

23 SATA #2 port

24 SATA #3 port

25 Chassis Fan 3

26 COM2

27 Floppy conn.

28 IDE#2 port

29 IDE#1 port

30 Overheat LED

31 CPU2 chassis fan

32 JF2: Front control panel connector

33 CPU1 chassis fan

34 JP36: Alarm reset switch

35 JP9: Power fail alarm En/Disable

36 JP8: Third power supply fail header

37 ATX power conn.

38 J15: 12V power conn.

39 CPU1 socket

40 CPU2 socket

41 Bank 1

42 Bank 2

43 Bank 3

44 MCH chip

45 Keyboard

46 Mouse

47 USB 0/1

48 COM1

49 Gigabit LAN 1

50 Gigabit LAN 2

51 PCI#2

52 PCI-X #1

53 JP38: Front side bus speed

54 JBT1: CMOS clear

55 ICH3 chip

56 P64H2

57 Intel 82546EB chip

58 JP4: VGA Enable/Disable

59 VGA port

60 ATI Rage XL 8MB PCI controller

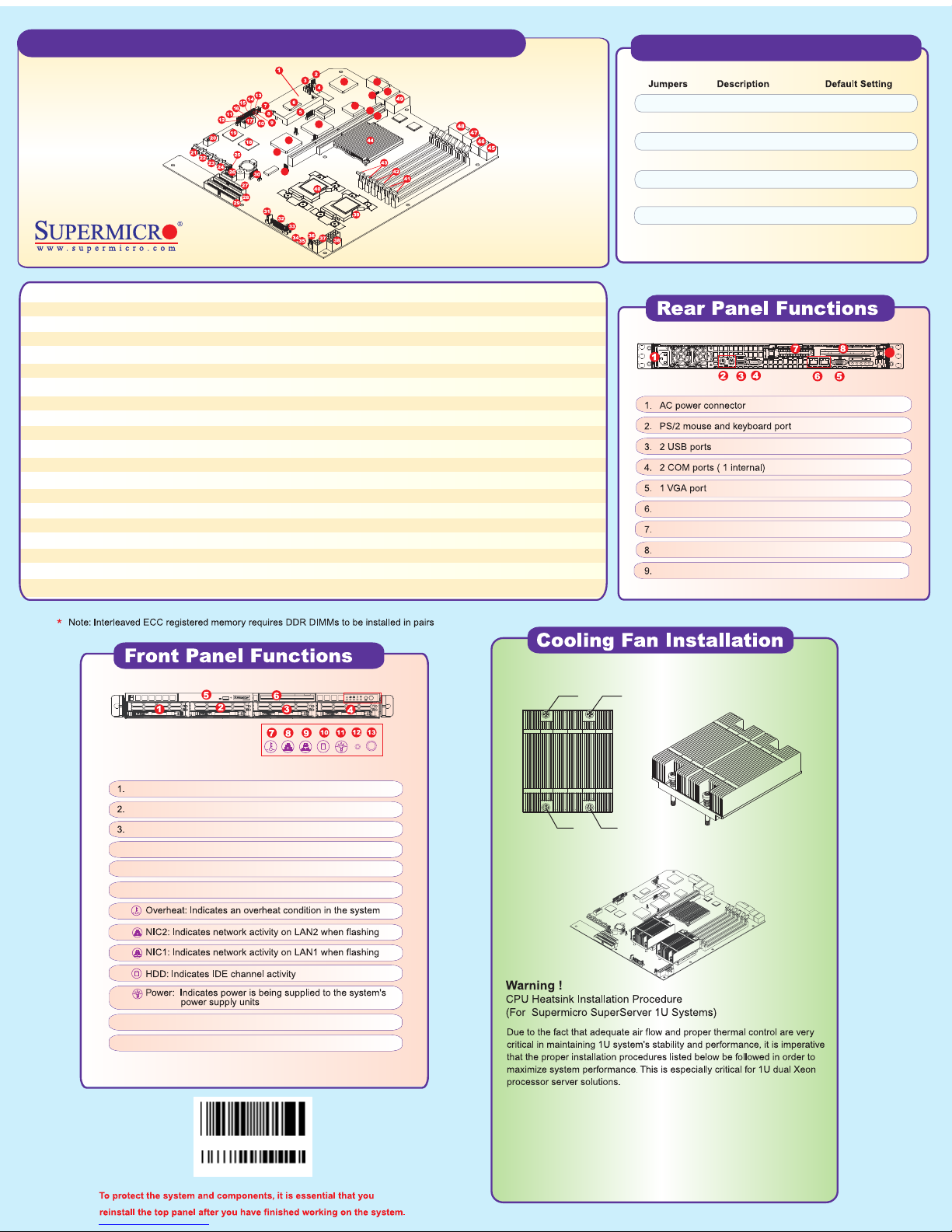

SuperServer 6013P-T Serverboard Components X5DPR-TG2+ Quick Reference

JBT1 CMOS Clear Pad

JD1 Speaker Enable (Pins 6-7) Closed (Enabled)

JD4 Gigabit LAN En/disable Pins 1-2 (Enabled)

JP4 VGA En/disable Pins 1-2 (Enabled)

JP9 Power fail alarm En/disable Open (Disabled)

JP37 Watch dog En/disable Closed (Enabled)

JP38 Front side bus speed Pins 1-2 (Auto)

JPS1, JPS2 SATA 1/2 En/Disable Pins 1-2 (Enabled)

Hot-plug SATA hard drive, ID 2

Hot-plug SATA hard drive, ID 0

Hot-plug SATA hard drive, ID 1

NO.1 SCREW NO.4 SCREW

NO.3 SCREW NO.2 SCREW Do not reuse thermal grease!!

REV 1.00

LBL-0099

1) Only those CPU heatsinks that are provided by Supermicro should be used.

2) Do not apply any thermal grease to the heatsink - the required amount has

already been applied.

3) Place the heatsink on top of the CPU so that the four mounting holes are

aligned with those on the chassis.

4) Screw in two diagonal screws (ie. the #1 and #2 screws) until just snug (do

not fully tighten), then do the same with the remaining two diagonal screws.

5) Finish by fully tightening all four screws.
