Supero Supero SAS 846 TQ BACKPLANE Manuale utente

Rev. 1.0b

SAS 846 TQ BACKPLANE

USER'S GUIDE

JP54 JP56

JP60

JP58

J22

J26

J29

J10

J12

J14

J16

J25

J23

J24

J30

J32 J8

J39

J42

J48

J46

J40

J47

J41

J38

JP108

JP47

JP26

JP115

JP78

JP69

JP116

JP117

JP52

JP96

JP95

JP37

JP10

JP13

JP46

JP48

JP109

JP110

JP86

JP64

JP63

JP62JP61

JP50

JP35

JP129

JP84

JP97

JP98

JP99

JP100

R245

JP18

D89D51D49D47D45 D36D3 D54D53

JP114

JP112

JP75

JP77 JP66

JP68

BAR CODE

+5V+12V GNDGND+5V+12V GNDGND

17 32

2-3: NO RESET

1-2: RESET

2-3: NO RESET

1-2: RESET

2-3: NO RESET

1-2: RESET

22 2320 21

18 19

16 17

14 1512 13

10 11

8 9

6 74 5

JP129:9072#3 RESET

JP35:9072#1 RESET

JP50:9072#2 RESET

BUZZER RESET

2-3:NO FAN

1-2:WITH FAN

JP61:FAN#1 SELECT

JP64:FAN#4 SELECT

JP63:FAN#3 SELECT

JP62:FAN#2 SELECT

2-3:NO FAN

1-2:WITH FAN

JP97:FAN#1 SELECT

JP98:FAN#2 SELECT

JP99:FAN#3 SELECT

JP100:FAN#4 SELECT

JP124:I2CRST#6

2-3:I2C

JP121:I2CRST#5

1-2:SGPIO

OPEN:45

1-2:50

2-3:55

JP107:OH#3 TEMP.

1-2:ID#0

2-3:ID#1

1-2:SGPIO

2-3:I2C

JP123:BP_ID#5

JP126:BP_ID#6

JP122:CTRL_ID#5

JP125:CTRL_ID#6

ACT_IN#16-23 ACT_IN#8-15

ACT_IN#0-7

JP128:I2CRST_SDOUT#6

JP127:I2CRST_SDOUT#5

1-2:SGPIO

2-3:I2C

UPGRADE#3

UPGRADE#2

UPGRADE#1

JP113:BPID_SDIN#6

JP111:BPID_SDIN#5

1-2:SGPIO

2-3:I2C

I2C#5

I2C#6 I2C#3

I2C#4

I2C#2

I2C#1

SIDEBAND#5

SIDEBAND#6

SIDEBAND#3

SIDEBAND#4 SIDEBAND#2

SIDEBAND#1

FAN#4

FAN#3

FAN#2

FAN#1

#23 #22 #21 #20

#19

#18

#17 #16

#15 #14 #13 #12

#11 #10 #9 #8

#7 #6 #5

#3 #2 #1 #0

1-2:50

OPEN:45

JP25:OH#1 TEMP.

2-3:55

JP67:BPID_SDIN#2

JP65:BPID_SDIN#1

1-2:SGPIO

2-3:I2C

1-2:SGPIO

JP87:I2CRST_SDOUT#1

JP88:I2CRST_SDOUT#2

JP86:I2CRST#2

2-3:I2C

JP83:I2CRST#1

1-2:SGPIO

JP102:BP_ID#2

1-2:ID#0

JP85:BP_ID#1

2-3:ID#1

JP84:CTRL_ID#1

JP101:CTRL_ID#2

2-3:I2C

1-2:SGPIO

JP74:BPID_SDIN#3

JP76:BPID_SDIN#4

1-2:SGPIO

2-3:I2C

JP45:OH#2 TEMP.

C2-3:55

1-2:50 C

COPEN:45

JP89:I2CRST#3

JP92:I2CRST#4

1-2:SGPIO

2-3:I2C

JP93:I2CRST_SDOUT#3

JP94:I2CRST_SDOUT#4

2-3:I2C

1-2:SGPIO

2-3:I2C

JP90:CTRL_ID#3

JP103:CTRL_ID#4

1-2:ID#0

2-3:ID#1

JP91:BP_ID#3

JP104:BP_ID#4

REV:1.01

SAS846TQ

SAS

ACT FAIL

846 TQ Backplane User's Guide

Manual Revision 1.0b

Release Date: November 27, 2007

Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not

copy or otherwise reproduce/distribute any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software, if any,

and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or

reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

iii

Safety Information and Technical Speciﬁcations

Table of Contents

SAS 846 TQ BACKPLANE

Contacting SuperMicro ..................................................................................................iv

Chapter 1 Safety Guidelines

1-1 ESD Safety Guidelines ................................................................................... 1-1

1-2 General Safety Guidelines .............................................................................. 1-1

1-3 A Note to Users ............................................................................................... 1-2

Chapter 2 Jumper Settings and Pin Deﬁnitions

2-1 Front Connectors and Jumpers ...................................................................... 2-1

Front Connectors ............................................................................................ 2-1

2-2 Front Connector and Pin Deﬁnitions ............................................................... 2-3

2-3 Front Jumper Locations and Pin Deﬁnitions ................................................... 2-5

Explanation of Jumpers .............................................................................. 2-5

Fan Jumper Settings ....................................................................................... 2-6

I2C and SGPIO Modes and Jumper Settings ................................................. 2-7

Front LED Indicators ....................................................................................... 2-8

Front Panel LEDs ............................................................................................ 2-8

2-4 Rear Connectors and LED Indicators ............................................................. 2-9

846 TQ Backplane User's Guide

Contact Information

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Paciﬁc

Address: Super Micro Computer, Taiwan

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Email: [email protected] (Technical Support)

Tel: 886-2-8228-1366, ext.132 or 139

1-1

Safety Information and Technical Speciﬁcations

Chapter 1

Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

1-1 ESD Safety Guidelines

Electric Static Discharge (ESD) can damage electronic components. To prevent

damage to your system, it is important to handle it very carefully. The following

measures are generally sufﬁcient to protect your equipment from ESD.

Use a grounded wrist strap designed to prevent static discharge.

Touch a grounded metal object before removing a component from the antistatic

bag.

Handle the RAID card by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

When handling chips or modules, avoid touching their pins.

Put the card and peripherals back into their antistatic bags when not in use.

1-2 General Safety Guidelines

Always disconnect power cables before installing or removing any components

from the computer, including the backplane.

Disconnect the power cable before installing or removing any cables from the

backplane.

Make sure that the backplane is securely and properly installed on the mother-

board to prevent damage to the system due to power shortage.

•

1-2

SAS 846 TQ

1-3 A Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB

Revision available at the time of publishing. The card you have received may or

may not look exactly the same as the graphics shown in this manual.

•

2-1

Safety Information and Technical Speciﬁcations

JP54 JP56

JP60

JP58

J22

J26

J29

J10

J12

J14

J16

J25

J23

J24

J30

J32 J8

J39

J42

J48

J46

J40

J47

J41

J38

JP108

JP47

JP26

JP115

JP78

JP69

JP116

JP117

JP52

JP96

JP95

JP37

JP10

JP13

JP46

JP48

JP109

JP110

JP86

JP64

JP63

JP62JP61

JP50

JP35

JP129

JP84

JP97

JP98

JP99

JP100

R245

JP18

D89D51D49D47D45 D36D3 D54D53

JP114

JP112

JP75

JP77 JP66

JP68

BAR CODE

+5V+12V GNDGND

17 32

2-3: NO RESET

1-2: RESET

2-3: NO RESET

1-2: RESET

2-3: NO RESET

1-2: RESET

22 2320 21

18 19

16 17

14 1512 13

10 11

8 9

6 74 5

JP129:9072#3 RESET

JP35:9072#1 RESET

JP50:9072#2 RESET

BUZZER RESET

2-3:NO FAN

1-2:WITH FAN

JP61:FAN#1 SELECT

JP64:FAN#4 SELECT

JP63:FAN#3 SELECT

JP62:FAN#2 SELECT

2-3:NO FAN

1-2:WITH FAN

JP97:FAN#1 SELECT

JP98:FAN#2 SELECT

JP99:FAN#3 SELECT

JP100:FAN#4 SELECT

JP124:I2CRST#6

2-3:I2C

JP121:I2CRST#5

1-2:SGPIO

OPEN:45

1-2:50

2-3:55

JP107:OH#3 TEMP.

1-2:ID#0

2-3:ID#1

1-2:SGPIO

2-3:I2C

JP123:BP_ID#5

JP126:BP_ID#6

JP122:CTRL_ID#5

JP125:CTRL_ID#6

ACT_IN#16-23 ACT_IN#8-15

ACT_IN#0-7

JP128:I2CRST_SDOUT#6

JP127:I2CRST_SDOUT#5

1-2:SGPIO

2-3:I2C

UPGRADE#3

UPGRADE#2

UPGRADE#1

JP113:BPID_SDIN#6

JP111:BPID_SDIN#5

1-2:SGPIO

2-3:I2C

I2C#5

I2C#6 I2C#3

I2C#4

I2C#2

I2C#1

SIDEBAND#5

SIDEBAND#6

SIDEBAND#3

SIDEBAND#4 SIDEBAND#2

SIDEBAND#1

FAN#4

FAN#3

FAN#2

FAN#1

#23 #22 #21 #20

#19

#18

#17 #16

#15 #14 #13 #12

#11 #10 #9 #8

#7 #6 #5

#3 #2 #1 #0

1-2:50

OPEN:45

JP25:OH#1 TEMP.

2-3:55

JP67:BPID_SDIN#2

JP65:BPID_SDIN#1

1-2:SGPIO

2-3:I2C

1-2:SGPIO

JP87:I2CRST_SDOUT#1

JP88:I2CRST_SDOUT#2

JP86:I2CRST#2

2-3:I2C

JP83:I2CRST#1

1-2:SGPIO

JP102:BP_ID#2

1-2:ID#0

JP85:BP_ID#1

2-3:ID#1

JP84:CTRL_ID#1

JP101:CTRL_ID#2

2-3:I2C

1-2:SGPIO

JP74:BPID_SDIN#3

JP76:BPID_SDIN#4

1-2:SGPIO

2-3:I2C

JP45:OH#2 TEMP.

C2-3:55

1-2:50 C

COPEN:45

JP89:I2CRST#3

JP92:I2CRST#4

1-2:SGPIO

2-3:I2C

JP93:I2CRST_SDOUT#3

JP94:I2CRST_SDOUT#4

2-3:I2C

1-2:SGPIO

2-3:I2C

JP90:CTRL_ID#3

JP103:CTRL_ID#4

1-2:ID#0

2-3:ID#1

JP91:BP_ID#3

JP104:BP_ID#4

REV:1.01

SAS846TQ

SAS

ACT FAIL

JP54 JP56

JP60

JP58

J22

J26

J29

J10

J12

J14

J16

J25

J23

J24

J30

J32 J8

J39

J42

J48

J46

J40

J47

J41

J38

JP108

JP47

JP26

JP115

JP78

JP69

JP116

JP117

JP52

JP96

JP95

JP37

JP10

JP13

JP46

JP48

JP109

JP110

JP86

JP64

JP63

JP62JP61

JP50

JP35

JP129

JP84

JP97

JP98

JP99

JP100

R245

JP18

D89D51D49D47D45 D36D3 D54D53

JP114

JP112

JP75

JP77 JP66

JP68

BAR CODE

+5V+12V GNDGND

17 32

2-3: NO RESET

1-2: RESET

2-3: NO RESET

1-2: RESET

2-3: NO RESET

1-2: RESET

22 2320 21

18 19

16 17

14 1512 13

10 11

8 9

6 74 5

JP129:9072#3 RESET

JP35:9072#1 RESET

JP50:9072#2 RESET

BUZZER RESET

2-3:NO FAN

1-2:WITH FAN

JP61:FAN#1 SELECT

JP64:FAN#4 SELECT

JP63:FAN#3 SELECT

JP62:FAN#2 SELECT

2-3:NO FAN

1-2:WITH FAN

JP97:FAN#1 SELECT

JP98:FAN#2 SELECT

JP99:FAN#3 SELECT

JP100:FAN#4 SELECT

JP124:I2CRST#6

2-3:I2C

JP121:I2CRST#5

1-2:SGPIO

OPEN:45

1-2:50

2-3:55

JP107:OH#3 TEMP.

1-2:ID#0

2-3:ID#1

1-2:SGPIO

2-3:I2C

JP123:BP_ID#5

JP126:BP_ID#6

JP122:CTRL_ID#5

JP125:CTRL_ID#6

ACT_IN#16-23 ACT_IN#8-15

ACT_IN#0-7

JP128:I2CRST_SDOUT#6

JP127:I2CRST_SDOUT#5

1-2:SGPIO

2-3:I2C

UPGRADE#3

UPGRADE#2

UPGRADE#1

JP113:BPID_SDIN#6

JP111:BPID_SDIN#5

1-2:SGPIO

2-3:I2C

I2C#5

I2C#6 I2C#3

I2C#4

I2C#2

I2C#1

SIDEBAND#5

SIDEBAND#6

SIDEBAND#3

SIDEBAND#4 SIDEBAND#2

SIDEBAND#1

FAN#4

FAN#3

FAN#2

FAN#1

#23 #22 #21 #20

#19

#18

#17 #16

#15 #14 #13 #12

#11 #10 #9 #8

#7 #6 #5

#3 #2 #1 #0

1-2:50

OPEN:45

JP25:OH#1 TEMP.

2-3:55

JP67:BPID_SDIN#2

JP65:BPID_SDIN#1

1-2:SGPIO

2-3:I2C

1-2:SGPIO

JP87:I2CRST_SDOUT#1

JP88:I2CRST_SDOUT#2

JP86:I2CRST#2

2-3:I2C

JP83:I2CRST#1

1-2:SGPIO

JP102:BP_ID#2

1-2:ID#0

JP85:BP_ID#1

2-3:ID#1

JP84:CTRL_ID#1

JP101:CTRL_ID#2

2-3:I2C

1-2:SGPIO

JP74:BPID_SDIN#3

JP76:BPID_SDIN#4

1-2:SGPIO

2-3:I2C

JP45:OH#2 TEMP.

C2-3:55

1-2:50 C

COPEN:45

JP89:I2CRST#3

JP92:I2CRST#4

1-2:SGPIO

2-3:I2C

JP93:I2CRST_SDOUT#3

JP94:I2CRST_SDOUT#4

2-3:I2C

1-2:SGPIO

2-3:I2C

JP90:CTRL_ID#3

JP103:CTRL_ID#4

1-2:ID#0

2-3:ID#1

JP91:BP_ID#3

JP104:BP_ID#4

REV:1.01

SAS846TQ

SAS

ACT FAIL

Chapter 2

Jumper Settings and Pin Deﬁnitions

2-1 Front Connectors and Jumpers

Front Connectors

Chip: MG 9072

Upgrade Connectors: JP69, JP78

and JP115

ACT_IN: JP26, JP47, and JP108

I2C Connector #1 (JP37) and #2

(JP95)

I2C Connector #3 (JP52) and #4

(JP96)

I2C Connector #5 (JP116) and #6

(JP117)

SideBand Connector #1 (JP66)

and #2 (JP68)

SideBand Connector #3 (JP75)

and #4 (JP77)

SideBand Connector #5 (JP112)

and #6 (JP114)

Power Connectors (4-

pin): JP10, JP13, JP46,

JP48, JP109, and JP110

10.

2-2

SAS 846 TQ

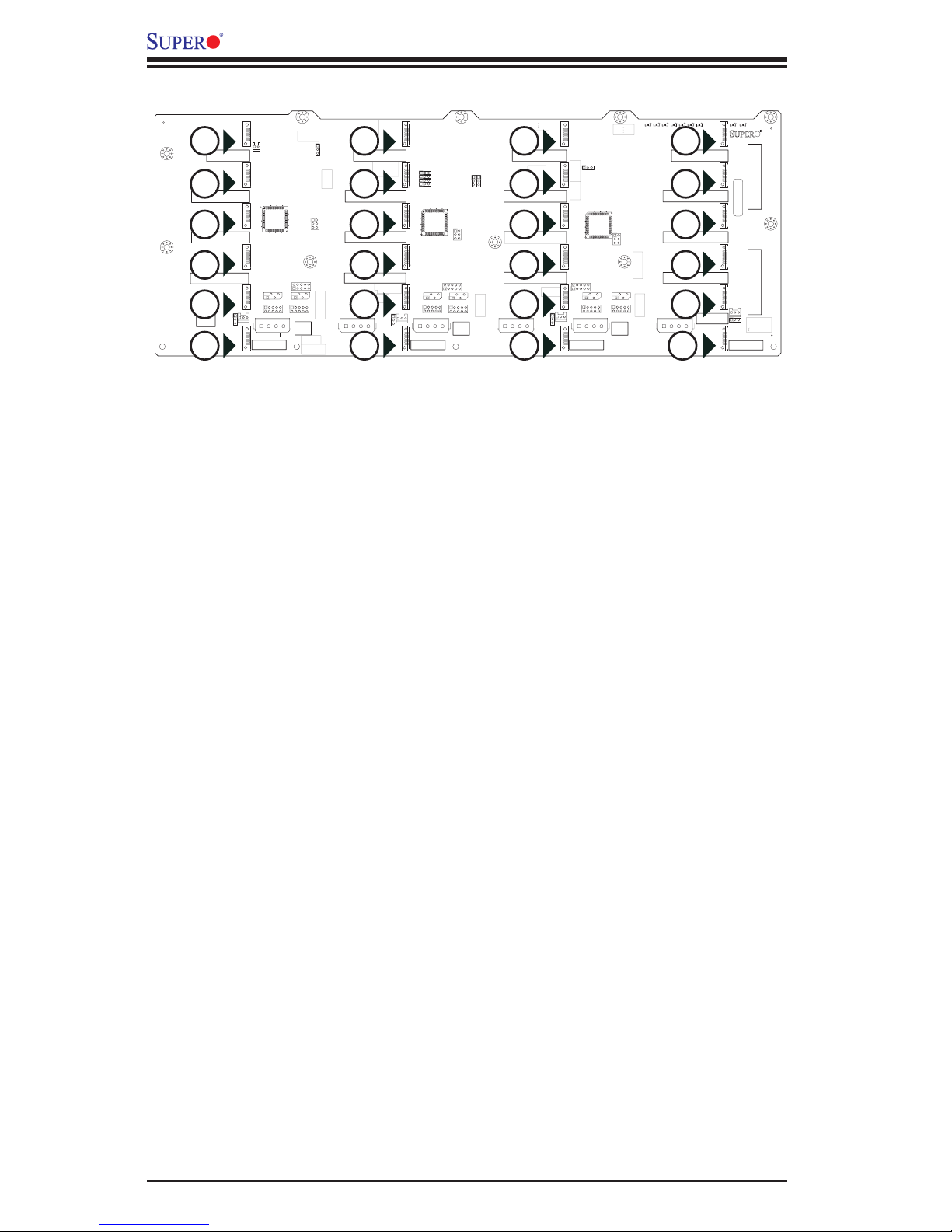

SAS Port #0 J5

SAS Port #1 J14

SAS Port #2 J26

SAS Port #3 J40

SAS Port #4 J6

SAS Port #5 J16

SAS Port #6 J29

SAS Port #7 J41

SAS Port #8 J7

SAS Port #9 J22

SAS Port #10 J30

SAS Port #11 J42

SAS Port #12 J8

SAS Port #13 J23

SAS Port #14 J32

SAS Port #15 J46

SAS Port #16 J10

SAS Port #17 J24

SAS Port #18 J38

SAS Port #19 J47

SAS Port #20 J12

SAS Port #21 J25

SAS Port #22 J39

SAS Port #23 J48

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

JP54 JP56

JP60

JP58

J22

J26

J29

J10

J12

J14

J16

J25

J23

J24

J30

J32 J8

J39

J42

J48

J46

J40

J47

J41

J38

JP108

JP47

JP26

JP115

JP78

JP69

JP116

JP117

JP52

JP96

JP95

JP37

JP10

JP13

JP46

JP48

JP109

JP110

JP86

JP64

JP63

JP62JP61

JP50

JP35

JP129

JP84

JP97

JP98

JP99

JP100

R245

JP18

D89D51D49D47D45 D36D3 D54D53

JP114

JP112

JP75

JP77 JP66

JP68

BAR CODE

+5V+12V GNDGND

17 32

2-3: NO RESET

1-2: RESET

2-3: NO RESET

1-2: RESET

2-3: NO RESET

1-2: RESET

22 2320 21

18 19

16 17

14 1512 13

10 11

8 9

6 74 5

JP129:9072#3 RESET

JP35:9072#1 RESET

JP50:9072#2 RESET

BUZZER RESET

2-3:NO FAN

1-2:WITH FAN

JP61:FAN#1 SELECT

JP64:FAN#4 SELECT

JP63:FAN#3 SELECT

JP62:FAN#2 SELECT

2-3:NO FAN

1-2:WITH FAN

JP97:FAN#1 SELECT

JP98:FAN#2 SELECT

JP99:FAN#3 SELECT

JP100:FAN#4 SELECT

JP124:I2CRST#6

2-3:I2C

JP121:I2CRST#5

1-2:SGPIO

OPEN:45

1-2:50

2-3:55

JP107:OH#3 TEMP.

1-2:ID#0

2-3:ID#1

1-2:SGPIO

2-3:I2C

JP123:BP_ID#5

JP126:BP_ID#6

JP122:CTRL_ID#5

JP125:CTRL_ID#6

ACT_IN#16-23 ACT_IN#8-15

ACT_IN#0-7

JP128:I2CRST_SDOUT#6

JP127:I2CRST_SDOUT#5

1-2:SGPIO

2-3:I2C

UPGRADE#3

UPGRADE#2

UPGRADE#1

JP113:BPID_SDIN#6

JP111:BPID_SDIN#5

1-2:SGPIO

2-3:I2C

I2C#5

I2C#6 I2C#3

I2C#4

I2C#2

I2C#1

SIDEBAND#5

SIDEBAND#6

SIDEBAND#3

SIDEBAND#4 SIDEBAND#2

SIDEBAND#1

FAN#4

FAN#3

FAN#2

FAN#1

#23 #22 #21 #20

#19

#18

#17 #16

#15 #14 #13 #12

#11 #10 #9 #8

#7 #6 #5

#3 #2 #1 #0

1-2:50

OPEN:45

JP25:OH#1 TEMP.

2-3:55

JP67:BPID_SDIN#2

JP65:BPID_SDIN#1

1-2:SGPIO

2-3:I2C

1-2:SGPIO

JP87:I2CRST_SDOUT#1

JP88:I2CRST_SDOUT#2

JP86:I2CRST#2

2-3:I2C

JP83:I2CRST#1

1-2:SGPIO

JP102:BP_ID#2

1-2:ID#0

JP85:BP_ID#1

2-3:ID#1

JP84:CTRL_ID#1

JP101:CTRL_ID#2

2-3:I2C

1-2:SGPIO

JP74:BPID_SDIN#3

JP76:BPID_SDIN#4

1-2:SGPIO

2-3:I2C

JP45:OH#2 TEMP.

C2-3:55

1-2:50 C

COPEN:45

JP89:I2CRST#3

JP92:I2CRST#4

1-2:SGPIO

2-3:I2C

JP93:I2CRST_SDOUT#3

JP94:I2CRST_SDOUT#4

2-3:I2C

1-2:SGPIO

2-3:I2C

JP90:CTRL_ID#3

JP103:CTRL_ID#4

1-2:ID#0

2-3:ID#1

JP91:BP_ID#3

JP104:BP_ID#4

REV:1.01

SAS846TQ

SAS

ACT FAIL

1314

22 21 20 19

242526

2728

30 29

313234 33

2-3

Safety Information and Technical Speciﬁcations

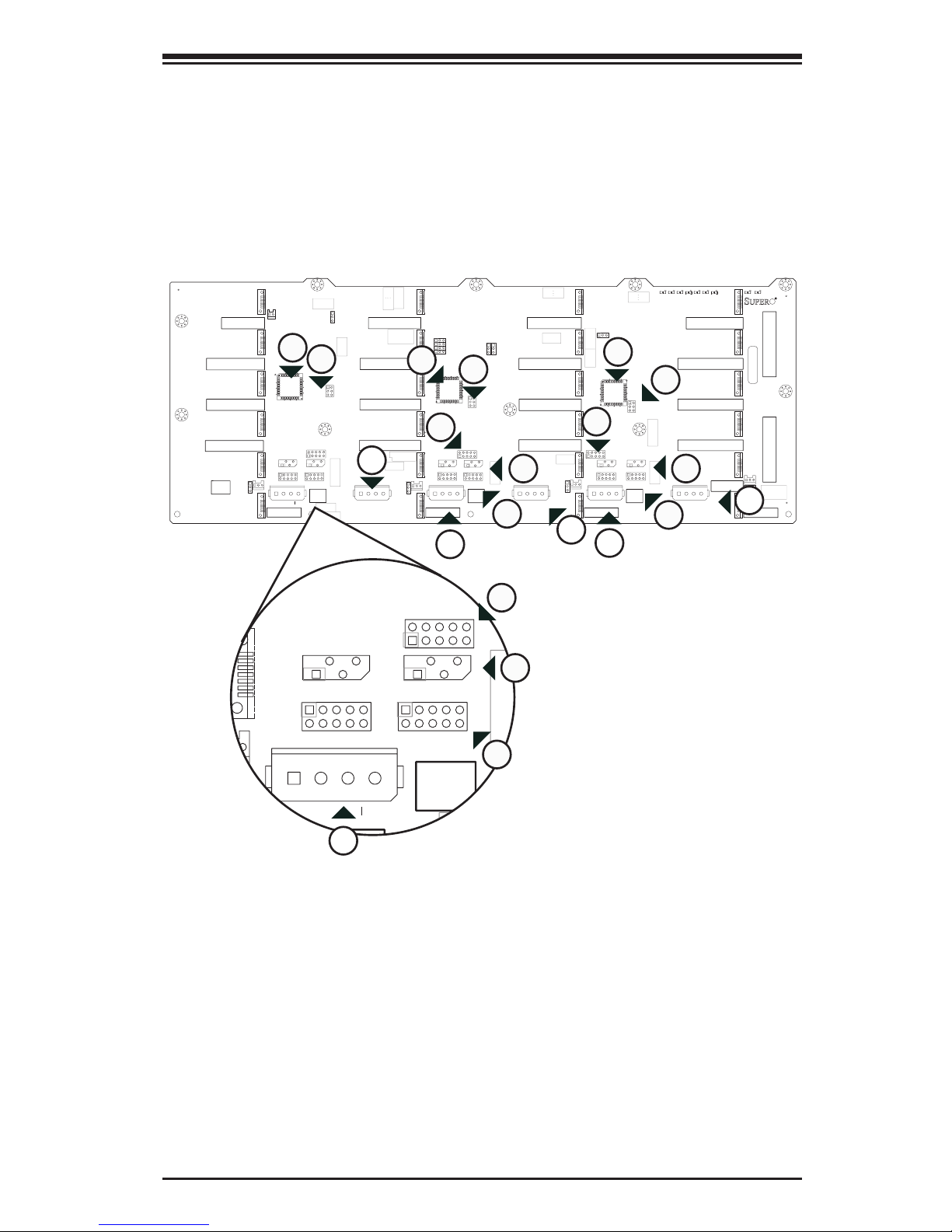

2-2 Front Connector and Pin Deﬁnitions

1. MG9072 Chip

The MG9072 is an enclosure management

chip that supports the SES-2 controller and

SES-2 protocols.

2. Upgrade Connectors

The upgrade connectors are designated JP69,

JP78, and JP115 and are used for manufactur-

er's diagnostic purposes only.

3. Activity LED Header

The activity LED header, designated JP26,

JP47 and JP108, is used to indicate the activ-

ity status of each SAS drive. The Activity LED

Header is located on the front panel. For the

Activity LED Header to work properly, connect

using a 10-pin LED cable.

4./5./6. I2C Connectors

The I2C Connectors, designated JP37, JP95,

JP52, JP96, JP116, and JP117, are used to

monitor HDD activity and status. See the table

on the right for pin deﬁnitions.

I2C Connector

Pin Deﬁnitions

(JP37, JP95, JP52, JP96,

JP116, and JP117)

Pin# Deﬁnition

1 Data

2 Ground

3 Clock

4 No Connection

2-4

SAS 846 TQ

Backplane

Main Power

4-Pin Connector

(JP10, JP13, JP46,

and JP48)

Pin# Deﬁnition

1+12V

2 and 3 Ground

4+5V

10. Backplane Main Power Connectors

The 4-pin connectors, designated JP10, JP13,

JP46, JP48, JP109, and JP110, provide power

to the backplane. See the table on the right

for pin deﬁnitions.

11 - 34. SAS Ports

The SAS ports are used to connect the SAS

drive cables. The 24 ports are designated #0

- #23. Each port is also compatible with SATA

drives.

7./8./9./ Sideband Headers

The sideband headers are designated JP66,

JP68, JP75, JP77, JP112, and JP114. For

SES-2 to work properly, you must connect an

8-pin sideband cable. See the table to the right

for pin deﬁnitions.

NOTE: SGPIO is the default setting for this

backplane.

Sideband Headers

(JP66, JP68, JP75, JP77,

JP112 and JP114)

Pin # Deﬁnition Pin # Deﬁnition

2SGPIO:

SDIN

I2C:

Backplane

Addressing

(SB5)

1 Controller ID

(SB6)

4SGPIO:

SDOUT

I2C: Reset

(SB4)

3 GND (SB2)

6 GND (SB3) 5 SGPIO:

SLOAD

I2C:SDA (SB1)

8 Backplane

ID (SB7)

7SGPIO:

SCLOCK

I2C:SCL (SB0)

10 No Connec-

tion

9 No Connection

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Supero Hardware per computer

Supero

Supero Supero SAS-825TQ Manuale utente

Supero

Supero Supero SAS2-847EL BACKPLANE Manuale utente

Supero

Supero AOC-SIMLC Manuale utente

Supero

Supero AOC-CIBQ-M1 Manuale utente

Supero

Supero X10DGO-T Manuale utente

Supero

Supero SAS-216EL1/EL2 Manuale utente

Supero

Supero SAS 808TQ Manuale utente

Supero

Supero AOC-SIMSO+ Manuale utente

Supero

Supero Supero BPN-SAS-823TQ Manuale utente

Supero

Supero AOC-1UIPMI-B Manuale utente

Supero

Supero SAS-216A Manuale utente

Supero

Supero SAS-747TQ BACKPLANE Manuale utente

Supero

Supero AOC-SGP-i4 Manuale utente

Supero

Supero Supero BPN-SATA-933 BACKPLANE Manuale utente

Supero

Supero SAS2-836EL Manuale utente

Supero

Supero AOC-UG-i4 Manuale utente

Supero

Supero AOC-SIMLC-HTC Manuale utente

Supero

Supero SAS 822TQ BACKPLANE Manuale utente

Supero

Supero AOC-USAS-L4i Manuale utente

Supero

Supero BPN-SAS3-213A Manuale utente

Supero

Supero CSE-SATA-813L Manuale utente

Supero

Supero BPN-SAS2-216EL1 Manuale utente

Supero

Supero SAS 933TQ Manuale utente

Supero

Supero BPN-SAS3-827HQ Backplane Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
