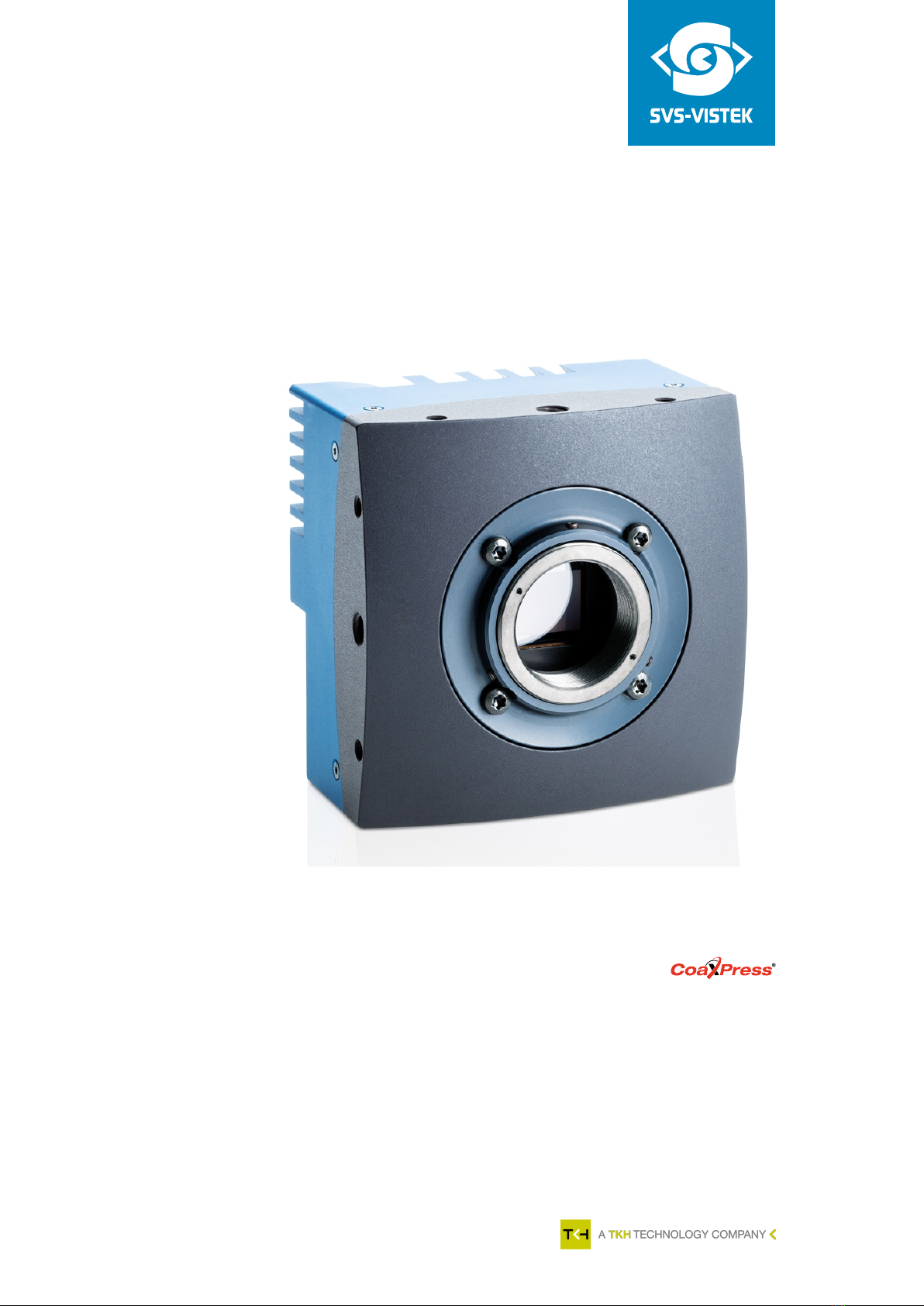

SVS-Vistek CoaXPress EoSens 4CXP Manuale utente

EoSens® 4CXP

User Guide

Content

1Before you start 4

1.1 About this manual 4

1.1.1 Tips, remarks, and notes 4

1.1.2 Registered trademarks 4

1.1.3 Conformity and use 4

1.1.4 Supplements 5

1.2 Warranty and non-warranty clause 6

1.3 Support 6

2Introduction 7

2.1 Intended use 7

2.2 Scope of delivery 7

2.3 Optional accessories 7

2.4 System requirements 8

3The camera 9

3.1 Camera description 9

3.2 Operating temperature 10

3.3 Additional cooling 10

3.4 Interfaces of the camera 11

3.5 Status LED 12

4First steps 13

4.1 Connecting a frame grabber 13

4.2 Connecting an external power supply or I/O signals 14

4.3 Connecting camera and image processing system 16

4.4 The power-up profile 17

4.5 Cleaning sensor and lens 17

4.6 Updating the camera firmware 17

5Technical data 19

5.1 Camera specifications 19

5.2 Sensor specifications 20

5.3 Resolution and frame rates 20

5.4 Camera dimensions 20

5.5 Spectral response 22

5.5.1 Monochrome and color 22

6Appendix 24

Declaration of Conformity 25

1 Before you start

1.1 About this manual

This manual contains helpful information to install and operate the described cam-

era. It has been produced with care. Nevertheless, information might be erroneous or

incomplete. Mikrotron GmbH cannot be held responsible for any problems resulting

from incomplete or erroneous information.

In case you detect errors or need further information, please inform us via mail:

[email protected] or

Call +49- 89-7263-4200

We highly recommend to read this manual carefully.

NOTICE This manual is subject to change without notice.

It is intended for staff with technical qualifications who have been specially trained

and have the appropriate knowledge in the field of automation technology, electrical

and optical devices.

INFO Keep this manual for future use.

1.1.1 Tips, remarks, and notes

This manual contains tips and notes that help to avoid data loss or camera damage.

They are emphasized as follows:

INFO Provides information that may help to improve camera handling or avoid data loss.

NOTICE Provides information to avoid damage to the system.

1.1.2 Registered trademarks

In this manual the following registered trademarks may be used:

lMotionBLITZ®

lImageBLITZ®

lEoSens®

lGenICam®

lMicrosoft® and Windows®

lIntel®

Throughout the manual, these trademarks are not specifically marked as registered

trademarks. This in no way implies that these trademarks can be used in another con-

text without the trademark sign.

1.1.3 Conformity and use

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These requirements are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment.

1 Before you start 4

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions given in this guide, may cause

harmful interference to radio communications. Operation of this equipment in a res-

idential area is likely to cause harmful interference in which case the user will have to

correct the interference at its own expense.

NOTICE You are herewith cautioned that any changes or modifications not expressly

approved in this description could void your authority to operate this equipment.

制造说明：

此设备的生产与测试依照FCC条例第15条条例，符合A类电子设备标准。产品提

供在商用使用环境中的合理保护，以防止使用过程中可能涉及到的损害。

此设备会产生、使用并可发射出无线电波，如果未按照本手册中所述安装和使

用，可能会对无线通信设备产生干扰。如本设备在居民区操作出现干扰等情

况，用户需要自费处理。

备注：请注意，如未按照此使用说明操作而自行更改设备，那么您将无权使用

本设备。

規制適合宣言とご使用について(米国FCC)

この機器は、FCC規則のパート15に定められたクラスAデジタル装置に関する規制

要件に基づいて所定の試験が実施され、その適合が認証されています。これらの

規制要件は、商業環境において機器を使用する際、有害な干渉に対する妥当

な保護を提供するために設けられています。この機器は、無線周波数エネルギー

を生成かつ利用するとともに、放射することもあります。このリファレンスガイドの指

示に従って設置および使用が行われない場合は、無線通信に有害な干渉を引き

起こす恐れがあります。この機器を住宅地で利用すると有害な干渉を起こすこと

もあり、その場合、使用者は自己負担において適切な対策を講じる必要がありま

す。

注意事項：このリファレンスガイドに明示的に承認していない変更や修正を行った

場合には、本製品を使用する権利が無効となることがあります。

1.1.4 Supplements

For customers in Canada

This apparatus complies with the Class A limits for radio noise emissions set out in

Radio Interference Regulations.

Pour les utilisateurs au Canada

Cet appareil est conforme aux normes Classe A pour bruits radioélectriques, spé-

cifiées dans le Règlement sur le brouillage radioélectrique.

1 Before you start 5

Life support applications

The products described in this manual are not designed for use in life support appli-

ances or devices and systems where malfunction of these products can reasonably be

expected to result in personal injury.

NOTICE Mikrotron customers using or selling these products for use in such applications do

so at their own risk and agree to fully indemnify Mikrotron for any damages res-

ulting from such improper use or sale.

1.2 Warranty and non-warranty clause

Warranty is described in §8 of our General Terms and Conditions which can be

downloaded on the Mikrotron web page (www.mikrotron.de/en/terms.html).

In addition, take the following non-warranty clauses into account.

NOTICE The camera does not contain serviceable parts. Do not open the body of the cam-

era. If the camera has been opened, the warranty will be void.

NOTICE The camera has to be used with a supply voltage according to the camera’s spe-

cification. Connecting a lower or higher supply voltage, AC voltage, reversal polar-

ity or using wrong pins of the power connector may damage the camera. Doing so

will void warranty.

Our warranty does not protect against accidental damage, loss, or acts of nature.

INFO Mikrotron cannot be held responsible for the loss of data. We recommend a backup

plan.

1.3 Support

1. In case of support or a warranty claim, make a note of the camera type and its

serial number (S/N). You find all necessary information on the identification

plate of the camera.

2. Contact us in one of the following ways:

oContact us via email: [email protected]. Our support team will guide

you through the process.

oOr visit our support website

www.mikrotron.de/en/services/support.html

and fill out the form. You will receive an automatic reply from our ticket sys-

tem.

1 Before you start 6

2 Introduction

2.1 Intended use

The camera EoSens® 4CXP belongs to the product class of so-called high-speed

machine vision (MV) cameras that are integrated into test or measurement systems.

High-speed MV cameras are designed to capture images with high frame rate for

various purposes in an industrial or scientific environment to deliver image data for

further analysis. The images are transmitted to a frame grabber on a connected com-

puter where they can be evaluated with the help of a software.

Other uses

Any other use is regarded as unintended use and leads to the loss of guarantee and

liabilities. Contact the manufacturer for other uses.

These products are designed for industrial applications only. The cameras are not

designed for life support systems where malfunction of the products might result in

any risk of personal harm or injury.

2.2 Scope of delivery

The following components are part of delivery. Before installing the camera, check if

the delivery is complete:

lCamera as ordered

lF-mount or C-mount lens adapter - as ordered

lUSB storage device with

oVCAM2 software

oGenICam XML file

oProduct documentation

NOTICE Check if the delivery is complete before installing the camera.

INFO The firmware can be updated remotely via a special updating software. For firmware

updates, inform Mikrotron via email: [email protected].

2.3 Optional accessories

Lenses

Only lenses for industrial purpose are suitable. To find lenses or other accessories,

visit www.mikrotron.de/en.

2 Introduction 7

Cables

lThe four bundle cable KKRDDINDINxx/6Gx4 with DIN 1.0/2.3 connector at

both ends (4x) is available in lengths of 5m, 10m, 15m, or 20m. It is used to

connect the frame grabber and camera when both are equipped with DIN

1.0/2.3 connectors.

lThe cable KKRDDINBNCxx/6Gx4 with DIN 1.0/2.3 at one end and 4 BNC con-

nectors at the other is available lengths of 5m, 10m, 15,m 20m, or 25m. It is

used to connect a frame grabber with BNC sockets with the camera.

INFO The triangle on the connector indicates connection number 1.

Power supply

If you do not use power over CXP (PoCXP), you need an external power supply unit,

e.g.:

lNTCAM132X (12 V/2.5A) with 12 pin Hirose connector (HR10A-10P-12S(73))

and 5m cable

2.4 System requirements

The PC or image processing system that is connected with the camera must be

equipped with:

lAn image processing system, i.e. PC and operating system according to the

requirements of the frame grabber

lA fully installed frame grabber with device driver and software

lCoaXPress cable with DIN 1.0/2.3 connector

lOptional an external power supply (NTCAM132x or NTCAM13xx)

INFO All cables, connectors and the frame grabber must be CoaXPress V1.1 compliant.

2 Introduction 8

3 The camera

3.1 Camera description

All cameras of the EoSens CXP family are CoaXPress compliant. The high-speed

CMOS cameras come with a 4.0Megapixel sensor of 2336 x 1728 (H x V). They are

widely configurable and scalable to fit your needs and are available in monochrome

and color (Bayer filter).

The CoaXPress high speed interface technology allows transfer rates of up to 6.25

Gb/s. The camera supports CoaXPress Link Speeds from 3.125Gb/s to 6.25Gb/s.

In addition the camera offers a very high frame rate of over 563 fps at full resolution.

By defining a Region of Interest (ROI) the frame rate can be increased to several thou-

sand frames per second. An important feature of CXP cameras is the high photo sens-

itivity for low-light conditions.

The camera electronic is enclosed in a compact and solid full metal housing robust

enough to comply with the requirements in heavy industrial surroundings. Shielded

coaxial cables as recommended by the CoaXPress standard will support this.

CXP cameras can be equipped with standard C-mount or F-mount lenses made for

industrial purpose.

The color and monochrome cameras EoSens® 4CXP are supplied with the following

features:

l3x3 image smoothing filter

lAnalog gain

lDecimation mode (subsampling)

lFirmware update in the field

lFPN correction

lGamma correction (monochrome only)

lLUT

lPixel reset mode

lPRNU correction (Photo Response Non-Uniformity correction)

lSequencer mode - if ordered

lSkipping

lTrigger debouncer

l3 user profiles

Bayer filter

The sensor of the EoSens color cameras is supplied with a Bayer color filter. In order

to get the color information, the imaging software has to decode the information of

each pixel into red, green, and blue (RGB) by using the values of its neighboring

pixels. Each red, green and blue filter element covers exactly one pixel on the sensor.

A matrix of 2x2 filter elements builds a filter element matrix. A Bayer pattern image

therefore must have an even number of pixels and an even number of lines. The

ordering of the RGB pixels for each sensor is provided in the section on technical

data.

3 The camera 9

UV/IR cut filter

In addition, color cameras are equipped with an UV/IR cut filter. Light with

wavelengths between 370nm and 670nm will be transmitted. As CMOS sensors are

susceptible to UV and IR rays outside the visible spectrum, UV/IR filter avoid blurred

images and therefore improve color images.

3.2 Operating temperature

Despite of its high performance, the fanless 4CXP camera is compact and works

silently. If the camera is mounted on mechanical parts, the heat generated during

operation will be dissipated by the cooling fins at the rear of the camera and the

mechanical parts.

NOTICE The camera body temperature must not exceed the values specified in the technical

data (see "Technical data" on page19).

In case of overheating, the camera will automatically be switched off and the com-

munication between camera and PC will be interrupted.

INFO Durability of the camera will be reduced when being operated in an environment

that is constantly exceeding the maximum permissible operating temperature. In this

case, take additional cooling measures as described below.

NOTICE The camera is not intended for use on an isolated mounting plate or in a closed

housing because the temperature of the camera will rise continuously.

3.3 Additional cooling

INFO If the camera is e.g. mounted on a sturdy aluminum structure, not only cooling is

ensured but also a stable optical path. In addition, vibrations will be minimized

within the entire system.

If the ambient temperature is constantly exceeding 40°C, additional cooling is recom-

mended. This can be achieved by

lAir- or water-cooling system

lAir-conditioned housings

3 The camera 10

Indice

Altri manuali SVS-Vistek Sistema di visione artificiale

SVS-Vistek

SVS-Vistek GIGA VISION ECO 4I/O Manuale utente

SVS-Vistek

SVS-Vistek exo174 U3 Series Manuale utente

SVS-Vistek

SVS-Vistek EoSens Creation 2.0XGE Manuale utente

SVS-Vistek

SVS-Vistek 10 GiGE FXO Series Manuale utente

SVS-Vistek

SVS-Vistek CoaxPress EoSens Creation 1.1CXP2 Manuale utente

SVS-Vistek

SVS-Vistek CoaXPress EoSens 21CXP2 Manuale utente

SVS-Vistek

SVS-Vistek hr387 Series Manuale utente

SVS-Vistek

SVS-Vistek EXO Series Manuale utente

SVS-Vistek

SVS-Vistek shr 411 Manuale utente

SVS-Vistek

SVS-Vistek CoaXPress FXO Series Manuale utente

SVS-Vistek

SVS-Vistek CoaXPress fxo540 Manuale utente

SVS-Vistek

SVS-Vistek SHR 10GigE Manuale utente

SVS-Vistek

SVS-Vistek CAMERA Link EoSens 3CL Manuale utente

SVS-Vistek

SVS-Vistek exo174 Manuale utente

Manuali Sistema di visione artificiale popolari di altre marche

Festo

Festo SBOC-M-R1B-H Manuale utente

Banner

Banner VE200G1B Manuale utente

Sony

Sony Vision Exchange PEQ-C100 Manuale utente

Datalogic

Datalogic MX-U81 Istruzioni per l'installazione

Cognex

Cognex In-Sight D900 Series Manuale utente

Spektrum

Spektrum SPMVR2520 Manuale utente

Huaray

Huaray Movidius Series Manuale utente

Daheng Imaging

Daheng Imaging MERCURY2 USB3 Manuale utente

Teledyne

Teledyne e2v Eliixa+ Series Manuale utente

Photron

Photron FASTCAM Mini CX Series Manuale utente

National Instruments

National Instruments Vision CVS-1455 Manuale utente

Omron

Omron FH-L550 Manuale utente

iGen

iGen NV20/20 Manuale utente

JAI

JAI GO-5100MP-USB Manuale utente

Ark Vision Systems

Ark Vision Systems AVS-Monitor 7 FHD Manuale utente

Cognex

Cognex In-Sight 9902L Manuale utente

Feniex

Feniex C-5500 Manuale utente

Advantech

Advantech AIIS-3411 Series Manuale di installazione e funzionamento
