Synology DS713+ Manuale utente

Synology DiskStation DS713+

Quick Installation Guide

Synology_QIG_7Bay_20120827

Table of Contents

Chapter 1: Before You Start

Package Contents .............................................................................................................................................................. 3

Synology DiskStation at a Glance.................................................................................................................................... 4

Safety Instructions .............................................................................................................................................................. 5

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation....................................................................................................................... 6

Install Hard Disks................................................................................................................................................................ 6

Start Up Your DiskStation.................................................................................................................................................. 9

Chapter 3: Install DSM on DiskStation

Install from Windows ........................................................................................................................................................ 10

Install from Mac OS X ...................................................................................................................................................... 12

Install from Linux............................................................................................................................................................... 12

Learn More ........................................................................................................................................................................ 14

Appendix A: Specifications

Appendix B: LED Indication Table

Chapter

Chapter 1: Before You Start

Before you start setting up your new Synology DiskStation, please check the package contents to verify that you

have received the items below. In addition, please read the safety instructions carefully before use to avoid

damaging your DiskStation.

Package Contents

Main Unit x 1 AC Power Cord x 1

AC Power Adapter x 1

RJ-45 LAN Cable x 2

Installation Disc x 1

Screws for 3.5” Hard Drives x 10 Screws for 2.5” Hard Drives x 10 Hard Drive Tray Key x 2

4 Chapter 1: Before You Start

Synology DiskStation at a Glance

No. Item Location Description

1) Hard Drive

Status Indicator Front Panel Displays status of installed hard disks. For more information, see "Appendix B:

LED Indication Table" on Page 16.

2) Hard Drive Tray

Lock Front Panel Use included hard drive tray key to lock or unlock the hard drive trays.

3) LED Indicators Front Panel Displays the status of internal storage spaces and the system. For more

information, see "Appendix B: LED Indication Table" on Page 16.

4) Copy Button Front Panel

Illuminates when you connect a USB device (e.g. digital camera, USB flash

disk, etc.). Press the copy button to copy data from the connected USB device

to internal hard drive on your Synology DiskStation.

5) USB 2.0 Port Front Panel Connect USB devices here, such as external hard drives, flash drives, or USB

printers.

6) Power Button Front Panel Press to power on your Synology DiskStation. To power off, press and hold until

the LED starts blinking.

7) Hard Drive Trays Front Panel Install or remove hard disks here for usage with your Synology DiskStation

8) LAN Ports & LAN

LEDs Back Panel

Connect RJ-45 network cables here. Each LAN port has two LAN LEDs which

display connection status. For more information, see "Appendix B: LED

Indication Table" on Page 16.

9) Power Port Back Panel Connect AC adapter here.

10) Fan Back Panel Exhausts excess heat from your Synology DiskStation. If fan malfunctions, the

system will emit a beeping sound.

11) Security Lock

Slot Back Panel Attach a Kensington-style security lock and cable here.

12) RESET Button Back Panel Press and hold to restore IP, DNS, and passwords for the admin account to

default value, or reinstall Synology DiskStation.

13) USB 3.0 Ports Back Panel Connect USB devices here, such as external hard drives, flash drives, or USB

printers.

14) eSATA Port Back Panel Connect external SATA disks or Synology Expansion Unit1here.

-----

1For more information about Synology Expansion Unit supported by your DiskStation, please visit www.synology.com .

5 Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals.

Make sure the environment does not

experience abrupt changes in temperature or humidity.

Keep Synology product upright. Do not lay it down horizontally.

Do not place the Synology product close to any liquid.

Before cleaning, unplug the power cord. Wipe Synology product with damp paper towels. Do not

use chemical or aerosol cleaners

To avoid damage, do not place Synology products on a cart, table, desk,

or any unstable

surface.

Only plug power cord into correct

supply voltage. Make sure that the supplied AC voltage is

correct and stable.

To remove all electrical current f

rom the device, ensure that all power cords are disconnected

from the power source.

Chapter

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation

A screwdriver

At least one 3.5” or 2.5” SATA hard disk. (Please visit www.synology.com for compatible hard disk models.)

Warning: If you install a hard disk that contains data, the system will format the hard disk and erase all existing data.

Please back up any important data before installation.

Install Hard Disks

1 Insert the hard drive tray key into the hard drive tray lock. Turn the key counter-clockwise to unlock the handle

of the hard drive tray. Remove the key.

2 Press the lower part of the hard drive tray to pop out the handle.

7 Chapter 2: Hardware Setup

3 To remove the hard drive tray, pull the handle in the direction indicated below.

4 Load hard disk in the hard drive tray.

For 3.5” Hard Disk: Place the hard disk in the hard drive tray. Tighten the screws to secure the hard disk.

For 2.5” Hard Disk: Place the hard disk in the blue area shown below of the hard drive tray. Turn the tray

upside down. Tighten the screws to secure the hard disk.

5 Insert the loaded hard drive tray into the empty hard drive bay.

8 Chapter 2: Hardware Setup

Important: Make sure the tray is inserted completely. Otherwise, the hard disk might not function properly.

6 Press the handle in to secure the hard drive tray in place.

7 Insert hard drive tray key into the hard drive tray lock. Turn the key clockwise (to the "I" position) to lock the

handle. Remove the key.

8 If you have prepared a second hard disk, repeat the steps above to install.

9 Disk position is numbered as shown below.

Note: If you wish to set up a RAID configuration, we recommended all installed hard disks be the same size in

order to optimize hard disk capacity usage.

9 Chapter 2: Hardware Setup

Start Up Your DiskStation

1 Connect the LAN cable to the LAN ports located on the back of your Synology DiskStation and your

switch/router/hub.

2 Connect the AC power adapter to the power port located on the back of your Synology DiskStation. Connect

one end of the AC power cord to the AC power adapter and the other to the power outlet.

3 Press the power button to power on your DiskStation.

Congratulations! Your Synology DiskStation is now ready and detectable from a network computer.

Chapter

Chapter 3: Install DSM on DiskStation

On a network computer, follow the steps in this chapter to install DSM on your DiskStation. After DSM is installed,

you can manage all features of your DiskStation by logging in to DSM with a web browser.

Install from Windows

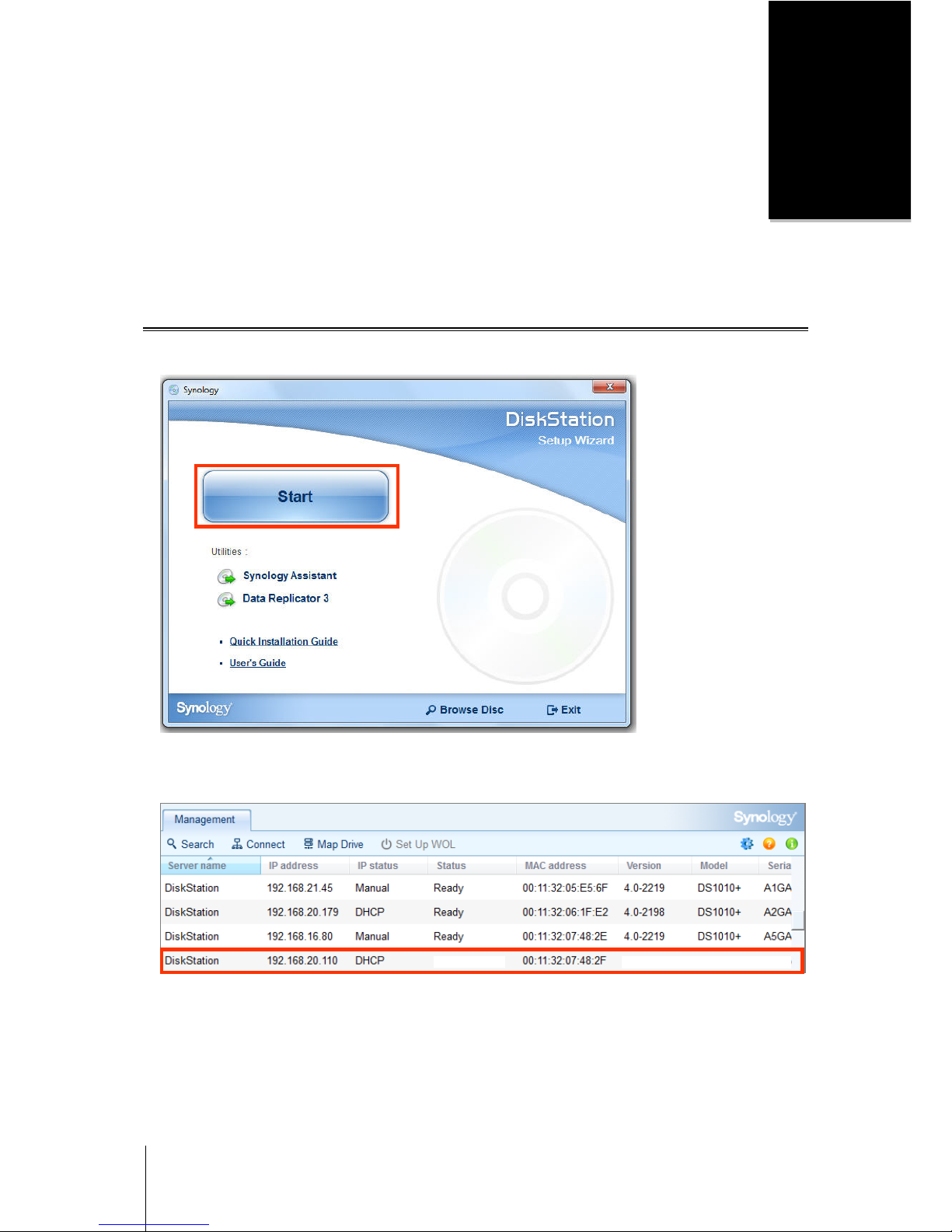

1 Insert the installation disc into your computer, and click Start. Follow the onscreen instructions to complete the

setup process.

2 Synology Assistant will be installed and launched on your computer. It will search and find your DiskStation

within LAN, and the status of your DiskStation should be Not installed. Double-click your DiskStation to start

the setup process.

4.0-2252 DS713+ A5GA

Not installed
