Synology RackStation RS814+/RS814RP+

Quick Installation Guide

Table of Contents

Chapter 1: Before You Start

Package Contents .............................................................................................................................................................. 3

Synology RackStation at a Glance................................................................................................................................... 4

Safety Instructions .............................................................................................................................................................. 6

Chapter 2: Hardware Setup

Tools and Parts for Drive Installation............................................................................................................................... 7

Install Drives........................................................................................................................................................................ 7

Add a RAM Module on RackStation ................................................................................................................................ 9

Start up the RackStation.................................................................................................................................................. 11

Chapter 3: Install DSM on RackStation

Install DSM with Web Assistant...................................................................................................................................... 12

Learn More ........................................................................................................................................................................ 13

Appendix A: Specifications

Appendix B: LED Indicator Table

Chapter

Chapter 1: Before You Start

Thank you for purchasing this Synology product! Before setting up your new RackStation, please check the

package contents to verify that you have received the items below. Also, make sure to read the safety

instructions carefully to avoid harming yourself or damaging your RackStation.

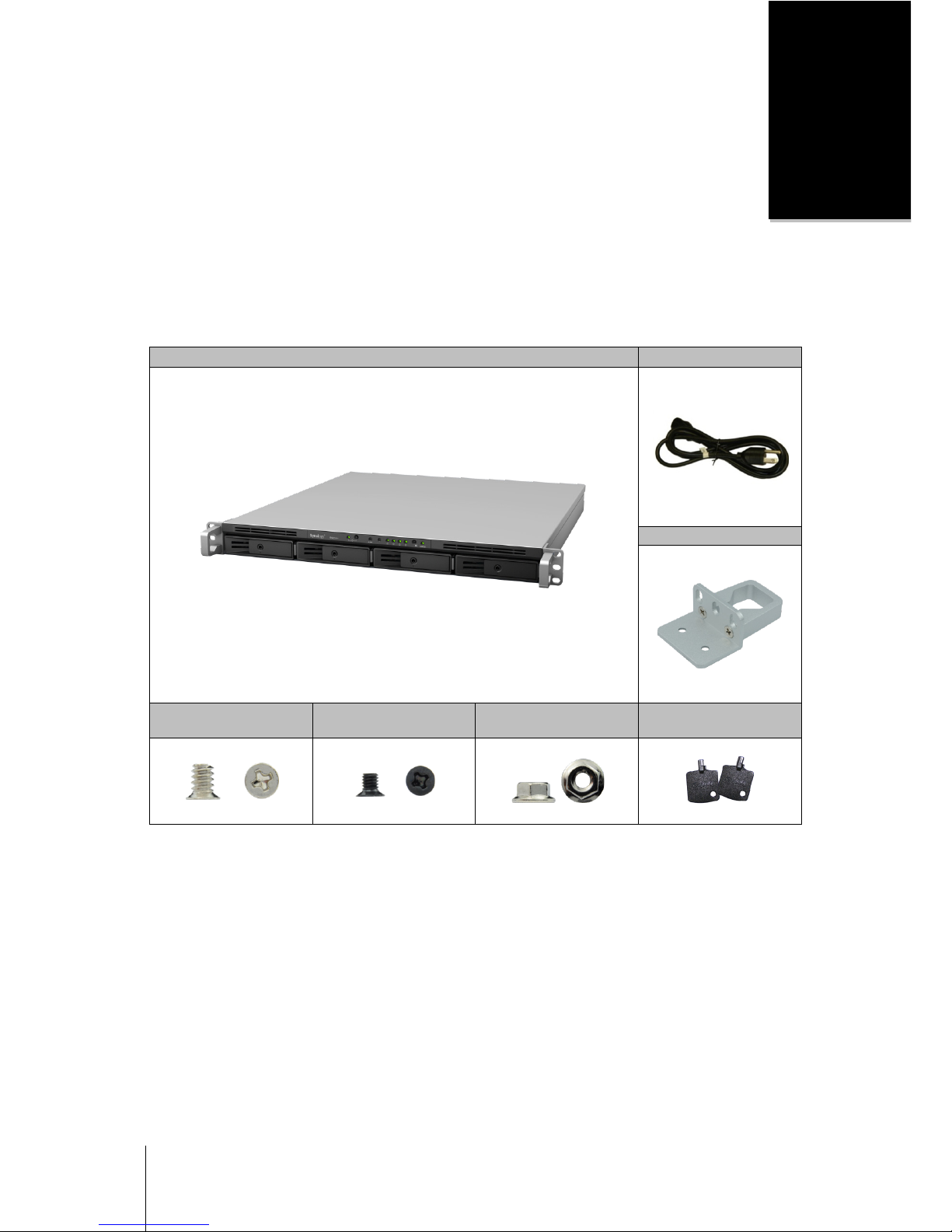

Package Contents

Main unit x 1 AC power cord x 11

Rack mount kit x 2

Screws for 3.5"

hard drives x 20

Screws for 2.5"

hard drives x 20 Rack mount kit nuts x 5 Hard drive tray key x 2

---------

1AC power cord: RS814+ x1; RS814RP+ x2

4 Chapter 1: Before You Start

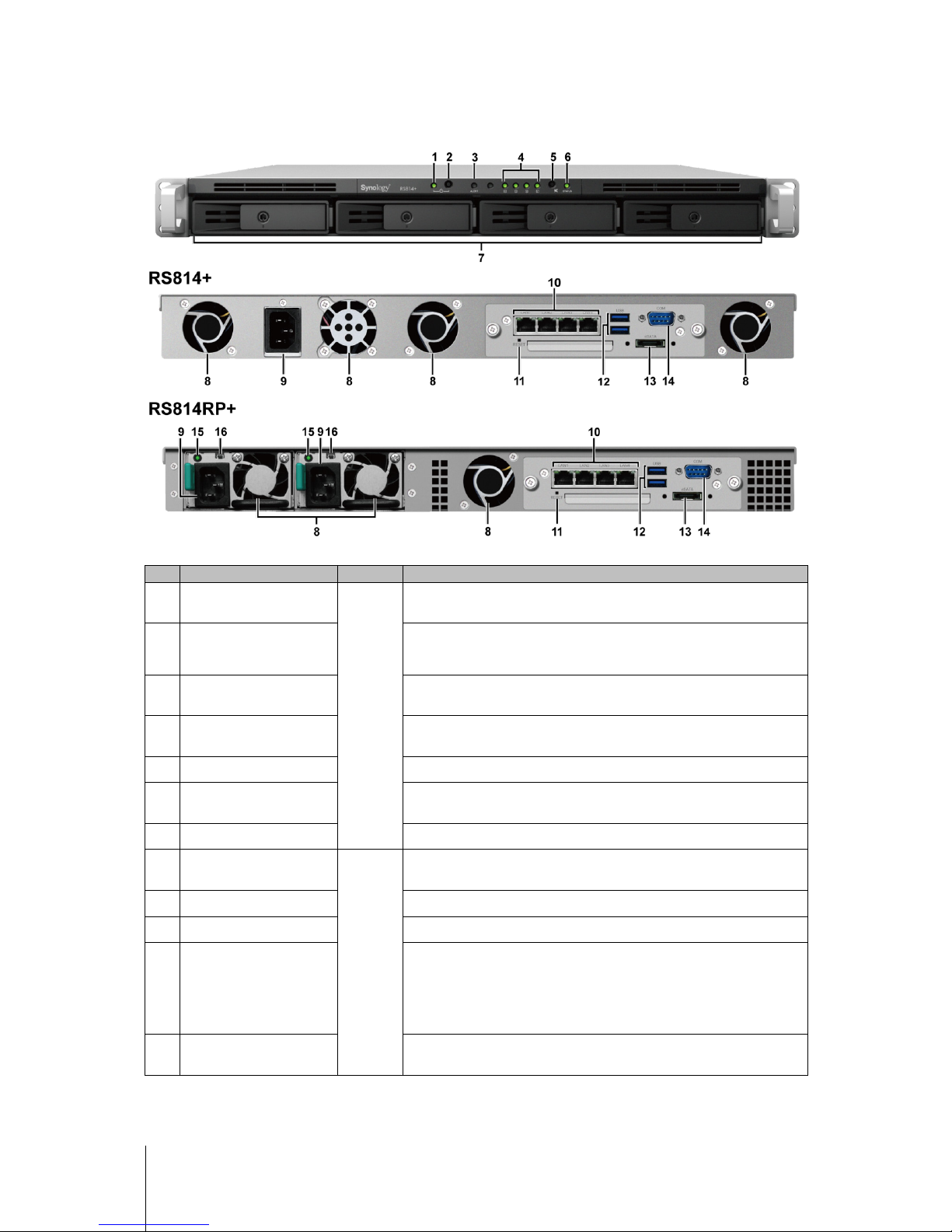

Synology RackStation at a Glance

No. Article Name Location Description

1) Power Indicator

Front

Panel

Displays power status of the RackStation. For more information, see

"Appendix B: LED Indicator Table".

2) Power Button

1.Press to power on the RackStation.

2.To power off the RackStation, press and hold until you hear a beep

sound and the power indicator starts blinking.

3) Alert Indicator Displays warnings regarding fan or temperature. For more information,

see "Appendix B: LED Indicator Table".

4) Disk Indicator Displays the status of internal drives. For more information, see "Appendix

B: LED Indicator Table".

5) Beep off Button Press to deactivate beep sound when malfunctions occur.

6) Status Indicator Displays the status of the system. For more information, see "Appendix B:

LED Indicator Table".

7) Drive Tray Install drives here.

8) Fan

Back

Panel

Disposes of excessive heat and cools the system. If a fan malfunctions,

the RackStation will emit a beeping sound.

9) Power Port Connect power cord here to supply power to your RackStation.

10) LAN Port Connect network cables here.

11) RESET Button

1.Press and hold until you hear a beep sound to restore the default IP

address, DNS server, and passwords for users belonging to the

administrators group.

2.Press and hold until you hear a beep sound, then press and hold again

until you hear three beep sounds to return the RackStation to “Not

Installed” status so that DiskStation Manager can be reinstalled.

12) USB 3.0 Port Connect external hard drives, USB printers, or other USB devices to the

Synology RackStation here.

5 Chapter 1: Before You Start

No.

Article Name

Location

Description

13) eSATA Port

Back

Panel

Connect external SATA drive or Synology Expansion Unit1

14)

to the

Synology RackStation.

Console Port For manufacturing use only.

15) Redundant Power LED Displays the status of redundant powers supplies, alerting the user of

power supply or fan failure.

16) Beep off Button Press to deactivate beep sound when malfunctions of redundant power

occur.

---------

1For more information about Synology Expansion Unit supported by your RackStation, please visit www.synology.com .

6 Chapter 1: Before You Start

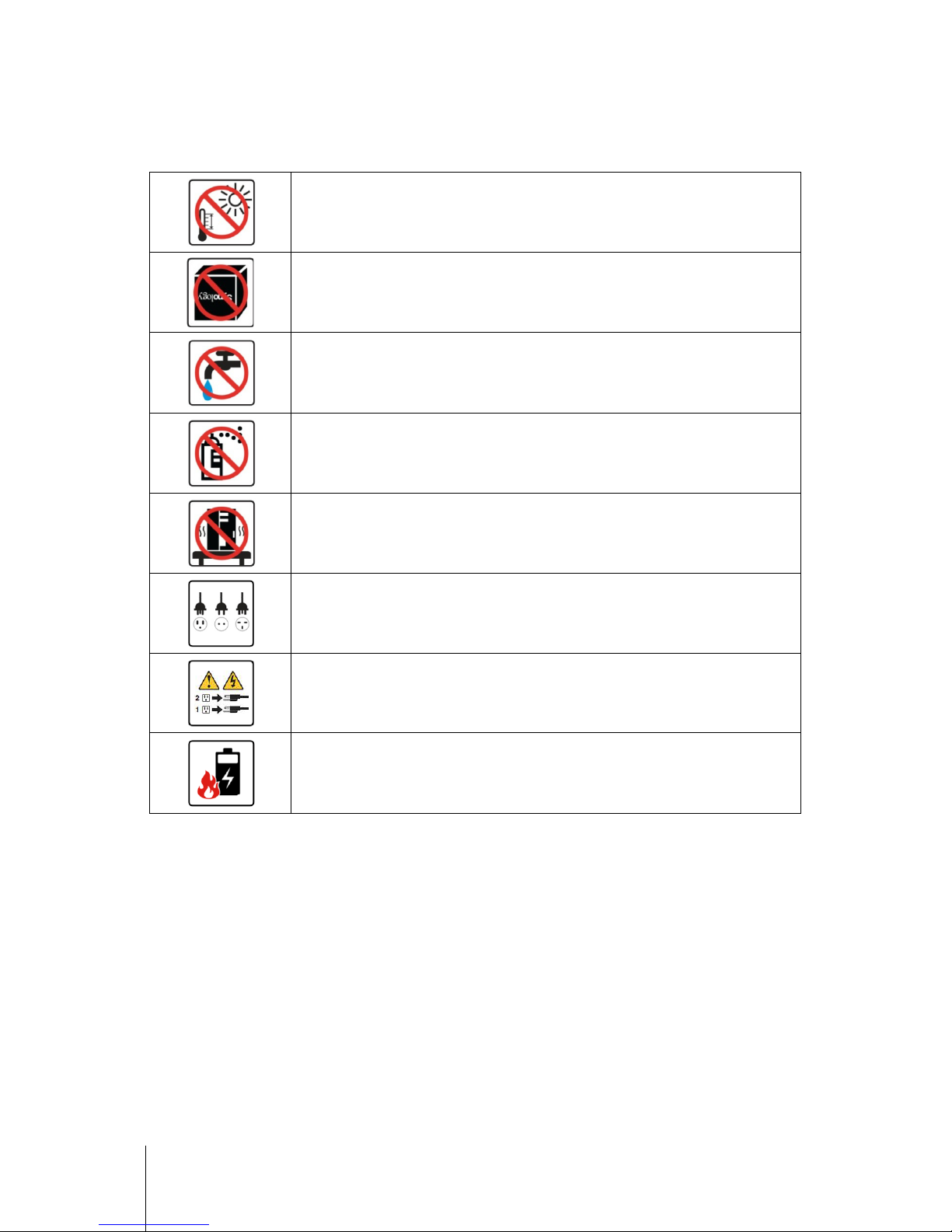

Safety Instructions

Keep away from direct sunlight and from chemicals. Make sure the environment does not

experience abrupt changes in temperature or humidity.

Place the product right side up at all times.

Do not place near any liquids.

Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or

aerosol cleaners.

To prevent the unit from falling over, do not place on carts or any unstable surfaces.

The power cord must plug in to the correct supply voltage. Make sure that the supplied AC

voltage is correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected

from the power source.

Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries

appropriately.

Chapter

Chapter 2: Hardware Setup

Tools and Parts for Drive Installation

A screwdriver

At least one 3.5” or 2.5” SATA drive (Please visit www.synology.com for compatible drive models.)

Warning: If you install a drive that contains data, the system will format the drive and erase all data. If you need the

data in the future, please back it up before installation.

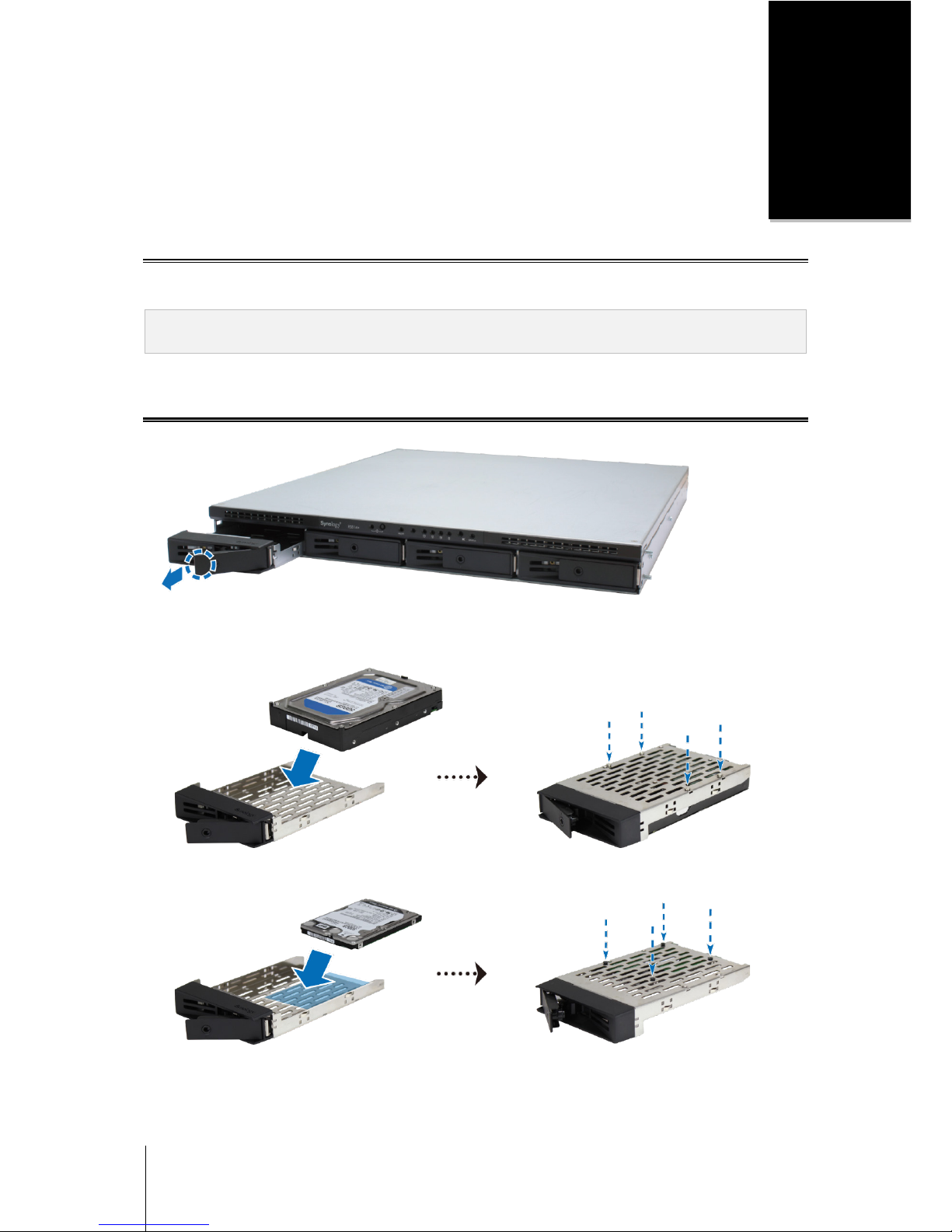

Install Drives

1 Pull the drive tray handle in the direction as indicated below to remove the drive tray.

2 Load drives in the drive trays:

For 3.5" drives:Place the drive in the drive tray. Turn the tray upside down and tighten screws into the four

spots indicated below to secure the drive.

For 2.5" drives:Place the drive in the drive tray. Turn the tray upside down and tighten screws into the four

spots indicated below to secure the drive.

8 Chapter 2: Hardware Setup

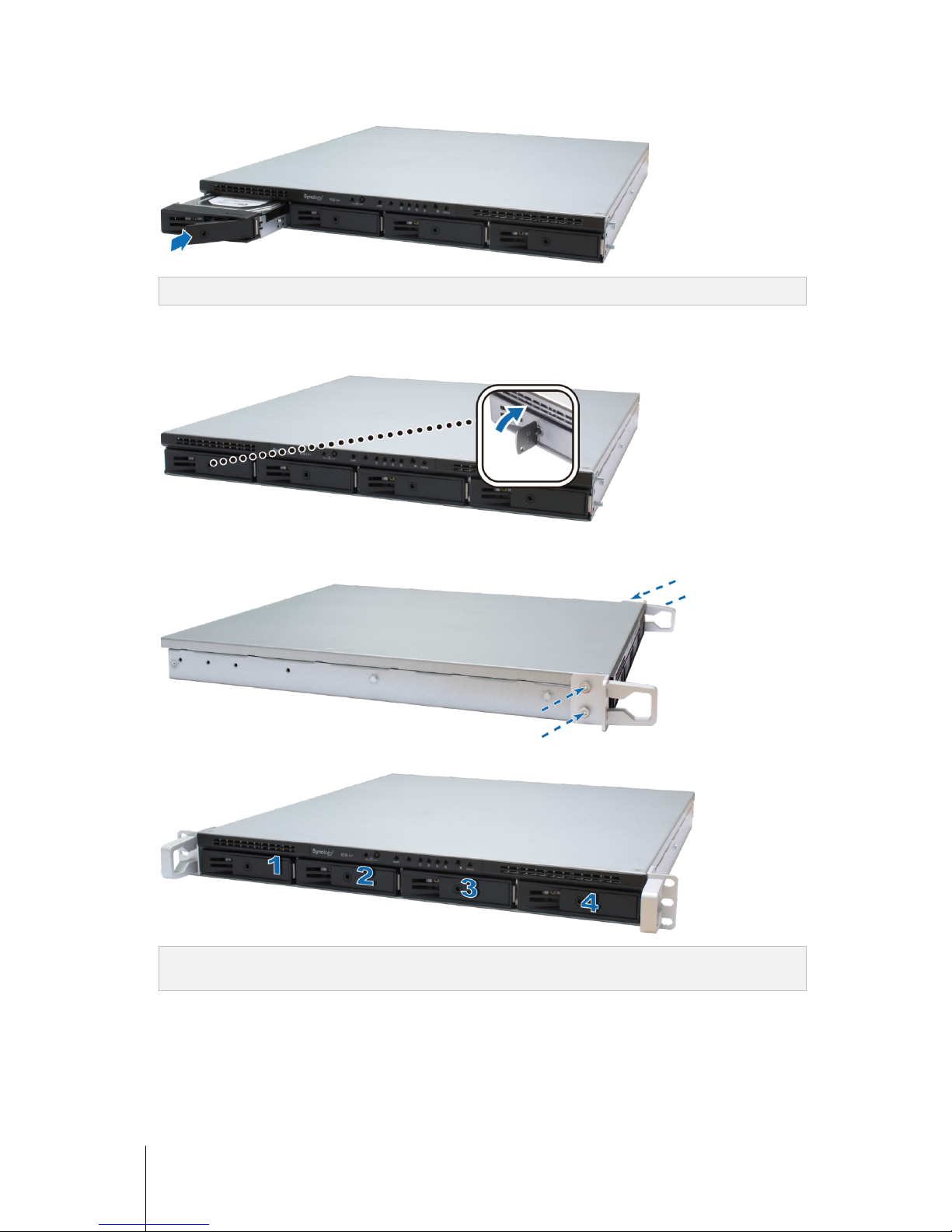

3 Insert the loaded drive tray into the empty hard drive bay.

Important: Make sure the drive tray is completely inserted. Otherwise, the drive might not function properly.

4 Push the handle inward to secure the drive tray.

5 Insert the drive tray key into the drive tray lock, turn the key clockwise to lock the handle of the drive tray, and

then remove the key.

6 Repeat the steps above to install all prepared drives.

7 Fix the two rack mount kits on both sides with the nuts provided.

8 Drives are numbered as shown below.

Note: If you want to create a RAID volume, we recommended all installed drives be the same size in order to

optimize drive capacity usage.

9 Chapter 2: Hardware Setup

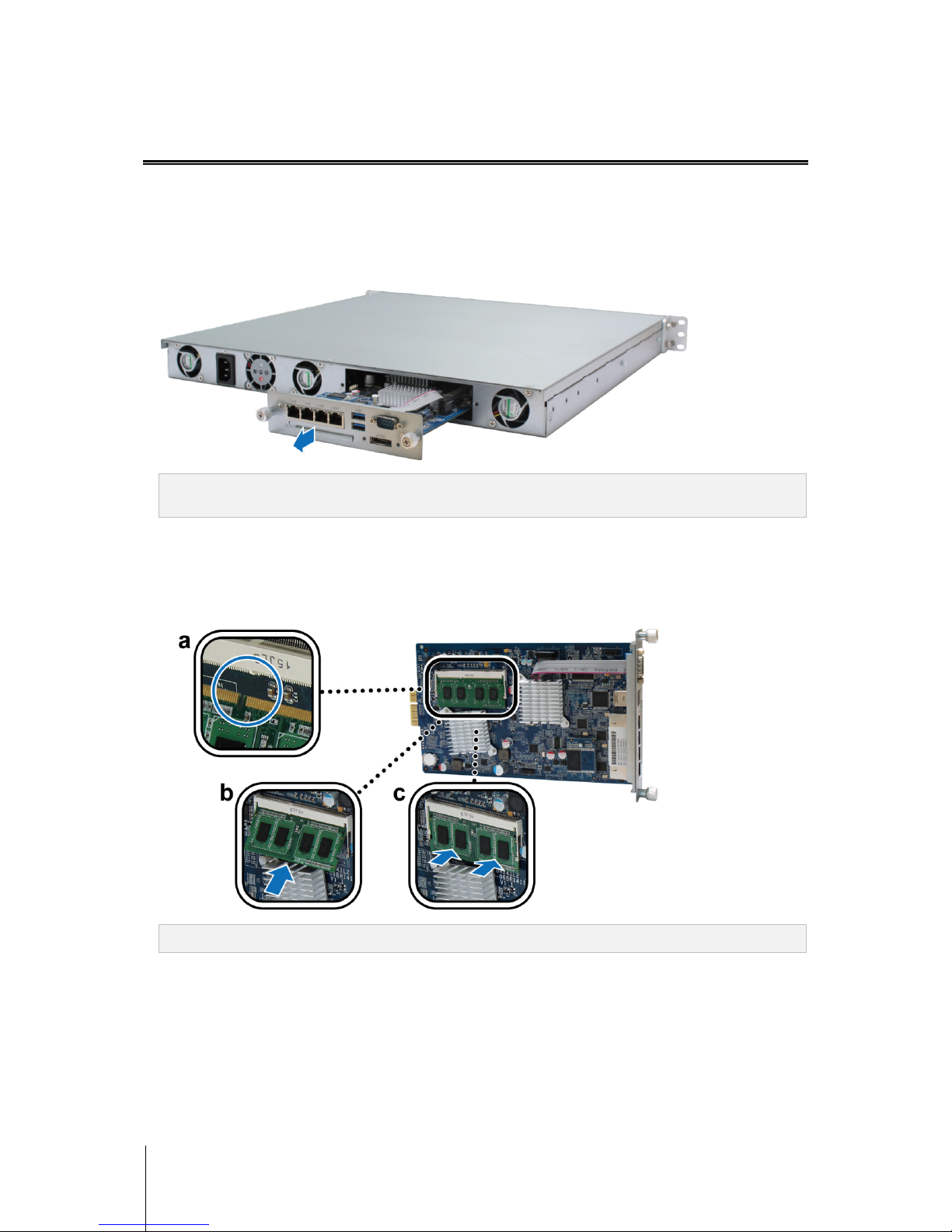

Add a RAM Module on RackStation

Synology offers RAM modules which allow you to expand the memory capacity of your RackStation. To install,

check, or remove your RAM module, please follow the steps below.

Install a RAM Module

1 Shut down the RackStation and disconnect all connected cables to prevent any possible damage.

2 Unscrew the two knobs that secure the back panel. Pull out the panel to reveal the circuit board.

Important: When you pull out the panel, you expose sensitive internal components. Avoid touching anything other

than the memory assembly when you remove or add memory.

3 To insert the new memory module, follow the steps below:

a Align the notch on the gold edge of the module with the notch in the memory slot.

b Tilt the card and push the memory into the slot. Make sure the module is pushed in all the way.

c Use two fingers to apply firm, even pressure and push the memory module downward. You should hear a

click when the memory is inserted correctly.

Important: Hold the memory module by its edges, and do not touch the gold connectors.

10 Chapter 2: Hardware Setup

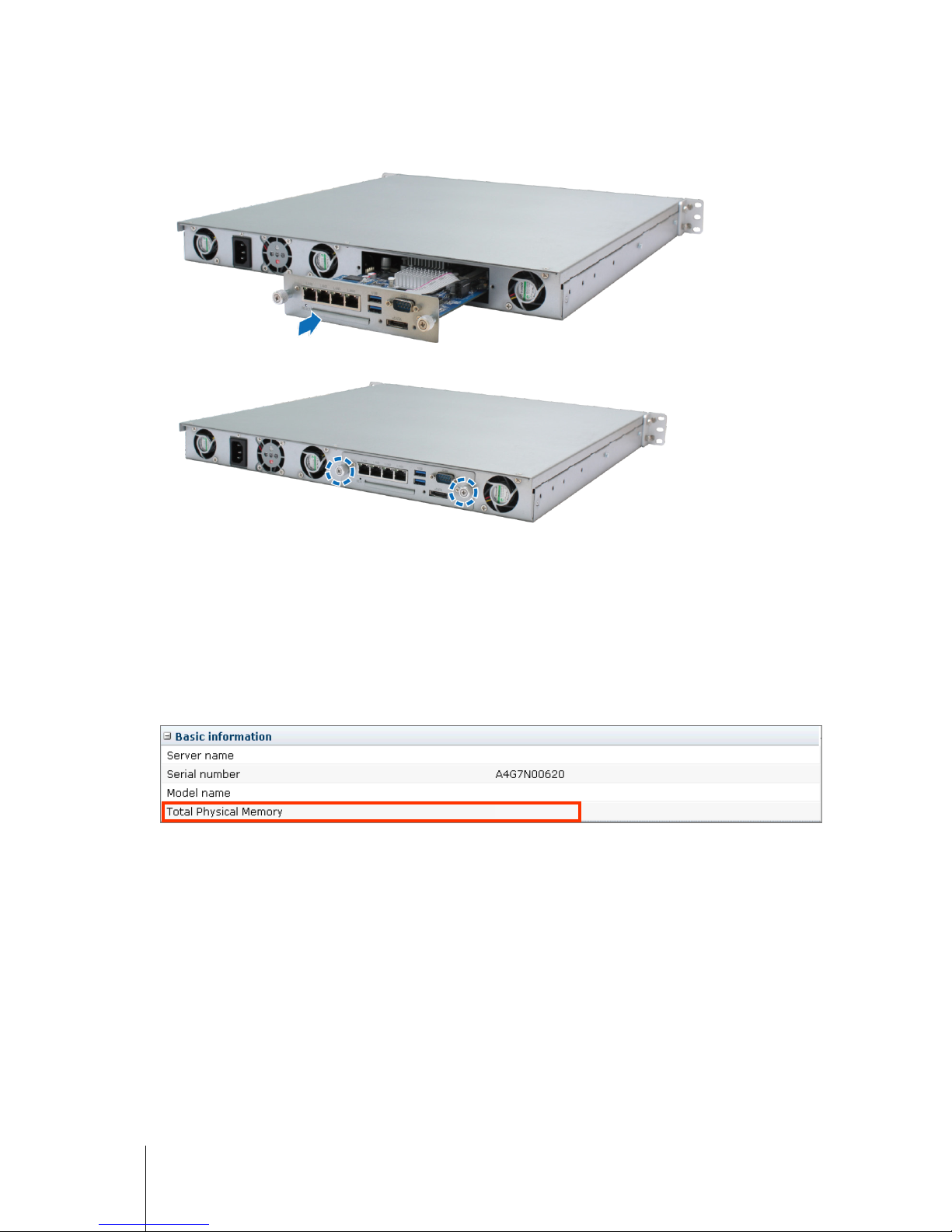

4 Return the board into the RackStation:

a Identify the rail within the RackStation.

b Place the circuit board within the rail and push the board all the way in.

c Tighten the two knobs you unscrewed in step 2.

Confirm New Memory is Recognized

After installing a new memory module in the RackStation, we recommended checking whether or not the system

recognizes the new memory.

To check the memory of the RackStation:

1 Start up your RackStation. (See “Start up the RackStation” for more information.)

2 Install DiskStation Manager (DSM). (See “Chapter 3: Install DSM on RackStation” for more information.)

3 Log in to DSM with an account belonging to the administrators group.

4 Check Total Physical Memory at Main Menu > System Information.

If the RackStation does not recognize the memory or does not start up correctly, please make sure the memory

was correctly installed.

RS814+

4096 MB

RackStation
