Synology RackStation RS812+/RS812RP+

Quick Installation Guide

Table of Contents

Chapter 1: Before You Start

Package Contents .............................................................................................................................................................. 3

Synology RackStation at a Glance................................................................................................................................... 4

Safety Instructions .............................................................................................................................................................. 5

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation....................................................................................................................... 6

Install Hard Disks................................................................................................................................................................ 6

Start Up Your RackStation ................................................................................................................................................ 8

Add a RAM Module on RackStation ................................................................................................................................ 8

Chapter 3: Install DSM on RackStation

Install from Windows ........................................................................................................................................................ 11

Install from Mac OS X ...................................................................................................................................................... 13

Install from Linux............................................................................................................................................................... 13

Learn More ........................................................................................................................................................................ 15

Appendix A: Specifications

Appendix B: LED Indication Table

Chapter

Chapter 1: Before You Start

Before you start setting up RackStation, please check the package contents to verify that you have received the

items below. Please also read the safety instructions carefully before use to prevent your RackStation from any

damages.

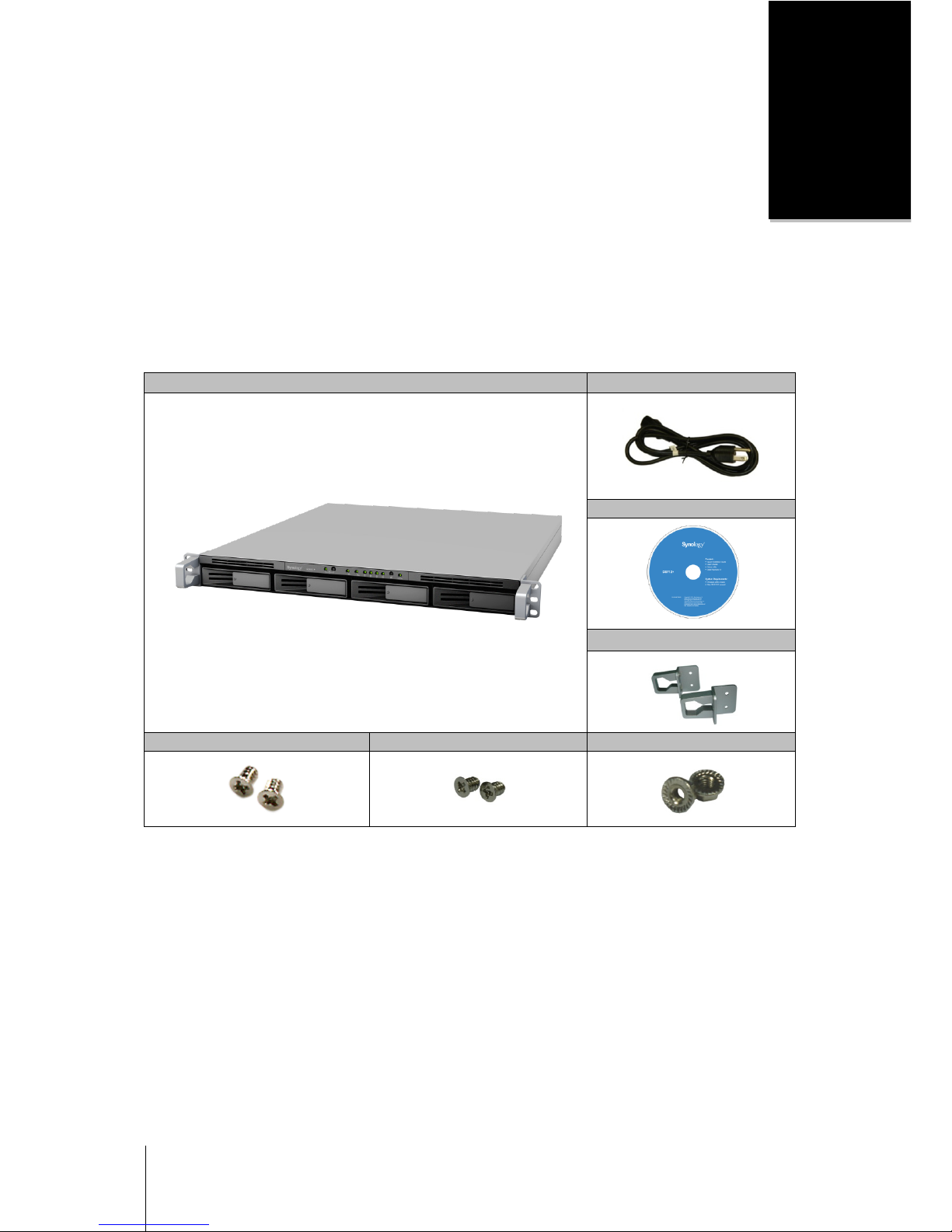

Package Contents

Main Unit x 1 AC power cord x 11

Installation disc x 1

Rack mount kit x 2

Screws for 3.5" hard drives x 20 Screws for 2.5" hard drives x 20 Rack mount kit screw x 5

---------

1AC power cord: RS812+ x1; RS812RP+ x2

4 Chapter 1: Before You Start

Synology RackStation at a Glance

No. Article Name Location Description

1) Power Button Front

Panel

The power button is used to turn Synology RackStation on or off.

To turn off Synology RackStation, press the Power Button and hold it until

you hear a beep sound and the Power LED starts blinking.

2) LED Indicators Front

Panel

The LED indicator is used to display the status of the internal disk and the

system. For more information, see "Appendix B: LED Indication Table" on

Page 18.

3) Beep off Button Front

Panel

The beep off button is used to turn off the beep sound of

Synology RackStation.

4) Hard Drive Trays Front

Panel

The hard drive trays are designed for loading the hard drives used in

Synology RackStation.

5) USB Ports Back

Panel

The Synology RackStation offers USB ports for adding additional external

hard drives, USB printers, or other USB devices.

6) Fans Back

Panel

The fans are built to exhaust waste heat out of Synology RackStation. If

any of the fans is malfunctioning, the system will play beep sounds.

7) eSATA Port Back

Panel

The eSATA port is used to connect external SATA disk or Synology

Expansion Unit1

to Synology RackStation.

RESET Button Back

Panel

1.To restore IP, DNS, passwords for the admin account to default value.

2.To reinstall the Synology RackStation.

9) LAN 1 Back

Panel The LAN port is where you connect RJ-45 cable to Synology RackStation.

10) LAN 2

11) Console Port Back

Panel This port is used for manufacturing purpose only.

12) Power Port Back

Panel

The power port is where you connect the power cord to Synology

RackStation.

---------

1For more information about Synology Expansion Unit supported by your RackStation, please visit www.synology.com .

5 Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals. Make sure the environment does not

experience abrupt changes in temperature or humidity.

Do not place the Synology product close to any liquid.

Before cleaning, unplug the power cord first. Wipe Synology product with damp paper towels. Do

not use chemical or aerosol cleaners to clean it.

Do not place the Synology product on a cart, table, or desk, which is not stable to avoid the

product from falling over.

The power cord must plug in to the right supply voltage. Make sure that the supplied AC voltage

is correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected

from the power source.

Chapter

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation

A screwdriver

At least one 3.5" or 2.5" SATA hard disk

(Please visit www.synology.com for compatible hard disk models.)

Warning: If you install a hard disk that contains data, system will format the hard disk and erase all data. If you need

the data in the future, please back it up before installation.

Install Hard Disks

1 Pull the hard drive tray handle in the direction as indicated below to remove the hard drive tray.

2 Place the hard disk in the hard drive tray, turn the tray upside down, and then tighten the screws to secure the

hard disk.

For 3.5" Hard Disk:

7 Chapter 2: Hardware Setup

For 2.5" Hard Disk:

3 Insert the loaded hard drive tray into the empty hard drive bay.

Important: Make sure the tray is pushed in all the way. Otherwise, the hard disk might not be able to function

properly.

4 Press the handle in flush with the front panel to hold the hard drive tray in place.

5 Repeat the steps above to assemble all hard disks you have prepared.

6 Fix the two rack mount kits on both sides with their screws provided.

7 The disks' positions are numbered as shown below.

Note: If you want to set up a RAID set, it is recommended that all installed hard disks are of the same size to make

the best use of hard disk capacity.

8 Chapter 2: Hardware Setup

Start Up Your RackStation

1 Connect one end of the power cord to the power port of RackStation, and the other to the power outlet.

2 Use the LAN cable to connect RackStation to your switch/router/hub.

3 Press and hold the power button to turn on your RackStation.

Your RackStation is now online and detectable from a network computer.

Add a RAM Module on RackStation

Synology RAM module 2GB is designed for RackStation memory expansion, and is optional for your choice.

Follow the steps below to install, check, or remove your RAM module.

Install the RAM Module

1 Shut down your RackStation. Disconnect all cables connected to your RackStation to prevent any possible

damages.

2 Unscrew the two knobs that secure the back panel. Pull out the panel to reveal the circuit board.

Important: When you pull out the panel, you expose sensitive internal components. Avoid touching anything other

than the memory assembly when you remove or add memory.

9 Chapter 2: Hardware Setup

3 Turn the circuit board over.

4 Insert the new memory module in the slot:

a Align the notch on the gold edge of the module with the notch in the lower memory slot.

b Tilt the card and push the memory into the slot. Make sure the module is pushed in all the way.

c Use two fingers with firm, even pressure to push down on the memory module. You should hear a click

when the memory is inserted correctly.

Important: Hold the memory module by its edges, and do not touch the gold connectors.

5 Turn the circuit board back to its original position.

6 Return the board into the RackStation:

a Identify the rail within the RackStation.

b Place the circuit board within the rail and push the board all the way in.

c Tighten the 2 knobs you unscrewed in step 2.

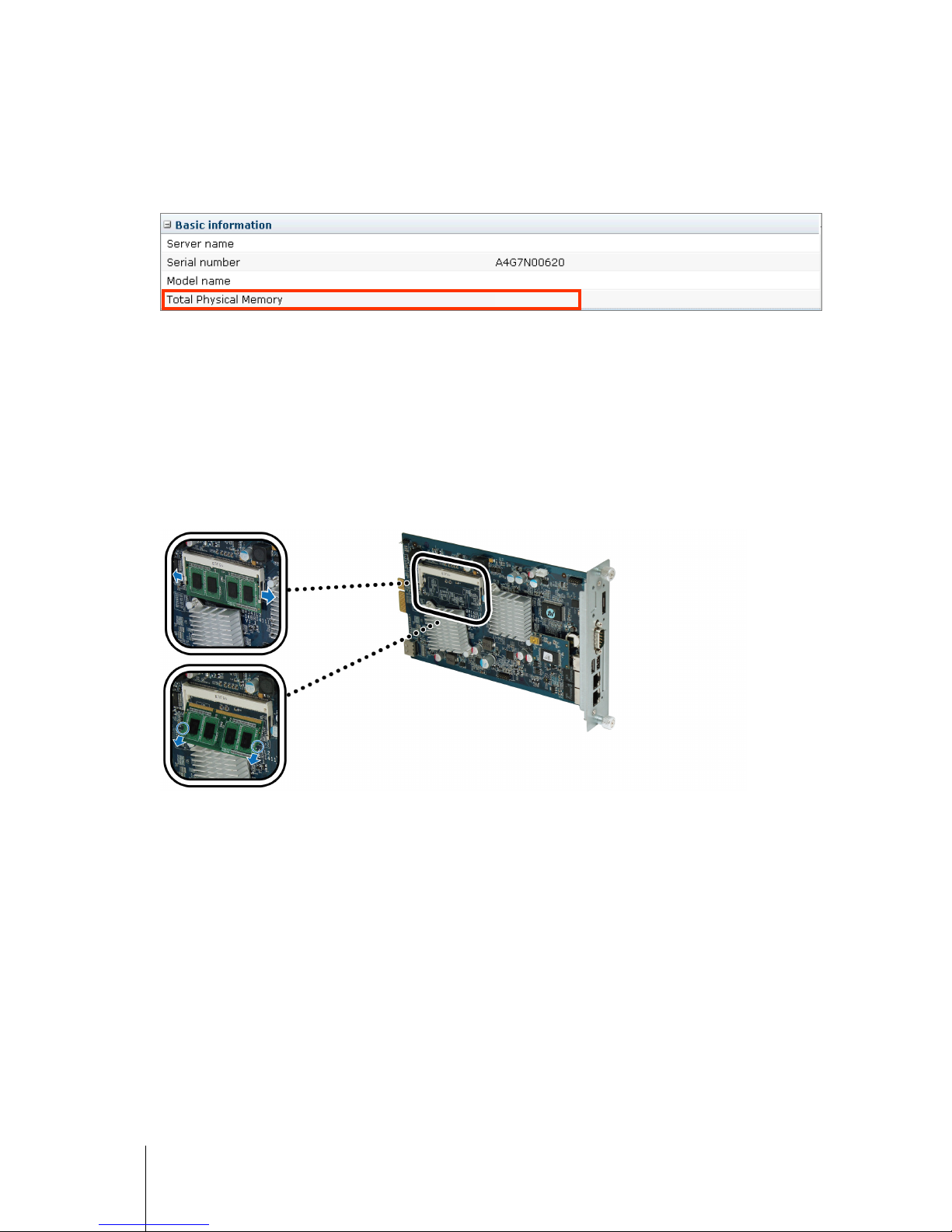

Make Sure RackStation Recognizes the New Memory Capacity

After installing the memory module on RackStation, it’s recommended that you check whether the server

recognizes the new memory.

10 Chapter 2: Hardware Setup

To make sure RackStation recognizes the new memory capacity:

1 Start up your RackStation.

2 Install DiskStation Manager (DSM). (See the next chapter for more information.)

3 Log in to DSM as admin or a user belonging to the administrators group.

4 Check Total Physical Memory in Main Menu > System Information.

If your RackStation does not recognize the memory or does not start up successfully, confirm that the memory is

installed correctly.

Remove the RAM Module from RackStation

1 Follow step 1 to 2 of the “Install the RAM Module” section to remove the circuit board.

2 Push the levers on the sides of the memory module in an outward direction to release the module from the

memory card slot.

Before removing it, make sure you see the half-circle notches. If you don’t, try pushing the levers outward

again.

3 Hold the memory module by its notches and remove it from the slot.

4 Follow step 5 and 6 of the “Install the RAM Module” section to replace the circuit board.

RS812+

3072 MB
