Synology RackStation RS3412RPxs Manuale utente

Synology_QIG_RS34Bay_20111227

Synology RackStation RS3412xs/RS3412RPxs

Quick Installation Guide

Table of Contents

Chapter 1: Before You Start

Package Contents............................................................................................................................................... 3

Synology RackStation at a Glance...................................................................................................................... 4

Safety Instructions............................................................................................................................................... 6

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation........................................................................................................... 7

Install Hard Disks ................................................................................................................................................ 7

Add a RAM Module on RackStation.................................................................................................................... 8

Add a Network Interface Card on RackStation.................................................................................................. 10

Start Up Your RackStation ................................................................................................................................ 12

Chapter 3: Install DSM on RackStation

Install from Windows ......................................................................................................................................... 13

Install from Mac OS X ....................................................................................................................................... 15

Install from Linux ............................................................................................................................................... 15

Learn More........................................................................................................................................................ 17

Appendix A: Specifications

Appendix B: LED Indication Table

Chapter

Chapter 1: Before You Start

Before you start setting up RackStation, please check the package contents to verify that you have received the

items below. Please also read the safety instructions carefully before use to prevent your RackStation from any

damages.

Package Contents

Main Unit x 1 AC power cord x 11

Installation disc x 1

Screws for 3.5" hard drives x 52

Screws for 2.5" hard drives x 52

---------

1AC power cord: RS3412xs x 1; RS3412RPxs x 2

4 Chapter 1: Before You Start

Synology RackStation at a Glance

No. Article Name Location Description

1) Power Button Front Panel

The Power Button is used to turn Synology RackStation on or off.

To turn off Synology RackStation, press the Power Button and hold it

until you hear a beep sound and the Power LED starts blinking.

2) Beep off Button Front &

Back Panel

The Beep off Button is used to turn off the beep sound of

Synology RackStation.

3) LED Indicators Front &

Back Panel

The LED indicator is used to display the status of the internal disk and

the system. For more information, see "Appendix B: LED Indication

Table" on Page 20.

4) Hard Drive Trays Front Panel The hard drive tray is designed for loading the hard drives used in

Synology RackStation.

5) Power Port Back Panel The power port is where you connect the power cord to

Synology RackStation.

6) Fan Back Panel

The power fans are built to exhaust waste heat out of the power supply.

The system fans (inside RackStation) are built to exhaust waste heat

out of RackStation. If the fan is not working, the RackStation will “beep”

every few seconds.

7) Console Port & VGA Port Back Panel This port is used for manufacturing use only.

8) USB Port Back Panel The Synology RackStation offers USB ports for adding additional

external hard drives, USB printers, or other USB devices.

9) LAN 1

Back Panel The LAN port is where you connect RJ-45 cable to

Synology RackStation.

10) LAN 2

11) LAN 3

12) LAN 4

13) RESET Button Back Panel 1.To restore IP, DNS, passwords for the admin account to default value.

2.To reinstall the Synology RackStation.

5 Chapter 1: Before You Start

No.

Article Name

Location

Description

14) Expansion 1

Back Panel The Expansion port is used to connect Synology Expansion Unit1

15)

Synology RackStation.

Expansion 2

16) Power Supply

Safety Latch2Back Panel

The power supply safety latch is used to secure the power supply in

place.

17) Power Supply On/Off

Switch Back Panel The power supply on/off switch is used to turn on/off the power supply.

---------

1For more information about Synology Expansion Unit supported by your RackStation, visit www.synology.com.

2RS3412RPxs only.

6 Chapter 1: Before You Start

Safety Instructions

Keep away from direct sunlight and away from chemicals. Make sure the environment

does not

experience abrupt changes in temperature or humidity.

Keep Synology product upright. Do not lay it down horizontally.

Do not place the Synology product close to any liquid.

Before cleaning, unplug the power cord first. Wipe Synology product with damp paper towels. Do

not use chemical or aerosol cleaners to clean it.

Do not place the Synology product on a cart, table, or desk, which is not stable to avoid the

product from falling over.

The power cord must plug in to the right supply

voltage. Make sure that the supplied AC voltage

is correct and stable.

To remove all electrical current from the device, ensure that all power cords are disconnected

from the power source.

Chapter

Chapter 2: Hardware Setup

Tools and Parts for Hard Disk Installation

A screwdriver

At least one 3.5” or 2.5” SATA hard disk

(Please visit www.synology.com for compatible hard disk models.)

Warning: If you install a hard disk that contains data, system will format the hard disk and erase all data. If you still

need the data, please back it up before installation.

Install Hard Disks

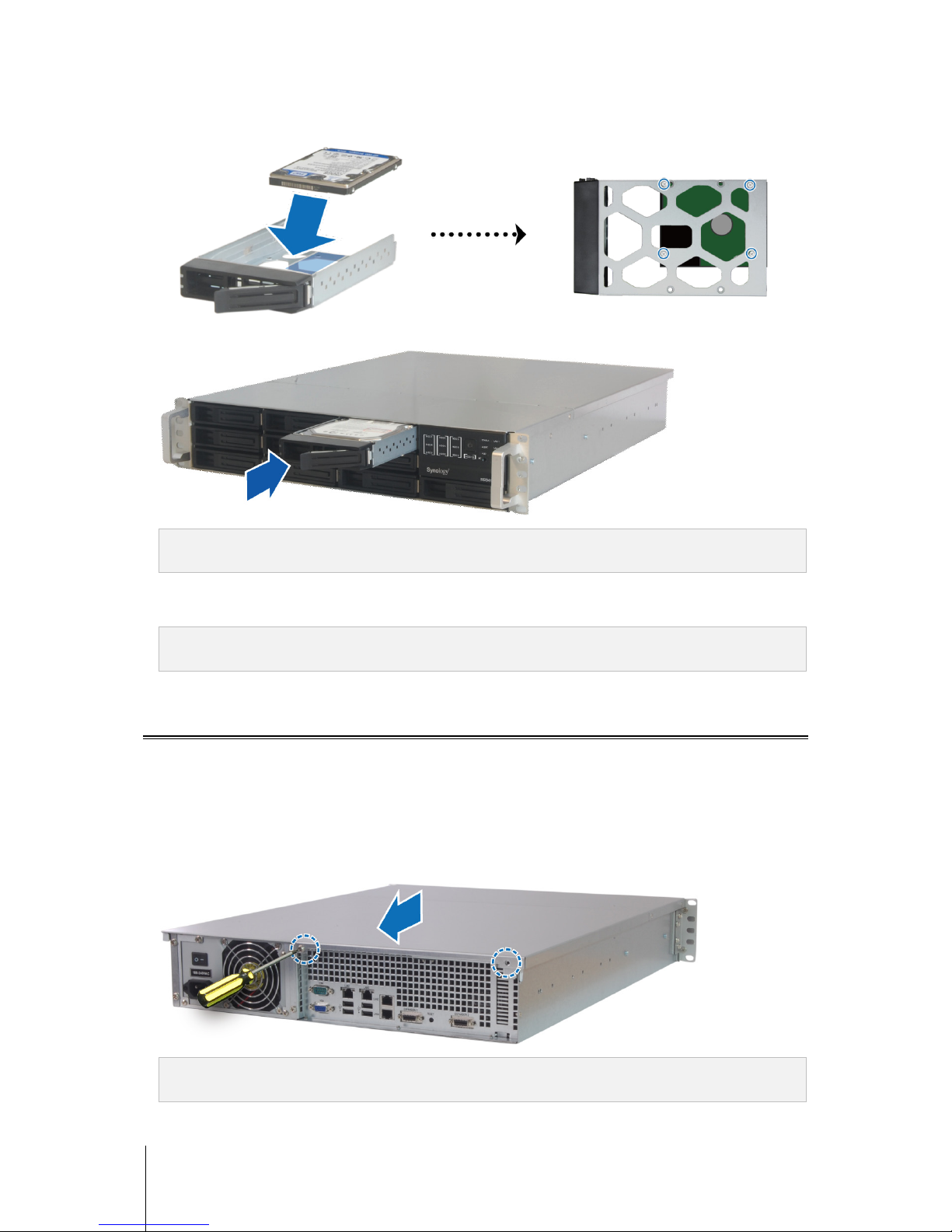

1 Pull the hard drive try handle in the direction as indicated below to remove the hard drive tray.

2 Load the hard disk in the hard drive tray.

For 3.5” Hard Disk: Place the hard disk in the hard drive tray, turn the tray upside down, and then tighten

the screws to secure the hard disk.

8 Chapter 2: Hardware Setup

For 2.5” Hard Disk: Place the hard disk in the blue area (shown below) of the hard drive tray, turn the tray

upside down, and then tighten the screws to secure the hard disk.

3 Insert the loaded hard drive tray into the empty hard drive bay.

Important: Make sure the tray is pushed in all the way. Otherwise, the hard disk might not be able to function

properly.

4 Push the hard drive tray handle to secure the hard drive tray.

5 Repeat the steps above to assemble all hard disks you have prepared.

Note: If you want to set up a RAID set, it is recommended that all installed hard disks are of the same size to make

the best use of hard disk capacity.

Add a RAM Module on RackStation

Synology RAM module 1GB/2GB is designed for RackStation memory expansion, and is optional for your choice.

Follow the steps below to install, check, or remove your RAM module.

Install the RAM Module

1 Shut down your RackStation. Disconnect all cables connected to your RackStation to prevent any possible

damages.

2 Remove the 2 screws on the back of RackStation, and then pull the top cover.

Important: When you pull out the cover, you expose sensitive internal components. Avoid touching anything other

than the memory assembly when you remove or add memory.

9 Chapter 2: Hardware Setup

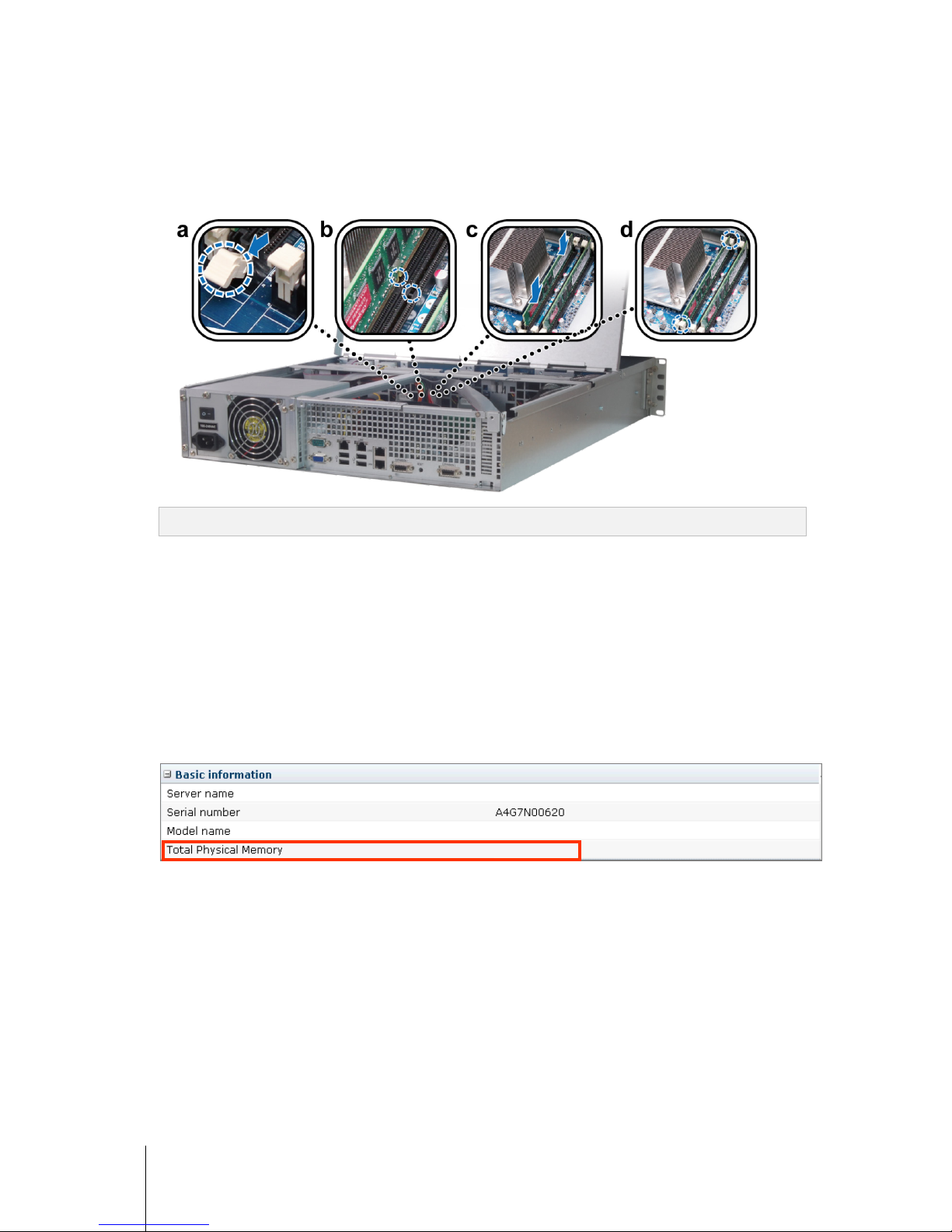

3 Insert the new memory module in the slot:

a Open the ejectors on the memory slot and push them out to the sides.

b Align the notch on the gold edge of the module with the notch in the memory slot.

c Use two fingers with firm, even pressure to push down on the memory module.

d When the memory is inserted correctly, the ejectors will snap into place.

Important: Hold the memory module by its edges, and do not touch the gold connectors.

4 Replace the top cover. Replace and tighten the 2 screws you removed in step 2.

Make Sure RackStation Recognizes the New Memory Capacity

After installing the memory module on RackStation, it’s recommended that you check whether the server

recognizes the new memory.

To check the memory of your RackStation:

1 Start up your RackStation. (See “Start Up Your RackStation” on Page 12 for more information.)

2 Install DSM. (See “Chapter 3: Install ” on Page 13 for more information.)

3 Log in to Synology DiskStation Manager (DSM).

4 Check Total Physical Memory in Main Menu > System Information.

If your RackStation doesn’t recognize the memory or doesn’t start up correctly, check out if the memory is

installed correctly.

RS3412xs

4096 MB

RackStation

10 Chapter 2: Hardware Setup

Remove the RAM Module from RackStation

1 Follow step 1 to 2 of the “Install the RAM Module” section to open the cover of your RackStation.

2 Remove the RAM module.

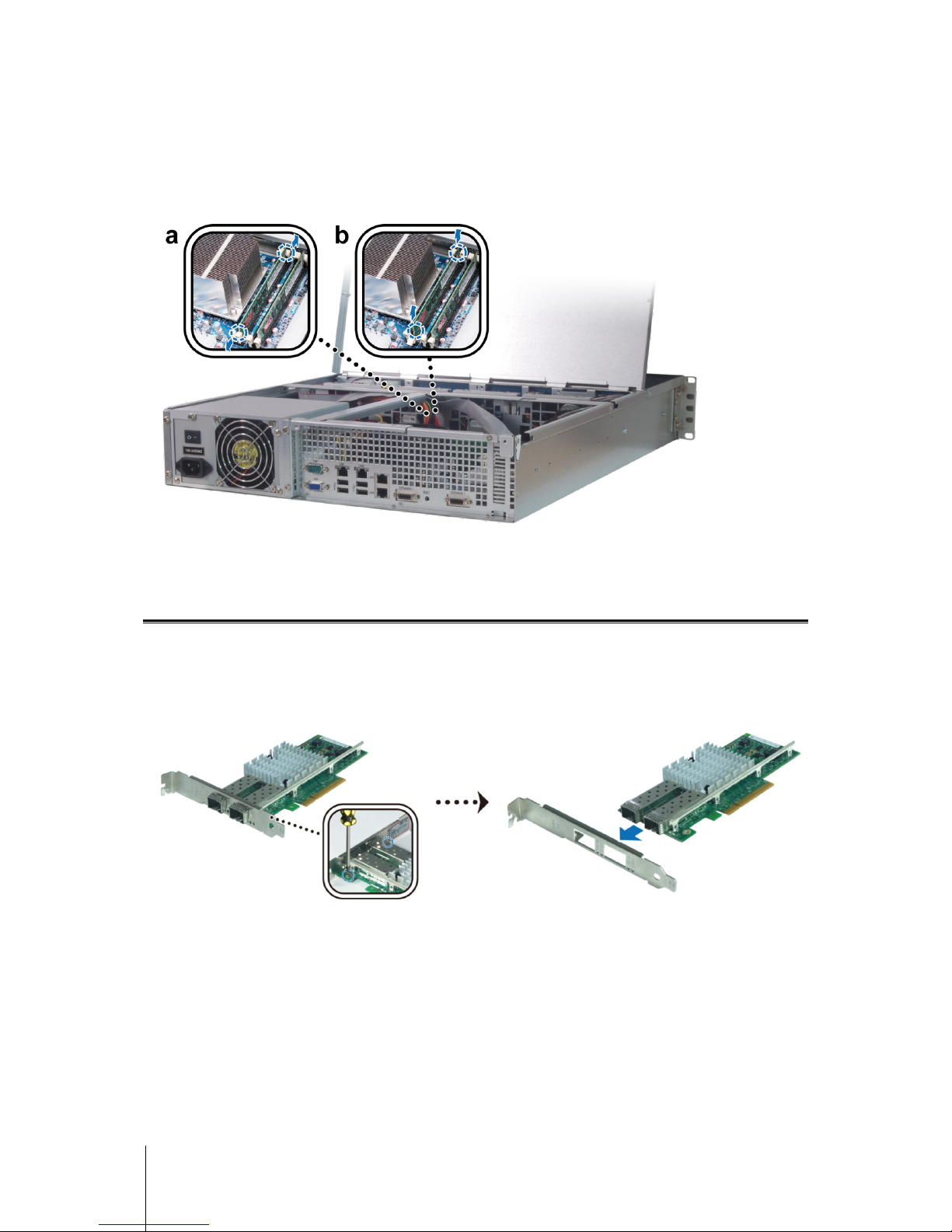

a Open the ejectors on the memory slot and push them out to the sides.

b Hold the memory module by its notches and remove it from the slot.

3 Replace the top cover. Replace and tighten the 2 screws you removed in step 1.

Add a Network Interface Card on RackStation

Your RackStation has a PCI Express expansion slot which allows you to install 10G/E or Gigabit network

interface card for LAN port expansion.1

To replace the long bracket with the short one:

You need to replace the long bracket (suited for PC) in your network

interface card with the short bracket (suited for 2U RackStation) before installing the card on your RackStation.

1 Unscrew the 2 screws in the long bracket on your network interface card, and then remove the bracket.

---------

1For more information about supported 10G/E or Gigabit network interface cards, visit www.synology.com.
