TDE Instruments 101398 Manuale utente
Digalox DPM72-AVP Instruction manual (Rev-2018-09)
Visit www.digalox.com to download the software “Digalox Manager”
Package contents: Panel meter Digalox DPM72, 5 × jumpers, 1 × mounting bracket
1. Intended Use
Indoor use non condensing, non corrosive
Panel mounting
Failure to comply with these instructions will void all guarantee and warranty
In operation, supply the device preferably via screw terminals with 10 to 24 V
AC/DC If the device is supplied via USB in operation, USB supply voltage must
be at least 5 V
2. afety instructions
Note: The measurement inputs of the device can carry life-threatening
voltages!
When working on the device hazardous voltages must not be connected to
the device!
The device must not be used as the only protective device or protective
shutdown.
Read instruction manual carefully before operating the device!
The device is not intended to protect persons or facilities against harm Specific
devices must be used to guarantee safety (protection relays, cut-off switches,
etc )
When connecting switches to the terminals J1-J6, only switches must be used
whose isolation voltage is at least twice the maximum occurring measurement
voltage For example, when measuring 250 V AC switches must be isolated for
at least 500 V
Do not open the housing!
Do not use the instrument in the presence of explosive or flammable substances!
All cables carrying hazardous voltages must be secured with external separators
----- 1 -----
3. Description
The measurement modes volt AC/DC, ampere AC/DC, frequency and 5 A current
transformer are supported Scale endpoint of the indicator as well as scaling of the
analogue signal and current transformer measurement can be adjusted freely via
the DIP switch, alternatively there is an option for automatic adaption of the scale
endpoint The unit can be switched between volt and ampere measurement via an
external switch Minimum and maximum values are recorded and can be displayed
optionally using an external switch Measured values are recorded over a time
span of 3 minutes up to 14 days The time base as well as the display of the
measuring history can be activated by an external switch The measured values
remain stored as long as the device is supplied with voltage
The following parameters can be adjusted using the USB software: scale endpoint,
scale caption, display style (pointer, tachometer, bar graph, and more), splash
image, thresholds for alarm output, hysteresis, and more Recorded measurement
values can be read and a continuous transmission of the actual measuring value
can be enabled Using the software, values can be viewed and exported as CSV
Front
1 Unit or free text
2 Threshold values
3 Upper scale caption
4 Graphical measurement display
5 Digital measurement value
6 Lower scale caption
Back
1 2 optocoupler switch outputs
2 DIP switch for setting measurement
mode and upper scale caption
3 Supply voltage input
4 Jumpers for configuration or
connection external switch for
activating/switching measurement
mode, graphical historic data display,
min/max display, auto-scaling
5 USB interface for alternative power
supply and software communication
interface
6 Measurement inputs
----- 2 -----

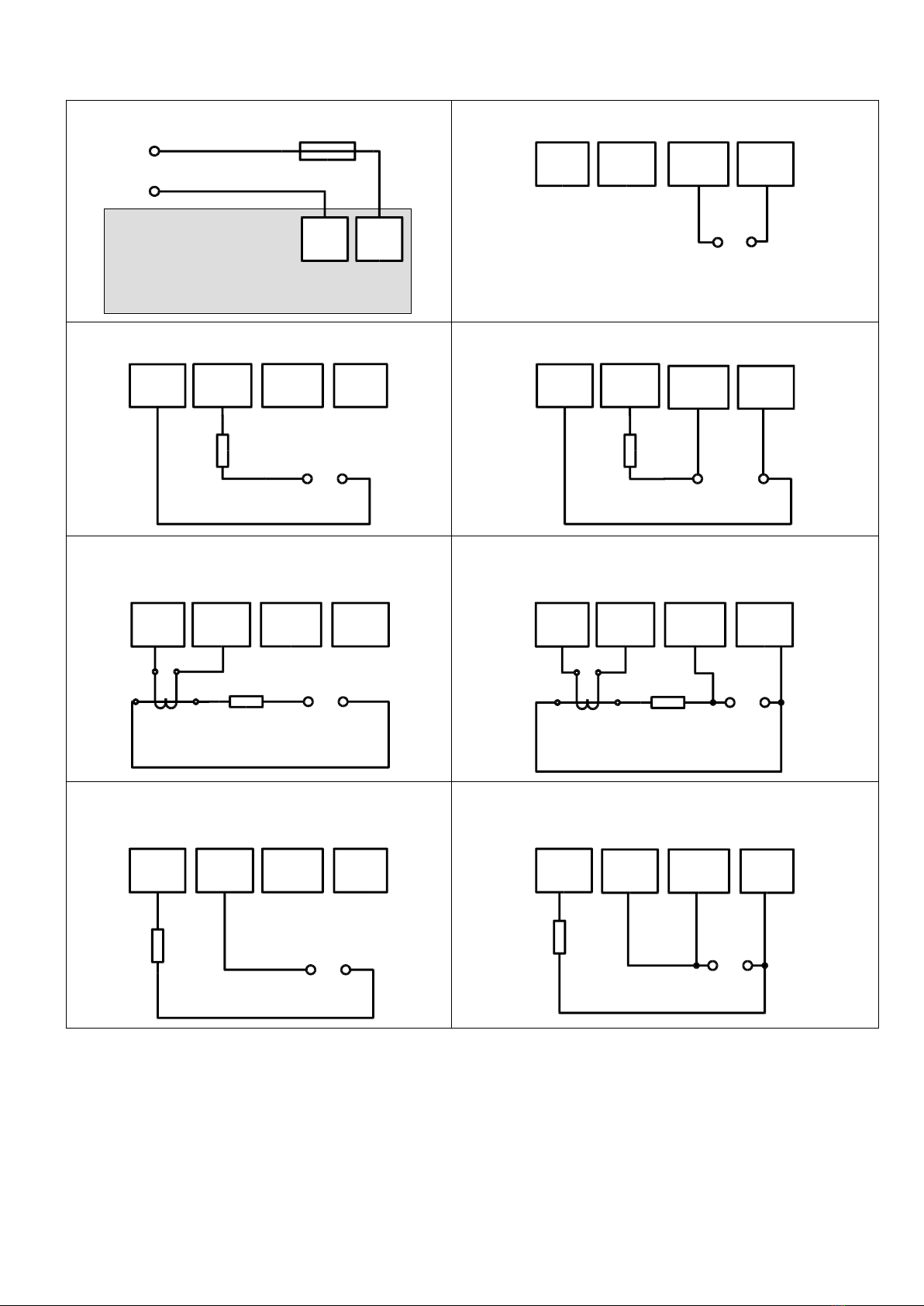

4. Electrical Connections
upply
Digalox
−+
10 - 24 V Fuse 250 mA
Supply
Voltage direct
+/L -/N
max
500 V
Ilow Ihigh Uhigh Ulow
Current direct
Ilow Ihigh Uhigh Ulow
Load
+/L -/N
max
10 A
Current and voltage direct
Ilow Ihigh
Load
+/L -/N
max
10 A
max
500 V
Uhigh Ulow
Current via current transformer
Load +/L -/N
Current
Transformer
Ilow Ihigh Uhigh Ulow
Current via current transformer,
voltage direct
Load +/L -/N
Current
Transformer
max
500 V
Ilow Ihigh Uhigh Ulow
Current on high side,
50 V max!
Load
+/L -/N
max
50 V!
Ilow Ihigh Uhigh Ulow
Current on high side,
voltage direct, 50 V max!
Load
+/L -/N
max
50 V!
Ilow Ihigh Uhigh Ulow
Warning:
The device may only be operated in one of the connection options shown
above!
Current measurement on the high side (between plus and load) is
recommended only for voltages up to 50 V!
In this case the entire device is on high potential. Particularly to be considered
when connecting switches to J1-6.
----- 3 -----
5. Configuration
The device can be configured via DIP switches and jumpers manually or with the
corresponding software “Digalox Manager” via USB interface When configuring via
DIP switches and jumpers the basic settings can be made computer-independent
The configuration with the software “Digalox Manager” allows full functionality
caling
In modes where a scaling is necessary to represent the correct measurement value
(for example 5 A AC for current transformer) the upper scale value corresponds to
the primary value of the current transformer or shunt
Example:
upper scale value = 50 = primary value of the current transformer
Configuration via U B interface with software “Digalox Manager”
For configuration with software set DIP switch 10 to OFF position
Please note that the measurement mode selected in "Digalox Manager" is displayed
only until the power supply of the DPM72 is interrupted
In further operation, the device always shows the measurement mode,
which is selected by the jumpers J4-J6 or the DIP switches 11-12
respectively!
(see table "Measurement mode").
Configuration via DIP switches and jumpers if only one measurement mode is
required (Manual mode)
1 Set DIP switch 10 to ON position
2 Set measurement mode with jumpers at J4-J6 according to table "Measurement
mode”, column “Manual mode"
3 Set upper scale caption for the first measurement mode with DIP switches 1-9
(see “Configuration of the upper scale caption”)
4 Connect supply voltage
----- 4 -----
Configuration via DIP switches and jumpers if it is required to switch between
multiple measurement modes via an external switch ( ave mode)
The required measurement modes are configured and saved sequentially
1 Connect supply voltage
2 Set DIP-switch 10, 11 and 12 to OFF position
3 Set the measurement mode with jumpers at J4-J6 according to table
"Measurement mode”, column “Save mode"
4 Set DIP switch 10 to ON position
5 Set upper scale caption for the first measurement mode with DIP switches 1-9
(see “Configuration of the upper scale caption”)
6 Set time base for graphical historic data display (optional, see “Other settings”)
7 Set DIP switch 10 to OFF position
8 "Saved” appears on the display The configuration of the first measurement
mode is now completed
9 When using multiple measurement modes repeat steps 2-8 until all required
measurement modes are configured The time base does not need to be set
again, as it is used for all measurement modes
10 In operation the measurement modes can be changed with a switch at J4-J6
according to table "Measurement mode”, column “Save mode"
Configuration of the upper scale caption
The upper scale caption is binary coded using DIP switches 1-9 Possible values are
1 to 500 Switch 1 corresponds to 256, switch 2 corresponds to 128, switch 3
corresponds to 64, etc , switch 9 corresponds to 1 For configuration, proceed as
follows:
1 Connect supply voltage
2 Set DIP switches 1-9 to OFF position
3 Set DIP switch 10 to ON position
4 Start with 1st switch
5 Set switch to ON position
6 If the displayed value is greater than the desired value, set the switch back to
OFF position
7 If the displayed value is less than the desired value, leave the switch in ON
position and move on to the next switch
8 Repeat steps 5 to 7 until the desired value is displayed
----- 5 -----

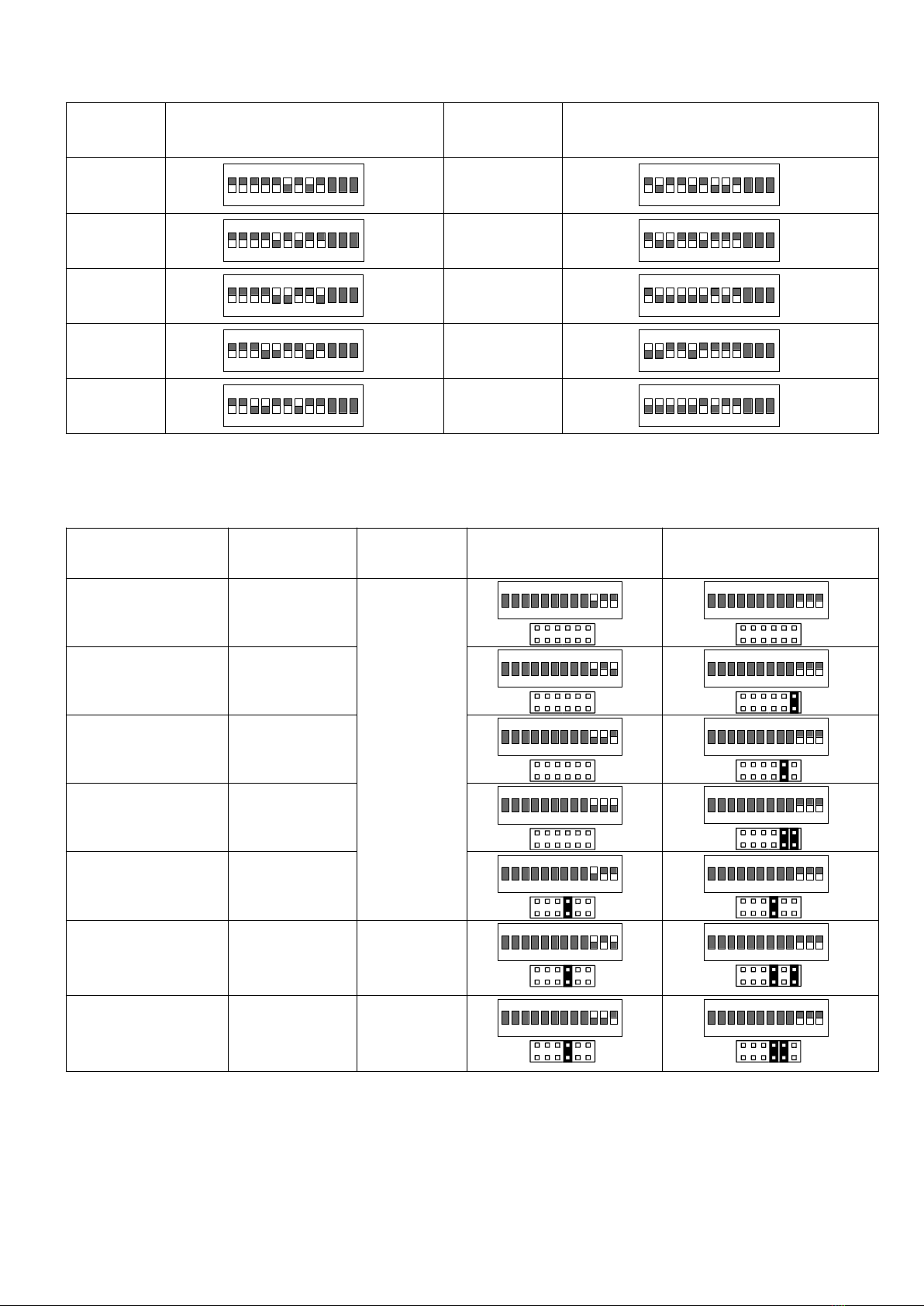

Table common switch combinations
Value Combination
(DIP switch 1-9)
Value Combination
(DIP switch 1-9)
10
ON
1 2 3 4 5 6 7 8 9
10 11 12
150
ON
1 2 3 4 5 6 7 8 9
10 11 12
20
ON
1 2 3 4 5 6 7 8 9
10 11 12
200
ON
1 2 3 4 5 6 7 8 9
10 11 12
25
ON
1 2 3 4 5 6 7 8 9
10 11 12
250
ON
1 2 3 4 5 6 7 8 9
10 11 12
50
ON
1 2 3 4 5 6 7 8 9
10 11 12
400
ON
1 2 3 4 5 6 7 8 9
10 11 12
100
ON
1 2 3 4 5 6 7 8 9
10 11 12
500
ON
1 2 3 4 5 6 7 8 9
10 11 12
Table measurement mode
Measurement
mode
Display cale Manual mode ave mode
V AC direct Volt
AC
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
A AC direct Ampere
AC
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
V DC direct Volt
DC
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
A DC direct Ampere
DC
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
AC Frequency Freq
Hz
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
5 A AC scaled
(Current
transformer)
Ampere
CT
Upper
scale
caption
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
1 A AC scaled
(Current
transformer)
Ampere
CT
Upper
scale
caption
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
ON
1 2 3 4 5 6 7 8 9
10 11 12
J1 J6
----- 6 -----
6. Other settings
The following functions can be activated independently by short-circuiting
connectors J1-J3 by jumper or switch during operation:

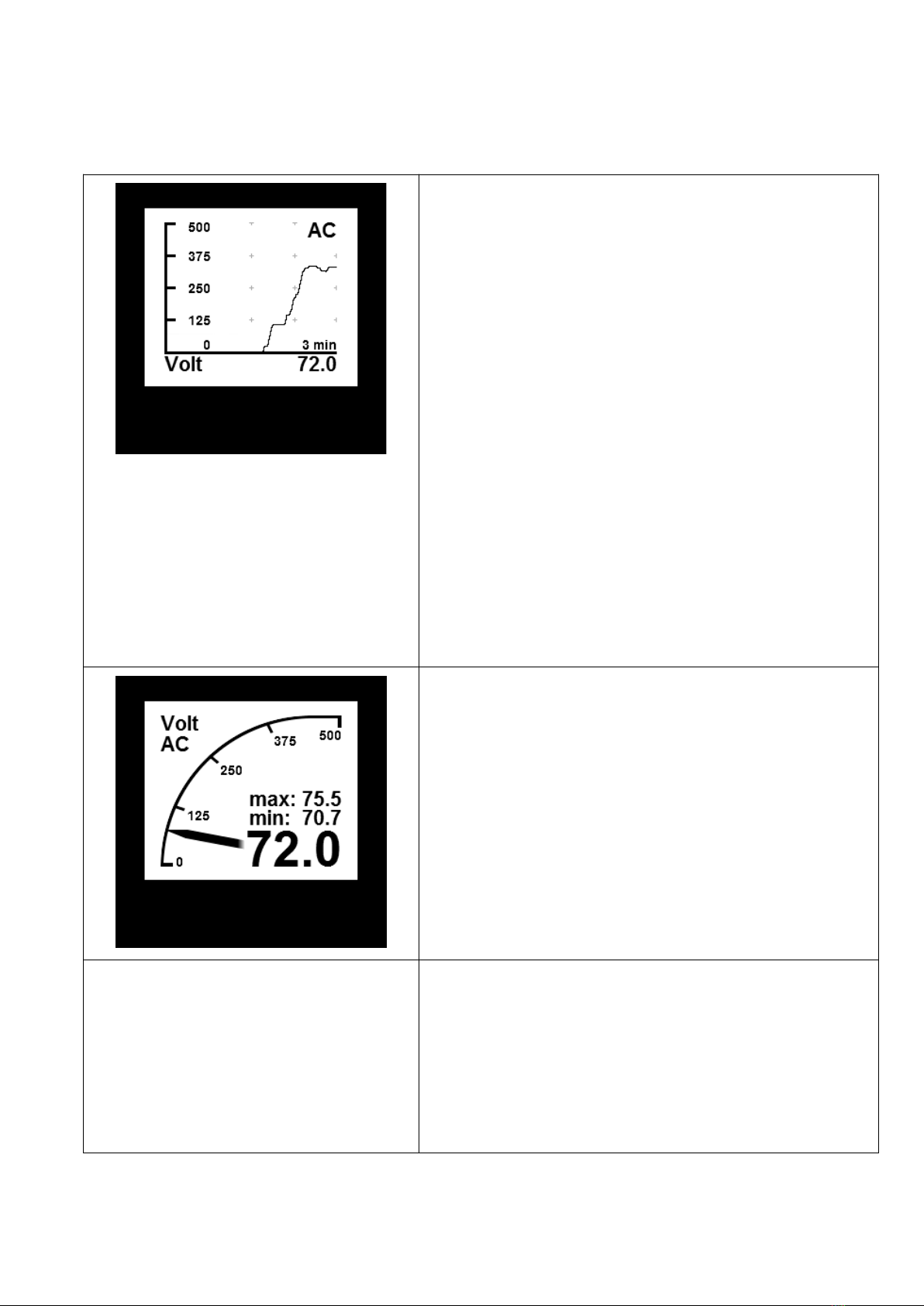

J1: Graphical historic data display
To activate the graphical historic data display
connector J1 is shorted The unit displays
the stored values within the set time base as
a graphical trend
The time base can be set to days (7, 14),
hours (6, 12, 24, 48, 72) or minutes (3, 15,
30, 60)
The time base can be changed by alternately
opening and closing J1 (interval < 2 sec)
When first opening and closing J1 the
current time base is displayed For each
subsequent opening and closing the time
base changes to the next setting In order to
save the setting permanently, DIP switch 10
must be switched from ON to OFF position
J2: Min-Max-display
To activate the Min-Max display connector
J2 is shorted The display shows the
maximum and minimum values recorded
since the last reset The values can be reset
by opening and closing connection J2 shortly
(interval < 2 sec) The display shows
"Minmax reset"
J3: Auto-scaling
To activate auto-scaling J3 connector is
shorted The device automatically changes
the upper scale caption depending on the
current measuring value between 10, 100
and the set upper scale caption
----- 7 -----
7. Mounting
Carefully insert the instrument into the panel cut-out Insert the mounting bracket
from the back and push towards the panel until the instrument sits tight Make sure
the mounting bracket is snapped into the side of the housing To ensure IP65
protection (dust and water jet) when mounting in a front panel, use optional gasket
(separately available)
8. pecifications
DPM72-AVP
Supply 10 - 24 V AC/DC or via USB (min 5 V),
galvanically isolated
Display LCD graphic display 192 × 160 pixels
Measuring range voltage ±500 V AC/DC
Accuracy voltage ±1 % true RMS
Internal resistance voltage 2 6 MΩ
Measuring range ampere ±10 A AC/DC and 5 A AC for current transformer
Accuracy ampere ±1 % true RMS
Internal resistance voltage 5 mΩ
Measuring range frequency 10 - 500 Hz
Accuracy frequency ±0 1 Hz
Recording of measurement 3 mins to 14 days
Alarm outputs 2 optocoupler outputs max 30 V DC, 50 mA
Operating temperature 0 °C to +50 °C
Storage temperature -20 °C to +70 °C
Front panel 72 mm × 72 mm
Panel cut-out 68 mm × 68 mm
Protection front IP65 from the front
9. Cleaning
Observe the safety instructions before cleaning the instrument Clean the
instrument with a dry lint-free soft cloth Do not use solvents
10. Contact Information
TDE Instruments GmbH, Gewerbestraße 8, D-71144 Steinenbronn
phone: +49 7157-20801
E-Mail: info@tde-instruments de
Internet: www tde-instruments de, www digalox com
----- 8 -----
Questo manuale è adatto per i seguenti modelli
1
Altri manuali TDE Instruments Strumento di misura
TDE Instruments
TDE Instruments Digalox DPM72-MPPV Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MPN Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MP+ Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-AV Manuale utente
TDE Instruments
TDE Instruments DPM72-AV Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-PP Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MPN Manuale utente
TDE Instruments
TDE Instruments 103317 Manuale utente
TDE Instruments
TDE Instruments 103316 Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-AVP Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MPN+ Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-PP Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MP Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MPP Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MP Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MPPA Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MPPV-USB Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MPP Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-AV2 Manuale utente
TDE Instruments
TDE Instruments Digalox DPM72-MPP Manuale utente
