Techkon Spectro Jet Manuale utente

TECHKON

Manual Color Meter

Scan-Measurement-Device

SpectroJet

Software

ExPresso 3

PCE Americas Inc.

711 Commerce Way

Suite 8

Jupiter

FL-33458

USA

From outside US: +1

Tel: (561) 320-9162

Fax: (561) 320-9176

[email protected]

www.pce-instruments.com/english

www.pce-instruments.com

PCE Instruments UK Ltd.

Units 12/13

Southpoint Business Park

Ensign way

Hampshire / Southampton

United Kingdom, SO31 4RF

From outside UK: +44

Tel: (0) 2380 98703 0

Fax: (0) 2380 98703 9

[email protected]

TECHKON manuals, technical documentation and programs are copyrighted. Reproduction,

translation or transfer to an electronic medium – in whole or in parts – is prohibited.

TECHKON software is the intellectual property of TECHKON GmbH. Purchase of the soft-

ware grants the user a license for the use on one computer only. Programs may only be copied

for back-up purposes.TECHKON can not be held liable for any damages that may occur by the

use of the software.

The TECHKON team takes great care in producing this manual. Nevertheless, we can not fully

guarantee the complete absence of errors.TECHKON GmbH and the authors can not be held

liable neither for any possibly incorrect statements nor their consequences.

Products that are not made by TECHKON GmbH are mentioned for information purposes

only and such statements do not represent trademark infringement.

All registered trademarks

are recognized.

TECHKON products and product names are registered internationally under several intellec-

tual patents and trademarks.

Speciﬁcations can be subject to change without notice.

Version 1.1, June 2010

You can reach us at the following address:

TECHKON GmbH

 WiesbadenerStr.27•D-61462Königstein/

         

Welcome

We welcome you among the worldwide community of users of TECHKON prod-

ucts.We are happy that you have selected this high-quality measurement instrument.

It will be a valuable tool for your day-to-day quality control tasks. With this manual

weinviteyoutolearnhowtouseSpectroJet,thesoftwareExPresso3andSpectro-

Connect.

The manual is divided into four chapters:

Chapter 1: General description of the measurement system

Chapter 2: Installation of

SpectroJetandthesoftwareExPresso3

 Chapter3: HowtouseSpectroJetandthesoftwareExPresso3

 Chapter4: HowtousetheWindowssoftwareSpectroConnect

You will be fascinated how easy the system is to use.You will know how to work with

SpectroJet after only a few minutes.The third chapter will show you detailed insight

into the measurement functions.

Please get the device registered by using the detachable registration card, which is the

last page of this manual.That way we can keep you updated about product news.

Pleasevisitusaswellontheinternetat

Do you have any suggestions for improvements or do you require information that

goes beyond the contents of this manual?We will be glad to hear from you.Your sug-

gestions or questions make an important contribution to the continuous optimization

of our documentation and products.

YourTECHKONTeam

Contents

Chapter 1: General description of the measurement system

1.1 Product description.............................................................................. 5

1.2 Packing list .............................................................................................9

Chapter 2: Installation of

SpectroJetandthesoftwareExPresso3

2.1 Assembly of SpectroJet .......................................................................10

 2.2 InstallationofthesoftwareExPresso3 ...........................................11

Chapter3: HowtouseSpectroJetandthesoftwareExPresso3

 3.1 OperationofSpectroJet......................................................................12

 3.2 Careandmaintenance.........................................................................17

 3.3 Softwareoverview................................................................................ 20

 3.4 Softwaresettings................................................................................... 23

 3.5 Deningandrunningaprintjob .......................................................40

Chapter4: HowtousetheWindowssoftwareSpectroConnect

 4.1 Softwaredescription ...................................................................... 62

 4.2 Installation......................................................................................... 62

 4.3 Overview .......................................................................................... 63

 4.4 Softwaremodule“SpectroJetsettings” ...................................... 64

 4.5 Deviceupdate .................................................................................. 65

 4.6 Softwaremodule“Export”............................................................ 66

 4.7 Softwaremodule“ColorCatcher” .............................................. 67

 4.8 Softwaremodule“PhotoLab”....................................................... 68

 4.9 Softwaremodule„MediaWedge“................................................ 71

Appendix:

Technical speciﬁcations

Manufacturer certiﬁcate

EC-Declaration of Conformity

Registration card

Manual TECHKON SpectroJet Chapter 1 – General description Page 5

Chapter 1

General description of the measurement system

1.1 Product description

Accurate, fast and easy to use

SpectroJet revolutionizes automatic measurements of print quality on print control

bars, color wedges and test charts.

Color measurement made easy: The compact measurement device is quickly guided

by hand along the color bar. Tracking wheels on the bottom of the device ensure a se-

cure and straight run. At longer distances the device can be slid along a guiding track.

The measurement data is transferred simultaneously to a PC in order to control the

color quality of the printing press.

All-purpose device

Thanks to the modular concept of SpectroJet it can be used for any printing process

and quality standard. ISO 12647, PSO, Fogra media wedge, Gracol G7™ or any other

standardization method can be applied: SpectroJet will always deliver all relevant mea-

surement data necessary for evaluating high quality prints.

The supplied software TECHKON SpectroConnect displays clearly all measurement

values on the computer screen, which are transferred by SpectroJet via an USB

connection. All measurement values can be exported as well into other applications,

such as Microsoft Excel™ for example. The additionally available software TECHKON

ExPresso is especially suited for the evaluation and documentation of the print quality

according to various quality control methods, e. g. ISO 12647 or Gracol G7™.

ISO compliant measurements

By software command a physical polarizing ﬁlter can be inserted which is the pre-

condition for conforming to the print standards. Multiple functions – color densities,

colorimetry, printing contrast, gray balance, dot gain or ink setting recommendations –

SpectroJet is a versatile and valuable tool for achieving highest print quality and

boosting the productivity of a printing press.

Page 6 Manual TECHKON SpectroJet Chapter 1 – General description

All advantages at a glance:

Easy to handle

• forautomaticmeasurementsofcolori-

metric values, densities, dot gain, print-

ing contrast and gray balance

• TECHKONExPressoPC-softwarecan

be operated with or without the touch-

screen

Modular and compact

• workswithanysheetorpressformat

• space-savingmeasurementdevicets

on any table

• alsooninclinedtablesperfectlyto

handle

• deliverycontainsallcomponentssup-

plied in a practical carrying case

Easy to install

• installationismadewithinseconds

• measurementdeviceismaintenance

free

• robustdesignforreliablefunctionin

a harsh industrial environment

Complete measurement information

• anycolorbarcanbemeasured

(patch size has to match aperture size)

• colorbarcanbeatanylocationonthe

printed sheet

• nolimitationonpaperthickness

• universallydesignedforISO12647

(PSO), Gracol G7™ or any other

quality standard

• idealforreadingFogramediawedge

and similar color control targets

Manual TECHKON SpectroJet Chapter 1 – General description Page 7

Accurate

• precisespectralengineinpatented

measurement head with automatically

insertable polarizing ﬁlter for easy

positioning conforming to ISO and

DIN standards (e. g. CIE L*a*b*- and

∆E-measurements)

• UVcutlteroptionavailable

Fast

• highresolutionspectralmeasurement

of a complete color bar within seconds

(e.g. 500 mm in only 3 seconds!)

• informationoverviewdisplaysrelevant

parameters for quality control in real-

time

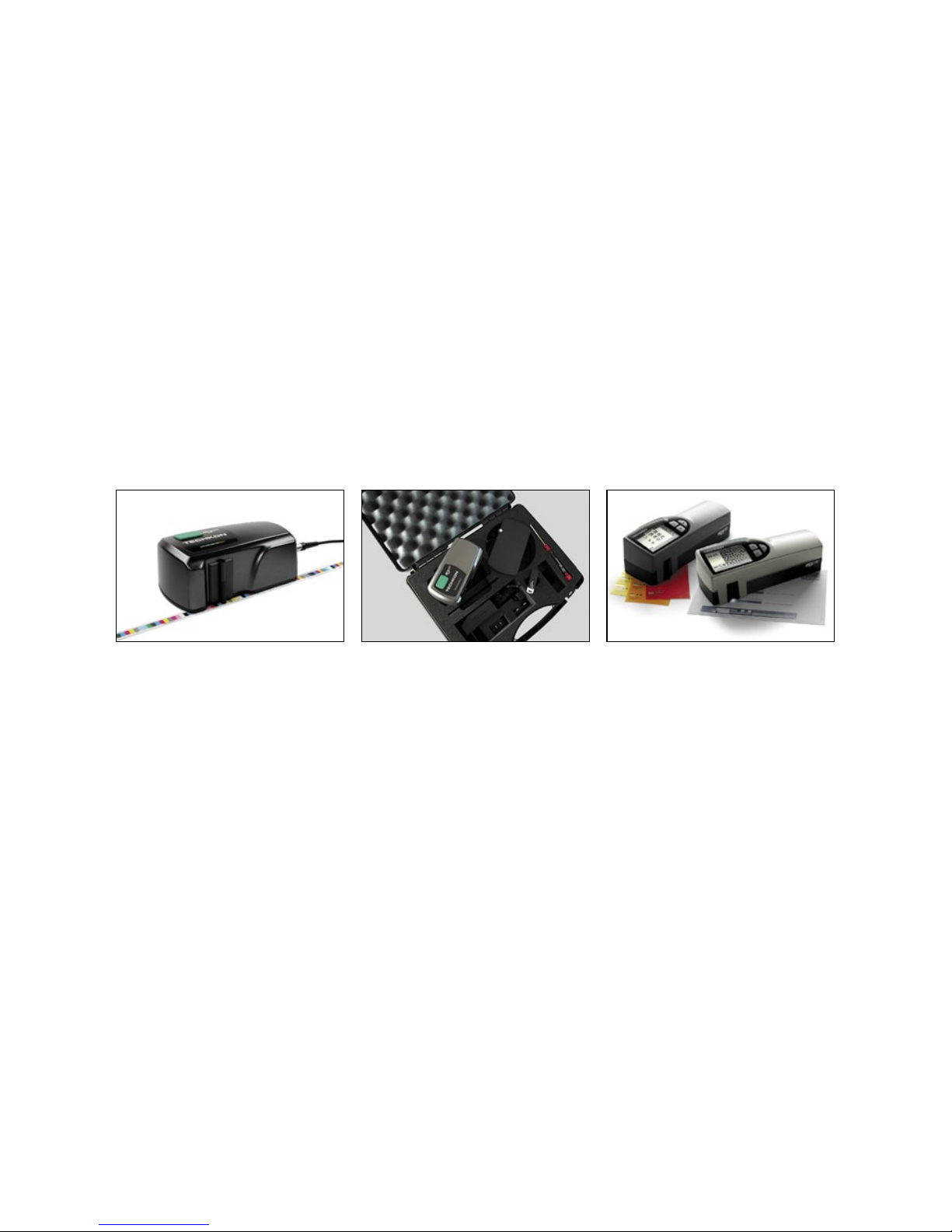

The perfect tool for spot-

and scan-measurements.

The guiding track Spectro-

Jet Track, which is option-

ally available, supports the

accurate scanning of long

color bars.

TECHKON SpectroJet

is the ideal extension to

TECHKON’s renown

hand held instruments:

SpectroPlate is the

perfect tool for accurately

reading printing plates

and SpectroDens is the

mobile, multi-purpose

spectro-densitometer,

which can be used at any

location.

TECHKON SpectroJet is

delivered as a complete

turn-key system.Within a

few minutes the system is

up and running.

One unique feature of

SpectroJet is its ﬂexibility

to be used with any press

type or format.

Page 8 Manual TECHKON SpectroJet Chapter 1 – General description

Dimensions

Two different performance packages

The scan-measurement device SpectroJet and the MS-Windows software ExPresso

form a complete quality control system for increasing productivity and quality of a

printing press.

There are two different versions available:

SpectroJet + ExPresso Basic

consists of the spectral measuring device

SpectroJet and the MS-Windows software

ExPresso Basic with the following func-

tions:

• inkzonespecicdensitydisplay

• colordensityforCMYKandspotcolors

(spectral density)

• measurementdataexport

• densitometricgraybalance

• dotarea,dotgainandprintingcontrast

• slur/doublingvalue

• targetvalues,references,tolerances,

OK sheet

• face-andreverseprinting

• workswithanycolorbarlength

• displayofsinglemeasurementswhen

used as a hand held device

• statisticalanalysisandreport

• supportsupto6printingunits

SpectroJet + ExPresso Pro

contains the same functions as the

“Basic” package and additionally:

• inkzonespeciccolorimetric

∆E*a*b* display, CIE L*a*b*, ∆L*a*b*,

L*C*h*, ∆L*C*h*

• “InkCheck”recommendationforink

key setting

• displayandevaluationaccordingto

ISO 12647, Gracol G7™ generator

• supportsupto16printingunits

A post-purchase software-upgrade from

the Basic- to the Pro-version can be

done easily.

70 mm

135 mm

Manual TECHKON SpectroJet Chapter 1 – General description Page 9

1.2 Packing list

Contents of delivery:

• Color meter  SpectroJet

• whitestandard,ACadapterwithuniversalplugs,

USB cable, carrying case

• CDwithsoftwareSpectroConnect

• printcontrolstripTECHKONTCSDigital

• manualwithISO9000certicate

System requirements for TECHKON software:

MS-WindowsXP,Vistaor7.

Optional accessories:

• SpectroJetTrack:horizontaltrackwithtwoverticalbars

Standard length: SpectroJet Track 52 (520 mm), 74 (740 mm) or 102 (1020 mm).

Special lengths on request

• softwareTECHKONExPresso

delivered on CD with software protection key (USB-dongle)

• printcontrolstripsTECHKONTCS,availableasEPS-andpdf-lesonCD

 (canbedownloadedfreeofcharge  

• software-upgradesfromExPressoBasictoExPressoPro

The carrying case protects SpectroJet and parts

Page 10 Manual TECHKON SpectroJet Chapter 2 – Installation

Chapter 2

Installation of

SpectroJet and the software ExPresso 3

2.1 Assembly of SpectroJet

SpectroJet is a solidly designed measurement device which is very functional and easy

to use. It is compact in size; the buttons can be reached with the right index ﬁnger

when the device is held with the right hand. The LED row is always visible.

A great advantage of SpectroJet is the fact, that it can be easily positioned on the

measurement sample.

The device incorporates a high-resolution spectral sensor which analyzes the color

spectrum of the measured sample. The spectral data is the base information for calcu-

lating densitometric and colorimetric data which is displayed. Densitometric values

can be solid density, dot area, dot gain or trapping values. Colorimetric values are

typically CIE L*a*b*- or ΔE-color information.

The USB-connector is for linking with a PC. The self-locking push-pull-connector ﬁts

into the socket at the back of the device.

Grip zone

USB connector

Device label with

serial number at

the bottom of the

device

Measurement

head

Green measurement

button

LED row

Tracking wheels

Stop rail for

guiding track

Indice

Altri manuali Techkon Strumento di misura

Techkon

Techkon SpectroDrive Manuale utente

Techkon

Techkon SpectroDrive Manuale utente

Techkon

Techkon DENS Manuale utente

Techkon

Techkon SpectroDens Manuale utente

Techkon

Techkon SpectroDrive Come usare

Techkon

Techkon SpectroDens Manuale utente

Techkon

Techkon SpectroDrive Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
