Tektronix RSA5100A Series Manuale utente
RSA5100A Series Real-Time Signal Analyzers
Option 52 Frequency Mask Trigger Upgrade
ZZZ
Instructions
xx
www.tektronix.com
*P071285600*
071-2856-00
Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries
or suppliers, and are protected by national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication
supersedes that in all previously published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit www.tektronix.com to find contacts in your area.
Table of Contents
Kit Description...................................................................................................... 1
Products......................................................................................................... 1
Kit Parts List ................................................................................................... 1
Installation Instructions............................................................................................ 1
Updating the Instrument Application Software ............................................................ 1
Install Option Key ............................................................................................. 2
Installing the Option Key Label................. .............................................. .... ........... 4
RSA5100A Series Option 52 Upgrade i
Table of Contents
ii RSA5100A Series Option 52 Upgrade
Kit Description
This kit describes the installation of the Option 52 Frequency Mask Trigger
Upgrade in RSA5100A Series instruments.
Products
RSA5100A Series. All serial numbers
Kit Parts List
Quantity Part numberDescription
1 ea 071-2856-00 MANUAL, TECH: INSTALLATION, RSA5K
FREQUENCY MASK TRIGGER
1ea NS 1DATA SHEET; SOFTWARE OPTION KEY
AUTHORIZATION CERTIFICATE, UPGRADE
KITS
1ea NS LABEL, MANUFACTURED; OPTION KEY
UPGRADE LABEL 2.100 X 2.700, SAFETY
CONTROLLED
1NS — Not saleable
Installation Instructions
The software that performs Frequency Mask Triggering is included in all analyzers
running current application software version 2.5.0080 or higher. However, you
need an option installation key to activate it. To activate the Frequency Mask
Trigger capability, you must enter the new option installation key supplied with
this kit into the analyzer application. If your analyzer is running an earlier version
of the application software, you will have to download and install the latest
software before you can enter the option key that enables the Frequency Mask
Trigger capability.
Updating the Instrument Application Software
Select Help > About from the analyzer software menu bar to check the version of
your analyzer’s software. The software version appears at the top-right corner of
the About box. If your analyzer is not running version 2.5.0080 or later software,
you must download and install the latest version of the application software. If
your analyzer is running version 2.5.0080 or later software, proceed to Install
Option Key.
RSA5100A Series Option 52 Upgrade 1
Installation Instructions
To install the latest version of the analyzer application software:
1. Use your Web browser to go to: www.tektronix.com/software.
2. Enter your instrument model number in the Search by keyword text box
and click Go.
3. Follow the link for the analyzer software and download the software.
4. Follow the instructions on the Web page to install the software.
Install Option Key
To activate the Frequency Mask Trigger option:

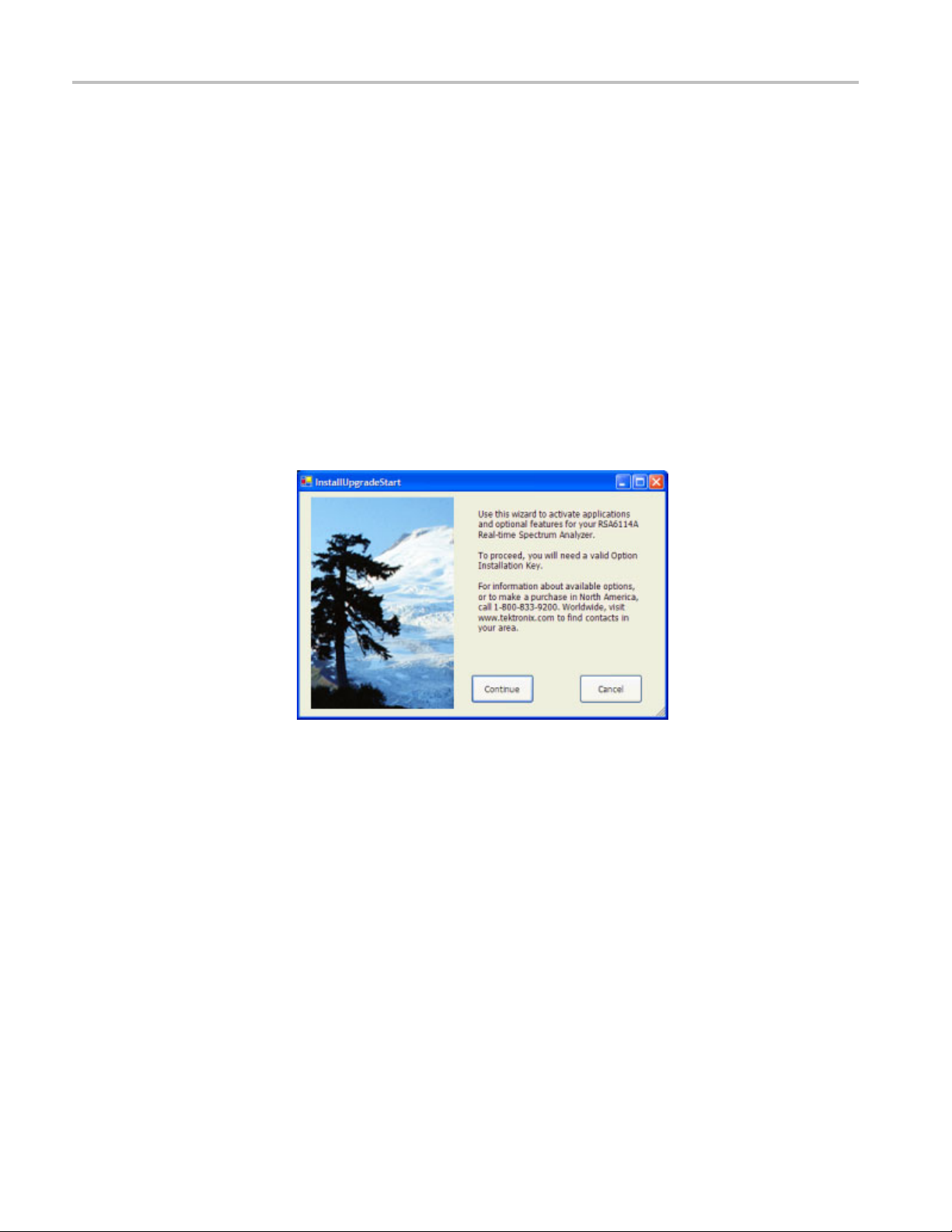

1. In the analyzer application, select Tools >Install Upgrades.TheInstall
Upgrade wizard will start. Click Continue.

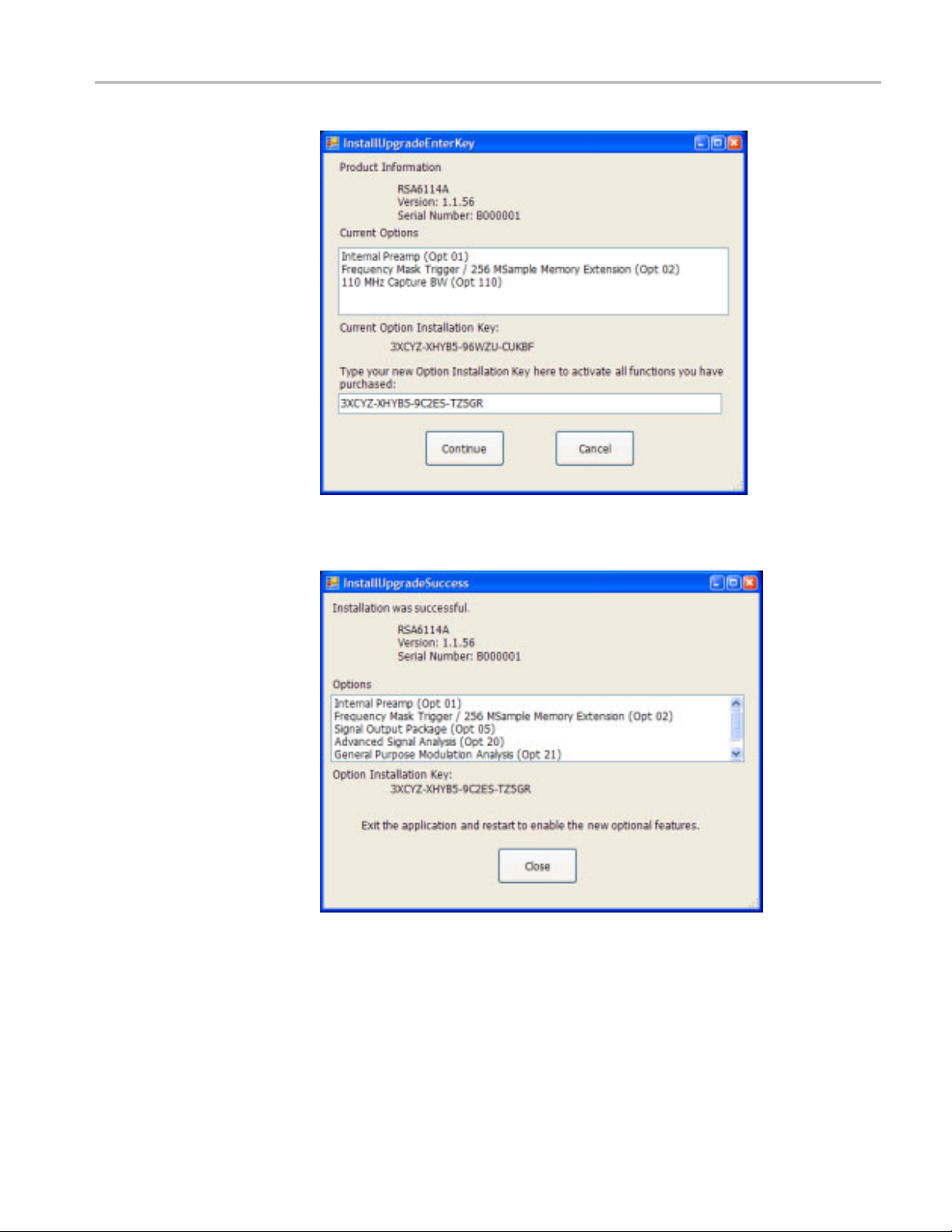

The Install Upgrade Enter Key screen appears.
2 RSA5100A Series Option 52 Upgrade
Installation Instructions
2. Type the option installation key into the empty text box and click Continue.
An Install Upgrade Success dialog box opens.
3. Click Close. Exit and restart the analyzer application to enable the new
feature.
4. In the Help menu, select About Tektronix Real-Time Analyzer.
5. Look in the Installed Options listing and verify that Frequency Mask
Trigger (Opt 52) appears in the listing.
RSA5100A Series Option 52 Upgrade 3
Installation Instructions
Installing the Option Key Label
Place the new option key label over the existing label on the instrument rear panel.
This completes the installation of the Option 52 Frequency Mask Trigger upgrade
kit.
■End of Document ■
