Telecast New Viper Manuale utente

New Viper

™

Instruction Manual

Telecast Fiber Systems, Inc.

102 Grove Street

Worcester, MA 01605

Tel: 508-754-4858

Fax: 508-752-1520

www.telecast-ﬁber.com

Viper

iii

TelecastViper

Table of Contents

Laser Safety ..................................................................................................................................... ix

Laser Radiation ..................................................................................................................... ix

FCC Part A Notice .......................................................................................................................... ix

CE Warning..................................................................................................................................... ix

Introduction.......................................................................................................................................1

Applications..................................................................................................................................2

Unpacking..........................................................................................................................................2

Components.......................................................................................................................................3

Portable Mussel Shell Chassis......................................................................................................4

Rack Mount Chassis .....................................................................................................................4

Removing the Rack Mount Adapters......................................................................................4

I/O Function Modules...................................................................................................................4

Auxiliary I/O Board......................................................................................................................5

Wavelength Division Multiplexer ................................................................................................5

WDM Installation ...................................................................................................................6

Power Systems...................................................................................................................................7

Internal..........................................................................................................................................7

Battery Pack............................................................................................................................7

Audible Alarm ........................................................................................................................8

External.........................................................................................................................................8

Anton-Bauer............................................................................................................................8

Power Connections............................................................................................................................8

Input Power Fuse ....................................................................................................................9

Main Circuit Boards .....................................................................................................................9

Signal I/O....................................................................................................................................10

Status Indicators....................................................................................................................10

Connector Numbering Conventions .....................................................................................10

Chassis Configuration ....................................................................................................................11

VIM4 ..........................................................................................................................................11

VIM8 ..........................................................................................................................................12

442 ..............................................................................................................................................13

V800D ........................................................................................................................................14

Signal Connections..........................................................................................................................15

Audio ..........................................................................................................................................15

Video ..........................................................................................................................................16

Telecast

1 April 99

Optical Fiber ...............................................................................................................................16

Transmission Fiber Ports ......................................................................................................17

Military Connectors .......................................................................................................17

Fiber Cable Runs...................................................................................................................18

Connecting a Fiber................................................................................................................19

Function Modules ...........................................................................................................................20

TX/RX 103: Analog Video.........................................................................................................21

TX 103 Video Transmitter....................................................................................................21

RX 103 Video Receiver ........................................................................................................21

Return Video ..................................................................................................................22

TX/RX 259: Digital Video .........................................................................................................23

TX 259 Transmitter...............................................................................................................23

RX 259 Receiver...................................................................................................................24

TX/RX 292: High Definition Video...........................................................................................24

TX 292 Transmitter...............................................................................................................25

RX 292 Receiver...................................................................................................................26

TX/RX 280 and TX/RX 380: Digital Audio ..............................................................................26

TX 280 Transmitter...............................................................................................................29

RX 280 Receiver...................................................................................................................30

TX/RX 380 Audio Expansion Modules................................................................................30

TX 380 Transmitter...............................................................................................................31

RX 380 Receiver...................................................................................................................31

TX/RX 380 Address Switches .......................................................................................32

TR 260 Transceiver...............................................................................................................32

The Auxiliary Option..................................................................................................................33

Auxiliary Submodule Boards................................................................................................33

Mounting the Auxiliary Submodule Board ....................................................................34

Audio Module Removal .................................................................................................34

Audio Module Installation .............................................................................................34

DATA/CCU ..........................................................................................................................34

TALLY/CALL......................................................................................................................34

Intercom Modules.......................................................................................................................36

4-Wire...................................................................................................................................36

Clear-Com.............................................................................................................................37

RTS/Telex.............................................................................................................................38

Intercom Module replacement....................................................................................................38

Viper Operation ..............................................................................................................................39

Viper Field Reconfiguration ..........................................................................................................40

Changing the Signal Direction ...................................................................................................40

Video.....................................................................................................................................40

Audio.....................................................................................................................................41

Viper

Audio XLR Connectors .................................................................................................41

Module Slot Compatibility ...................................................................................................41

Wavelength Division Multiplexing (WDM).........................................................................42

Multiplexing Audio Signals..................................................................................................42

Transmitting Audio in One Direction: ...........................................................................42

Transmitting Audio to Multiple Destinations ................................................................43

Splitting Auxiliary Signals....................................................................................................43

Hardware Requirements .................................................................................................43

Submodule DIP Switch Configuration ..........................................................................44

Accessory List..................................................................................................................................45

Repair...............................................................................................................................................45

Operating Characteristics..............................................................................................................46

Warranty .........................................................................................................................................50

Telecast

1 April 99

Viper

Laser Safety

WARNING

Some modules in this series may use a Laser Diode transmitter. This paragraph applies only

to them.

Class 1 Laser. Do not stare into a connector port or fiber.

Laser Radiation

The unit is a CDRH Class 1 laser device. Although this means it is eye safe,

you must avoid

looking directly at, or staring into, the laser beam located on an ST connector or on the end of a

fiber.

Infrared radiation is produced at the fiber connection port on the rear of the unit and at the end of

unterminated optical fibers that are attached to this port. Avoid long, direct exposure to the light

that comes from these sources.

Do not enable the laser when there is no fiber attached to the fiber connection port.

Do not attempt any type of service to this instrument other than so instructed in this manual. Refer

servicing to Telecast Fiber Systems, Inc.

FCC Part A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

CEWarning

This is a Class A product. In a domestic environment this product may cause radio interference, in

which case the user may be required to take adequate measures.

Telecast

1 April 99

Viper

Introduction

The Telecast Viper is a modular, user-reconfigurable fiber optic communication system for the

field acquisition of video and audio signals. Plug-in I/O modules inside the Viper chassis transmit

electrical signals from a remote location by converting them to optical signals and transmitting

them over fiber at distances of 20 km or more. The signals are then reconverted back to standard

electrical signals at a base location, such as a production vehicle or transmitter. Return signals can

also be transmitted from the base site back to the remote location.

Fibers connect the transmitter (TX) module with its corresponding receiver (RX) module. A

Wavelength Division Multiplexer (WDM) option, available from Telecast, combines two modules

onto a single fiber, thus reducing by one-half the number of fibers needed.

Modules are housed in two factory configured modular chassis units which contain the electronics

and electro-optics modules. Viper models are housed in TelecastÕs portable

Mussel shell

chassis or

mounted in a standard 19 inch rack.

Portable and rack mount units are electrically compatible and can operate together as transmitter

and receiver. Each chassis is equipped with an alarmed internal battery backup. Standard chassis

configurations are listed in Table 1, and are discussed in detail beginning on page 11.

This manual describes the systemÕs five standard chassis configurations and the internal plug-in

function modules necessary for system operation.

Table 1. Viper Conﬁgurations

Chassis Description

VIM4

Portable, 4-module:

¥ 2 analog or digital video cards

¥ 2 dual audio cards

¥ 1 auxiliary connection (optional)

VIM8

Portable 8-module:

¥ 4 analog or digital video cards

¥ 4 dual audio cards

¥ Auxiliary and intercom connections (optional)

442

Rack mount, 8-module:

¥ 4 analog or digital video cards

¥ 4 dual audio cards

¥ Auxiliary and intercom connections (optional)

V800D

Rack mount, 8-module:

¥ 8 analog video cards

¥ No audio or auxiliary connections

Telecast

1 April 99

Applications

The Viper is suitable for use in both portable and fixed applications such as those listed in

Table 2.

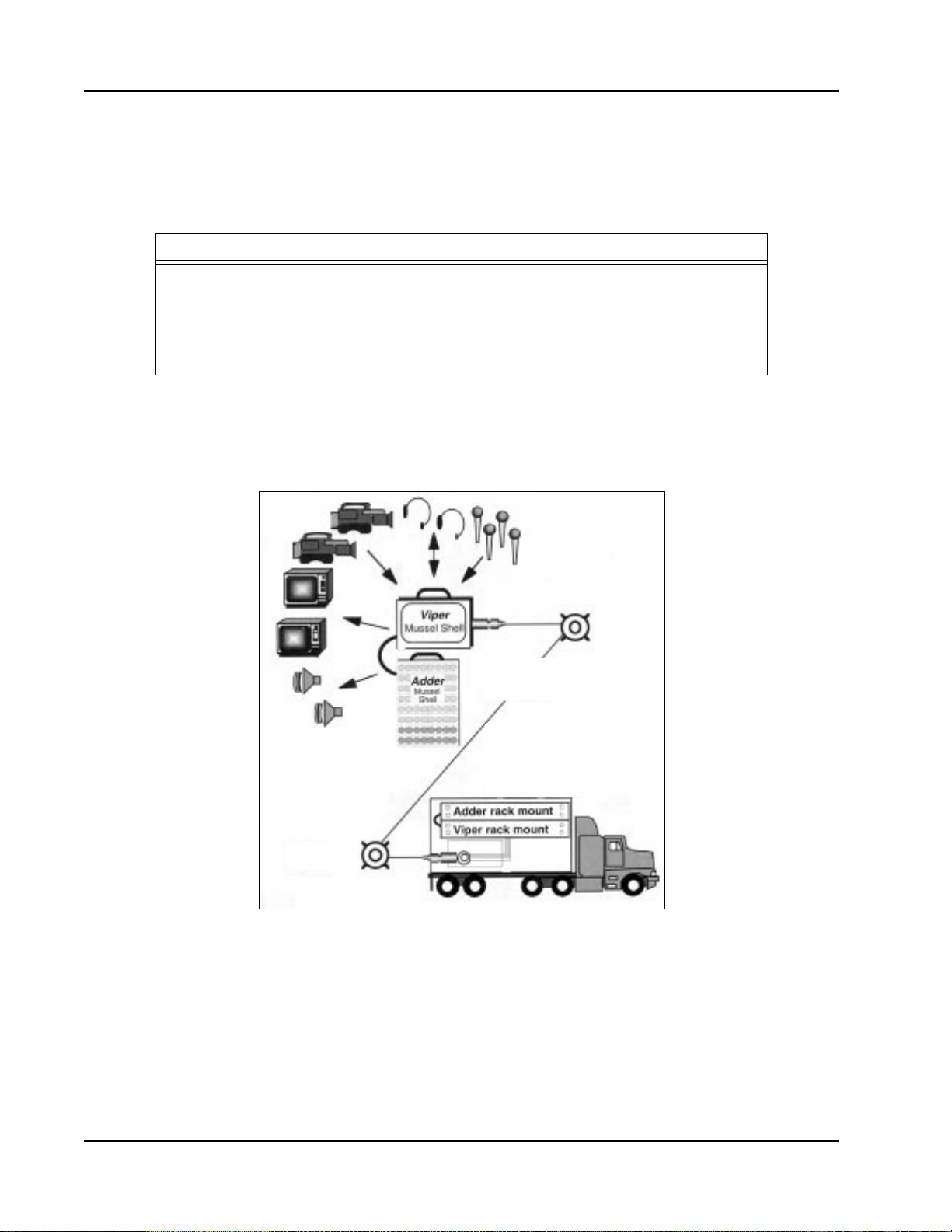

The Viper can be used in conjunction with other Telecast products. Figure 1 illustrates a typical

portable application. In the figure, the Viper is combined with the Telecast Adder for a high

capacity, single cable announce booth connected to an outdoor broadcasting (OB) van at the base

location. This configuration supplies 4 video connections and 72 audio connections.

Figure 1. Portable Application

Unpacking

Inspect the units for mechanical damage, and the electrical connectors for bent or damaged pins

and latches. Report any damage to the carrier and to Telecast Fiber Systems, Inc.

Note:

Leave the protective caps on the optical connectors whenever the fiber is disconnected.

Table 2. Viper Applications

Fixed Portable

Campus Backbone Communications Electronics News Gathering (ENG)

Studio-Transmitter Links (STL) Electronic Field Productions (EFP)

CATV Video and Audio Service Government and Military

Arenas and Stadiums Local events

Remote

Location

Base

Location

Up to 20 km

4 video +

72 audio +

6 data +

4 intercom +

4 tally/closures

Indice

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
