Tenmars TM-218 Manuale utente

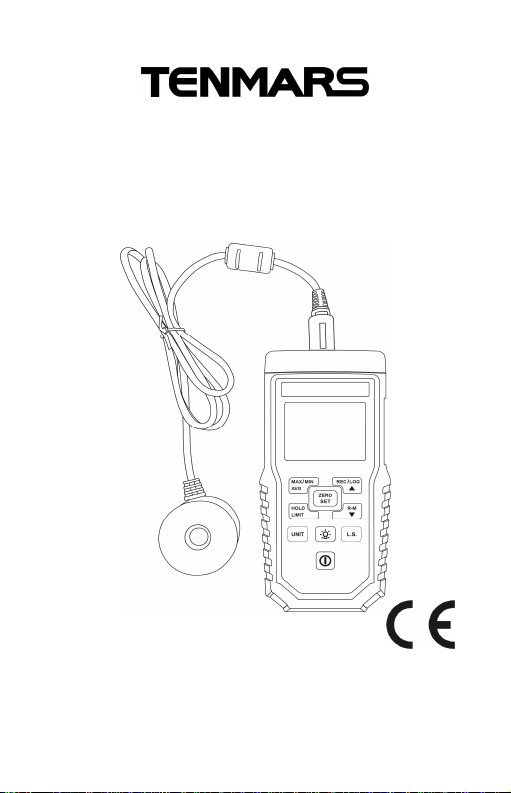

UVC Light Meter
UV A/B/C Light Meter
TM-218/TM-228
User’s Manual
HB2TM2180000
Contents:
1.Application..............................................................1
2.Accessories ............................................................1
3.Safety Precaution ...................................................1
4.Instrument Description...........................................2
4.1 Feature and function ........................................2
4.2 Indication on the LCD display..........................3
5.Operation ................................................................4
5.1 ZERO.........................................................5
5.2 Data Hold:............................................5
5.3 The Max./Min. Values Hold: ..................5
5.4 Manual Record for One Log：............5
5.5 Auto Record........................................6
5.6 Read the record data............................6
5.7 Backlight:................................................6
5.8 Disable or Enable Auto Power-off .........6
5.9 Intensity/Integrator switch (TM-228).......6
5.10 254nm or 365nm select (TM-228)..........7
5.11 Reset to factory settings.....................7
5.12 Settings: SET1~SET9...........................7
6.General Specifications.........................................14
7.Electrical Specifications.......................................15
8.Maintenance or Repair .........................................16
9.Battery Replacement............................................16
10. SENSOR Responsivity Curve ... 錯誤!尚未定義書
籤。
11. Product Disposal...............................................17
TM-218/TM-228
1
1. Application
Quickly determine the UV intensity of the factory’s UV
products
UVC germicidal lamp intensity and aging measurement.
UV curing.(TM-228)
UVA lamp intensity and aging measurement.(TM-228)
2. Accessories
1
Meter
1
UV sensor
1
User’s Manua
1 9V alkaline
battery
1
Carr
ying case
3. Safety Precaution
Caution! Please refer to this manual.
Improper use may damage the meter
and its components.
Complies with European Directive.
Do not operate in environments with flammable gas or humid
environments.
Operating altitude: up to 2000M.
Operating environment: Indoor use; Pollution degree 2.
Clean with soft cloth when dirty, such as glasses cloth. Do not
clean with chemicals and other solvents.
EMC: EN61326-1:CISPR 11:Group 1, Class B
Class B – Equipment for use in all establishments other than
domestic.
Group 1 – RF energy generated is needed for internal
functioning.
TM-218/TM-228
2
4. Instrument Description
4.1 Feature and function

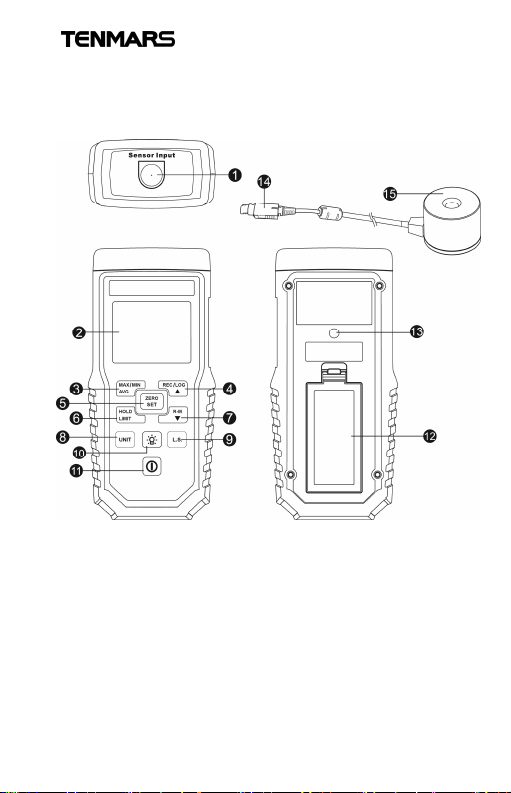

1.Sensor connecting jack
2.
LCD display
3.Button for Maximum value /Minimum value /
Average value
4.Button for Manual record data / Long-time record
data /Up
5.Button for Reset / Setting
6.Button for Readings lock /Comparison
7.Button for Viewing record / Down
8.Unit switch button (TM-228)
9.
Button for Selecting measured wavelength
TM-218/TM-228
3
(TM-228)
10.Backlight button
11.
Power switch butto
n
12.battery cover
13.Tripod nut
14.Sensor connecting plug
15.Sensing probe

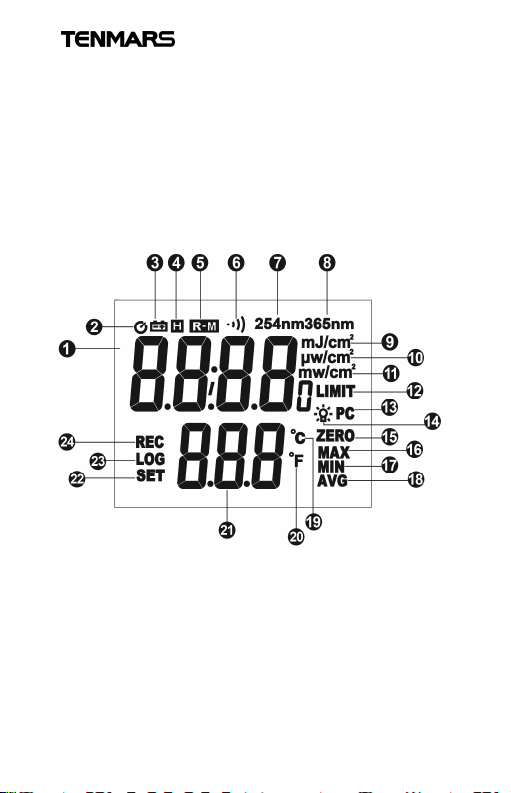

4.2 Indication on the LCD display
1. Primary display
2. Auto power-off
3. Battery low
4. Readings lock
5. Query memory data
6. Buzzer
7.8. Calibration wavelength
9.10.11. Unit
12. Alarm
13. Connection to computer via USB
TM-218/TM-228
4
14. Backlight function
15. Zeroing
16. Maximum value locking
17. Minimum value locking
18. Average value
19.20. Temperature unit
21. Secondary display
22. Setting
23. Auto logging
24. Manual recording
5. Operation
1.Firstly, insert the sensor connecting plug into the sensor
connecting jack with the direction indicated on the meter’s
body (if not connected properly, the LCD will display Err
when power-on, as shown in the figure below).
2.Press to turn the power-on or off
3.When close to the front of the UV source and the readings
not zeroed, press to zero.
4.Align the sensor to the UV source to be tested, and read
the measured value on the LCD.
TM-218/TM-228
5
5.1 ZERO
Before the light receiver close to the UV measurement and
the previous readings displayed on the LCD, click to
clear off.
5.2 Data Hold:
Click to enable or disable the readings lock.

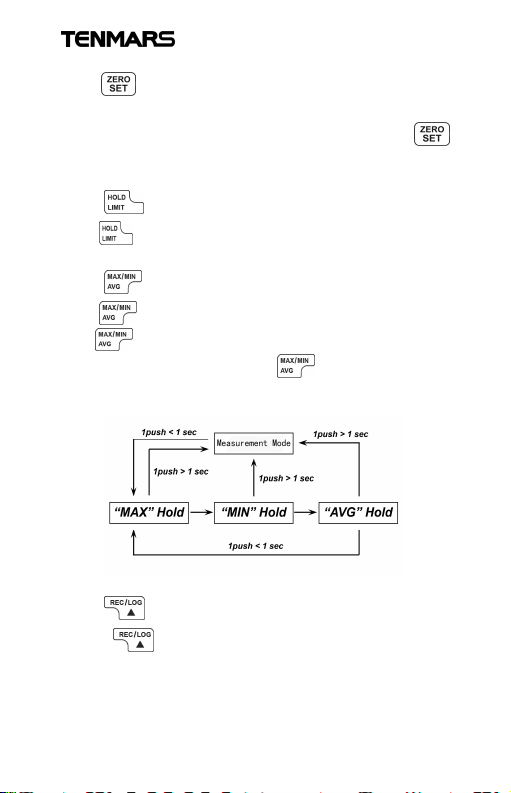

5.3 The Max./Min. Values Hold:
Click to activate the Min./Max./Avg. function, and then
click repeatedly, the max., min. and avg. value will
appear in turn; press and hold to quit.
The max., min. and ave. values of all previous
measurements can be locked and updated.

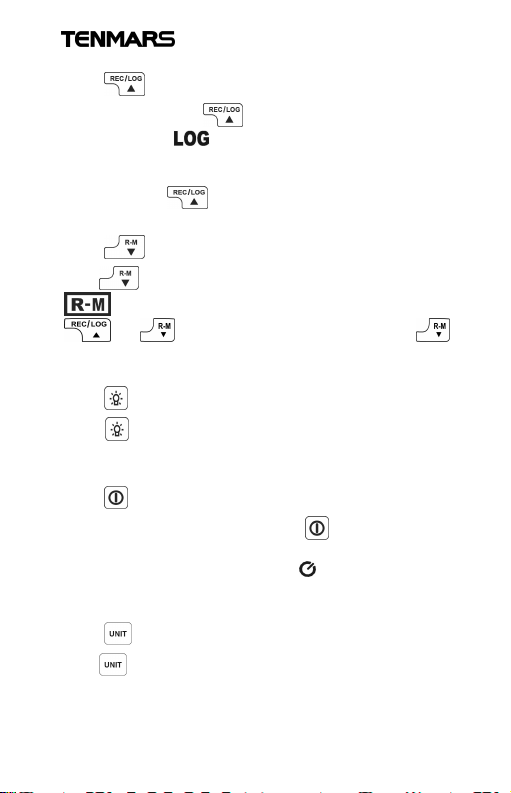

5.4 Manual Record for One Log：
Click to store one log., the LCD will display "REC"
symbol and the number of recorded logs simultaneously;
for example: 10 logs will increase by 1 per click and up to
200 logs, and “FuLL” symbol appears if exceeding.
TM-218/TM-228
6
5.5 Auto Record
Pressed and held for more than 2 seconds, the
LCD displays and auto-record starts. The record
can be set according to the storage interval, up to 200
logs.
Again, press to quit the auto recording.
5.6 Read the record data
Click to enter the reading mode for recorded value,
symbol appears on the LCD simultaneously. Press
or to read the logs. Press and hold for
more than 2 seconds to quit.
5.7 Backlight:
Press to turn the backlight on or off.
The backlight mode turns off automatically after 15 seconds.
5.8 Disable or Enable Auto Power-off
When power-on, press and hold for more than 2
seconds to disable or enable auto power-off, followed by
the automatic power-off symbol disappears or displays
accordingly.
5.9 Intensity/Integrator switch (TM-228)
Click to select the measurement mode m J/cm2or
uw/cm2(TM-228).
TM-218/TM-228
7
5.10 254nm or 365nm select (TM-228)
Click to select the calibration value of 254nm or 365nm
for measurement.
5.11 Reset to factory settings
At power-off status, press and then press , the
LCD displays the boot screen and followed by for 1
second, the factory settings restored and the memory
cleared.
5.12 Settings: SET1~SET9
Press and hold for more than 2 seconds to enter
"SET", while "SET" flashes
Click repeatedly to enter SET1~SET9 sequentially
※PS: Each setting will be stored instantly. If the setting
period exceeds 15 seconds, it will be back to the
measurement mode.

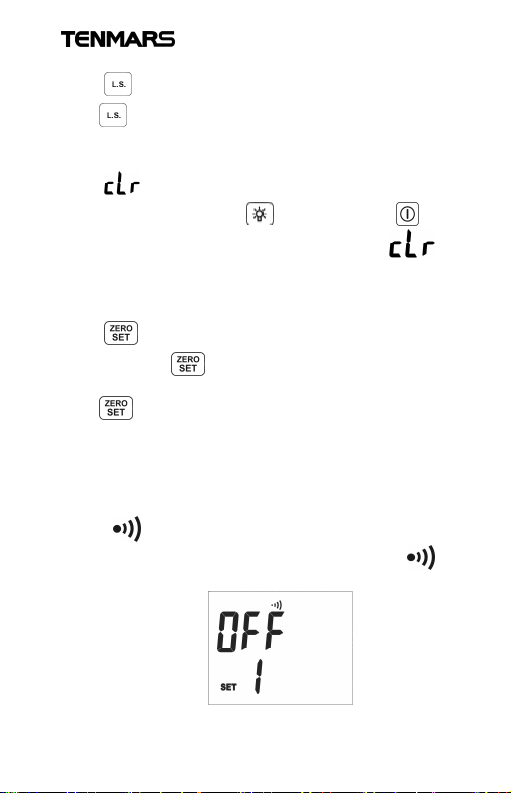

SET.1. Set the buzzer to turn on or off the beep.
1. At the moment, LCD displays "SET1" and . As
shown in the figure below:
TM-218/TM-228
8

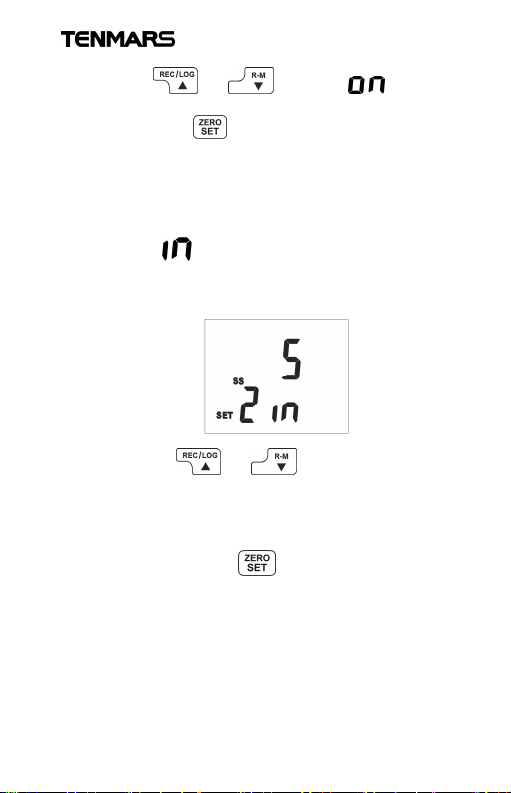

2. Press or to select (ON) or
OFF.
3. Again, click to enter "SET2".
SET.2. Auto Storage Interval Setting
1. Followed by "SET1", the LCD displays " SET2"
and sequentially, as shown in the figure
below:
2. Press or to set the storage
interval by 5 sec, 10 sec, 20 sec, 30 sec,
60 sec, 5 min, 10 min, 20 min, 30 min,
and 60 min.
3. Again, click to enter "SET3".
SET.3. Alarm setting (LIMIT)
1. Followed by "SET2", the LCD displays "SET3" LIMIT, as
shown in the figure below:
