REV A

2 GS-3232 Smartlink Software Update Part No. 218116

Installation Instructions

Introduction

Observe and Obey:

This procedure shall be completed by a person

trained and qualified on the repair of this

machine.

Immediately tag and remove from service a

damaged or malfunctioning machine.

Repair any machine damage or malfunction

before operating the machine.

Before Starting Installation:

Read, understand and obey the safety rules

and operating instructions in the appropriate

operator's manual.

Be sure that all necessary tools and parts are

available and ready for use.

Read this procedure completely and adhere

to the instructions. Attempting shortcuts may

produce hazardous conditions.

Indicates that a specific result is expected after

performing a series of steps.

Indicates that an incorrect result has occurred

after performing a series of steps.

Note: These installation instructions only apply to

the machine listed below as required by Safety

Notice 120009.

• GS-3232

Tools required:

Laptop or desktop computer with an Ethernet Port

and Internet Browser

Torx T10 screw driver

CAT5 Ethernet Cable of suitable length

Glossary of terms

ECM - Electronic Control Module.

GCON - Ground Controller. This ECM is located at

the ground controls.

PCON - Platform Controller. This ECM is located

at the platform controls.

CAT5 Cable - Standard Ethernet cable used for

networking purposes.

Components of Kit 218136

(optional)

Printing instructions

Genie part number 218132

Qty. 1

Thumb drive

Genie part number 218093

Qty 1

Includes:

Software SL1000, APP

Genie part number 137641

Qty 1

Smartlink Software Update Installation Instruction

Genie part number 218116

Qty 1

REV A

Part No. 218116 GS-3232 Smartlink Software Update 3

Installation Instructions

Procedure

Updating Machine Software

1 Turn on the laptop.

Using a thumb drive:

2 Insert the thumb drive (Genie part number

218093) in the USB port.

All applications:

3 At the GCON, turn the key switch to the GCON

position.

4 At the PCON, pull out the red Emergency Stop

button to the on position.

5 At the GCON, press and hold the Enter and

Escape buttons. Pull out the red Emergency

Stop button to the on position.

Result: The GCON LCD will display the

following read out below

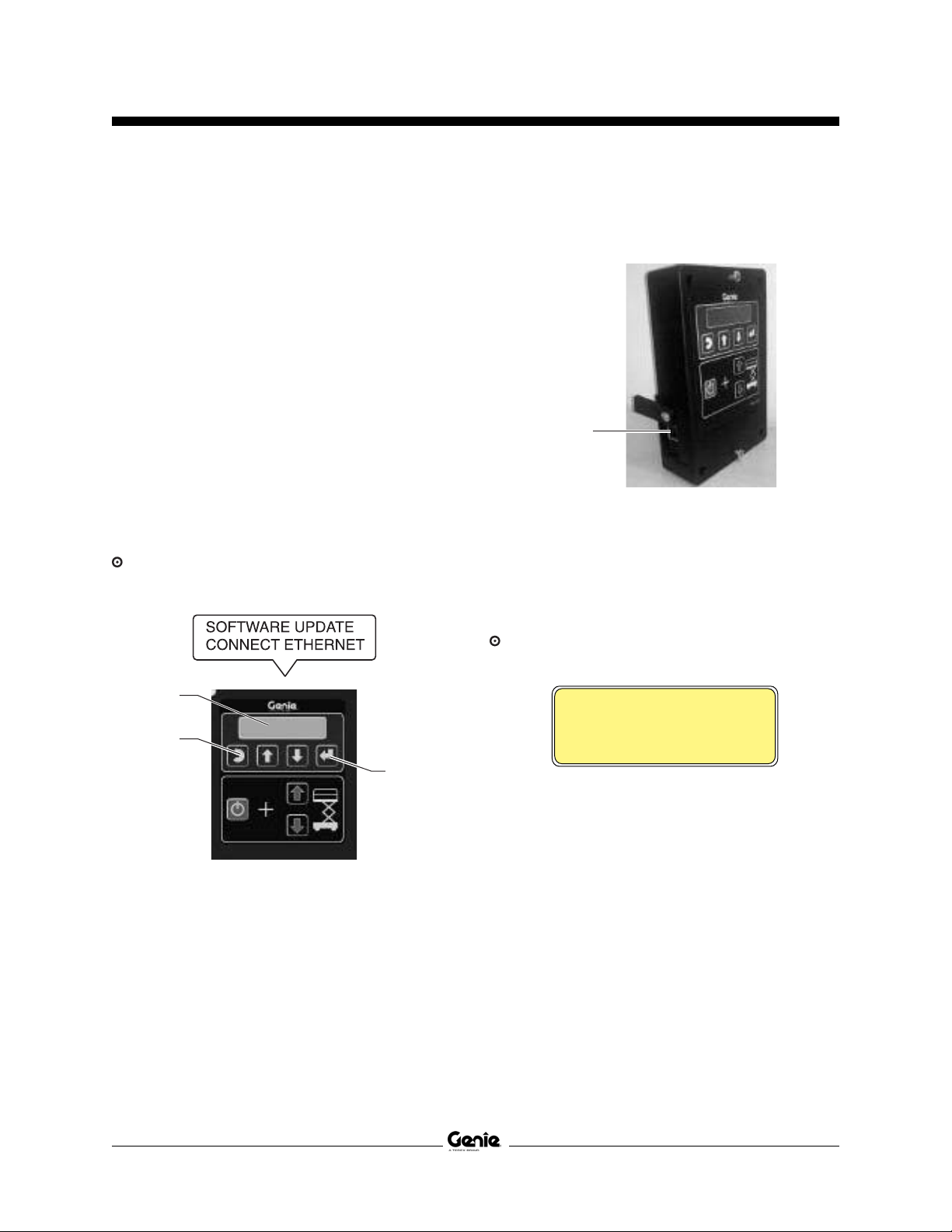

6 Locate the diagnostic port on the side of the

GCON.

7. Remove one of the fasteners securing the

cover and set aside. Loosen the other fastener.

Do not remove it.

8 Connect one end of a CAT5 Ethernet cable into

the diagnostic port. Connect the other end into

a PC or laptop.

Result: The GCON LCD will display the

following screen.

9 Read and record the IP address.

ESCAPE

BUTTON

LCD

ENTER

BUTTON

GCON

DIAGNOSTIC

PORT

OPEN WEB BROWSER

REV A

4 GS-3232 Smartlink Software Update Part No. 218116

Installation Instructions

10 Launch a web browser such as Internet

Explorer ® or Firefox ® on your PC or laptop.

Type in the IP address from steps 8 and 9 into

the web browser address bar and press enter.

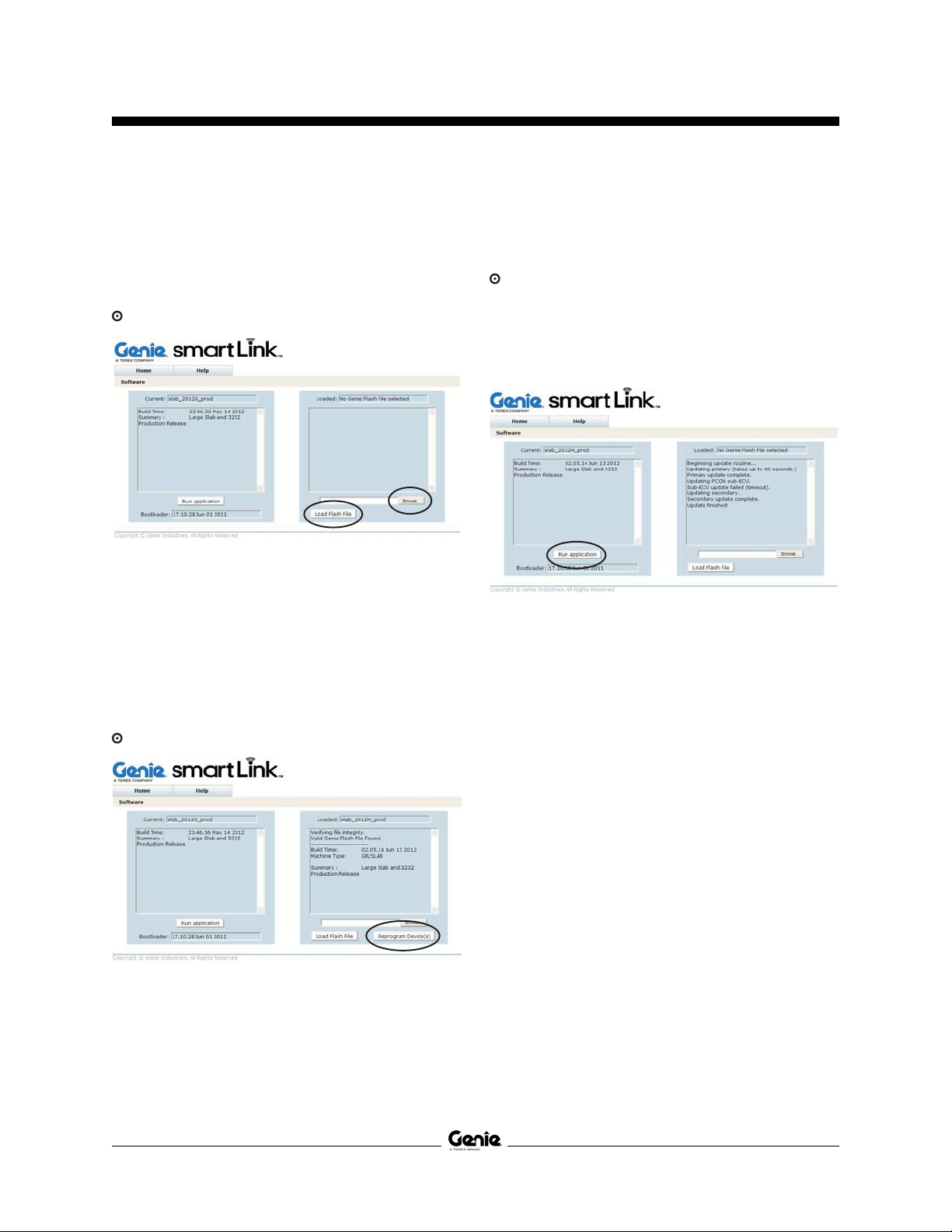

Result: The following screen will be displayed.

11 Select the Browse button. Navigate to the

firmware file Rev J 137641.gff located on your

hard disk or thumb drive. Select the file.

12 Select the Load Flash File button.

Note: Depending on your web browser, this button

may be shown as Choose File.

Note: Verify it is the correct flash file.

Result: The following screen will be displayed.

13 Select the Reprogram Device (s) button to

start the ECM software update.

Result: The following screen will be displayed

after the software update is complete.

Note: Do not turn off power while the ECM is

being reprogrammed. This process may take

up to 5 minutes.

Note: Verify that "slab_2012J_prod" is displayed

in the box marked "Current:".

14 Select the Run Application button to exit the

software update mode.

15 Push in the red Emergency Stop button at the

GCON and disconnect the CAT5 cable.

Remove the thumb drive if installed.

16 Secure the diagnostic port cover using the

retaining fasteners removed in step 5. Do not

over tighten.

17 Perform the Test Procedure.

PROCEDURE

REV A

Part No. 218116 GS-3232 Smartlink Software Update 5

Installation Instructions

Test Procedure

1 Turn the key switch to the PCON position. Pull

out the red Emergency Stop buttons to the on

position at the GCON and PCON.

2 At the PCON, raise the platform until it stops

and the alarm sounds. Release the platform up

and function enable buttons.

3 Press and hold the function enable and

platform up buttons.

Result: The alarm continues to sound and the

platform will not raise. Continue to step 4.

Result: The alarm continues to sound and the

platform continues to raise.

Lower the platform to the stowed position and

repeat the software update procedure or

contact the Genie service department.

Tip-over hazard. An improper

operating system will compromise

machine stability and cause the

machine to tip over, resulting in

death or serious injury.

PROCEDURE

4 Press and hold the outrigger enable and extend

buttons.

Result: The alarm continues to sound and the

outriggers do not extend. Continue to step 5.

Result: The alarm continues to sound and the

outriggers extend.

Lower the platform to the stowed position and

contact the Genie service department.

Tip-over hazard. An improper

operating system will compromise

machine stability and cause the

machine to tip over, resulting in

death or serious injury.

5 Lower the platform to the stowed position.

6 Extend the outriggers until the individual

outrigger lights turn solid green and a long

beep is heard.

7 Fully raise the platform.

Result: The platform raises to full height and

the alarm is not activated. Continue to step 8.

Result: The platform stops before full height

and the alarm is activated.

Lower the platform to the stowed position and

contact the Genie service department.

8 Lower the platform to the stowed position and

retract the outriggers.

REV A

6 GS-3232 Smartlink Software Update Part No. 218116

Installation Instructions

PROCEDURE

9 Perform function test. Refer to the Operator's

Manual on your machine.

10 Return the machine to service.

11 Fill out and sign the attached Completion Form

and fax to Genie Industries. This will serve as

verification that you have completed Safety

Notice 120009.

If you have any further questions regarding these

instructions or need assistance, please contact the

Genie Service Department at one of the following

telephone numbers:

United States: 800-536-1800

Canada: 425-881-1800

Europe: UK 0044 1476 584 333

France 0033 237 260 986

Germany 49 4221 491 821

Iberica 0034 900 808 110

Italy 0039 075 941 8171

Sweden 0046 3157 5101

Other locations 0031 653 221 908

Middle East: 0097 143 990 381

or 0097 150 459 7937

Australia: 61 7 3456 4444

All other locations 001-425-881-1800

Completion Form

Your signature on this form will verify that you have performed the software update on the

machines listed below.

Fax to: United States 877-738-7530 United Kingdom 0044 1476 584 330

Canada 425-498-7530 France 0033 237 260 998

Australia 61 733751002 Germany 0049 4221 491 820

All other locations 001-425-498-7530 Italy 0039 075 941 8146

Iberica 0034 935 725 080

Sweden 0046 3157 5104

Middle East 0097 143 990 382

All other locations 0031 165 510 826

Date:

Company Name:

Account # (if applicable)

Address:

(street)

(city)

(state, zip code)

Phone

Signature (service manager)

Serial Number:

Please list the complete serial number (example: GS3211A-110003 or GS3212A-111017).

Serial Number:

SAFETY NOTICE 120009
