ADC14X250EVM Evaluation Module

This user's guide describes the characteristics, operation, and use of the ADC14X250EVM Evaluation

Module (EVM). This document includes a quick-start guide, directions for optimizing evaluation results, a

description of the software, alternate hardware configurations, and jumper, connector, and LED

descriptions.

Contents

1 Overview...................................................................................................................... 2

2 Quick Start Guide............................................................................................................ 4

3 Optimizing Evaluation Results............................................................................................ 10

4 Software Description ...................................................................................................... 11

5 Alternate Hardware Configurations ...................................................................................... 13

6 Jumper, Connector, and LED Descriptions............................................................................. 14

List of Figures

1 EVM Feature Locations..................................................................................................... 3

2 Quick Start Test Setup...................................................................................................... 5

3 HSDC Pro GUI Main Panel................................................................................................. 7

4 Data Capture Results from Quick Start Procedure...................................................................... 8

5 ADC14X250EVM GUI ..................................................................................................... 11

6 Low Level View Tab ....................................................................................................... 12

List of Tables

1 Quick Start Performance Measurements................................................................................. 8

2 Troubleshooting Tips........................................................................................................ 9

3 HSDC Pro Options for Optimal Analysis Results ...................................................................... 10

4 ADC14X250 GUI Tab Descriptions...................................................................................... 11

5 Low Level View Controls.................................................................................................. 12

6 Recommended LMK04828 Configurations ............................................................................. 13

7 Jumper Descriptions and Default Settings.............................................................................. 14

8 Connector Descriptions.................................................................................................... 14

9 LED Descriptions........................................................................................................... 14

Microsoft, Windows are registered trademarks of Microsoft Corporation.

SLAU625–November 2015 ADC14X250EVM Evaluation Module

All manuals and user guides at all-guides.com

Overview

www.ti.com

1 Overview

The ADC14X250EVM is an evaluation board used to evaluate the ADC14X250 analog-to-digital converter

(ADC) from Texas Instruments. The ADC14X250 is a single channel, 14-bit analog-to-digital converter

(ADC), capable of operating at sampling rates up to 250 Mega Samples Per Second (MSPS) with outputs

featuring a standard JESD204B high-speed serial interface.

This evaluation board also includes the following important features:

• Transformer-coupled signal input network allowing a single-ended signal source

• LMK04828 system clock generator that generates the FPGA reference clock for the high-speed serial

interface

• Default transformer-coupled clock input network to test the ADC performance with a very low-noise

clock

• High-speed serial data output over a standard FMC connector

• Device register programming via USB connector and FTDI USB-to-SPI bus translator

The ADC14X250EVM is designed to work seamlessly with the TSW14J56EVM, Texas Instruments’

JESD204B data capture card and the High Speed Data Converter Pro (HSDCPro) software tool for high-

speed data converter evaluation. The ADC14X250EVM is also compatible with many of the development

kits from leading FPGA vendors that contain an FMC connector.

1.1 Required Hardware

The following equipment is included in the EVM evaluation kit:

• ADC14X250EVM evaluation board (EVM)

• Flying lead-to-barrel connector power supply cable

• Mini-USB cable

The following list of equipment are items that are not included in the EVM evaluation kit but are items

required for evaluation of this product to achieve the best performance:

• TSW14J56EVM Kit: Data capture board, 5-V power supply and mini-USB cable

• 5-V power supply capable of sourcing 2 A

• Computer running Microsoft®Windows®7 or Windows XP

• Two (2) low-noise signal generators

Recommendations:

– RF generator, > 17 dBm, < –40-dBc harmonics, < 500 fs jitter 20 kHz–20 MHz, 10 MHz–2 GHz

frequency range

– Examples: TSW2170EVM, HP HP8644B, Rohde and Schwarz SMA100A

• Bandpass filter for analog input (between 125–250 MHz).

Recommendations:

– Bandpass filter, ≥60-dB harmonic attenuation, ≤5% bandwidth, > 18-dBm power, < 5-dB insertion

loss

– Examples: Trilithic 5VH-series Tunable BPF, K&L BT-series Tunable BPF, TTE KC6 or KC7-series

Fixed BPF

• Bandpass filter for clock input (250 MHz)

Recommendations:

– Bandpass filter, ≥60-dB harmonic attenuation, ≤5% bandwidth, > 18-dBm power, < 5-dB insertion

loss

– Examples: Trilithic 5VH-series Tunable BPF, K&L BT-series Tunable BPF, TTE KC6 or KC7-series

Fixed BPF

• Signal path cables, SMA and/or BNC with BNC-to-SMA adapters

2ADC14X250EVM Evaluation Module SLAU625–November 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

Analog Input

ADC

USB Register

Configuration

Connector

CLK Input

FMC Connector

(Back-side)

LMK

Input Power Connector (+5V)

SYSREF Input

(Optional)

EXTREF Input

(Optional LMK04828

input reference)

SYNC

LED

VIN+

VIN-

REFCLK Input

(Optional LMK04828

output reference)

www.ti.com

Overview

1.2 Required Software

The following software is required to operate the ADC14X250EVM and available online. See the

References section for links.

• ADC14X250_GUI_Installer.zip

The following software is required to operate the TSW14J56EVM and available online. See the

Section 1.4 section for links.

•High Speed Data Converter Pro software

1.3 Evaluation Board Feature Identification Summary

Figure 1. EVM Feature Locations

1.4 References

1. ADC14X250EVM GUI software, schematics, layout, BOM, available at: www.ti.com/tool/adc14x250evm

2. ADC14X250 datasheet, available at www.ti.com/product/adc14x250

3. LMK04828 datasheet, available at www.ti.com/product/lmk04828

4. TSW14J56EVM User’s Guide, available at www.ti.com/tool/TSW14J56EVM

5. High Speed Data Converter Pro User’s Guide, available at www.ti.com/tool/dataconverterpro-sw

SLAU625–November 2015 ADC14X250EVM Evaluation Module

All manuals and user guides at all-guides.com

Quick Start Guide

www.ti.com

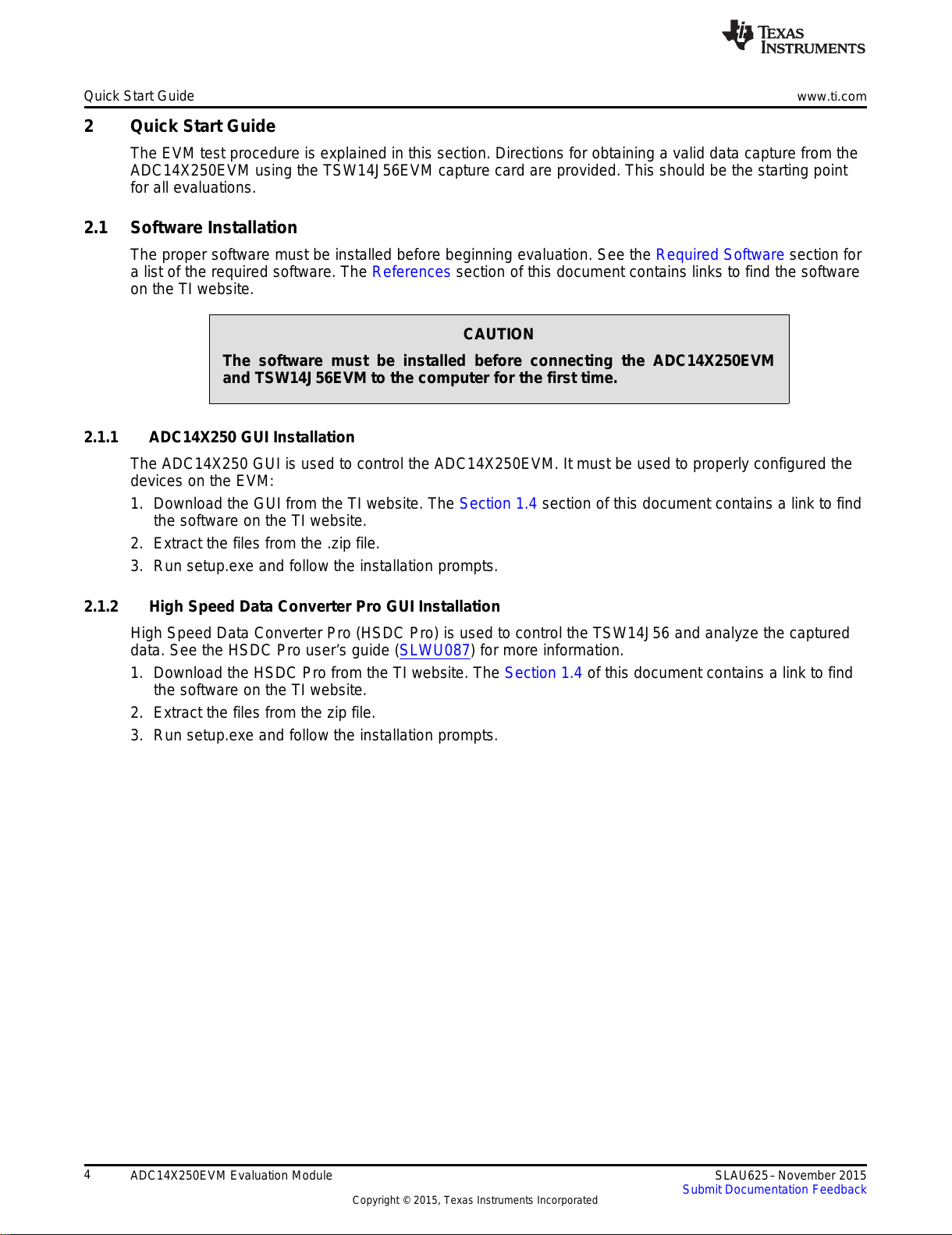

2 Quick Start Guide

The EVM test procedure is explained in this section. Directions for obtaining a valid data capture from the

ADC14X250EVM using the TSW14J56EVM capture card are provided. This should be the starting point

for all evaluations.

2.1 Software Installation

The proper software must be installed before beginning evaluation. See the Required Software section for

a list of the required software. The References section of this document contains links to find the software

on the TI website.

CAUTION

The software must be installed before connecting the ADC14X250EVM

and TSW14J56EVM to the computer for the first time.

2.1.1 ADC14X250 GUI Installation

The ADC14X250 GUI is used to control the ADC14X250EVM. It must be used to properly configured the

devices on the EVM:

1. Download the GUI from the TI website. The Section 1.4 section of this document contains a link to find

the software on the TI website.

2. Extract the files from the .zip file.

3. Run setup.exe and follow the installation prompts.

2.1.2 High Speed Data Converter Pro GUI Installation

High Speed Data Converter Pro (HSDC Pro) is used to control the TSW14J56 and analyze the captured

data. See the HSDC Pro user’s guide (SLWU087) for more information.

1. Download the HSDC Pro from the TI website. The Section 1.4 of this document contains a link to find

the software on the TI website.

2. Extract the files from the zip file.

3. Run setup.exe and follow the installation prompts.

4ADC14X250EVM Evaluation Module SLAU625–November 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

Analog

Input

6dB, 50Ÿ

Attenuator

Analog Input

Low Noise

Signal Generator

Clock Input

Low-Noise

Signal Generator

Mini-USB Cable

+5V Power Supply

70MHz

Bandpass

Filter

250MHz

Bandpass

Filter

PC Computer

Running HSDC Pro

Clock

Input

ADC EVM TSW14J56EVM

Power

Switch

OFF ON

70MHz, +10dBm

250MHz, +12dBm

Mini-USB Cable

+5V, >=2A

www.ti.com

Quick Start Guide

2.2 Hardware Setup Procedure

A typical test setup using the ADC14X250EVM and TSW14J56EVM is shown in Figure 2. This is the test

setup used for the quick-start procedure. The rest of this section describes the hardware setup steps.

Figure 2. Quick Start Test Setup

SLAU625–November 2015 ADC14X250EVM Evaluation Module

All manuals and user guides at all-guides.com

Quick Start Guide

www.ti.com

2.2.1 TSW14J56EVM Setup

Setup the TSW14J56EVM with the following instructions:

1. Connect the ADC14X250EVM to the TSW14J56EVM via the FMC connectors

2. Connect the included 5-V power supply to connector J11 (+5V IN) of the TSW14J56EVM

3. Connect the included mini-USB cable to the USB connector (J9) of the TSW14J56EVM

4. Flip the power switch (SW6) of the TSW14J56EVM to the “ON” position

2.2.2 ADC14X250EVM Setup

Next, setup the ADC14X250EVM with the following instructions:

CAUTION

Check the polarity of the voltage from the power supply through the flying

lead power cable to the barrel connector at the end of the cable. 5 V must

be supplied via the center of the barrel connector on the cable. Incorrect

polarity of the power supply may damage the EVM.

1. Connect the flying lead power supply to connector J11 (+5_IN) as well as to a 5-V / 2-A bench power

supply

2. Connect the included mini-USB cable to the USB connector J9

3. Connect the 6-dB, 50-Ωattenuator to the J3 (VIN–) input

4. Set the analog input signal generator for 70 MHz, +10 dBm

5. Connect the analog input signal generator to the VIN– input. Place the bandpass filter between the

analog signal generator and the attenuator input to remove noise and harmonics from the signal

generator.

6. Set the clock input signal generator for 250 MHz, +12 dBm

7. Connect the signal generator to the CLK input. Place the bandpass filter between the clock signal

generator and the CLK input to remove noise and harmonics from the signal generator.

2.3 Software Setup Procedure

The software can be opened and configured once the hardware is properly setup.

2.3.1 ADC14X250 GUI Configuration

Configure the GUI using the following steps:

1. Open the ADC14X250 GUI by going to Start Menu →All Programs →Texas Instruments ADCs →

ADC14X250 GUI

2. Verify that the green USB status indicator is lit in the top right corner of the GUI

3. Press the ‘Program LMK04828’ button

4. Press the ‘Calibrate ADC14X250’ button

6ADC14X250EVM Evaluation Module SLAU625–November 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

www.ti.com

Quick Start Guide

2.3.2 HSDC Pro GUI Configuration

Configure the HSDC Pro GUI using the following steps:

1. Open High Speed Data Converter Pro by going to Start Menu →All Programs →Texas Instruments →

High Speed Data Converter Pro.Figure 3 illustrates the GUI main page.

Figure 3. HSDC Pro GUI Main Panel

2. When prompted to select the capture board, select the TSW14J56 whose serial number corresponds

to the serial number on the TSW14J56EVM and click “OK”. This popup can be accessed through the

Instrument Options menu.

3. Select the ADC tab at the top of the GUI

4. Use the Select ADC drop-down menu at the top left corner to select ADC14X250_LMF_112

5. When prompted to update the firmware for the ADC, click “Yes” and wait for the firmware to download

to the TSW14J56

6. Enter “250M” into the ADC Output Data Rate field at the bottom left corner

7. Click the Instrument Options menu at the top of HSDC Pro and select Reset Board

8. Click “Capture” in HSDC Pro to capture data from the ADC

SLAU625–November 2015 ADC14X250EVM Evaluation Module

All manuals and user guides at all-guides.com

Quick Start Guide

www.ti.com

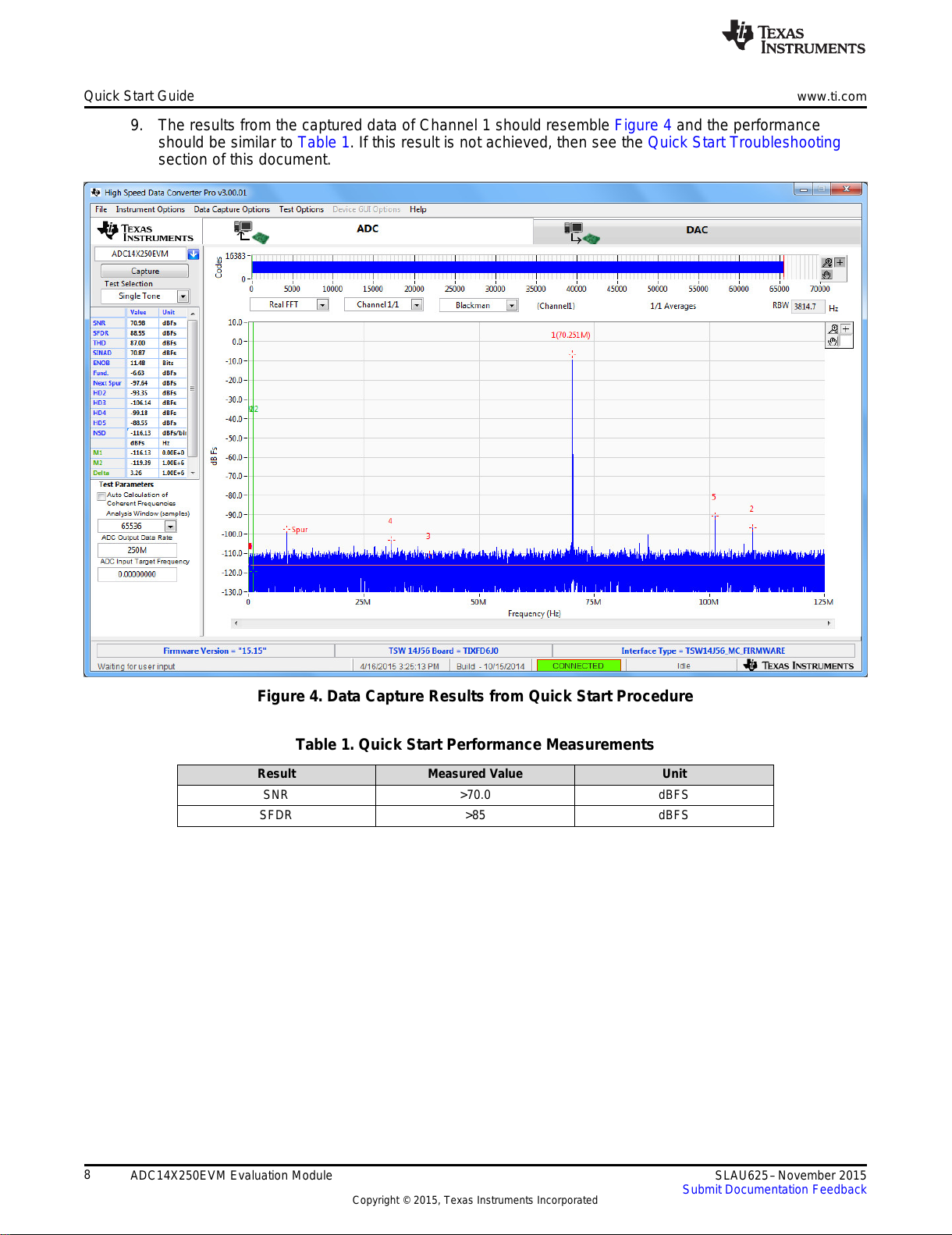

9. The results from the captured data of Channel 1 should resemble Figure 4 and the performance

should be similar to Table 1. If this result is not achieved, then see the Quick Start Troubleshooting

section of this document.

Figure 4. Data Capture Results from Quick Start Procedure

Table 1. Quick Start Performance Measurements

Result Measured Value Unit

SNR >70.0 dBFS

SFDR >85 dBFS

8ADC14X250EVM Evaluation Module SLAU625–November 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

www.ti.com

Quick Start Guide

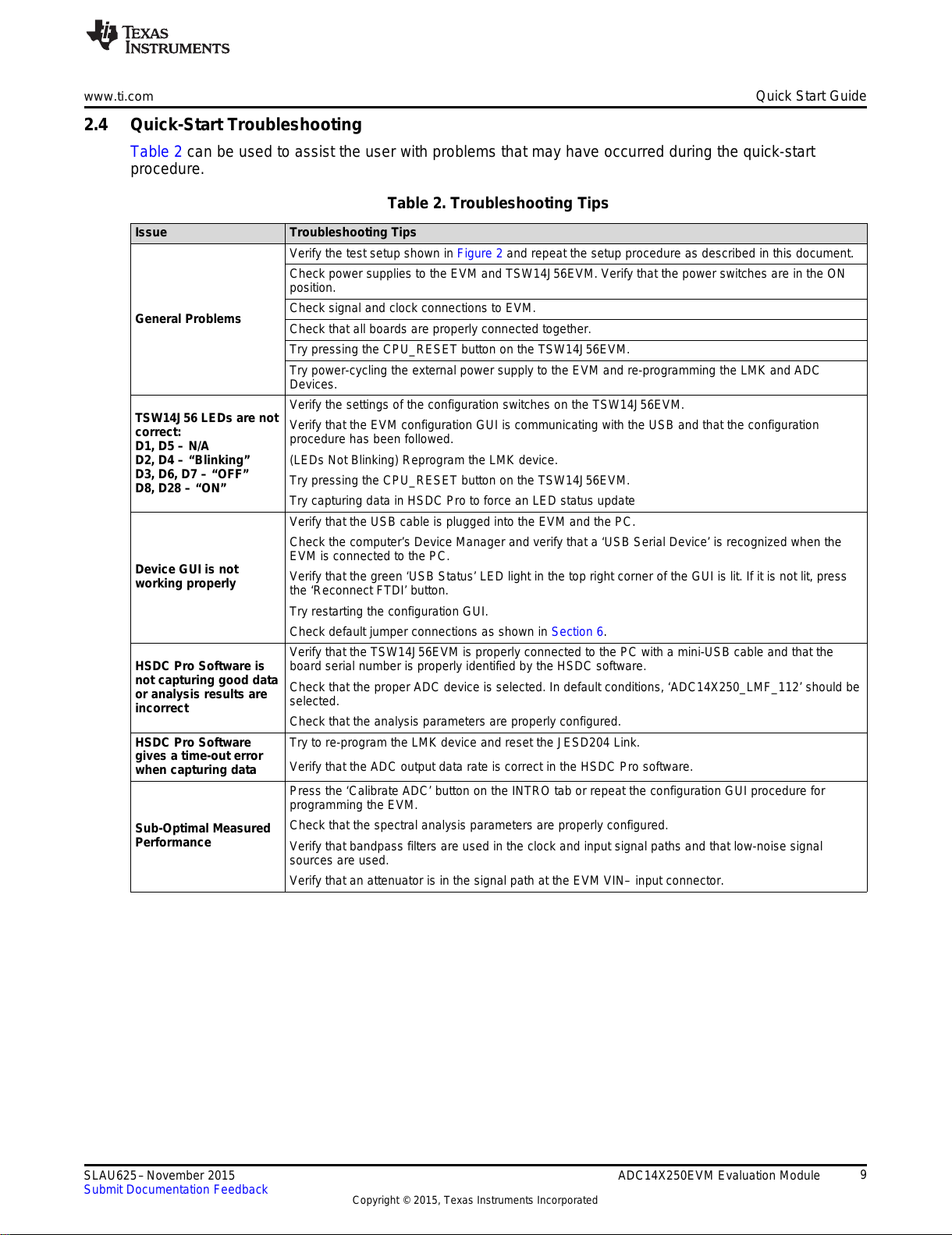

2.4 Quick-Start Troubleshooting

Table 2 can be used to assist the user with problems that may have occurred during the quick-start

procedure.

Table 2. Troubleshooting Tips

Issue Troubleshooting Tips

Verify the test setup shown in Figure 2 and repeat the setup procedure as described in this document.

Check power supplies to the EVM and TSW14J56EVM. Verify that the power switches are in the ON

position.

Check signal and clock connections to EVM.

General Problems Check that all boards are properly connected together.

Try pressing the CPU_RESET button on the TSW14J56EVM.

Try power-cycling the external power supply to the EVM and re-programming the LMK and ADC

Devices.

Verify the settings of the configuration switches on the TSW14J56EVM.

TSW14J56 LEDs are not Verify that the EVM configuration GUI is communicating with the USB and that the configuration

correct: procedure has been followed.

D1, D5 – N/A

D2, D4 – “Blinking” (LEDs Not Blinking) Reprogram the LMK device.

D3, D6, D7 – “OFF” Try pressing the CPU_RESET button on the TSW14J56EVM.

D8, D28 – “ON” Try capturing data in HSDC Pro to force an LED status update

Verify that the USB cable is plugged into the EVM and the PC.

Check the computer’s Device Manager and verify that a ‘USB Serial Device’ is recognized when the

EVM is connected to the PC.

Device GUI is not Verify that the green ‘USB Status’ LED light in the top right corner of the GUI is lit. If it is not lit, press

working properly the ‘Reconnect FTDI’ button.

Try restarting the configuration GUI.

Check default jumper connections as shown in Section 6.

Verify that the TSW14J56EVM is properly connected to the PC with a mini-USB cable and that the

HSDC Pro Software is board serial number is properly identified by the HSDC software.

not capturing good data Check that the proper ADC device is selected. In default conditions, ‘ADC14X250_LMF_112’ should be

or analysis results are selected.

incorrect Check that the analysis parameters are properly configured.

HSDC Pro Software Try to re-program the LMK device and reset the JESD204 Link.

gives a time-out error Verify that the ADC output data rate is correct in the HSDC Pro software.

when capturing data

Press the ‘Calibrate ADC’ button on the INTRO tab or repeat the configuration GUI procedure for

programming the EVM.

Check that the spectral analysis parameters are properly configured.

Sub-Optimal Measured

Performance Verify that bandpass filters are used in the clock and input signal paths and that low-noise signal

sources are used.

Verify that an attenuator is in the signal path at the EVM VIN– input connector.

SLAU625–November 2015 ADC14X250EVM Evaluation Module

All manuals and user guides at all-guides.com

Optimizing Evaluation Results

www.ti.com

3 Optimizing Evaluation Results

This section assists with optimizing the performance during evaluation of the product.

3.1 Clocking Optimization

The sampling clock provided to the ADC must have very low noise to achieve optimal results. By default,

the ADC14X250EVM is configured to require a device clock from an external signal source via the CLK

SMA connector to allow for the best possible measured performance.

Filtering of the signal generator is required to remove broadband noise and non-harmonic spurs. Narrow-

band filters are recommended to remove as much noise as possible. If a signal generator output is used

directly without filtering, significant degradation in SNR will result.

Measure the power of the clock signal at the EVM clock input (50-Ωinput). Optimize the clock amplitude

so that it is as large as possible without exceeding the maximum voltage swing specified in the datasheet

(SLASE49). This maximizes the clock edge rate giving better SNR. The insertion loss of the filter in the

clock signal path can significantly impact the voltage swing at the ADC clock input.

3.2 Coherent Input Source

A Rectangular window function can be applied to the captured data when the sample rate and the input

frequency are set precisely to capture an integer number of cycles of the input frequency (referrer to as a

coherent frequency). The clock and analog inputs must be frequency locked (such as through 10-MHz

references) in order to achieve coherency. If this cannot be achieved, then a window function like

Blackman must be applied to the data for fast-Fourier transform (FFT) analysis in the HSDC Pro Software.

3.3 HSDC Pro Settings

The HSDC Pro options highlighted in Table 3 can help improve the performance measurements.

Table 3. HSDC Pro Options for Optimal Analysis Results

HSDC Pro Feature Description

Analysis Window Selects the number of samples to include in the selected test analysis. Collect more data to improve

(samples) frequency resolution of FFT analysis.

Data Windowing Select the desired windowing function applied to the data for FFT analysis. Select ‘Blackman’ when

Function sampling a non-coherent input signal or ‘Rectangle’ when sampling a coherent input signal.

Test Options →Select bins to be removed from the spectrum and back-filled with the average noise level. One may also

Notch Frequency Bins customize the harmonics and spurs that are considered in SNR and THD calculations and select the

method for calculating spur power.

Test Options →Enable markers to narrow the Single-Tone FFT test analysis to a specific bandwidth.

Bandwidth Integration

Markers

Data Capture Options→Configure the number of contiguous samples per capture (capture depth). May also enable Continuous

Capture Options Capture and FFT Averaging.

10 ADC14X250EVM Evaluation Module SLAU625–November 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments bq76PL455EVM Manuale utente

Texas Instruments

Texas Instruments TPSF12C1QEVM Manuale utente

Texas Instruments

Texas Instruments AN-2154 Manuale utente

Texas Instruments

Texas Instruments DRV2634EVM-DC Manuale utente

Texas Instruments

Texas Instruments TPS65313-Q1 Manuale utente

Texas Instruments

Texas Instruments DS90UB913A-CXEVM Manuale utente

Texas Instruments

Texas Instruments THS3215EVM Manuale utente

Texas Instruments

Texas Instruments EK-LM4F232 Manuale utente

Texas Instruments

Texas Instruments DLP NIRscan Manuale utente

Texas Instruments

Texas Instruments DRV8316REVM Manuale utente

Texas Instruments

Texas Instruments LMK1C1104 Manuale utente

Texas Instruments

Texas Instruments ADS528 Series Manuale utente

Texas Instruments

Texas Instruments ADCx140EVM-PDK Series Manuale utente

Texas Instruments

Texas Instruments PCM182xEVM Manuale utente

Texas Instruments

Texas Instruments BOOSTXL-DRV8301 Manuale di installazione

Texas Instruments

Texas Instruments TPD2E1B06DRLEVM Manuale utente

Texas Instruments

Texas Instruments BOOSTXL-TMP107 Manuale utente

Texas Instruments

Texas Instruments TPS54614EVM 1.8-V SWIFT Manuale utente

Texas Instruments

Texas Instruments TPL5010EVM Manuale utente

Texas Instruments

Texas Instruments ADS1224EVM Manuale utente

Texas Instruments

Texas Instruments TSW14J50 Manuale utente

Texas Instruments

Texas Instruments TPL0401EVM Manuale utente

Texas Instruments

Texas Instruments AFE5805EVM Manuale utente

Texas Instruments

Texas Instruments DS320PR410-RSC-EVM Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
