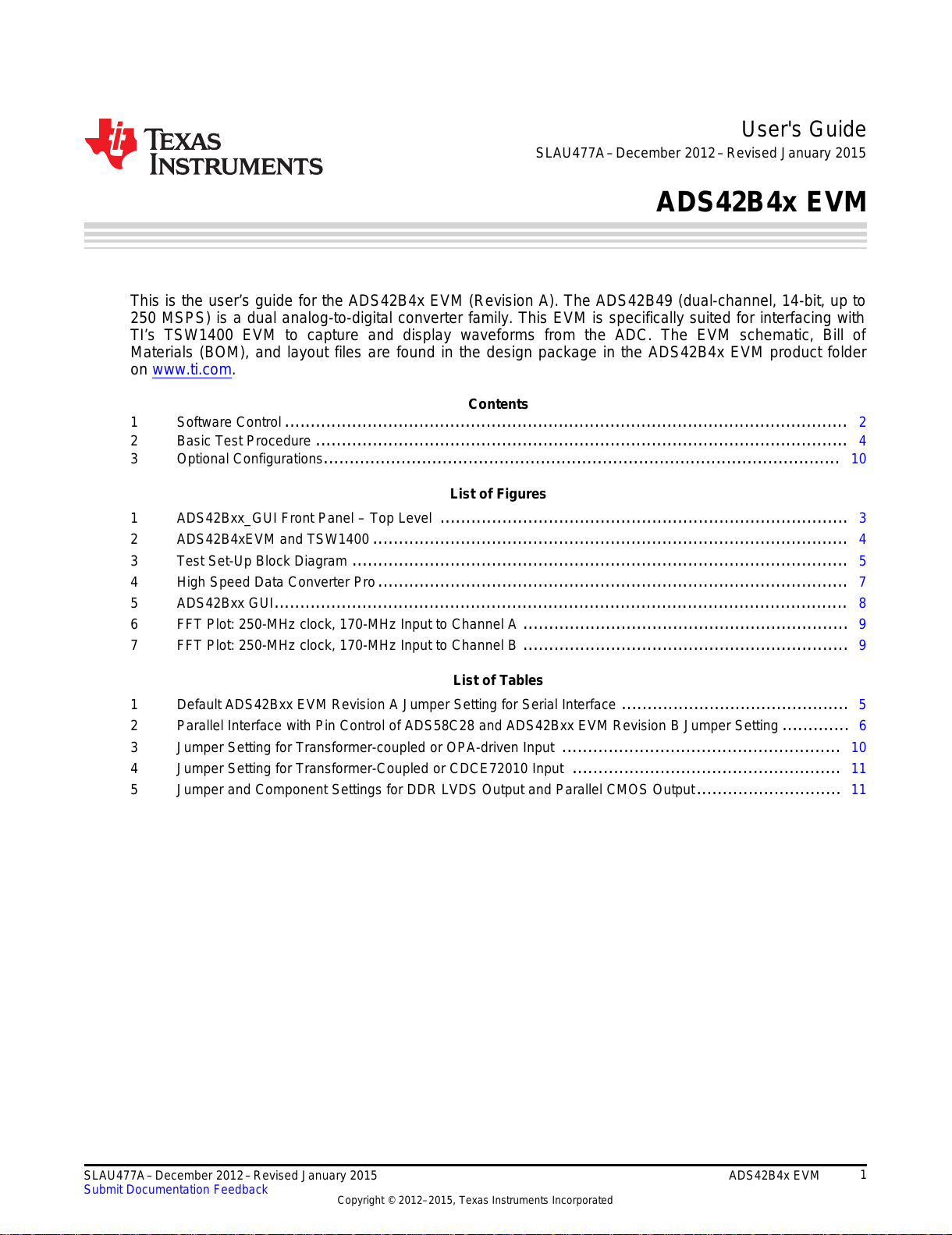

Texas Instruments ADS42B4x EVM Manuale utente

User's Guide

SLAU477A–December 2012–Revised January 2015

ADS42B4x EVM

This is the user’s guide for the ADS42B4x EVM (Revision A). The ADS42B49 (dual-channel, 14-bit, up to

250 MSPS) is a dual analog-to-digital converter family. This EVM is specifically suited for interfacing with

TI’s TSW1400 EVM to capture and display waveforms from the ADC. The EVM schematic, Bill of

Materials (BOM), and layout files are found in the design package in the ADS42B4x EVM product folder

on www.ti.com.

Contents

1 Software Control ............................................................................................................. 2

2 Basic Test Procedure ....................................................................................................... 4

3 Optional Configurations.................................................................................................... 10

List of Figures

1 ADS42Bxx_GUI Front Panel – Top Level ............................................................................... 3

2 ADS42B4xEVM and TSW1400 ............................................................................................ 4

3 Test Set-Up Block Diagram ................................................................................................ 5

4 High Speed Data Converter Pro........................................................................................... 7

5 ADS42Bxx GUI............................................................................................................... 8

6 FFT Plot: 250-MHz clock, 170-MHz Input to Channel A ............................................................... 9

7 FFT Plot: 250-MHz clock, 170-MHz Input to Channel B ............................................................... 9

List of Tables

1 Default ADS42Bxx EVM Revision A Jumper Setting for Serial Interface ............................................ 5

2 Parallel Interface with Pin Control of ADS58C28 and ADS42Bxx EVM Revision B Jumper Setting ............. 6

3 Jumper Setting for Transformer-coupled or OPA-driven Input ...................................................... 10

4 Jumper Setting for Transformer-Coupled or CDCE72010 Input .................................................... 11

5 Jumper and Component Settings for DDR LVDS Output and Parallel CMOS Output............................ 11

SLAU477A–December 2012–Revised January 2015 ADS42B4x EVM

All manuals and user guides at all-guides.com

Software Control

www.ti.com

1 Software Control

1.1 Installation Instructions

• Open folder named: ADS42Bxx_Installer_vxpx (where xpx represents the latest version)

• Double-click: setup.exe

• Follow on-screen instructions to complete GUI installation

– Wait for ADS42Bxx_Installer initializing screen to complete

– Click Next to install files in the default destination directory

– Select I accept the License Agreement and click Next

– Select Next on the summary page

– Wait for files to load and then click Next

– Once all files are installed, click Next

• If Windows®Logo Message window appears, click Continue Anyway.

• Once installed, launch by clicking on the ADS42Bxx_GUI_vxpx program in Start→Texas Instruments

ADCs

• When plugging in the USB cable for the first time, you are prompted to install the USB drivers

– On the Welcome to the Found New Hardware Wizard window select No, not at this time

– Select Install the software automatically button on the next window

– Select Continue Anyway on the Windows Logo Message window

– If the computer cannot find the drivers automatically, access them directly in the install directory:

C:\Program Files (x86)\Texas Instruments ADCs\ADS42Bxx GUI

– Click Finish once completed

1.2 Software Operation

The software allows full programming control of the ADC device. Figure 1 shows the GUI front panel that

has register tabs. The GUI tab provides an interface to the most-used registers.

1.2.1 Top Level

Figure 1 shows the top level tab of the register user interface. Below is a brief explanation of the controls.

Please refer to the ADS42B49 datasheet for more detailed explanations of the register functions as

needed.

●Reset: Device reset, clicking this switch resets the device

●Powerdown Global: Clicking the Device power down switch on powers down the device

●Data format: Clicking the Device output data format, sets the 2’s complement or

offset binary format. High Speed Data Converter Pro expects offset

binary.

●Output Buffer Selection: Select this box for LVDS or CMOS output format

●Gain ChA: Set this box for gain of channel A. Must enable digital functions first.

●Gain ChB: Set this box for gain of channel B. Must enable digital functions first.

●Test Pattern ChA: Select device test pattern for channel A. Must enable digital functions

first.

●Test Pattern ChB: Select device test pattern for channel B. Must enable digital functions

first.

●HP[0] High-performance mode bit 0 - set for CMOS outputs

●HP[1:11] High-performance mode bits 1 to 11. Always set this control.

●Digital Function Enable Set this bit to control digital functions, such as gain and test patterns.

●Low Speed Mode En: Low-Speed Mode Enable or Disable

●Low Speed Mode ChA: Low-speed mode for channel A

2ADS42B4x EVM SLAU477A–December 2012–Revised January 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

www.ti.com

Software Control

●Low Speed Mode ChB: Low-speed mode for channel B

●LVDS Data Strength: Set the data strength from this switch

●LVDS Clkout Strength: Set the output clock strength from this switch

●CMOS Clk Strength: Set CMOS output clock strength from this switch

●ClkOut Delay: Programming the delay of CLKOUT

●Offset Correction: Enables or Disables offset correction

●ChA Offset Pedestal: Programming Channel A for different offset pedestals

●ChB Offset Pedestal: Programming Channel B for different offset pedestals

Figure 1. ADS42Bxx_GUI Front Panel – Top Level

1.2.2 Register Control

●Send All: Sends all the register configurations on the panel to the device

●Read All: Not active

●Save: Saves the register configuration to text file

●Load: Loads a register file from a text file. After loading registers, the relative switches and

selecting boxes are automatically updated.

— Select Load button

— Double click on the desired register file

— Click Send All to ensure all of the values are loaded properly

SLAU477A–December 2012–Revised January 2015 ADS42B4x EVM

All manuals and user guides at all-guides.com

Basic Test Procedure

www.ti.com

1.2.3 Miscellaneous Settings

●Reset USB: Toggle this button if the USB port is not responding. This generates a new USB

handle address. After hitting this, USB Status has to be turned to “Green”.

●Exit: Stops the program

2 Basic Test Procedure

This section outlines the basic test procedure for testing the EVM. Figure 2 shows how to connect the

ADS42B4xEVM to TSW1400.

Figure 2. ADS42B4xEVM and TSW1400

4ADS42B4x EVM SLAU477A–December 2012–Revised January 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

ADS42B49EVMTSW1400

LVDS

CLK

+5V

Mini-USB

Signal

Generator

+5V

Mini-USB

J17

J23

J19

J3/J6

J12

J4 J8

RX IF

BPF Signal

Generator

±1dBFS

15dBm

Ref_out

Ref_in

www.ti.com

Basic Test Procedure

2.1 Test Block Diagram

The test set-up for general testing of the ADS42B4x EVM with the TSW1400 capture card is shown in

Figure 3.

Figure 3. Test Set-Up Block Diagram

2.2 Verify Board Set-up

Verify jumper settings are in the correct position as outlined in Table 1 and Table 2. Parallel configuration

is not recommended because the high performance modes cannot be enabled. The high performance

modes are required to achieve best performance.

Table 1. Default ADS42Bxx EVM Revision A Jumper Setting for Serial Interface

Jumper Default position Function

JP15 Short 1 - 2 DC supply for +1.8VA

JP16 Short 1 - 2 DC supply for +1.8VD

JP17 Short 3 - 2 DC supply, LDO for +5V

JP19 Short 3 - 2 DC supply, LDO for +1.8V

JP28 Short 3 - 2 DC supply, LDO for +5V

JP29 Short 3 - 2 DC supply, LDO for +3.3VCLK

JP26 Open DC supply for ext buffer

JP27 Open DC supply for ext buffer

JP3 Short 2 - 3 OPA power down

JP4 Short 2 - 3 OPA power down

JP22 Open SDOUT to FPGA

JP20 Short 1 - 2 CDC

JP21 Short 1 - 2 CDC

J14 Short 1 - 2 CDC power down

J18 Open CDC, VCXO

JP8(1) Short 3 - 2 ADC SCLK for SPI

JP9 Short 3 - 2 ADC SDATA for SPI

JP10 Short 3 - 2 ADC SEN for SPI

JP11 Short 3 - 2 ADC for SPI, also reset

JP 12 Short 1 - 2 ADC Low speed mode disable

JP 13 Open

(1) The EVM schematic shows default setting of JP8 to JP11 as parallel interface Table 2) which is for EVM installation. After EVM

tested and released these jumpers are set as serial interface (Table 1).

SLAU477A–December 2012–Revised January 2015 ADS42B4x EVM

All manuals and user guides at all-guides.com

Basic Test Procedure

www.ti.com

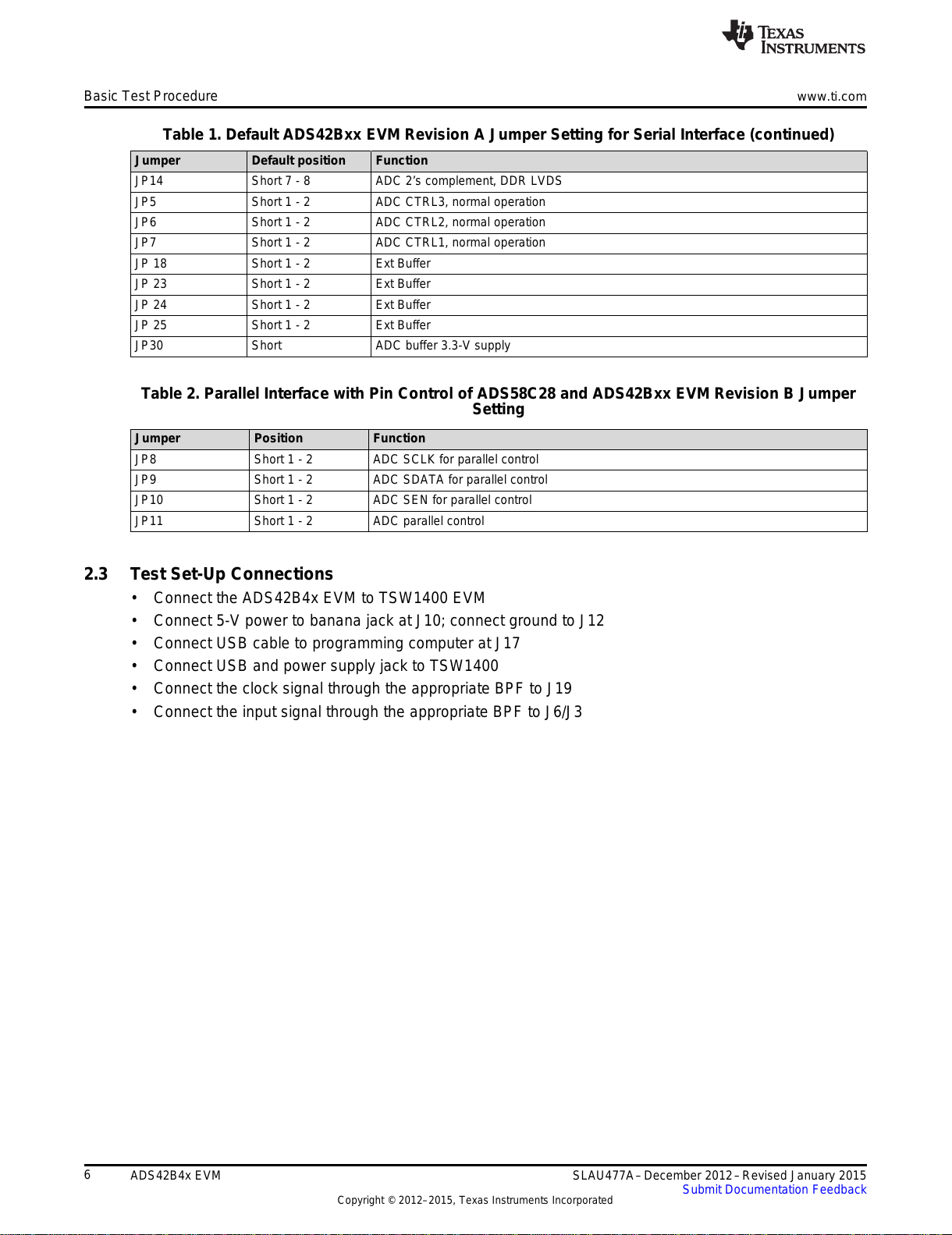

Table 1. Default ADS42Bxx EVM Revision A Jumper Setting for Serial Interface (continued)

Jumper Default position Function

JP14 Short 7 - 8 ADC 2’s complement, DDR LVDS

JP5 Short 1 - 2 ADC CTRL3, normal operation

JP6 Short 1 - 2 ADC CTRL2, normal operation

JP7 Short 1 - 2 ADC CTRL1, normal operation

JP 18 Short 1 - 2 Ext Buffer

JP 23 Short 1 - 2 Ext Buffer

JP 24 Short 1 - 2 Ext Buffer

JP 25 Short 1 - 2 Ext Buffer

JP30 Short ADC buffer 3.3-V supply

Table 2. Parallel Interface with Pin Control of ADS58C28 and ADS42Bxx EVM Revision B Jumper

Setting

Jumper Position Function

JP8 Short 1 - 2 ADC SCLK for parallel control

JP9 Short 1 - 2 ADC SDATA for parallel control

JP10 Short 1 - 2 ADC SEN for parallel control

JP11 Short 1 - 2 ADC parallel control

2.3 Test Set-Up Connections

• Connect the ADS42B4x EVM to TSW1400 EVM

• Connect 5-V power to banana jack at J10; connect ground to J12

• Connect USB cable to programming computer at J17

• Connect USB and power supply jack to TSW1400

• Connect the clock signal through the appropriate BPF to J19

• Connect the input signal through the appropriate BPF to J6/J3

6ADS42B4x EVM SLAU477A–December 2012–Revised January 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

www.ti.com

Basic Test Procedure

2.4 TSW1400 Quick Start Operation

Reference the TSW1400 User’s Guide for more detailed explanation of the TSW1400 set-up and

operation. This document assumes that High Speed Data Converter Pro (HSDCPro) is installed and

functioning properly. The front panel of HSDCPro is shown in Figure 4. The following configuration needs

to be changed from the default settings. Note that HSDCPro version 3.1 or newer is required to properly

run the ADS42B4x EVM.

• Select the ADS42B4x device name from the TI ADC Selection pull-down menu

• Select Single Tone for FFT from the Test pull-down menu

• Select the desired channel (that is, Channel A or B) from the Channel Display pull-down menu

• Check the box for Auto Calculation of Coherent Frequencies.

• Change the ADC sampling rate to the desired value (that is, 250 MHz)

• Change the input frequency to desired value (that is, 170 MHz or other)

• Verify status display in the lower left has no errors

• Press the Capture button to initiate a data capture. The ADS42B4x EVM must be configured before a

capture can be made.

Figure 4. High Speed Data Converter Pro

SLAU477A–December 2012–Revised January 2015 ADS42B4x EVM

All manuals and user guides at all-guides.com

Basic Test Procedure

www.ti.com

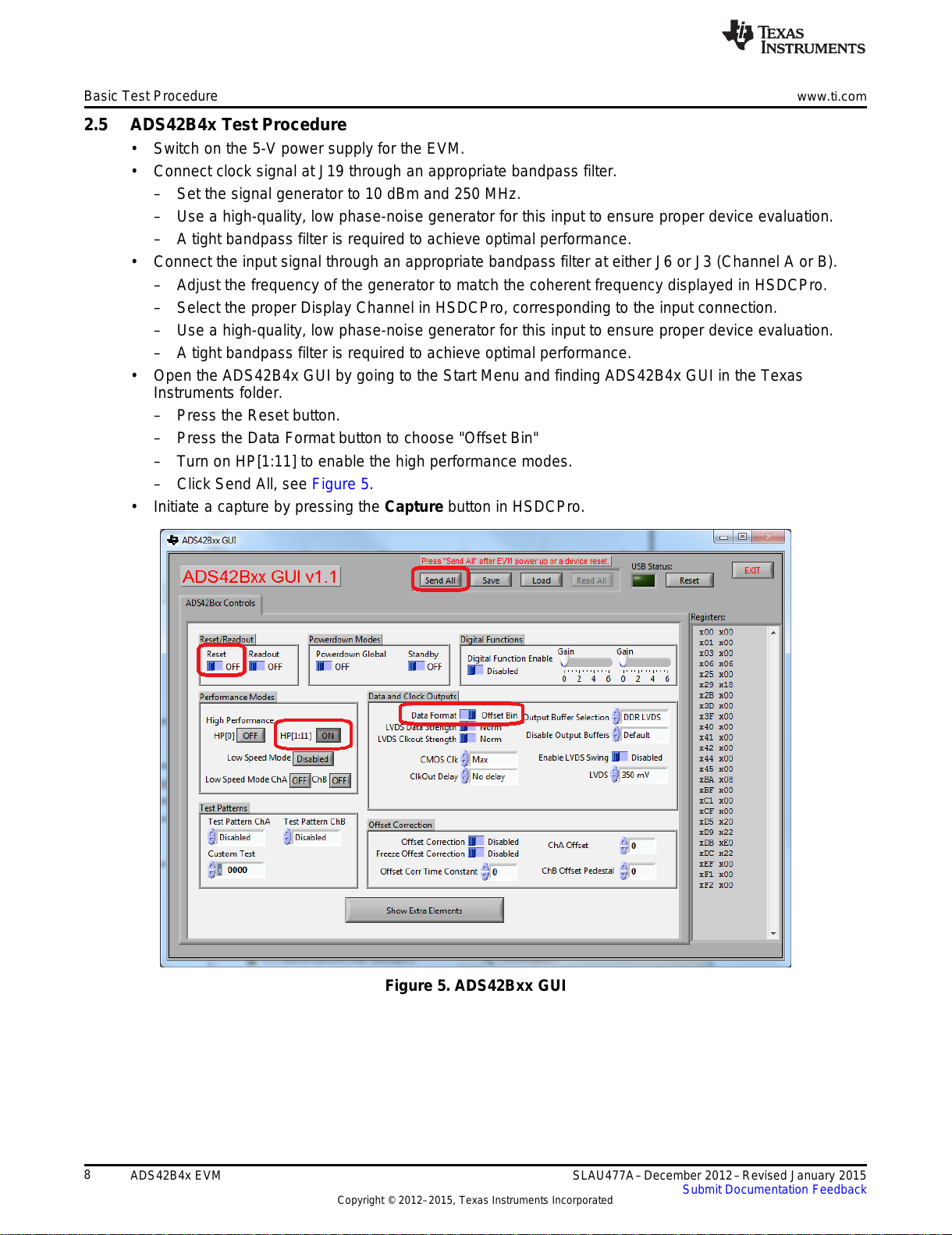

2.5 ADS42B4x Test Procedure

• Switch on the 5-V power supply for the EVM.

• Connect clock signal at J19 through an appropriate bandpass filter.

– Set the signal generator to 10 dBm and 250 MHz.

– Use a high-quality, low phase-noise generator for this input to ensure proper device evaluation.

– A tight bandpass filter is required to achieve optimal performance.

• Connect the input signal through an appropriate bandpass filter at either J6 or J3 (Channel A or B).

– Adjust the frequency of the generator to match the coherent frequency displayed in HSDCPro.

– Select the proper Display Channel in HSDCPro, corresponding to the input connection.

– Use a high-quality, low phase-noise generator for this input to ensure proper device evaluation.

– A tight bandpass filter is required to achieve optimal performance.

• Open the ADS42B4x GUI by going to the Start Menu and finding ADS42B4x GUI in the Texas

Instruments folder.

– Press the Reset button.

– Press the Data Format button to choose "Offset Bin"

– Turn on HP[1:11] to enable the high performance modes.

– Click Send All, see Figure 5.

• Initiate a capture by pressing the Capture button in HSDCPro.

Figure 5. ADS42Bxx GUI

8ADS42B4x EVM SLAU477A–December 2012–Revised January 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

www.ti.com

Basic Test Procedure

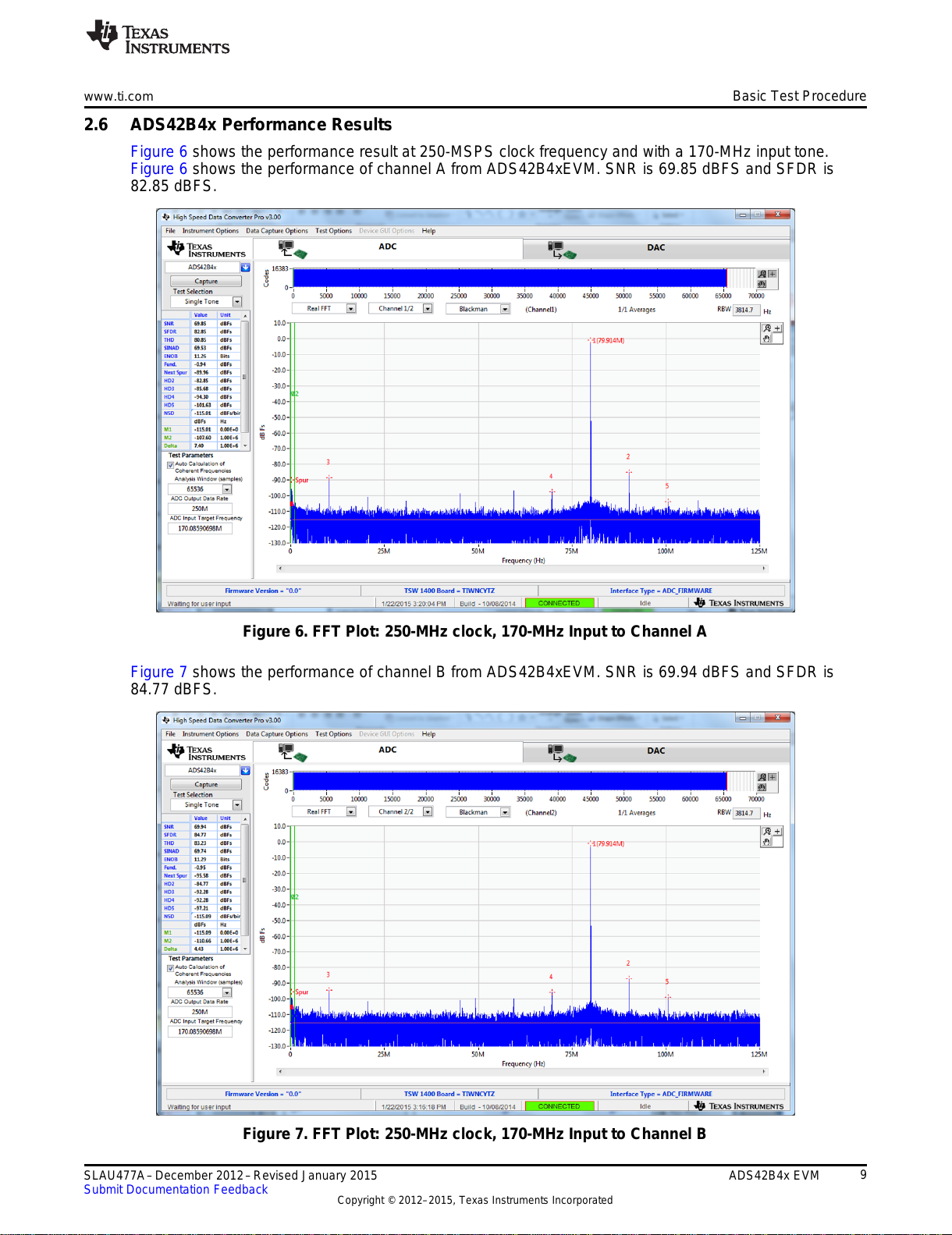

2.6 ADS42B4x Performance Results

Figure 6 shows the performance result at 250-MSPS clock frequency and with a 170-MHz input tone.

Figure 6 shows the performance of channel A from ADS42B4xEVM. SNR is 69.85 dBFS and SFDR is

82.85 dBFS.

Figure 6. FFT Plot: 250-MHz clock, 170-MHz Input to Channel A

Figure 7 shows the performance of channel B from ADS42B4xEVM. SNR is 69.94 dBFS and SFDR is

84.77 dBFS.

Figure 7. FFT Plot: 250-MHz clock, 170-MHz Input to Channel B

SLAU477A–December 2012–Revised January 2015 ADS42B4x EVM

All manuals and user guides at all-guides.com

Optional Configurations

www.ti.com

3 Optional Configurations

3.1 THS4509 Input Op-Amp Configuration

The default analog input configuration is transformer coupling through T1 and T2 for channel A, and T3

and T4 for channel B. The optional configuration for analog input is through an Op-Amp THS4509. The

changes required to modify the transformer coupled input to the OPA-driven input are shown in Table 3.

Table 3. Jumper Setting for Transformer-coupled or OPA-driven Input

Jumpers or 0 ΩTransformer-coupled input (default) OPA-driven input

R119 Install Do not install

R123 Install Do not install

R120 Do not install install

R129 Do not install install

R143 Install Do not install

R141 Install Do not install

R131 Do not install Install

R132 Do not install Install

R93 Install Do not install

R94 Install Do not install

R95 Do not install Install

R96 Do not install Install

R97 Install Do not install

R98 Install Do not install

R99 Do not install Install

R114 Do not install Install

SJP3 Shunt 2 - 3, default Shunt 1-2

SJP4 Shunt 2 - 3, default Shunt 1-2

J11 and J13 are the power supply for the THS4509. An on-board layout option for a LPF or BPF is

available between the amplifier and the ADC. By default the filter is bypassed, allowing the flexibility to

design according to desired specifications.

10 ADS42B4x EVM SLAU477A–December 2012–Revised January 2015

Submit Documentation Feedback

All manuals and user guides at all-guides.com

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments UCD3138CC64EVM-030 Manuale utente

Texas Instruments

Texas Instruments bq26231EVM-001 Manuale utente

Texas Instruments

Texas Instruments TMS320DM644 Series Manuale utente

Texas Instruments

Texas Instruments DVEVM Manuale utente

Texas Instruments

Texas Instruments DLP4710EVM-LC Manuale utente

Texas Instruments

Texas Instruments TPA5051EVM Manuale utente

Texas Instruments

Texas Instruments ADS8686SEVM-PDK Manuale utente

Texas Instruments

Texas Instruments LM5108EVM Manuale utente

Texas Instruments

Texas Instruments ADS8568EVM-PDK Manuale utente

Texas Instruments

Texas Instruments DRV2634EVM-DC Manuale utente

Texas Instruments

Texas Instruments ADS7881 Manuale utente

Texas Instruments

Texas Instruments LP8866EVM Manuale utente

Texas Instruments

Texas Instruments MSP430FR6043 Manuale utente

Texas Instruments

Texas Instruments PGAxxxEVM-037 Series Manuale utente

Texas Instruments

Texas Instruments TPS65132B Manuale utente

Texas Instruments

Texas Instruments Stellaris LM3S9D90 Manuale utente

Texas Instruments

Texas Instruments SWIFT TPS561201EVM-896 1-A Manuale utente

Texas Instruments

Texas Instruments BQ25616J Manuale utente

Texas Instruments

Texas Instruments DRV3946-Q1EVM Manuale utente

Texas Instruments

Texas Instruments DP83TC812EVM-MC Manuale utente

Texas Instruments

Texas Instruments MSP432E411Y-BGAEVM Manuale utente

Texas Instruments

Texas Instruments TLV320AIC32EVM Manuale utente

Texas Instruments

Texas Instruments TPS650937 Manuale utente

Texas Instruments

Texas Instruments TUSB1042 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
