User's Guide

SLUU366A–March 2010–Revised April 2010

bq2415x RGY EVM (HPA255)

This user's guide describes the features, setup, and operation of the bq2415x RGY evaluation board.

Included are the bill of materials, board layout, and schematic.

Contents

1 Introduction .................................................................................................................. 2

1.1 EVM Features ...................................................................................................... 2

1.2 General Description ................................................................................................ 2

1.3 I/O Description ...................................................................................................... 2

1.4 Controls and Key Parameters Setting ........................................................................... 2

1.5 Recommended Operating Conditions ........................................................................... 3

2 Test Summary ............................................................................................................... 4

2.1 Definitions ........................................................................................................... 4

2.2 Equipment ........................................................................................................... 4

2.3 Equipment Setup ................................................................................................... 5

2.4 Procedure ........................................................................................................... 6

3 PCB Layout Guideline ...................................................................................................... 8

4 Board Layout, Schematic, and Bill of Materials ......................................................................... 9

4.1 Board Layout ....................................................................................................... 9

4.2 Schematic ......................................................................................................... 12

4.3 Bill of Materials .................................................................................................... 13

List of Figures

1 Connections of the HPA172 Kit........................................................................................... 5

2 Original Test Setup for HPA255 (bq2415x EVM)....................................................................... 5

3 Main Window of the bq2415x Evaluation Software..................................................................... 6

4 Test Setup for HPA255 .................................................................................................... 7

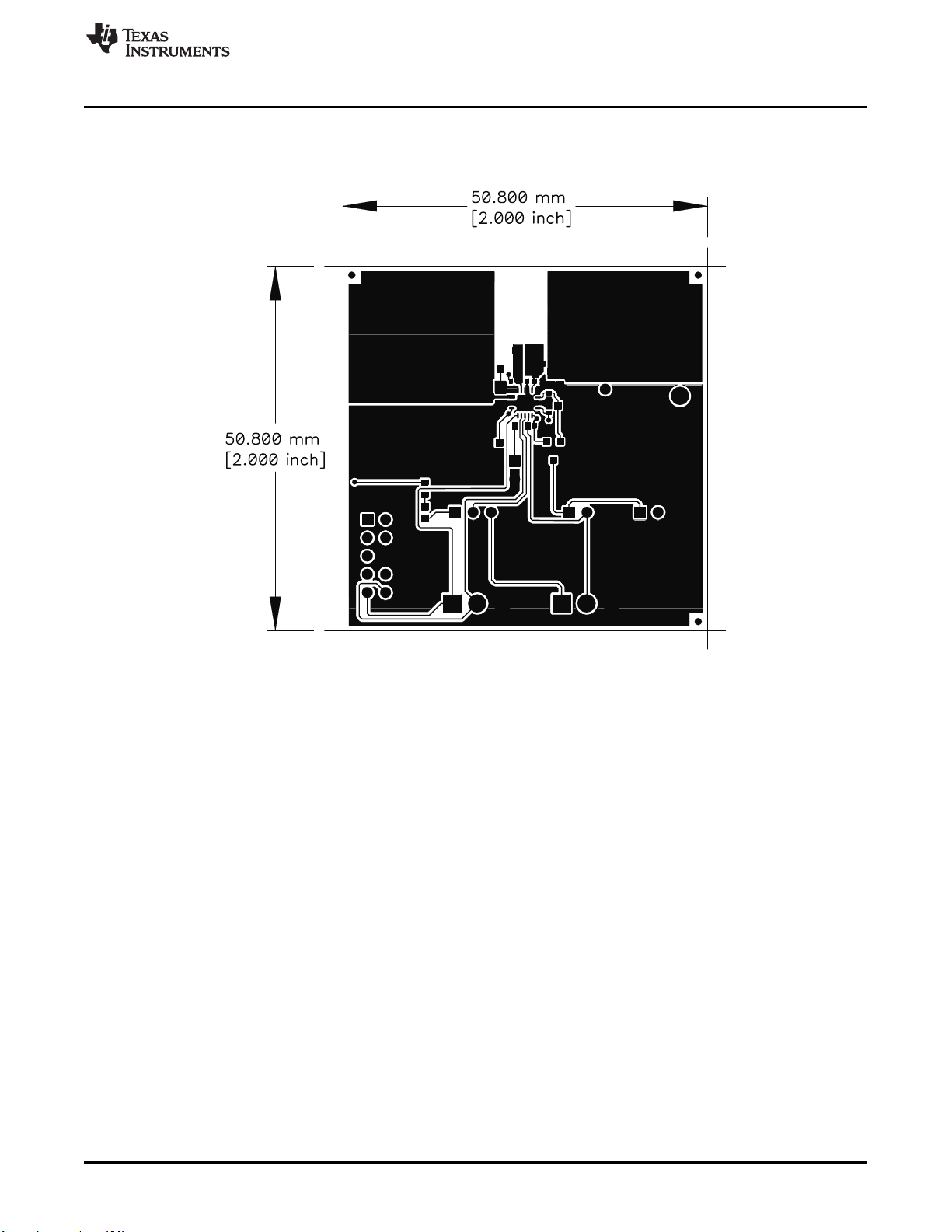

5 Top Layer .................................................................................................................... 9

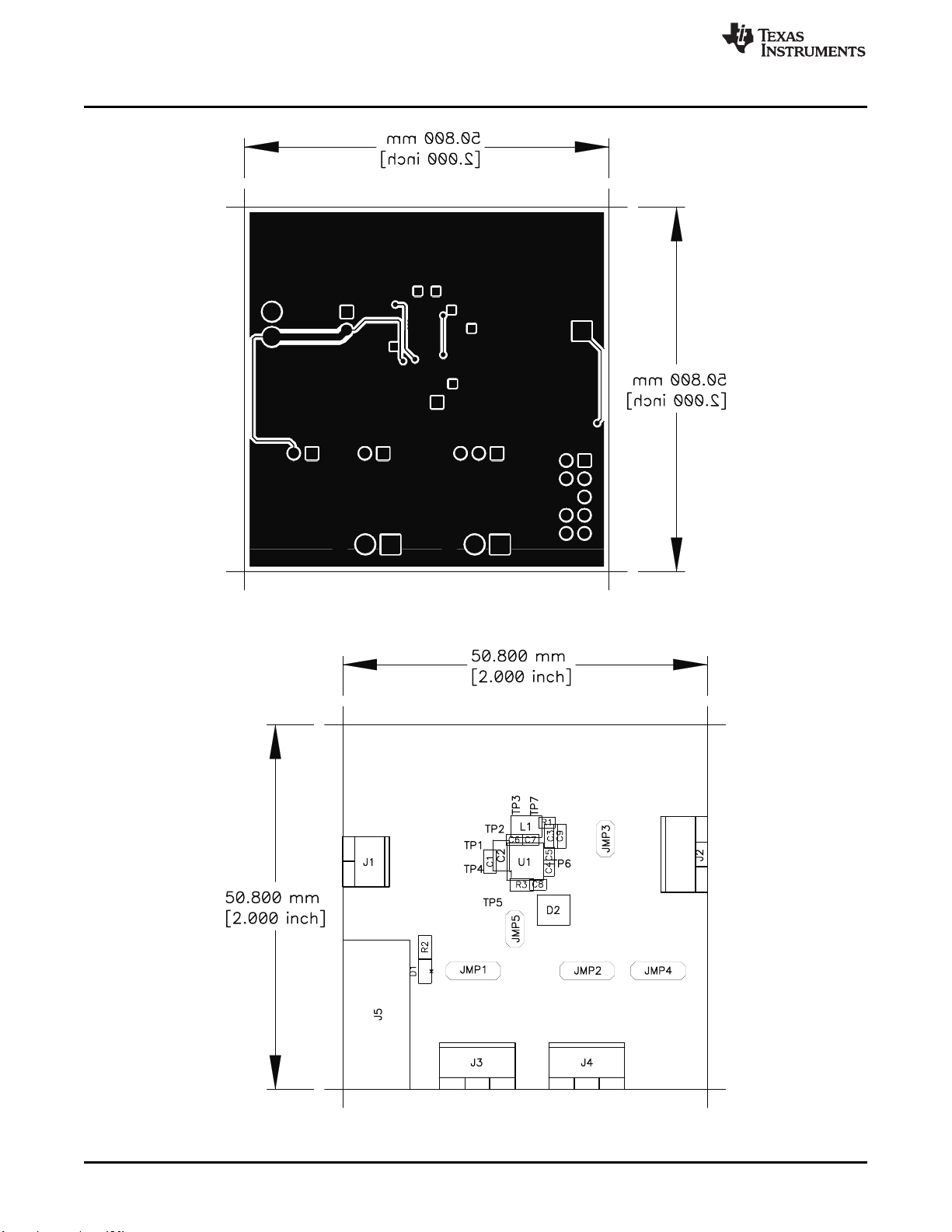

6 Bottom Layer............................................................................................................... 10

7 Top Assembly.............................................................................................................. 10

8 Top Silk ..................................................................................................................... 11

List of Tables

1 Input/Output Jack Descriptions............................................................................................ 2

2 Control and Key Parameters Settings for JMP1 Through JMP5 ..................................................... 2

3 Factory Jumper Settings ................................................................................................... 3

4 Recommended Operating Conditions.................................................................................... 3

5 JMP1 Through JMP5 Installation Settings............................................................................... 5

I2C is a trademark of Koninklijke Philips Electronics NV.

SLUU366A–March 2010–Revised April 2010 bq2415x RGY EVM (HPA255)

Introduction

www.ti.com

1 Introduction

1.1 EVM Features

• Evaluation module for bq2415x

• High-efficiency, fully integrated NMOS-NMOS synchronous buck charger with 3-MHz frequency

• Integrated power FETs for up to 1.25-A charge rate

• Programmable battery voltage, charge current, and input current via I2C™ interface

• Input operating range 4 V–6 V

• Boost mode operation for USB OTG

• LED indication for status signals

• Test points for key signals available for testing purposes. Easy probe hook-up.

• Jumpers available. Easy to change connections.

1.2 General Description

The bq2415x evaluation module is a complete charger module for evaluating compact, flexible,

high-efficiency, USB-friendly switch-mode charge management solution for single-cell Li-ion and

Li-polymer batteries used in a wide range of portable applications.

The bq2415x integrates a synchronous PWM controller, power MOSFETs, input current sensing,

high-accuracy current and voltage regulation, and charge termination, into a small WCSP package.

The charge parameters can be programmed through an I2C interface.

For details, see the bq2415x data sheet (SLUS942).

1.3 I/O Description

Table 1. Input/Output Jack Descriptions

Jack Description

J1–DC+ AC adapter or USB, positive output

J1–DC– AC adapter or USB, negative output

J2–BAT+ Charger positive output, connect to CSOUT pin

J2–AUXPWR/CD Connect to AUXPWR/CD pin

J2–BAT– Battery negative terminal, connect to DC-

J3–SCL I2C clock, connect to SCL pin

J3–SDA I2C data, connect to SDA pin

J3–DC– AC adapter or USB, negative output

J4–STAT Status output, can be connected to STAT pin by JMP1 set to EXT (2-3)

J4–OTG/SLRST/TS/ISEL Connect to OTG/SLRST/TS/ISEL pin

J4–DC– AC adapter or USB, negative output

1.4 Controls and Key Parameters Setting

Table 2. Control and Key Parameters Settings for JMP1 Through JMP5

Jack Description Factory Setting

JMP1 LED 1-2: Connect STAT pin to LED on EVM Jumper On LED (1-2)

EXT 2-3: Connect STAT pin to J4-1

JMP2 HI 1-2: OTG/SLRST/TS/ISEL high (input or battery voltage) See table below

LO 2-3: OTG/SLRST/TS/ISEL low (ground)

JMP3 J2-BAT+ connect to J2-AUXPWR/CD See table below

JMP4 AUXPWR/CD pin connect to high or low or float See table below

JMP5 OTG/SLRST/TS/ISEL pin 10k resistor to ground or float Jumper On

2bq2415x RGY EVM (HPA255) SLUU366A–March 2010–Revised April 2010

Submit Documentation Feedback

www.ti.com

Introduction

Table 3. Factory Jumper Settings

Spin JMP1 JMP2 JMP3 JMP4 JMP5

HPA255-001 (bq24150) (-LED-) ON (-LO-) ON ON OFF ON

HPA255-002 (bq24151) (-LED-) ON (-LO-) ON ON OFF ON

HPA255-003 (bq24152) (-LED-) ON (-LO-) ON ON OFF ON

HPA255-004 (bq24153) (-LED-) ON (-LO-) ON OFF (-LO-) ON ON

HPA255-005 (bq24155) (-LED-) ON (-LO-) ON ON OFF ON

HPA255-006 (bq24156) (-LED-) ON (-HI-) ON OFF (-LO-) ON ON

HPA255-007 (bq24159) (-LED-) ON OFF OFF (-LO-) ON ON

1.5 Recommended Operating Conditions

Table 4. Recommended Operating Conditions

Min Typ Max Unit Notes

Supply voltage, VIN Input voltage from ac adapter input 4 5 6 V

Battery voltage, VBAT Voltage applied at VBAT terminal of J8 0 3–4.2 4.44 V

Supply current, IAC Maximum input current from ac adapter 0 0.1–0.5 1.5 A

input

Charge current, Ichrg Battery charge current 0.55 0.7 1.25 A

Operating junction temperature range, TJ0 125 °C

SLUU366A–March 2010–Revised April 2010 bq2415x RGY EVM (HPA255)

Test Summary

www.ti.com

2 Test Summary

2.1 Definitions

This procedure details how to configure the HPA255 evaluation board. On the test procedure the following

naming conventions are followed. Refer to the HPA255 schematic for details.

VXXX : External voltage supply name (VADP, VBT, VSBT)

LOADW : External load name (LOADR, LOADI)

V(TPyyy) : Voltage at internal test point TPyyy. For example, V(TP12) means the voltage at

TP12.

V(Jxx) : Voltage at jack terminal Jxx.

V(TP(XXX)) : Voltage at test point “XXX”. For example, V(ACDET) means the voltage at the test

point which is marked as “ACDET”.

V(XXX, YYY) : Voltage across point XXX and YYY.

I(JXX(YYY)) : Current going out from the YYY terminal of jack XX.

Jxx(BBB) : Terminal or pin BBB of jack xx

Jxx ON : Internal jumper Jxx terminals are shorted

Jxx OFF : Internal jumper Jxx terminals are open

Jxx (-YY-) ON : Internal jumper Jxx adjacent terminals marked as “YY” are shorted

Measure: →A,B Check specified parameters A, B. If measured values are not within specified limits

the unit under test has failed.

Observe →A,B Observe if A, B occur. If they do not occur, the unit under test has failed.

Assembly drawings have location for jumpers, test points and individual components

2.2 Equipment

2.2.1 POWER SUPPLIES

Power Supply 1 (PS1): a power supply capable of supplying 5 V at 2 A is required.

2.2.2 LOAD 1

A 10-V (or above), 2-A (or above) electronic load that can operate at constant current mode.

2.2.3 LOAD 2

A HP 6060B 3-60V/0-60A, 300-W system dc electronic load.

Or: equivalent.

2.2.4 METERS

Four Fluke 75, (equivalent or better)

Or: Two equivalent voltage meters and two equivalent current meters. The current meters must be able to

measure a 2-A current.

2.2.5 COMPUTER

A computer with at least one USB port and a USB cable. The bq2415x evaluation software must be

properly installed.

2.2.6 HPA172 COMMUNICATION KIT

A HPA172 USB to I2C communication kit.

4bq2415x RGY EVM (HPA255) SLUU366A–March 2010–Revised April 2010

Submit Documentation Feedback

To Computer

USB port

10-pin

Ribbon Cable

To EVM

U S B In te r fa c e

A d a p t e r

I/ O

U S B

T ex a s In s t ru m e n ts

bq24150/1/2/3/5/6/9 EVM

DC+

J 1

DC -

BAT+

S C L

BAT -

APPLICATION

CIRCUIT

D1 JMP1 JMP2

JMP3

AUXPWR

S D A

DC-

S TA T

O TG

S L RS T

T S

IS E L

JMP5

JMP4

Iin I

Power

supply #1

Load

Ichrg

USB

Cable HPA172 Ribbon

Cable

www.ti.com

Test Summary

2.2.7 SOFTWARE

Double click on the “SETUP.EXE” file. Follow the installation steps.

2.3 Equipment Setup

(A) Set the Power Supply 1 for 5 V ±100 mVdc, 2 ±0.1-A current limit and then turn off supply.

(B) Connect the output of Power Supply 1 in series with a current meter (multimeter) to J1 (DC+, DC–).

(D) Connect the Load 2 in series with a current meter (multimeter) to J2 (BAT+, BAT–). Make sure a

voltage meter is connected across J2 (BAT+, BAT–). Turn on the Load 2. Use the constant voltage

mode. Set the output voltage to 2.5 V.

(E) Turn off Load 2.

(F) Connect J5 to HPA172 kit by 10-pin ribbon cable. Connect the USB port of the HPA172 kit to the USB

port of the computer. The connections are shown in Figure 1.

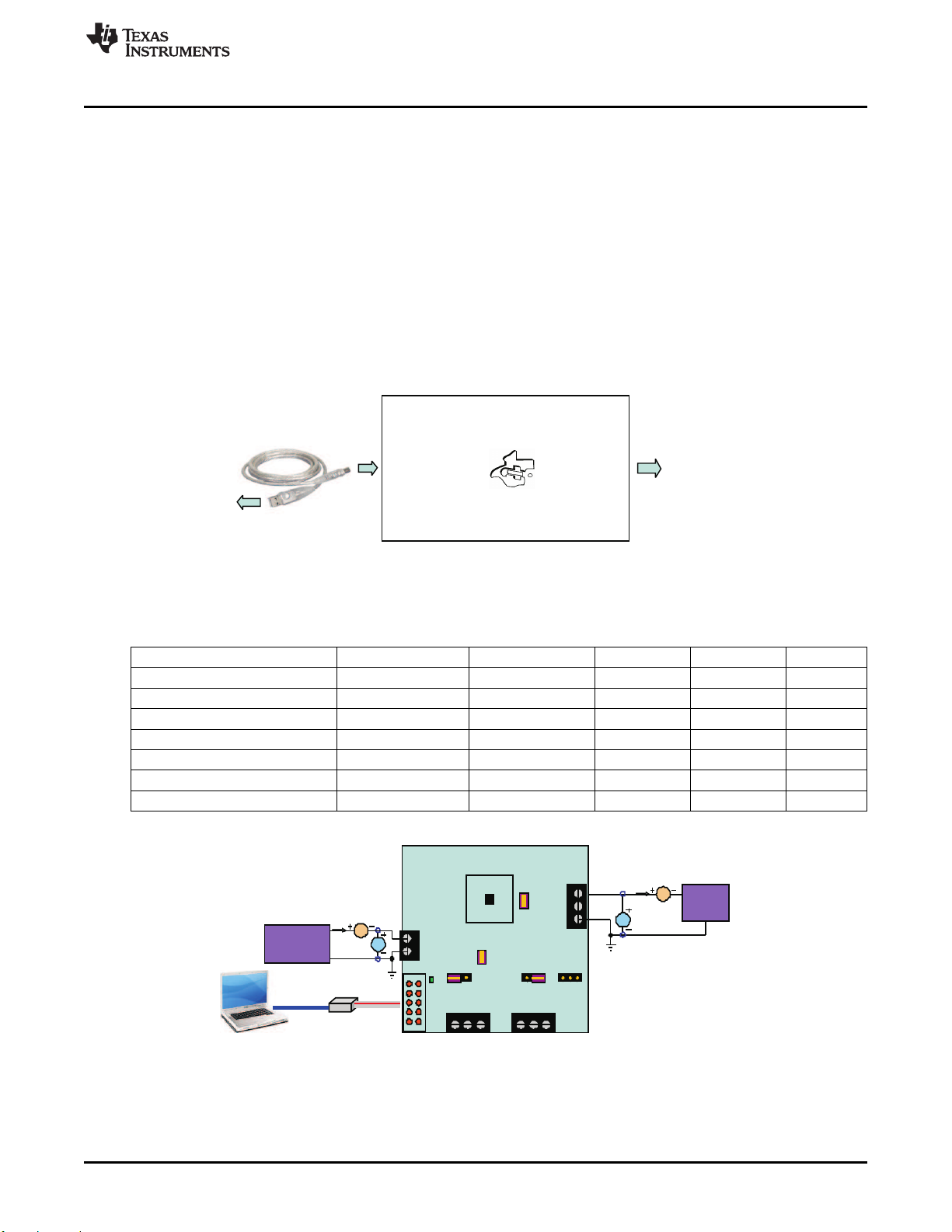

Figure 1. Connections of the HPA172 Kit

(G) Install jumpers per following table.

Table 5. JMP1 Through JMP5 Installation Settings

Spin JMP1 JMP2 JMP3 JMP4 JMP5

HPA255-001 (bq24150) (-LED-) ON (-LO-) ON ON OFF ON

HPA255-002 (bq24151) (-LED-) ON (-LO-) ON ON OFF ON

HPA255-003 (bq24152) (-LED-) ON (-LO-) ON ON OFF ON

HPA255-004 (bq24153) (-LED-) ON (-LO-) ON OFF (-LO-) ON ON

HPA255-005 (bq24155) (-LED-) ON (-LO-) ON ON OFF ON

HPA255-006 (bq24156) (-LED-) ON (-HI-) ON OFF (-LO-) ON ON

HPA255-007 (bq24159) (-LED-) ON OFF OFF (-LO-) ON ON

After completing the preceding steps, the test setup for HPA255 appears as is shown in Figure 2.

Figure 2. Original Test Setup for HPA255 (bq2415x EVM)

(H) Turn on the computer. Open the bq2415x evaluation software. The main window of the software is

shown in Figure 3.

SLUU366A–March 2010–Revised April 2010 bq2415x RGY EVM (HPA255)

Test Summary

www.ti.com

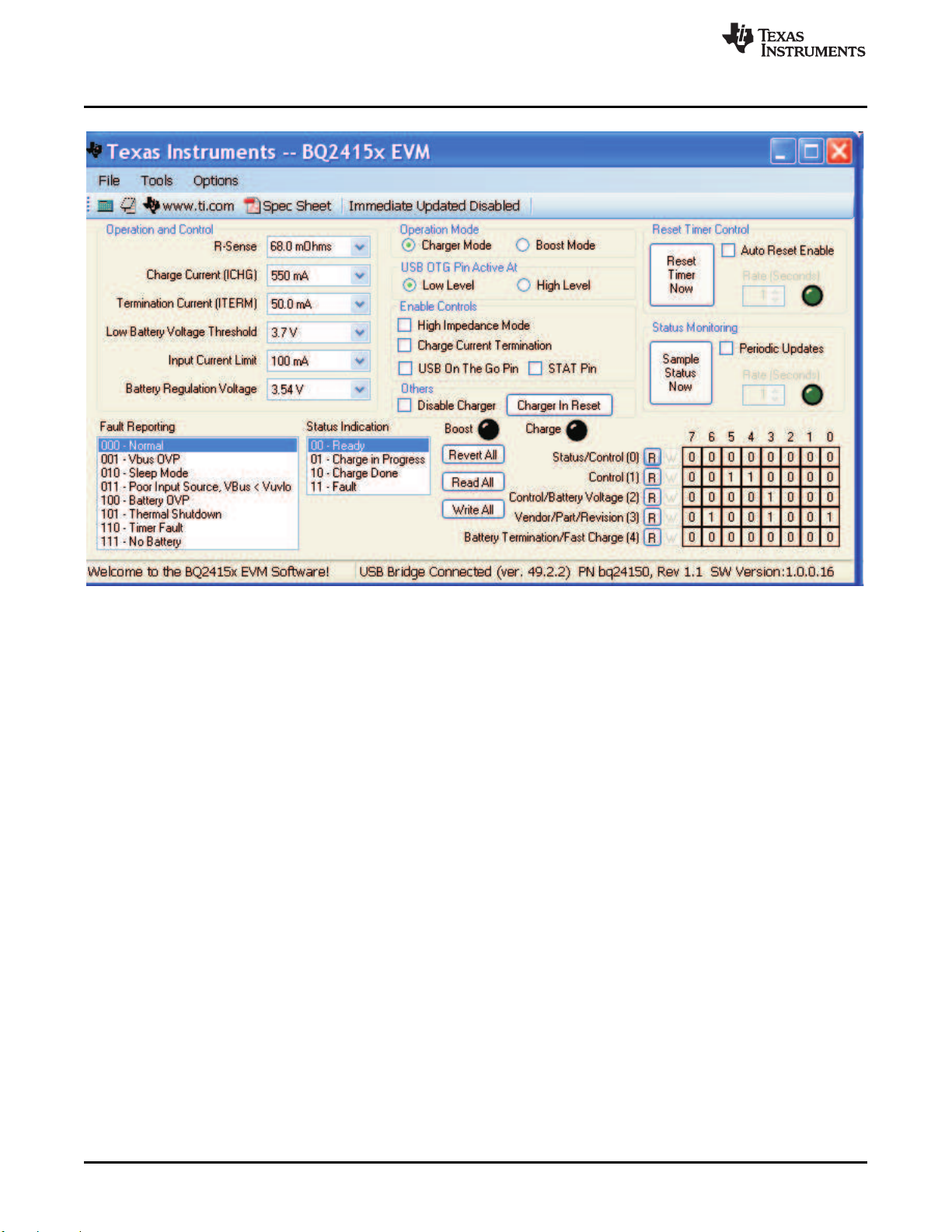

Figure 3. Main Window of the bq2415x Evaluation Software

2.4 Procedure

2.4.1 Charge Voltage and Current Regulation

1. Ensure that Section 2.3 steps are followed. Turn on PS1.

2. Software setup: Click Immediate Update Disabled button. It changes to Immediate Update Enabled.

Check Auto Reset Enable, set Rate to 5 seconds. Check Periodic Updates, set Rate to 1 second.

Ensure that Operation Mode is Charger Mode. Uncheck Charge Current Termination. Check STAT

Pin. Select Battery Regulation Voltage to 4.20V.

Measure →V(J2(VBAT+, VBAT–)) = 4.2 ±100 mV

Observe →D1 is on.

3. Enable Load 2.

Measure →V(J2(VBAT+, VBAT–)) = 2.5 ±100 mV

Measure →Ichrg = 160 mA ±40 mA

Measure →Iin = 93 mA ±5 mA

4. Select Charge Current to 1.25 A, select Input Current Limit to 500 mA.

Measure →Ichrg = 750 mA ±100 mA

Measure →Iin = 475 mA ±25 mA

5. Check Disable Charger. Turn off PS1, turn off Load 2, and disconnect

2.4.2 Boost Function (For –001, –002, –003, –004, –007 ONLY)

1. Adjust PS1 output to 3.7 V and disable the output. Connect the PS1 in series with a current meter

(multimeter) to J2 (BAT+, BAT-). Ensure that a voltage meter is connected across J2 (BAT+, BAT-).

2. Set the Load 1 current to 200 mA ±20 mA but disable the output. Connect the output of the Load 1 in

series with a current meter (multimeter) to J1 (DC+, DC-). Ensure that a voltage meter is connected

across J1 (DC+, DC-). The setup is now like that shown in Figure 4 for HPA255.

6bq2415x RGY EVM (HPA255) SLUU366A–March 2010–Revised April 2010

Submit Documentation Feedback

bq24150/1/2/3/5/6/9 EVM

DC+

J 1

DC -

BAT+

S C L

BAT -

APPLICATION

CIRCUIT

D1 JMP1 JMP2

JMP3

AUXPWR

S D A

DC-

S TA T

OTG

S L RS T

T S

IS E L

JMP5

JMP4

Power

supply #1

Load

I in

USB

Cable HPA172 Ribbon

Cable

www.ti.com

Test Summary

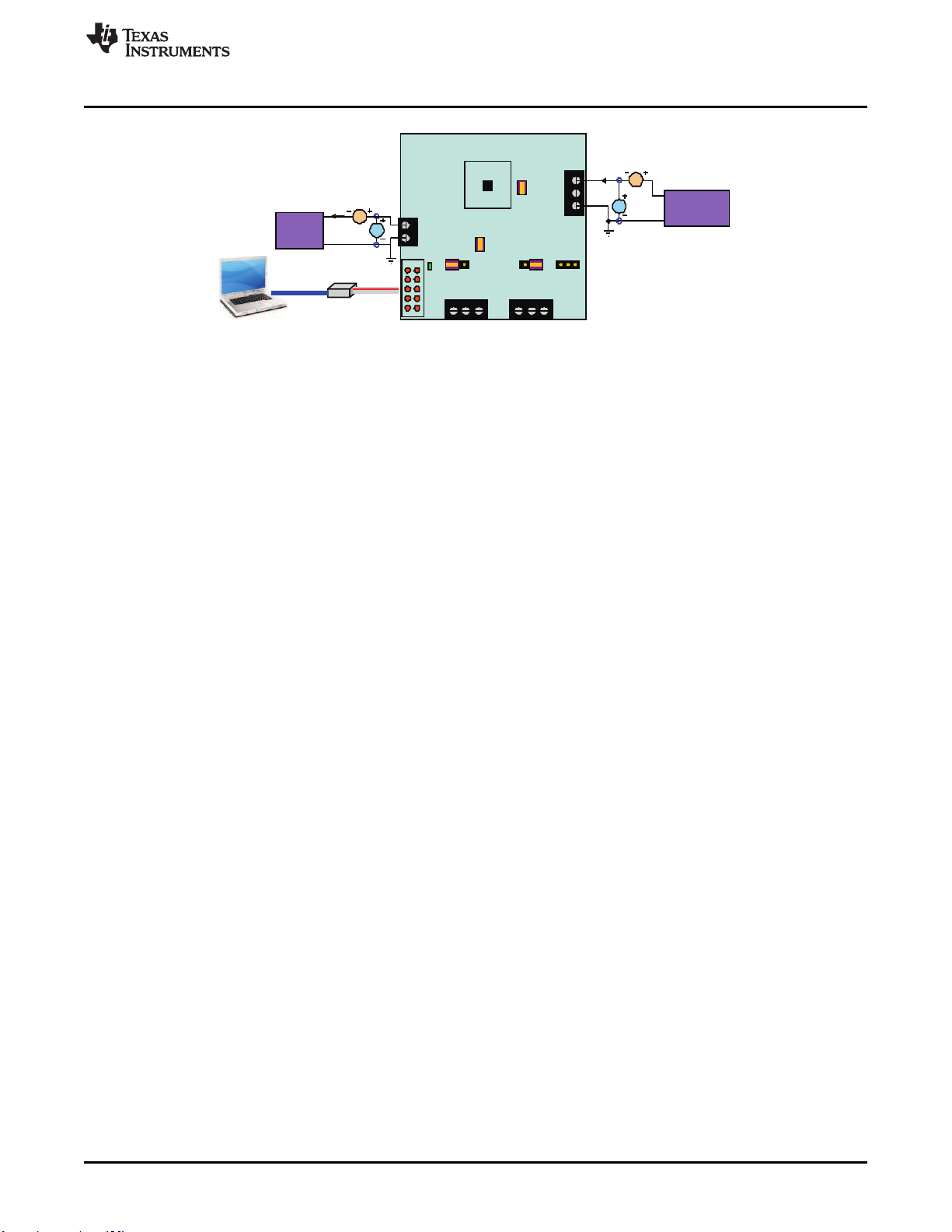

Figure 4. Test Setup for HPA255

3. Turn on PS1 output.

4. Software setup: Change Operation Mode to Boost Mode.

Measure →V(J1(DC+, DC–)) = 5 V ±0.2 V

5. Enable Load 1.

Measure →V(J1(DC+, DC-)) = 5 V ±0.2 V

Measure →Iin = 330 mA ±40 mA

Measure →Io = 200 mA ±20 mA

SLUU366A–March 2010–Revised April 2010 bq2415x RGY EVM (HPA255)

PCB Layout Guideline

www.ti.com

3 PCB Layout Guideline

1. To obtain optimal performance, the power input capacitors, connected from input to PGND, must be

placed as close as possible to the integrated circuit (IC).

2. The output inductor must be placed close to the IC and the output capacitor connected between the

inductor and PGND of the IC. The intent is to minimize the current path loop area from the SW pin

through the LC filter and back to the PGND pin. To prevent high-frequency oscillation problems, proper

layout to minimize high-frequency current path loop is critical.

3. The sense resistor must be adjacent to the junction of the inductor and output capacitor. Route the

sense leads connected across the RSNS back to the IC, close to each other (minimize loop area) or

on top of each other on adjacent layers. (Do not route the sense leads through a high-current path.)

4. Place all decoupling capacitors close to their respective IC pin and as close as possible to PGND. (Do

not place components such that routing interrupts power stage currents.) All small control signals must

be routed away from the high-current paths.

5. The printed-circuit board must have a ground plane (return) connected directly to the return of all

components through vias (two vias per capacitor for power-stage capacitors, two vias for the IC PGND,

one via per capacitor for small-signal components). A star ground design approach is typically used to

keep circuit block currents isolated (high-power/low-power small-signal) which reduces noise-coupling

and ground-bounce issues. A single ground plane for this design gives good results. With this small

layout and a single ground plane, no ground-bounce issue occurs, and having the components

segregated minimizes coupling between signals.

6. The high-current charge paths into VBUS, PMID, and from the SW pins must be sized appropriately for

the maximum charge current in order to avoid voltage drops in these traces. The PGND pins must be

connected to the ground plane to return current through the internal low-side FET.

8bq2415x RGY EVM (HPA255) SLUU366A–March 2010–Revised April 2010

Submit Documentation Feedback

www.ti.com

Board Layout, Schematic, and Bill of Materials

4 Board Layout, Schematic, and Bill of Materials

4.1 Board Layout

Figure 5. Top Layer

SLUU366A–March 2010–Revised April 2010 bq2415x RGY EVM (HPA255)

Board Layout, Schematic, and Bill of Materials

www.ti.com

Figure 6. Bottom Layer

Figure 7. Top Assembly

10 bq2415x RGY EVM (HPA255) SLUU366A–March 2010–Revised April 2010

Submit Documentation Feedback

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments TPS631012/3 Manuale utente

Texas Instruments

Texas Instruments TPA3156D2EVM Manuale utente

Texas Instruments

Texas Instruments TUSB217AEVM-BC Manuale utente

Texas Instruments

Texas Instruments INA281EVM Manuale utente

Texas Instruments

Texas Instruments ADS5294EVM Manuale utente

Texas Instruments

Texas Instruments BQ25180 Manuale utente

Texas Instruments

Texas Instruments TCA6507EVM Manuale utente

Texas Instruments

Texas Instruments SoundPlus OPA1622EVM Manuale utente

Texas Instruments

Texas Instruments HDC3020EVM Manuale utente

Texas Instruments

Texas Instruments TPS60120EVM-174 Manuale utente

Texas Instruments

Texas Instruments LMK5B33216EVM Manuale utente

Texas Instruments

Texas Instruments CC112 Series Manuale utente

Texas Instruments

Texas Instruments LMX2571EPEVM Manuale utente

Texas Instruments

Texas Instruments ADC 120EVM-PDK Series Manuale utente

Texas Instruments

Texas Instruments LMX2594 Manuale utente

Texas Instruments

Texas Instruments TPS60251EVM-192 Manuale utente

Texas Instruments

Texas Instruments TPS62851 EVM-139 Series Manuale utente

Texas Instruments

Texas Instruments DAC80502-01 Manuale utente

Texas Instruments

Texas Instruments SLUU083A Manuale utente

Texas Instruments

Texas Instruments SN65LV1021 Manuale utente

Texas Instruments

Texas Instruments LMK5C33216EVM Manuale utente

Texas Instruments

Texas Instruments TSB42AA9 (StorageLynx) EVM Manuale utente

Texas Instruments

Texas Instruments THS6222RHFEVM Manuale utente

Texas Instruments

Texas Instruments TPS62442EVM-122 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente

Texas Instruments bq2415x Manuale utente

Manuali Scheda madre popolari di altre marche
