BQ25616, BQ25616J BMS026 Evaluation Module

User's Guide

SLUUC73–March 2020

BQ25616, BQ25616J BMS026 Evaluation Module

This user's guide provides detailed testing instructions for the BQ25616 and BQ25616J evaluation

modules (EVM). Also included are descriptions of the necessary equipment, equipment setup, and

procedures. The reference documentation also contains the printed-circuit board layouts, schematics, and

the bill of materials (BOM).

Throughout this user's guide, the abbreviations EVM,BQ25616EVM, BQ25616JEVM, BMS026, and the

term evaluation module are synonymous with the BMS026 evaluation module, unless otherwise noted.

Contents

1 Introduction ................................................................................................................... 2

1.1 EVM Features....................................................................................................... 2

1.2 I/O Descriptions..................................................................................................... 2

2 Test Summary................................................................................................................ 4

2.1 Equipment ........................................................................................................... 4

2.2 Equipment Setup.................................................................................................... 4

2.3 Test Procedure...................................................................................................... 5

3 PCB Layout Guideline....................................................................................................... 7

4 Board Layout ................................................................................................................. 8

5 Schematic ................................................................................................................... 12

6 Bill of Materials ............................................................................................................. 14

List of Figures

1 Original Test Setup for BMS026 EVM .................................................................................... 4

2 BMS026 EVM Top Overlay................................................................................................. 8

3 BMS026 EVM Top Solder Mask........................................................................................... 8

4 BMS026 EVM Top Layer .................................................................................................. 8

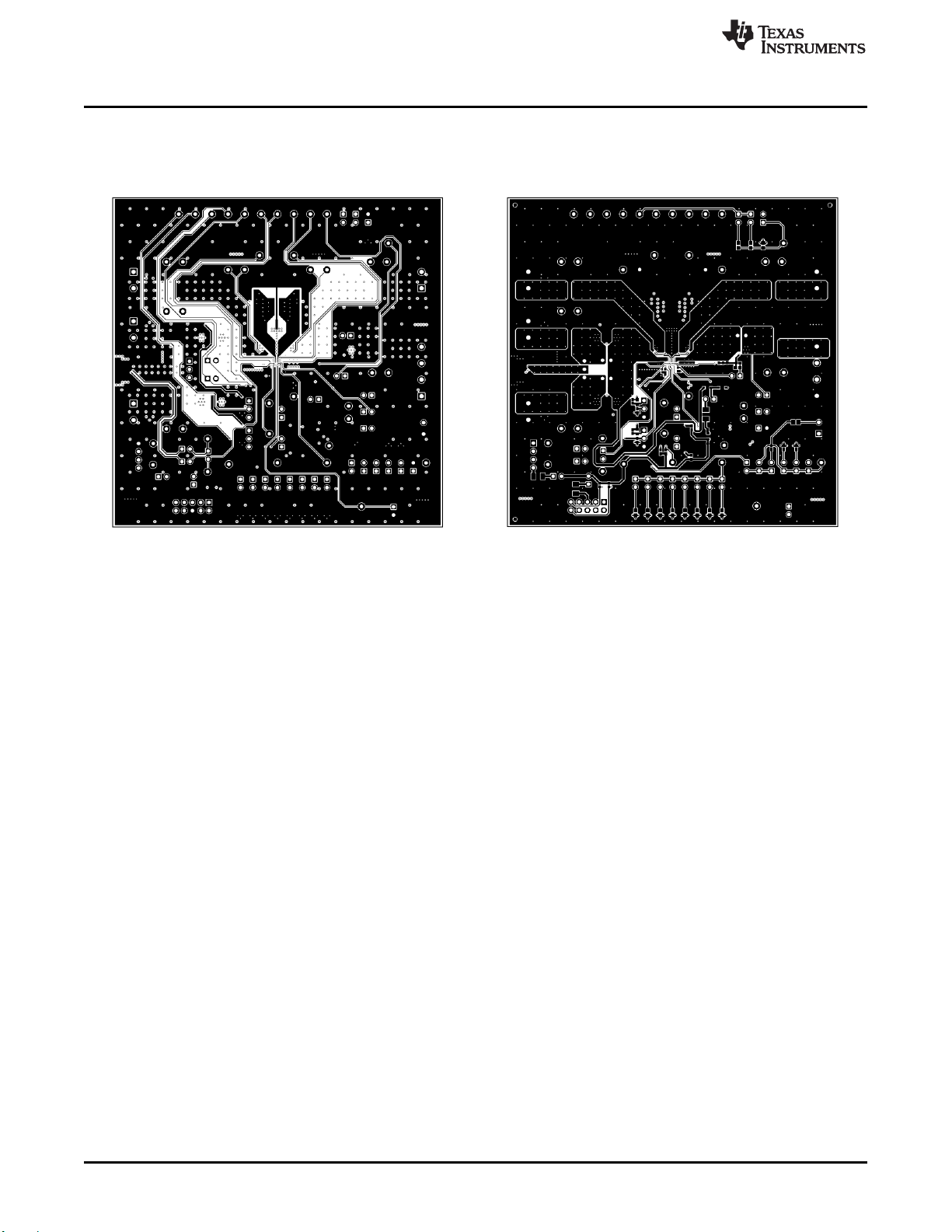

5 BMS026 EVM Signal Layer 1 ............................................................................................. 8

6 BMS026 EVM Signal Layer 2 ............................................................................................. 9

7 BMS026 EVM Bottom Layer .............................................................................................. 9

8 BMS026 Bottom Solder Mask ............................................................................................ 10

9 BMS026 Bottom Overlay.................................................................................................. 10

10 BQ25616EVM Schematic ................................................................................................ 12

11 BQ25616JEVM Schematic................................................................................................ 13

List of Tables

1 Device Data Sheets ......................................................................................................... 2

2 EVM I/O Connections ....................................................................................................... 2

3 EVM Jumper, Shunt and Switch Installation ............................................................................. 2

4 Recommended Operating Conditions..................................................................................... 3

5 BQ25616EVM Bill of Materials .......................................................................................... 14

6 BQ25616JEVM Bill of Materials.......................................................................................... 18

Trademarks

All trademarks are the property of their respective owners.

Introduction

www.ti.com

2SLUUC73–March 2020

Submit Documentation Feedback

BQ25616, BQ25616J BMS026 Evaluation Module

1 Introduction

1.1 EVM Features

For detailed features and operation, refer to Table 1 for a list of devices and their data sheets.

Table 1. Device Data Sheets

Device Data Sheet EVM Label Variant

BQ25616 SLUSDF7 BQ25616EVM 001

BQ25616J SLUSDF7 BQ25616JEVM 002

The BMS026 evaluation module (EVM) is a complete charger module for evaluating the standalone single-

cell NVDC charger using any of the devices above.

This EVM features adjustable input current limit, charging current, and charging voltage. It also has the

abilty to test the D+/D- input source type detection, external input over-voltage protection, and simulate

battery high and low temperature conditions.

1.2 I/O Descriptions

Table 2 lists the input and output connections available on this EVM and their respective descriptions.

Table 2. EVM I/O Connections

Jack Description

J1(2) – VAC Positive rail of the charger input voltage

J1(1) – GND Ground

J2(1) – SYSTEM Positive rail of the charger system output voltage, typically connected to the

system load

J2(2) – GND Ground

J3(1) – PMID Positive rail of the charger output voltage for power bank applications in

reverse boost mode (OTG). This output also shares the rail with the VIN

input rail in forward buck mode

J3(2) – GND Ground

J4 Input source Micro B USB port

J5-BATSNS_ICHG BATSNS or ICHG pin connection

J5(3) – ICHG ICHG pin external connection

J5(2) – BATTERY Positive rail of the charger battery input, connected to the positive terminal of

the external battery

J5(1) – GND Ground

J6 USB2ANY 10-pin connector

J7 I2C 4-pin connector for the EV2300/2400 interface board

Table 3 lists the jumepr, shunt and switch installations available on this EVM and their respective

descriptions.

Table 3. EVM Jumper, Shunt and Switch Installation

Jack Description BQ25616 Setting BQ25616J Setting

JP1 VBUS additional capacitance connection Not Installed Not Installed

JP2 SYS additional capacitance connection Not Installed Not Installed

JP3 PMID additional capacitance connection Not Installed Not Installed

JP4 BAT additional capacitance connection Not Installed Not Installed

JP5 I/O Pullup rail selection. Selection will have

either BAT or SYS as the pullup rail for /CE,

STAT, OTG, and /PG pins

Short PULLUP to

SYS Short PULLUP to

SYS

www.ti.com

Introduction

SLUUC73–March 2020

BQ25616, BQ25616J BMS026 Evaluation Module

Table 3. EVM Jumper, Shunt and Switch Installation (continued)

Jack Description BQ25616 Setting BQ25616J Setting

JP6 Micro B USB input D+ connection to charger

D+ pin Installed Installed

JP7 ICHG to BAT or BATTERY connection Not Installed Not Installed

JP8 ICHG resistor setting connection. Must be

connected for charging to operate correctly. Installed Installed

JP9 Micro B USB input D+ connection to charger

D+ pin Installed Installed

JP10 PSEL pin input current selection. Connect this

to HIGH on PSEL enabled chargers to select

500mA default input current limit. Connect

this to LOW on PSEL enabled chargers to

select 2.4-A default input current limit

Not Installed Not Installed

JP11 REGN connection to TS network. Must be

connected for thermistor sensing to operate

correctly.

Installed Installed

JP12 ILIM resistor setting connection. Must be

connected for ‘Unknown Adapter’ input

current limiting to operate correctly.

Installed Installed

JP13 STAT pin LED indicator connection. This

indicates the current charger Status Installed Installed

JP14 /PG pin LED indicator connection. On /PG

enabled chargers, this indicates the Power

Good status

Installed Installed

JP15 ICHG, ILIM, AGND header connection point. Not Installed Not Installed

JP16 Thermistor NORMAL temperature setting.

Connect jumper to simulate charger entering

TNORMAL (T2-T3) temperature region.

Installed Installed

JP17 /CE pin connection to ground to enable

charging. When removed, /CE pin will pull up

to disable charge

Installed Installed

JP18 Thermistor HOT temperature setting. Connect

jumper to simulate charger entering THOT

(>T5) temperature region.

Not Installed Not Installed

JP19 D- to /PG rail connection Not Installed Not Installed

JP20 OTG pin connection to ground to disable OTG

boost mode. When removed, OTG boost

mode is enabled only in battery-only

operation

Installed Installed

JP21 VSET pin setting connection. Leave floating

to set VBATREG to 4.208V. Connect to 10-

kOhm to ground to set VBATREG to 4.100V.

Connect to ground directly to set VBATREG

to 4.352V

Not Installed Not Installed

S1 /QON pin pull-down. No function. Not Populated Not Populated

S2 STAT and /PG LED bypass switches 1-4: Open, 2-3: Open 1-4: Open, 2-3: Open

Table 4 lists the recommended operating conditions for this EVM.

Table 4. Recommended Operating Conditions

Symbol Description MIN TYP MAX Unit

VVBUS,VVAC Input voltage applied to VAC and VBUS pins 4.0 13.5 V

VBAT Battery voltage applied to BAT pin 4.35 V

IVBUS Input current into VBUS 3.2 A

ISW Output current (SW) 3.2 A

IBAT Fast charging current 3.0 A

RMS Discharging current through internal

BATFET 6.0 A

Load #1

Power Supply

#1 V

Test Summary

www.ti.com

4SLUUC73–March 2020

Submit Documentation Feedback

BQ25616, BQ25616J BMS026 Evaluation Module

2 Test Summary

2.1 Equipment

This section includes a list of supplies required for testing this EVM.

1. Power Supplies: Power supply #1 (PS1): A power supply capable of supplying 5 V at 3 A is required.

While this part can handle larger voltage and current, it is not necessary for this procedure.

2. Loads: Load #1 (4-Quadrant Supply, Constant Voltage < 4.5 V): A "Kepco" Load, BOP, 20-5M, DC 0

to ±20 V, 0 to ±5 A (or higher)

Alternative Option: A 0-20V/0-5A >30-W DC electronic load set in a constant voltage loading mode.

Load #2 (Electronic or Resistive Load): 10 Ω, 5 W (or higher)

3. Meters: (6x) "Fluke 75" multi-meters, (equivalent or better).

Alternative Option: (4x) equivalent voltage meters and (2x) equivalent current meters. The current

meters must be capable of measuring at least 5-A.

2.2 Equipment Setup

Use the following instructions to set up the equipment:

1. Review EVM connections in Table 2.

2. Set PS1 for 5-V DC, 3-A current limit and then turn off the supply.

3. Connect the output of PS1 in series with a current meter to J1 (VAC and GND).

4. Connect a voltage meter across TP7 (VBUS) and TP25 (PGND), or across J1.

5. Turn on Load #1, set to constant voltage mode, and output to 3.7-V. Disable Load. Connect Load in

series with a current meter (multimeter), ground side, to J5 (BATTERY and GND) as shown in

Figure 1.

6. Connect one voltage meter across TP15 (BAT) and TP24 (PGND), or across J4-2 and J4-1 as shown

in Figure 1.

7. Connect one voltage meter across TP14 (SYS) and TP24 (PGND), or across J2-1 and J2-2 as shown

in Figure 1.

8. Install shunts as shown in Table 3.

Figure 1. Original Test Setup for BMS026 EVM

www.ti.com

Test Summary

SLUUC73–March 2020

BQ25616, BQ25616J BMS026 Evaluation Module

2.3 Test Procedure

2.3.1 Initial Settings

1. Ensure Section 2.2 steps have been followed.

2. Adjust R22 potentiometer to increase input current limit to the maximum value. To do this, turn R22

clockwise until a click is heard.

3. Turn on PS1

• Measure →VSYS (SYS-TP14 and PGND-TP24) = 4.20V±0.3V

NOTE: Completely disconnect Load #1 from BAT pin if different voltage value is seen.

2.3.2 Charge Mode Verification

1. PS1 should be on from Section 2.3.1.

2. Enable Load #1.

3. Adjust R12 potentiometer to increase the charge current limit to 1A

• Measure →IBAT (current into Load #1) = 1.0A±25mA

• Record IBAT measurement

4. Change Load #1 to 2.5V

• Measure →VSYS (SYS-TP14 and PGND-TP24) = 3.65V±0.3V

• Measure →IBAT (current into Load #1) = 5% of previous IBAT result ≈50mA±15mA

2.3.3 Boost Mode Verification

1. Turn off and disconnect PS1.

2. Set Load #1 to 3.7V and 2A current limit.

NOTE: If Load #1 connected from BATTERY-J5(2) to PGND-J5(1) is not a four quadrant supply,

remove Load #1 and use PS1 (disconnected previously), set to 3.7V, 2A current limit and

connect across BATTERY-J5(2) to PGND-J5(1).

3. Remove shunt JP20 to enable boost mode.

4. Connect Load #2 across VAC-J1(2) and GND-J1(1).

• Measure →VBUS (VBUS-TP7 and PGND-TP25) = 5.0V±0.2V

5. Turn off and disconnect power supply.

6. Remove Load #2 from connection.

7. Reconnect shunt JP20.

2.3.4 Helpful Tips

• The leads and cables to the various power supplies, batteries and loads have resistance. The current

meters also have series resistance. The charger dynamically reduces charge current depending on the

voltage sensed at its VAC/VBUS pin (using the VINDPM feature), BAT pin (as part of normal

termination), and TS pin (through its battery temperature monitoring feature via battery thermistor).

Therefore, voltmeters must be used to measure the voltage as close to the IC pins as possible instead

of relying on the digital readouts of the power supply. If a battery thermistor is not available, make sure

shunt jp16 is in place.

• When using a source meter that can source and sink current as your battery simulator, TI highly

recommends adding a large (1000+ μF) capacitor at the EVM BATTERY and GND connectors in order

to prevent oscillations at the BAT pin due to mismatched impedances of the charger output and source

meter input within their respective regulation loop bandwidths.

Configuring the source meter for 4-wire sensing eliminates the need for a separate voltmeter to

Test Summary

www.ti.com

6SLUUC73–March 2020

Submit Documentation Feedback

BQ25616, BQ25616J BMS026 Evaluation Module

measure the voltage at the BAT pin. When using 4-wire sensing, always ensure that the sensing leads

are connected in order to prevent accidental overvoltage by the power leads

• For precise measurements of input and output currents, especially battery charging current regulation

near termination, the current meter in series with the battery or battery simulator should not be set to

auto-range and may need be removed entirely. An alternate method for measuring charge current is to

either use an oscilloscope with hall effect current probe or by a differential voltage measurement

across the relevant sensing resistors populated on the BMS026 EVM.

www.ti.com

PCB Layout Guideline

SLUUC73–March 2020

BQ25616, BQ25616J BMS026 Evaluation Module

3 PCB Layout Guideline

Minimize the switching node rise and fall times for minimum switching loss. Proper layout of the

components minimizing high-frequency current path loop is important to prevent electrical and magnetic

field radiation and high-frequency resonant problems. This PCB layout priority list must be followed in the

order presented for proper layout:

1. Place the input capacitor as close as possible to the PMID pin and PGND pin connections and use the

shortest copper trace connection or PGND plane.

2. Place the inductor input terminal as close to the SW pin as possible. Minimize the copper area of this

trace to lower electrical and magnetic field radiation but make the trace wide enough to carry the

charging current. Do not use multiple layers in parallel for this connection. Minimize parasitic

capacitance from this area to any other trace or plane.

3. Put an output capacitor near to the inductor and the IC. Tie ground connections to the IC ground with a

short copper trace connection or PGND plane.

4. Route and connect analog ground (AGND) separately from the power ground (PGND).Connect AGND

and PGND together using a power pad as the single ground connection point or use a 0-Ωresistor to

tie.

5. Use a single ground connection to tie PGND to the charger ANGD just beneath the IC. Use ground

copper pour but avoid power pins to reduce inductive and capacitive noise coupling.

6. Place decoupling capacitors next to the IC pins and make the trace connection as short as possible.

7. It is critical that the exposed power pad on the backside of the IC package be soldered to the PCB

ground. Ensure that there are sufficient thermal vias directly under the IC connecting to the ground

plane on the other layers.

8. The via size and number should be enough for a given current path.

See the EVM design for the recommended component placement with trace and via locations. For the

QFN information, see Quad Flatpack No-Lead Logic Packages and QFN/SON PCB Attachment.

Board Layout

www.ti.com

8SLUUC73–March 2020

Submit Documentation Feedback

BQ25616, BQ25616J BMS026 Evaluation Module

4 Board Layout

Figure 2 through Figure 9 show the EVM PCB layout images.

Figure 2. BMS026 EVM Top Overlay Figure 3. BMS026 EVM Top Solder Mask

www.ti.com

Board Layout

SLUUC73–March 2020

BQ25616, BQ25616J BMS026 Evaluation Module

Figure 4. BMS026 EVM Top Layer Figure 5. BMS026 EVM Signal Layer 1

Board Layout

www.ti.com

10 SLUUC73–March 2020

Submit Documentation Feedback

BQ25616, BQ25616J BMS026 Evaluation Module

Figure 6. BMS026 EVM Signal Layer 2 Figure 7. BMS026 EVM Bottom Layer

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments DS90UB95 Q1 Series Manuale utente

Texas Instruments

Texas Instruments DAC9881 Manuale utente

Texas Instruments

Texas Instruments TPD1E05U05-Q1 Manuale utente

Texas Instruments

Texas Instruments CC2530EMK Manuale utente

Texas Instruments

Texas Instruments TPS7A21EVM-059 Manuale utente

Texas Instruments

Texas Instruments ADS131B26Q1EVM-PDK Manuale utente

Texas Instruments

Texas Instruments UCC25660 Series Manuale utente

Texas Instruments

Texas Instruments ADS54J69EVM Manuale utente

Texas Instruments

Texas Instruments TAS3308EVM Manuale utente

Texas Instruments

Texas Instruments BQ27411EVM-G1C Manuale utente

Texas Instruments

Texas Instruments TPS65023EVM Manuale utente

Texas Instruments

Texas Instruments TPA3223EVM Manuale utente

Texas Instruments

Texas Instruments TPA3110D2 Manuale utente

Texas Instruments

Texas Instruments ADS131E08 Manuale utente

Texas Instruments

Texas Instruments DLP3021LEQ1EVM Manuale utente

Texas Instruments

Texas Instruments LAUNCHXL-CC1352P-2 Guida rapida

Texas Instruments

Texas Instruments TPS54614EVM 1.8-V SWIFT Manuale utente

Texas Instruments

Texas Instruments XTR108EVM-USB Manuale utente

Texas Instruments

Texas Instruments TAS5101SE Manuale utente

Texas Instruments

Texas Instruments LMH1297 Manuale utente

Texas Instruments

Texas Instruments TPS746EVM-009 Manuale utente

Texas Instruments

Texas Instruments DLP4710EVM-LC Manuale utente

Texas Instruments

Texas Instruments DRV2605 Manuale utente

Texas Instruments

Texas Instruments TPA3245 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
