User's Guide

SNVU491–October 2015

TPS61193EVM Evaluation Module

1 Preface

1.1 About this Manual

This user’s guide describes the module used to evaluate characteristics, operation, and use of the

TPS61193 low EMI, high-performance 3-channel LED driver for automotive lighting. This document

includes a schematic diagram, PCB layout, and bill of materials (BOM).

1.2 Related Documentation from Texas Instruments

TPS61193 (SNVSAF4) and TPS61193-Q1 (SNVSAC7) data sheets

1.3 FCC Warning

This equipment is intended for use in a laboratory test environment only. It generates, uses, and can

radiate radio frequency energy and has not been tested for compliance with the limits of computing

devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable

protection against radio frequency interference. Operation of this equipment in other environments may

cause interference with radio communications, in which case the user, at their own expense, will be

required to take whatever measures may be required to correct this interference.

1.4 If You Need Assistance

Contact your local TI sales representative.

2 Introduction

The Texas Instruments TPS61193EVM evaluation module (EVM) helps designers to evaluate the

operation and performance of the TPS61193 or TPS61193-Q1 device. The TPS61193EVM uses the

TPS61193 or TPS61193-Q1 to drive up to 3 LED strings for LCD backlighting with high efficiency.

Information about output voltage and current ratings of the TPS61193 or TPS61193-Q1 can also be found

in the device data sheet.

A power supply connection for the VIN and test points for each signal can be found on the evaluation

board. A separate LED board can be used as a load; it is also possible to connect an LCD panel to the

output connectors.

For evaluation purposes, the EVM has been tested over a 4.5-V to 40-V input range. This voltage range is

within the recommended operating range for input voltage of the TPS61193 or TPS61193-Q1. Users are

cautioned to evaluate their specific operating conditions and choose components with the appropriate

voltage ratings before designing this circuitry into a final product.

4TPS61193EVM Evaluation Module SNVU491–October 2015

Submit Documentation Feedback

www.ti.com

Description of the TPS61193 or TPS61193-Q1 Device

3 Description of the TPS61193 or TPS61193-Q1 Device

The TPS61193 or TPS61193-Q1 is an automotive high-efficiency LED driver with integrated boost/SEPIC

converter. It has three high-precision current sinks that can be controlled by a PWM input signal.

The boost converter has adaptive output voltage control based on the LED current sink headroom

voltages. This feature minimizes the power consumption by adjusting the voltage to lowest sufficient level

in all conditions. A boost controller supports spread spectrum for switching frequency and an external

synchronization with dedicated pin. The high switching frequency allows the TPS61193 or TPS61193-Q1

to avoid disturbance for AM radio band.

The input voltage range for TPS61193 or TPS61193-Q1 is from 4.5 V to 40 V to support automotive

stop/start and load dump condition. The TPS61193 or TPS61193-Q1 device supports PWM brightness

dimming ratio up to 10 000:1 for an input PWM frequency of 200 Hz. The device integrates extensive

safety and protection features.

3.1 Features

• Three High-Precision Current Sinks

– Current Matching 1% (typical)

– Output Current up to 100 mA/Channel

– Dimming Ratio 10 000:1 at 200-Hz PWM input

• Integrated Boost/SEPIC for LED String Power

– Output Voltage up to 45 V

– Switching Frequency 300 kHz to 2.2 MHz

– Boost Synchronization Input

– Spread Spectrum

• Input Voltage Operating Range 4.5 V to 40 V

• Power-Line FET Control for Inrush Current Protection and Standby Energy Saving

• Extensive Safety and Fault Tolerance Features

– Fault Output

– Input Voltage OVP and UVLO

– Open and Shorted LED Fault Detection

– Thermal Shutdown

• Minimum Number of External Components

3.2 Applications

Automotive Infotainment, Instrument Cluster and Backlighting Systems

SNVU491–October 2015 TPS61193EVM Evaluation Module

INPUT

VOLTAGE

OUTPUT

CONFIGURATION

LED

CONNECTOR

CONTROL

POINTS

FAULT LED

CONTROL POINTS

SHUNTS

CONTROL

POINTS

CONTROL

POINTS

Hardware Setup

www.ti.com

4 Hardware Setup

Figure 1 shows connectors and main components on the TPS61193 or TPS61193-Q1 board.

Figure 1. Evaluation Board Connectors and Setup

6TPS61193EVM Evaluation Module SNVU491–October 2015

Submit Documentation Feedback

www.ti.com

Board Layout

5 Board Layout

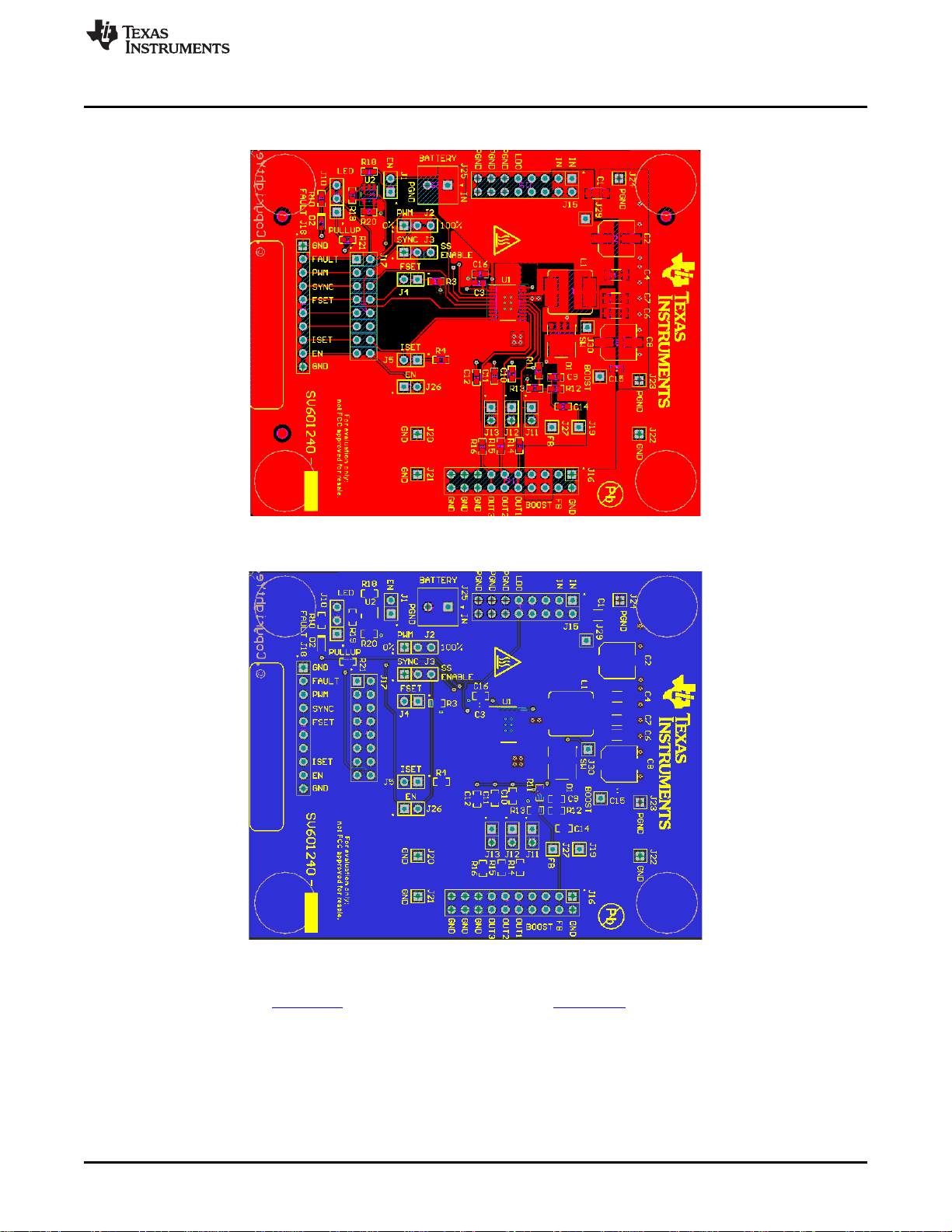

Figure 2. Top Layer

Figure 3. Bottom Layer (GND)

See the TPS61193 (SNVSAF4) or TPS61193-Q1 datasheet (SNVSAC7) for PCB layout guidelines.

SNVU491–October 2015 TPS61193EVM Evaluation Module

Prepreg

Core

Prepreg

Top Layer

Bottom Layer

PGND

GND

Start-Up of the EVM and Power Sequences

www.ti.com

Figure 4. Evaluation Board Stackup

• 4-layer board FR4

• Material thickness 1.616 ± 10% mm

• Surface finish immersion gold

6 Start-Up of the EVM and Power Sequences

The TPS61193 or TPS61193-Q1 EVM is set up for easy start-up:

• Connect LEDs to OUT1 - OUT3 of connector J16. (Note: LED current default is 100 mA and maximum

boost voltage default is 37 V. LED outputs that are not used must be grounded via jumpers J11 to

J14.)

• Connect input (BATTERY) voltage 12 V to connector J25.

The LEDs turn on immediately because the jumpers on the EVM are set up for PWM input of 100% duty

cycle. For connector and jumper positions, see Figure 1 and Figure 8.

Input (BATTERY) voltage range is 4.5 V to 40 V.

The TPS61193 or TPS61193-Q1 has a dual function VDDIO/EN pin. By default, VDDIO/EN = 3.3 V is

generated automatically on the EVM from battery input voltage via jumpers J1 and J26. VDDIO/EN acts

as enable for the device as well as supply/reference voltage for IO logic. Device starts when VIN voltage is

present and above the VIN UVLO voltage level (4 V), and the VDDIO/EN voltage is set above threshold

voltage (1.2 V).

By default, boost switching frequency is 400 kHz (jumper J4 connecting R3 = 160 kΩto FSET) and boost

maximum voltage is 37 V (R12 = 750 kΩand R13 = 130 kΩ). See Section 7.1 and Section 7.3 for

description on how to change boost settings.

By default, LED current is 100 mA per string (jumper J5 connecting R4= 24 kΩto ISET). See Section 8.2

for the description on how to change LED current setting.

Alternatively to internal LDO, device circuitry can be powered from external power supply (4.4 V to 5.25 V)

connected to the LDO pin. Internal LDO is disabled in this case.

6.1 PWM Input to Initiate Start-up Sequence

The backlight is started by setting PWM input high. By default, the TPS61193EVM has PWM input set

high (100% duty cycle), which is connected to VDDIO through jumper J2. Alternatively, an external PWM

signal can be connected by removing jumper J2 , shorting pins 3 and 4 on jumper J17, and connecting the

external PWM to connector J18.

6.2 Shutdown Sequence

The backlight is shut down (LEDs turned off) by setting PWM input low or when VDDIO/EN = 0. If

VDDIO/EN is set low, the TPS61193 or TPS61193-Q1 enters low-power mode with the internal LDO

disabled.

8TPS61193EVM Evaluation Module SNVU491–October 2015

Submit Documentation Feedback

200

400

600

800

1000

1200

1400

1600

1800

2000

2200

20 40 60 80 100 120 140 160 180 200 220

fSW (kHz)

RFSET (k)

C010

www.ti.com

Boost Converter

7 Boost Converter

7.1 Switching Frequency

Switching frequency for boost is defined as 300 kHz to 2.2 MHz. However, frequency from 250 kHz to 2.2

MHz can be set by the external resistor connected to the FSET pin, thus allowing the device to be

synchronized with the lowest external frequency of 300 kHz (see details in Section 7.2).

Switching frequency is defined by resistor R3 connected to FSET pin:

ƒSW = 67600/(RFSET + 6.4)

where

• ƒSW - switching frequency, kHz

• RFSET – frequency setting resistor, kΩ(1)

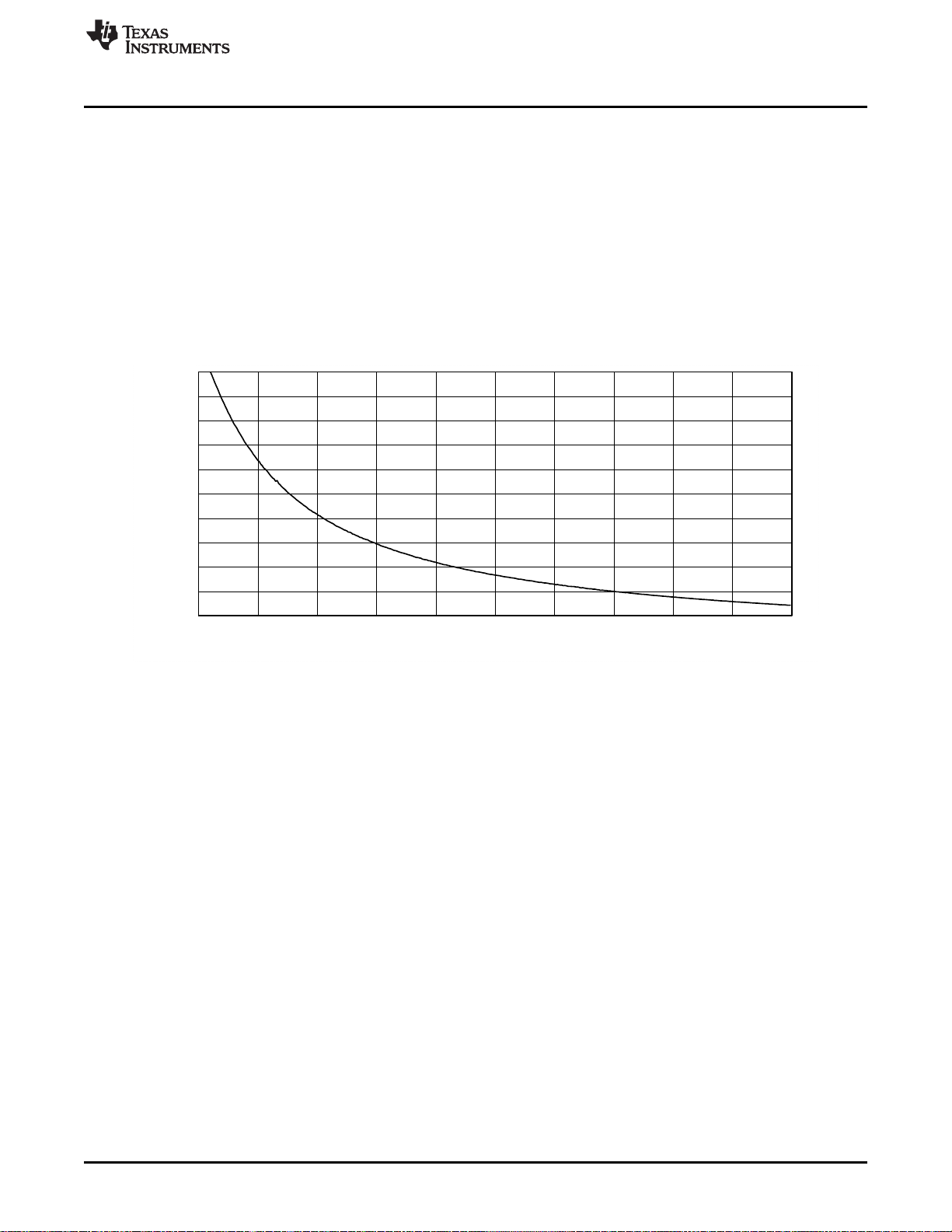

Figure 5. Switching Frequency vs RFSET

By default, jumper J4 is installed on the board connecting R3 = 160 kΩto the FSET pin which sets the

boost at 400 kHz. An external resistor can be connected to change the switching frequency: remove

jumper J4, short pins 7 and 8 on jumper J17, and connect the external resistor to connector J18. Boost

internal parameters are adjusted automatically according to chosen frequency during start-up.

7.2 Spread Spectrum and Synchronization

The SYNC pin is used to enable boost spread spectrum or, alternatively, to synchronize boost switching

with an external frequency. To disable spread spectrum functionality this pin must be connected to

ground; to enable spread spectrum SYNC must be connected to VDDIO/EN. Selection is done with

jumper J3. When spread spectrum is enabled, boost switching frequency is modulated ±3% from set

frequency with 1.875 kHz modulation frequency.

If an external frequency is detected at SYNC pin, the TPS61193 or TPS61193-Q1 starts to synchronize

boost with this frequency. Frequency should be higher than the switching frequency set by RFSET resistor

and be in range 1.2 V to 1.5 V × fSW SET.

SNVU491–October 2015 TPS61193EVM Evaluation Module

200 300 400 500 600 700 800 900 1000

Maximum converter output voltage (V)

R12 (k)

C011

VMAX BOOST = ( VBG

R13 + 0.0387 ) x R12 + VBG

Boost Converter

www.ti.com

7.3 Voltage Control

Maximum boost converter voltage is defined by the feedback voltage divider R12 and R13.

Recommended value for R13 is 130 kΩ. R12 value can be calculated with the following equation:

where

• VBG = 1.2 V

• R12, R13 values are in kΩ(2)

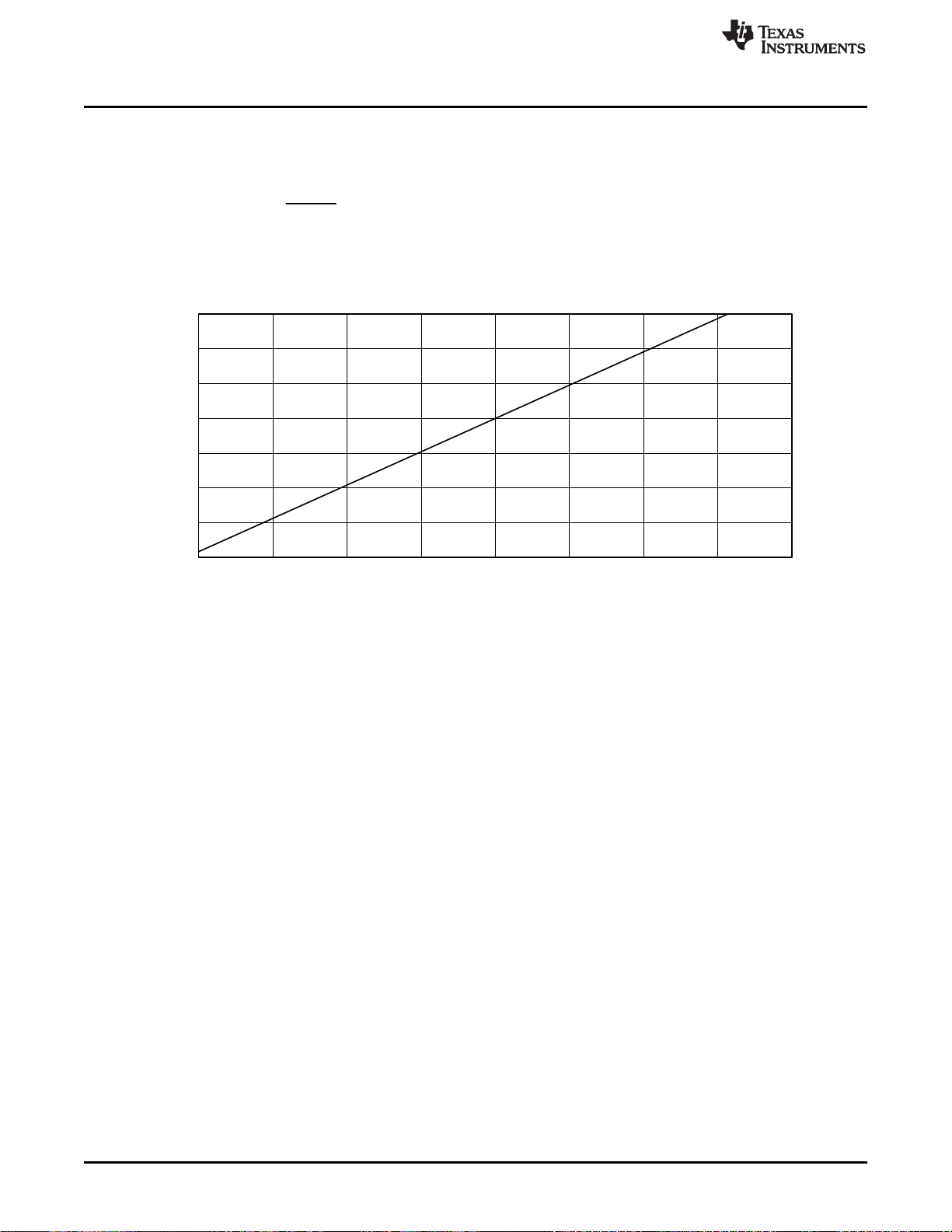

Figure 6. Converter Maximum Output Voltage vs R12

Maximum voltage should be chosen based on the maximum voltage required for LED strings.

Recommended maximum voltage is about 30% higher than maximum LED string voltage. Initial boost

voltage is about 88% of maximum voltage. Boost output voltage is adjusted automatically based on LED

current sink headroom voltage.

Default setting for boost maximum voltage is 37 V (R12 is 750 kΩ).

10 TPS61193EVM Evaluation Module SNVU491–October 2015

Submit Documentation Feedback

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments SoundPlus OPA1622EVM Manuale utente

Texas Instruments

Texas Instruments BOOST-DAC8730-HART Manuale utente

Texas Instruments

Texas Instruments PCM182 EVM Series Manuale utente

Texas Instruments

Texas Instruments AM62-SIP SK Series Manuale utente

Texas Instruments

Texas Instruments INA310EVM Manuale utente

Texas Instruments

Texas Instruments Hercules TMS570LS04x/03x Manuale utente

Texas Instruments

Texas Instruments DS90UB95x-Q1EVM Series Manuale utente

Texas Instruments

Texas Instruments TUSB3410UARTPDK Manuale utente

Texas Instruments

Texas Instruments ADS7066EVM-PDK Manuale utente

Texas Instruments

Texas Instruments bq24 9 Series Manuale utente

Texas Instruments

Texas Instruments LMX1204EVM Manuale utente

Texas Instruments

Texas Instruments DRV887 Series Manuale utente

Texas Instruments

Texas Instruments ADS86 EVM-PDK Series Manuale utente

Texas Instruments

Texas Instruments LMG34BB-EVM Series Manuale utente

Texas Instruments

Texas Instruments TPS7A91EVM-831 Manuale utente

Texas Instruments

Texas Instruments ADS540x Manuale utente

Texas Instruments

Texas Instruments LMR33630ARNXEVM Manuale utente

Texas Instruments

Texas Instruments AFE7222EVM Manuale utente

Texas Instruments

Texas Instruments INA4290EVM Manuale utente

Texas Instruments

Texas Instruments MCF8316A Manuale utente

Texas Instruments

Texas Instruments TPSF12C1EVM-FILTER Manuale utente

Texas Instruments

Texas Instruments LMG3411EVM-029 Manuale utente

Texas Instruments

Texas Instruments TPA3111D1EVM Manuale utente

Texas Instruments

Texas Instruments TPSF12C3QEVM Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
