Texas Instruments TPS68401EVM Manuale utente

User's Guide

SLVU812–November 2012

TPS68401EVM User’s Guide

The TPS68401EVM is an evaluation board to assist in evaluating the TPS68401 IC as a multifunction LED

driver.

The TPS68401 device is an advanced lighting management unit for handheld devices. It has three

independent channels optimized for driving RGB LEDs. The built-in fractional charge pump boosts the

input voltage to power the LEDs at low input voltage. Channel one can optionally be supplied directly from

the battery voltage to reduce power consumption and improve efficiency.

At the heart of the device is a programmable state machine which executes a lighting program consisting

of up to 16 instructions per channel. Once the program is loaded through the I2C™ interface the device is

fully independent from the main processor resulting in significant system-level power savings. The device

can issue an interrupt to the main processor via the INT pin. The TRIG I/O allows synchronization

between multiple devices. A general-purpose output pin is provided which is addressable through the

serial interface. In addition, the INT pin can also be configured as general-purpose output.

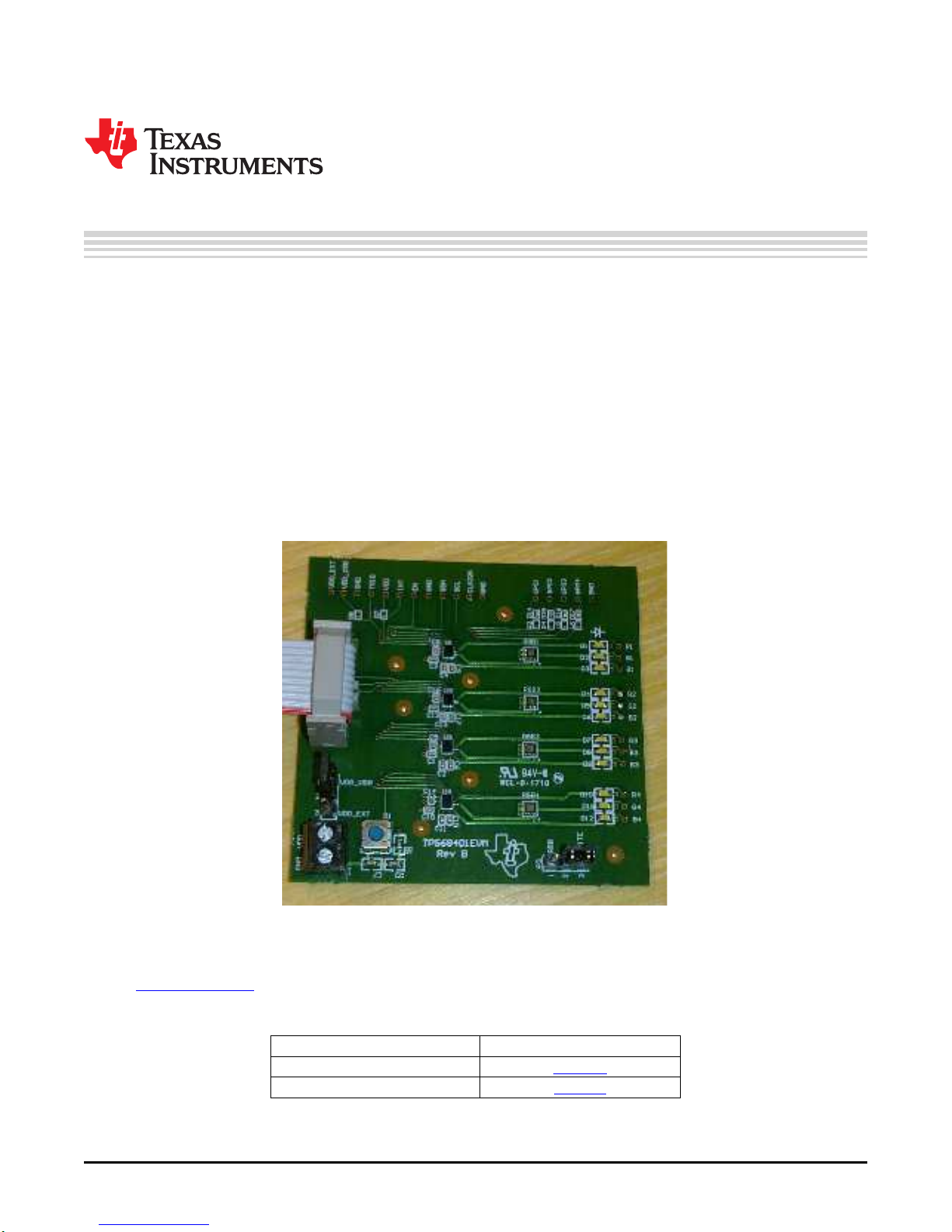

Figure 1. TPS68401EVM

The following related documents are available for download through the Texas Instruments web site

(http://www.ti.com) or via the links below.

Table 1. EVM Related Data Sheets

DEVICE LITERATURE NUMBER

TPS68401 SLVSA68

USB-TO-GPIO SLLU093

SLVU812–November 2012 TPS68401EVM User’s Guide

www.ti.com

Contents

1 INTRODUCTION ............................................................................................................ 3

1.1 Description .......................................................................................................... 3

1.2 Applications ......................................................................................................... 3

1.3 Features ............................................................................................................. 3

2 SYSTEM OVERVIEW ...................................................................................................... 4

3 BOARD LAYOUT ........................................................................................................... 5

4 HARDWARE OVERVIEW ................................................................................................. 9

4.1 Connectors .......................................................................................................... 9

4.2 Jumpers ............................................................................................................ 10

4.3 Test points ......................................................................................................... 10

4.4 EVM Operation ................................................................................................... 10

5 SOFTWARE ................................................................................................................ 11

5.1 Software Installation Instructions ............................................................................... 11

6 SCHEMATIC AND BILL OF MATERIALS .............................................................................. 13

List of Figures

1 TPS68401EVM.............................................................................................................. 1

2 System Block Diagram..................................................................................................... 4

3 USB-to-GPIO Adapter...................................................................................................... 4

4 TPS68401EVM Board Layer 1 (SIGNAL) ............................................................................... 5

5 TPS68401EVM Board Layer 2 (GND) ................................................................................... 6

6 TPS68401EVM Board Layer 3 (POWER) ............................................................................... 7

7 TPS68401EVM Board Layer 4 (SIGNAL) ............................................................................... 8

8 Ribbon Cable Connection................................................................................................ 10

9 setup.exe. File Location .................................................................................................. 11

10 TPS68401EVM GUI Main ................................................................................................ 12

11 TPS68401EVM GUI Basic ............................................................................................... 13

2TPS68401EVM User’s Guide SLVU812–November 2012

Submit Documentation Feedback

www.ti.com

INTRODUCTION

1 INTRODUCTION

1.1 Description

The Texas Instruments TPS68401 evaluation module (EVM) helps designers to evaluate TPS68401

advanced lighting management unit for handheld devices. These devices have three independent

channels optimized for driving RGB LEDs. The built-in fractional charge pump boosts the input voltage to

power the LEDs at low input voltage. Channel one can optionally be supplied directly from the battery

voltage to reduce power consumption and improve efficiency.

At the heart of the device is a programmable state machine which executes a lighting program consisting

of up to 16 instructions per channel. Once the program is loaded through the I2C interface the device is

fully independent from the main processor resulting in significant system-level power savings. The device

can issue an interrupt to the main processor via the INT pin.

The TRIG I/O allows synchronization between multiple devices. A general-purpose output pin is provided

which is addressable through the serial interface. In addition, the INT pin can also be configured as

general-purpose output.

The EVM contains four independent TPS68401 devices that can be programmed and controlled trough a

GUI.

1.2 Applications

• LED control for portable applications

• Accent lighting (mood, personalization, etc.)

• Function indication (charge, messages, etc.)

• Keypad illumination/backlight (white or RGB)

• Display backlight

1.3 Features

• Multifunction LED driver with three independent channels

• Integrated high efficiency 1x/1.5x charge pump with automatic or manual gain change

• 3 x 25.5-mA total output current

• Three independent program execution engines (3 x 16 instructions)

• 8-bit PWM with exponential control option

• 8-bit current DAC control

• 200-nA typical shutdown current

• Automatic power-save mode

• Autonomous operation without external control

• Trigger I/O for synchronizing multiple devices

• One or two general purpose output controlled via serial interface

• I2C interface

• Operating Temperature Range: -30ºC to 85ºC

• 20-ball WLCSP package with 0.4-mm pitch

SLVU812–November 2012 TPS68401EVM User’s Guide

Host (PC)

USB-to-I C

Adapter

TPS68401

EVM

SYSTEM OVERVIEW

www.ti.com

2 SYSTEM OVERVIEW

The system block diagram is shown below.

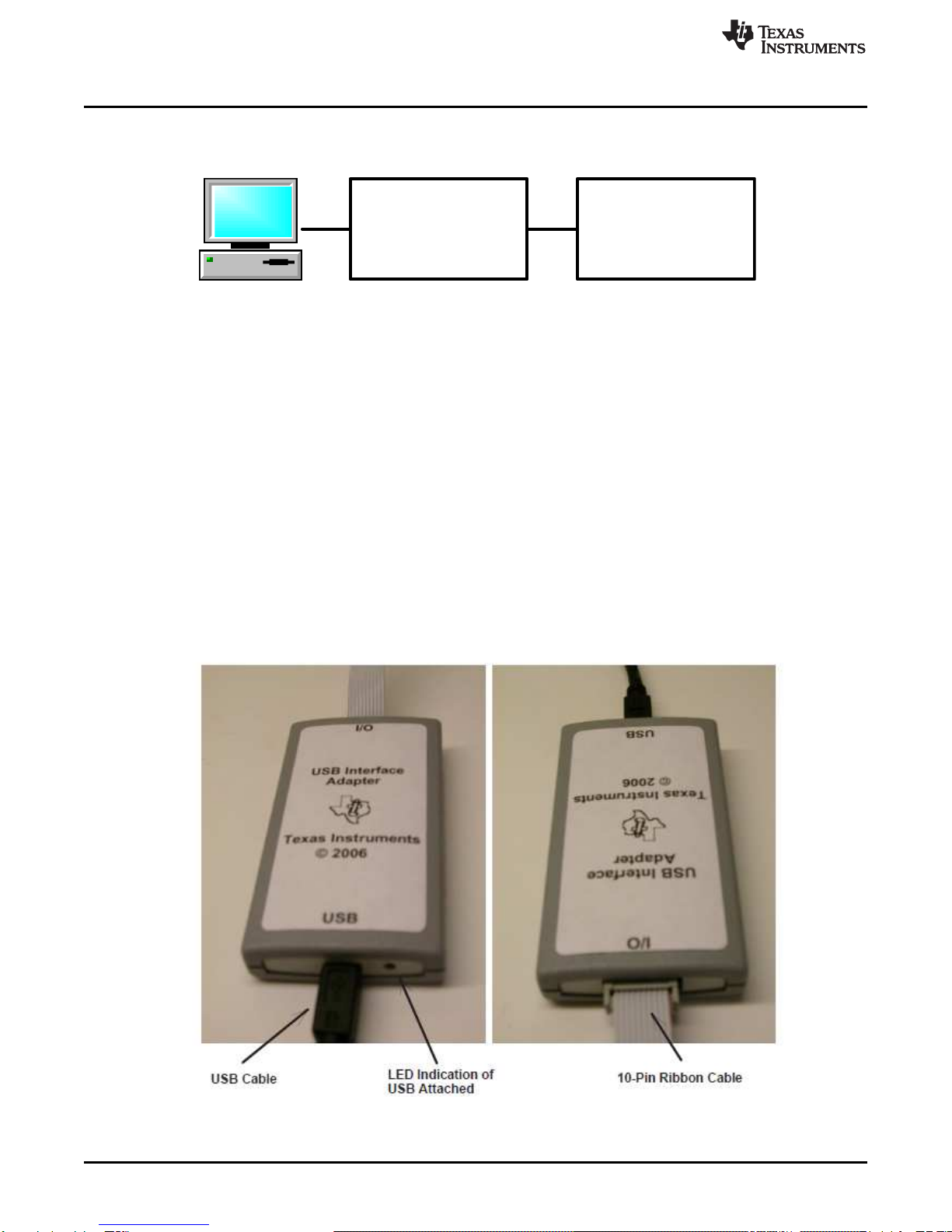

Figure 2. System Block Diagram

The system consists of the following components:

Host (PC)—A Windows®personal computer (PC) – used to configure and monitor the TPS68401EVM.

The GUI operates on the host. For the GUI to execute properly, the host needs to have the correct

LabViewTM RunTimeTM version. If the host doesn’t have the correct RunTimeTM version it will be

prompted during GUI installation. More information in GUI installation section.

USB-to-I2C Adapter—TPS68401EVM uses the I2C interface for communication with the host. The TI-

supplied USB-to-I2C adapter does the appropriate conversion so the host can use the USB

interface for communication. USB-to-I2C adapter has a 3.3-V supply rail which is used to supply the

EVM so no external power supply is needed.

TPS68401EVM— EVM board that houses the TPS68401 and peripheral components.

The evaluation module is designed to provide access to the features of the TPS65281. Some

modifications can be made to this module to test performance at different input and output voltages,

current and switching frequency. Please contact TI Field Applications Group for advice on these matters.

Figure 3. USB-to-GPIO Adapter

4TPS68401EVM User’s Guide SLVU812–November 2012

Submit Documentation Feedback

www.ti.com

BOARD LAYOUT

3 BOARD LAYOUT

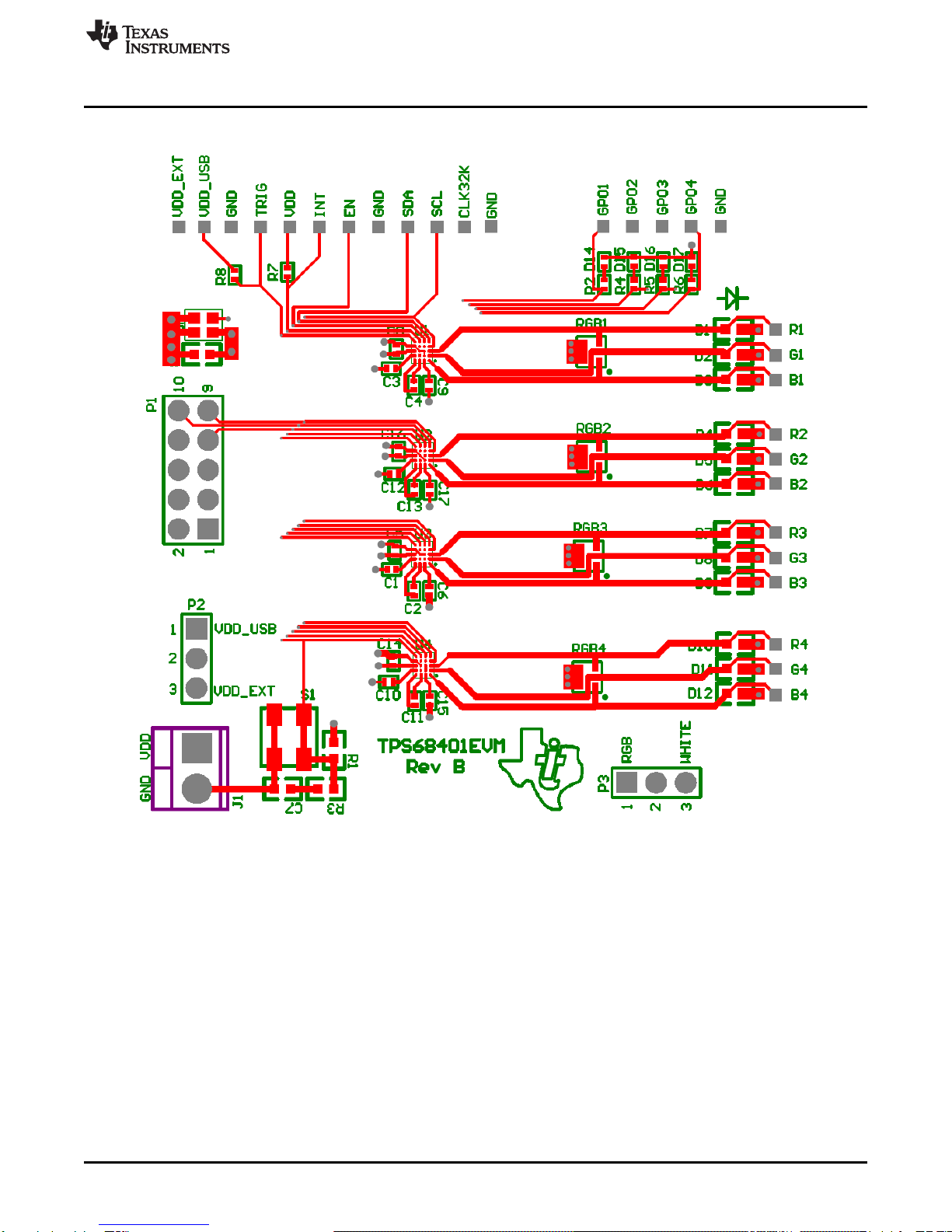

Figure 4. TPS68401EVM Board Layer 1 (SIGNAL)

SLVU812–November 2012 TPS68401EVM User’s Guide

BOARD LAYOUT

www.ti.com

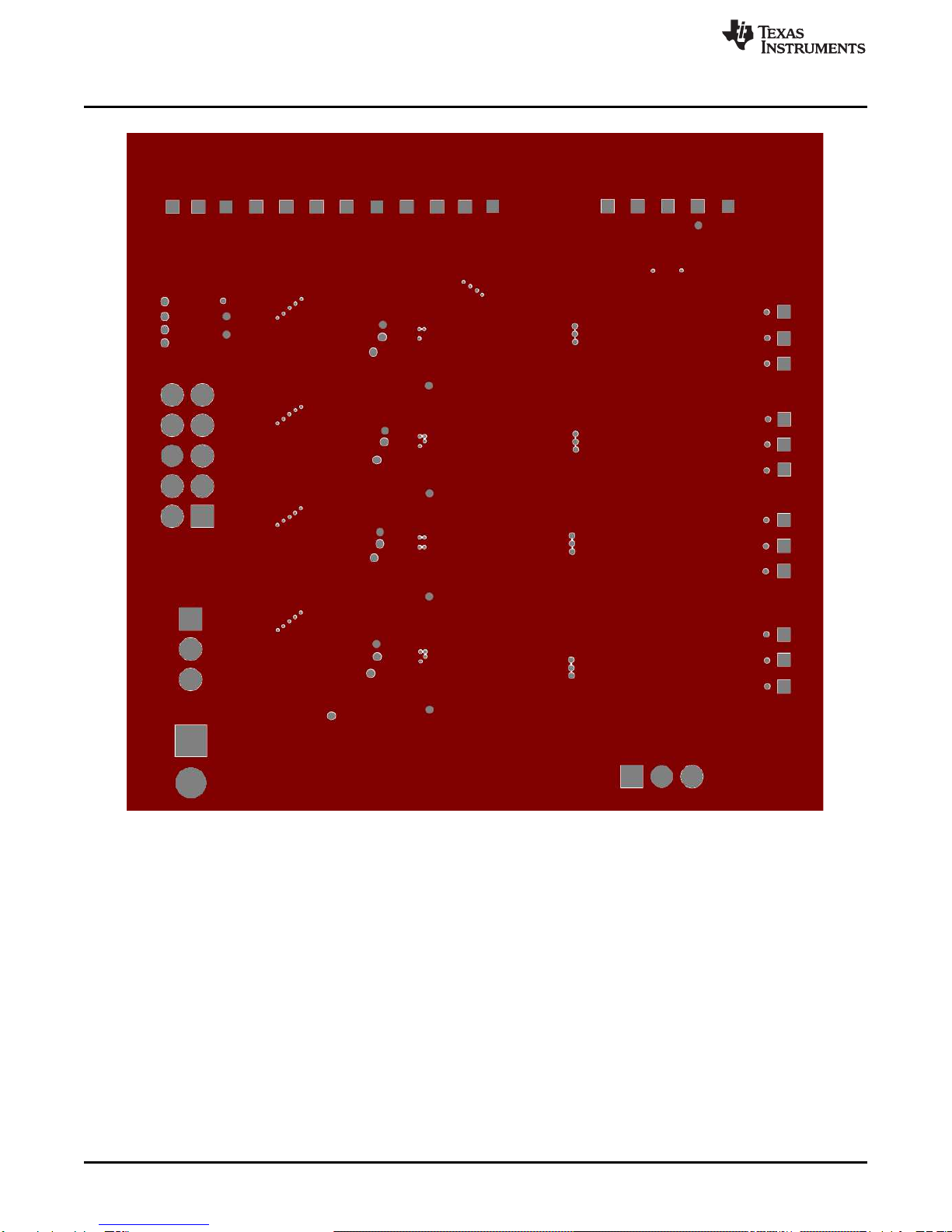

Figure 5. TPS68401EVM Board Layer 2 (GND)

6TPS68401EVM User’s Guide SLVU812–November 2012

Submit Documentation Feedback

www.ti.com

BOARD LAYOUT

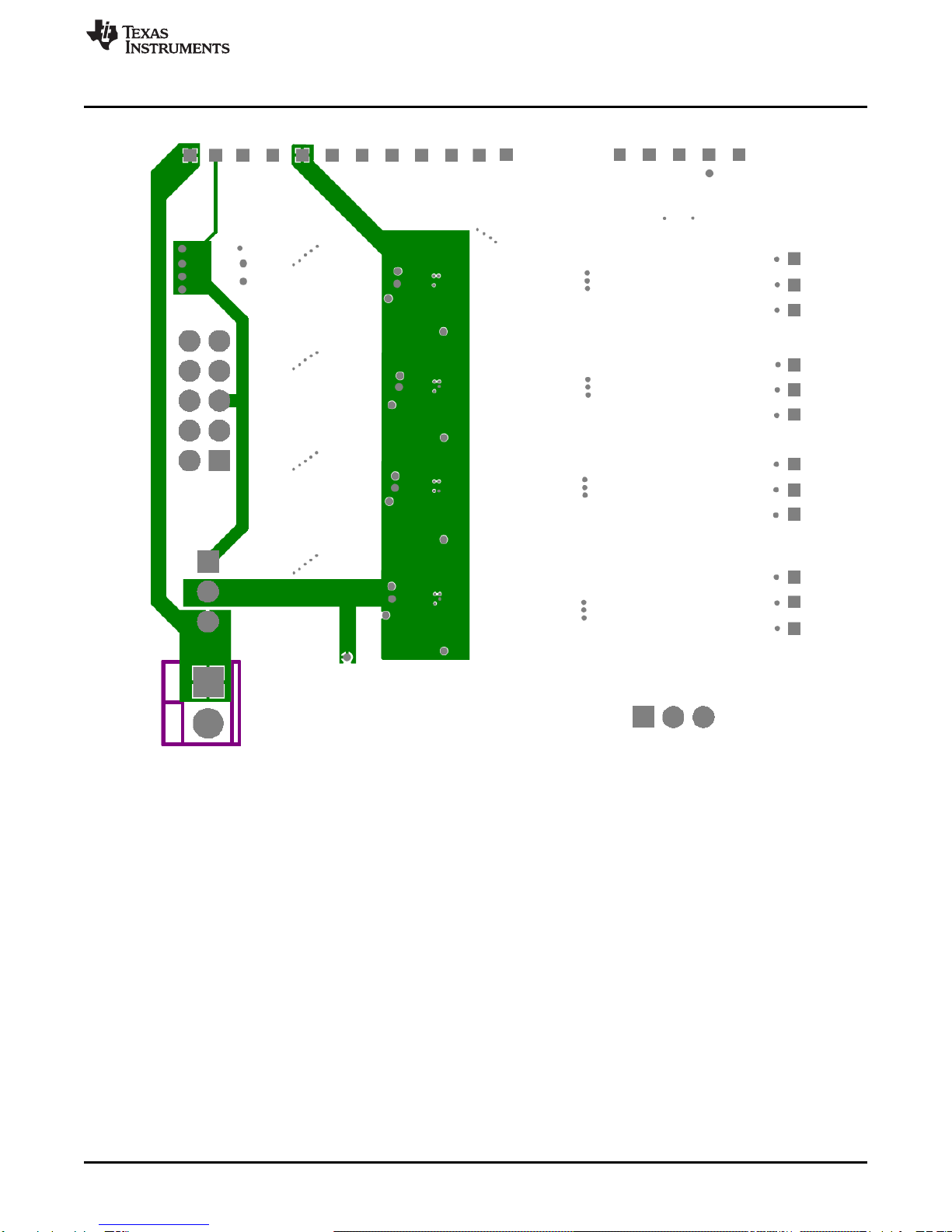

Figure 6. TPS68401EVM Board Layer 3 (POWER)

SLVU812–November 2012 TPS68401EVM User’s Guide

BOARD LAYOUT

www.ti.com

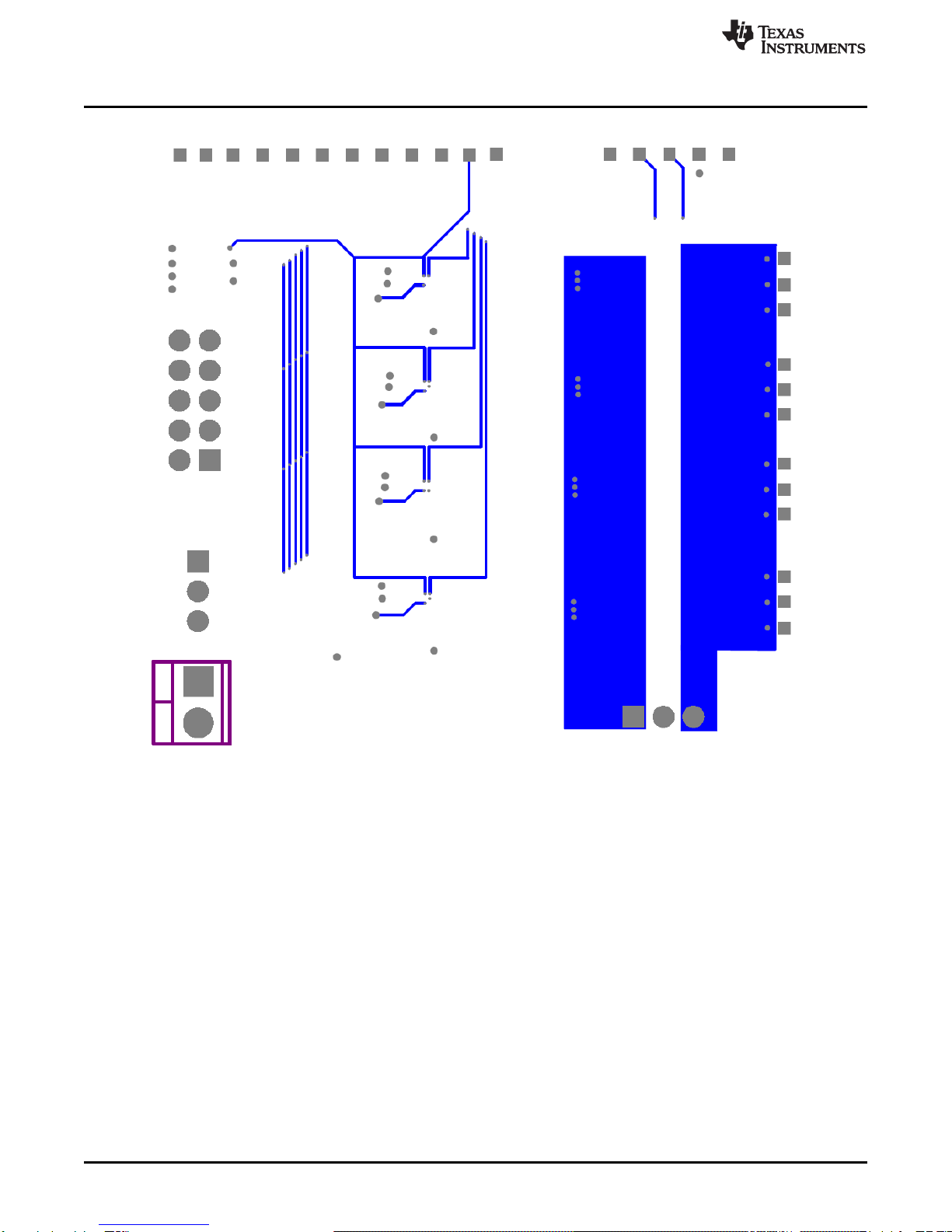

Figure 7. TPS68401EVM Board Layer 4 (SIGNAL)

8TPS68401EVM User’s Guide SLVU812–November 2012

Submit Documentation Feedback

www.ti.com

HARDWARE OVERVIEW

4 HARDWARE OVERVIEW

The TPS68401EVM allows evaluation of the TPS68401 Advanced Lighting Management Unit for handheld

devices. TPS68401 has three independent channels optimized for driving RGB LEDs. The built-in

fractional charge pump boosts the input voltage to power the LEDs at low input voltage. At the heart of the

device is a programmable state machine which executes a lighting program consisting of up to 16

instructions per channel. Once the program is loaded through the I2C interface the device is fully

independent from the main processor resulting in significant system-level power savings. The TRIG I/O

allows synchronization between multiple devices.

The TPS68401EVM can be configured and monitored through a Windows GUI application running on a

PC. The GUI communicates with the TPS68401EVM through the USB Interface Adapter (included with

EVM kit), which acts as an I2C master for the board. TPS68401EVM has four TPS68401 devices and

those can be separately programmed through the GUI.

The TPS68401EVM provides the following functionality:

• Programming of the four different TPS68401 devices (all four devices have different I2C addresses

which can be selected from the GUI).

• Driving either RGB or white LED’s (see jumper setting).

• 32-kHz oscillator on board is used as an external clock the TPS68401 devices on board.

• Trigger button to enable synchronous program execution between several devices.

• Indicator LEDs for all four general purpose outputs (GPOs).

• Standard 400-kHz I2C communication via I2C connector to USB adapter for connection to a PC.

• Board can be supplied through the 3.3 V from the USB adapter or from an external power source (see

jumper setting).

4.1 Connectors

The TPS68401EVM has connectors for power and I2C communications. J1 provides a possibility to power

EVM from an external power supply (between 2.7 V and 5.5 V). USB adapter Interface Adapter has 3.3-V

power output that can be used to power the board so there is no need for external power source.

P1 header provides the I2C communication interface to the TPS68401EVM. The USB Interface Adapter

includes a ribbon cable that can be connected to P1. The adapter is connected to a Windows-based PC.

CAUTION

When using an external power supply for the TPS68401EVM, the

recommended supply range for TPS68401 is from 2.7 V to 5.5 V.

SLVU812–November 2012 TPS68401EVM User’s Guide

HARDWARE OVERVIEW

www.ti.com

Connecting the ribbon cable to TPS68401EVM pin one is marked on the EVM and with the red stripe in the ribbon

cable.

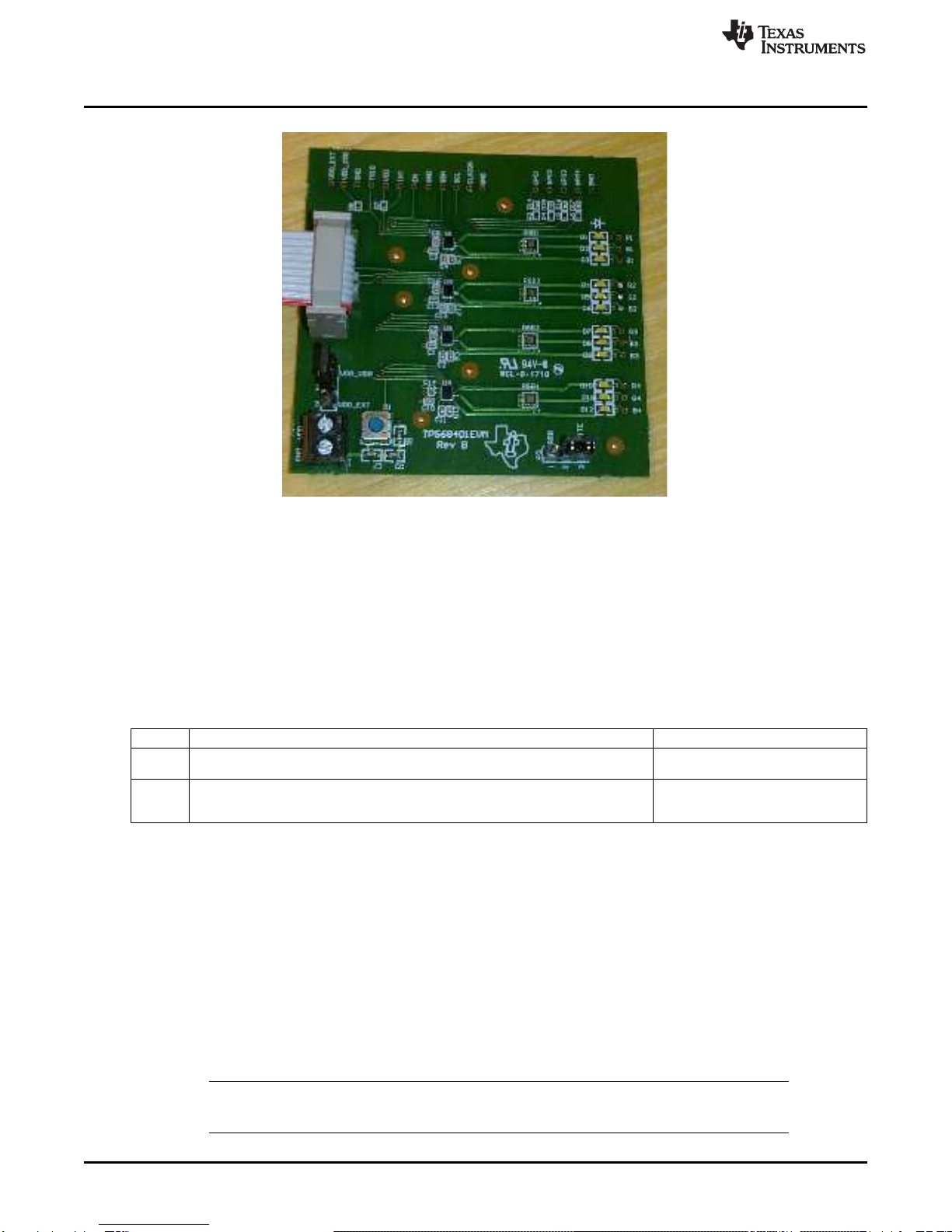

Figure 8. Ribbon Cable Connection

4.2 Jumpers

The TPS68401EVM operation can be configured using jumpers:

• Board power from external supply or USB Interface Adapter

• Driving RGB or white LEDs

Table 2. TPS68401EVM Jumpers

NO. FUNCTION DEFAULT SETTING

Board power supply selection. Connect to pins 1-2 when using 3.3 V from the USB Interface Pins 1-2 (Power from USB Interface

P2 Adapter and pins 2-3 if external power supply is used. Adapter)

RGB or white LEDs are connected. Connect to pins 1-2 if RGB LEDs are used and 2-3 when

P3 using white LEDs. If using U4 to generate PWM signals for other devices through P5 Pins 1-2 (RGB LEDs connected)

connector pin 2-3 need to be connected.

4.3 Test points

The TPS68401EVM provides test points that can be used for evaluation. Important voltages can be

monitored with a meter through the use of the test points.

4.4 EVM Operation

The TPS68401EVM operates from either USB Interface Adapter (through P1) or External Power Supply

(through J1). Jumper P2 can be used to select the power source.

1. Connect the USB Interface Adapter to the TPS68401EVM P1 connector using the ribbon cable

provided.

2. Plug the appropriate end of the USB cable into the adapter and the other end into your PC.

NOTE: If using an external power supply connect jumper’s pins 2-3 and use J1 to connect the power

supply.

10 TPS68401EVM User’s Guide SLVU812–November 2012

Submit Documentation Feedback

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments BQ20Z40EVM-001 Manuale utente

Texas Instruments

Texas Instruments TAS5514BQ1DKDEVM Manuale utente

Texas Instruments

Texas Instruments DS90UB95 Q1 Series Manuale utente

Texas Instruments

Texas Instruments BQ24450EVM Manuale utente

Texas Instruments

Texas Instruments ADS126 EVM-PDK Series Manuale utente

Texas Instruments

Texas Instruments BOOST-DAC8730-HART Manuale utente

Texas Instruments

Texas Instruments TPA0162 Manuale utente

Texas Instruments

Texas Instruments INA290EVM Manuale utente

Texas Instruments

Texas Instruments DAC3482 Manuale utente

Texas Instruments

Texas Instruments BQ79616EVM Manuale utente

Texas Instruments

Texas Instruments TLV3811EVM Manuale utente

Texas Instruments

Texas Instruments LMK61E2EVM Manuale utente

Texas Instruments

Texas Instruments bq25040 Manuale utente

Texas Instruments

Texas Instruments PCM4202EVM Manuale utente

Texas Instruments

Texas Instruments DS90UB95 Q1EVM Series Manuale utente

Texas Instruments

Texas Instruments TMS320DM6437 Manuale utente

Texas Instruments

Texas Instruments TPS566235EVM-036 Manuale utente

Texas Instruments

Texas Instruments TLV841EVM Manuale utente

Texas Instruments

Texas Instruments TUSB7340 Manuale utente

Texas Instruments

Texas Instruments LMQ61460EVM-400K Manuale utente

Texas Instruments

Texas Instruments DAC5687 EVM Manuale utente

Texas Instruments

Texas Instruments DM816 Series Manuale utente

Texas Instruments

Texas Instruments LM74704Q1EVM Manuale utente

Texas Instruments

Texas Instruments ADS58J64 EVM Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
