THORLABS PM30-120 Manuale utente

Operation Manual

Thorlabs Instrumentation

Optical Power Meter System

PM30-120, PM30-121, PM30-122

PM30-130, PM30-132

PM30-140, PM30-144

2006

Version: 1.22 M0009-510-404

Date: 12.05.2006

Contents Page

1Safety 1

2Description 3

2.1 Parts List – Accessories 3

2.2 Operating Elements 5

2.2.1 Front Panel 5

2.2.2 Top Panel 6

2.2.3 Bottom Panel 7

2.2.4 Rear Panel 7

2.2.5 Meter Stand 7

2.3 Operating Instruction 8

2.3.1 Battery Charging 8

2.3.2 Connecting the Optical Sensor 8

2.3.3 Switching on and off the PM30 8

2.3.4 Setting the Operating Wavelength 9

2.3.5 Measuring the Optical Power 9

2.3.6 Relative Measurement 10

2.3.7 System Menu 10

2.3.8 Photodiode adapter 10

2.4 Remote Control 11

2.5 Technical Data 19

2.5.1 PM30 Display Unit 19

2.5.2 S120B / S121B Silicon Sensor (PM30-120 / PM30-121) 20

2.5.3 S122B Germanium Sensor (PM30-122) 21

2.5.4 S130A / S132B Slim Sensor (PM30-130 / PM30-132) 22

2.5.5 S140A / S144A Integrating Sphere Sensor (PM30-140 / PM30-144) 23

3Calibration and Warranty 24

3.1 Calibration 24

3.2 Warranty 24

4Service and maintenance 26

4.1 General Care 26

4.2 Cleaning 27

4.3 Line Voltage 27

4.4 Repair 27

4.5 Certifications and Compliances 28

4.6 Thorlabs “End of Life” policy (WEEE) 29

4.6.1 Waste treatment on your own responsibility 29

4.6.2 Ecological background 30

4.7 Addresses 31

We aim to develop and produce the best solution for your application in the

field of optical measurement technique. To help us to come up to your

expectations and develop our products permanently we need your ideas and

suggestions. Therefore, please let us know about possible criticism or ideas.

We and our international partners are looking forward to hearing from you.

Thorlabs

Attention

This manual contains “WARNINGS” and “ATTENTION” label in this

form, to indicate danger for persons or possible damage of equip-

ment.

Please read these advises carefully!

NOTE

This manual also contains “NOTES” and “HINTS” written in this form.

2.1 Parts List – Accessories

PM30 / page 1

1 Safety

Attention 

All statements regarding safety of operation and technical data in

this instruction manual will only apply when the unit is operated

correctly.

Use only the power cord specified for the unit.

Do not operate the power meter if its panels are removed or any of

the interior circuitry is exposed

Do not operate the power meter in wet or damp conditions, or in an

explosive atmosphere.

Operate the power meter only within the specified voltage range

Do not apply voltage outside the specified range of the input connec-

tions

Do not operate the power meter if there are suspected failures. Refer

damaged units to qualified Thorlabs service personnel

2.1 Parts List – Accessories

PM30 / page 2

Attention 

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commer-

cial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

Standard shielding and filtering measures have to be undertaken to

avoid interferences with other electronic equipment!

NOTE

Please check prior to operation, if the line voltage range, indicated on the

power supply agrees with your local supply

2.1 Parts List – Accessories

PM30 / page 3

2 Description

The Thorlabs PM30 Power Meter system is an easy to use, flexible optical power

measurement system with optical sensor. Its mechanical analog needle display

features best readability and real time response for fast laser tuning. The additional

digital display allows accurate power readings and a convenient system setup.

The Thorlabs’ optical power meter sensors feature NIST traceable wavelength

calibration over the specified wavelength range. Please refer to www.thorlabs.com

for new sensors that will enhance the PM30 system.

The console is powered by a 6V, 150mAh nickel-metal-hybrid (NiMH) battery for long

life operation and fast recharging times. The included external power supply is

provided to recharge the battery pack as well as to operate the unit.

2.1 Parts List – Accessories

The power meter system consists of the following items:

•PM30 power meter console

•Operation manual

•PMPS12 Power supply (12V, 0.85A), 90 .. 264V line voltage,

line adaptors for US, EU, UK.

Depending on the order code the power meter system comes with one of the sensors

given below:

PM30-120: S120B – Silicon Sensor Power Head; 50nW – 50mW

400 – 1100nm

PM30-121: S121B – Silicon Sensor Power Head; 500nW – 500mW;

400 – 1100nm

PM30-122: S122B – Germanium Sensor Power Head; 35nW – 35mW;

700 – 1800nm

PM30-130: S130A – Slim, dual range Silicon Sensor Power Head;

5nW – 500mW; 400 – 1100nm

2.1 Parts List – Accessories

PM30 / page 4

PM30-132: S130A – Slim, dual range Germanium Sensor Power Head;

5nW – 500mW; 400 – 1100nm

PM30-140: S140A – Integrating Sphere Silicon Sensor Power Head;

1µW – 1W; 400 – 1100nm

PM30-144: S144A – Integrating Sphere InGaAs Sensor Power Head;

1µW – 1W; 800 – 1700nm

When unpacking the PM30 system the first time, please check if all items are present

and in good condition. If any items are missing or damaged please advise Thorlabs

immediately for issuing a Returned Material Authorization (RMA) for this instrument.

2.2 Operating Elements

PM30 / page 5

2.2 Operating Elements

2.2.1 Front Panel

Figure 1 PM30 Front Panel

Analog Meter Shows the measured power level on the scale that

corresponds to the selected power range. An up showing

arrow in the digital display indicates that the 10-division

scale is used, a down-showing arrow indicates the 3-

division scale.

LC Display The 12 digit LCD allows precise power measurements

along with additional system information and input capabili-

ties. The LCD can be backlit in two brightness settings in

the system menu.

Analog Meter

Control Switch

Main Switch

LC Display

The Arrow

indicates that the

3-division scale is

used

2.2 Operating Elements

PM30 / page 6

Main Switch The main switch powers on and off the unit and selects the

power measurement, wavelength setting, zeroing and sys-

tem menus.

Control Switch The control switch is used to set power range, correction

wavelength as well as controlling and viewing system set-

tings. The switch has turning and push button functionality.

2.2.2 Top Panel

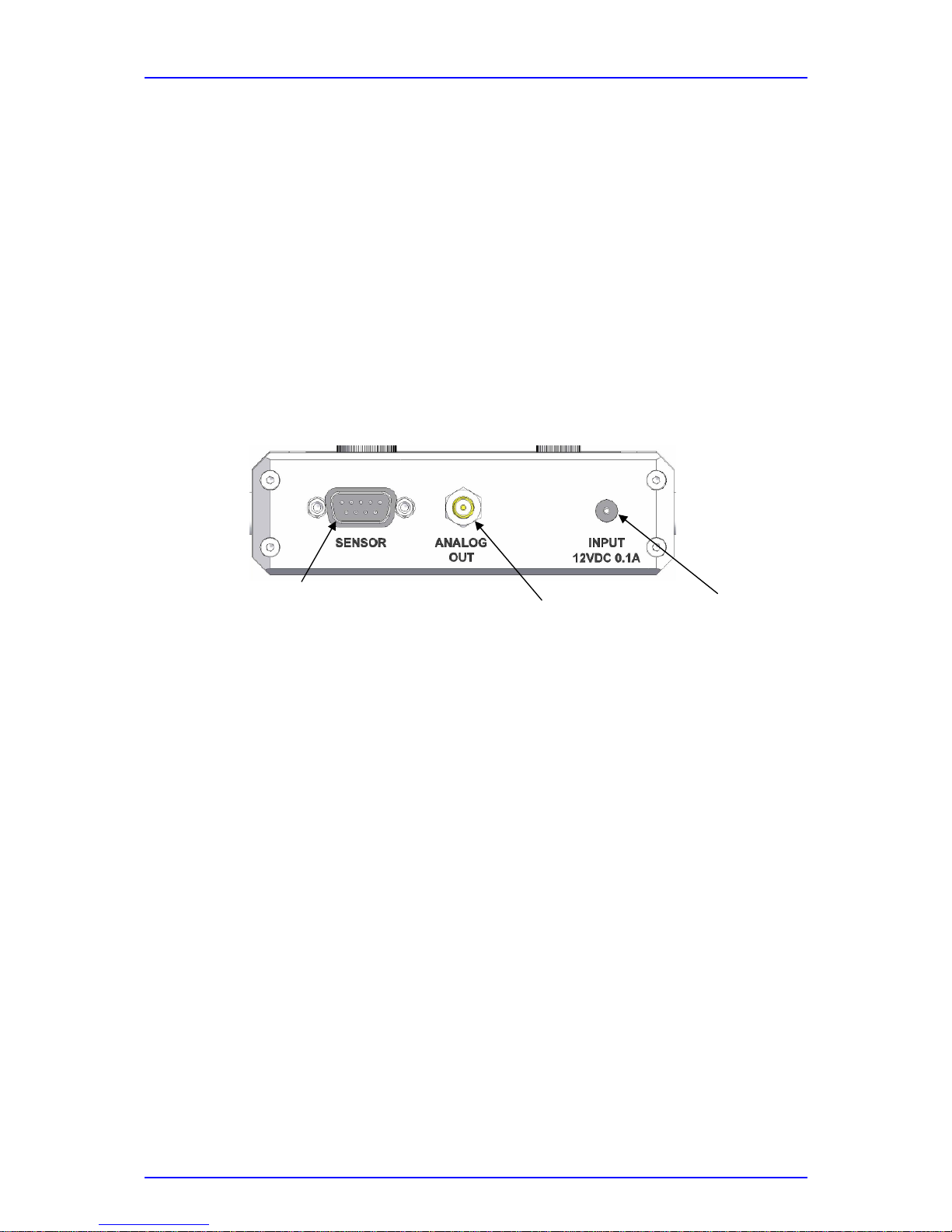

Figure 2 PM30 Top Panel

DB9 Sensor Jack All Thorlabs S1xxX series optical detectors and the PM30

photodiode adapter can be plugged to this connector.

Analog Output The SMA connector outputs a voltage from 0.0 to 1.0V

corresponding to the selected power range.

Charger Input To charge the battery plug-in the 12VDC power supply that

ships with the instrument. The batteries will recharge within

2.5 hours.

DB9 Sensor Jack SMA Analog

Output Jack

Charger

Input Jack
