•Auto power ON/OFF
•Pen light for illuminating measurement points
•Probe clip for adjustable spacing between probes
•Probe cover protects user and probe tips
•IP 64
•Compact design, light weight and portable
•H07RNF compliant cable in accordance with European standards
2. Safety warning
This instruction manual contains warnings and safety rules which must be observed by the user to ensure
safe operation of the instrument and to maintain it in a safe condition. Therefore, please read through these
operating instructions before using the instrument.
WARNING is reserved for conditions and actions that are likely to cause serious or fatal injury.
CAUTION is reserved for conditions and actions that can cause injury or instrument damage.
It is essential that this set of instructions is adhered to.
Failure to follow these instructions may cause serious injury, death, instrument damage and/or damage to
equipment under testing.
WARNING
■Never take measurements on a circuit in which the electrical potential exceeds 690V. (If the measured voltage
exceeds 690V, all the voltage display LEDs light up).
■After measuring AC/DC voltage for 3 minutes, the tester must not be used for 1 minute immediately afterwards.
■Do not attempt to take measurements in the presence of flammable gases, as the use of the instrument may
cause sparking, which could lead to an explosion.
■Never attempt to use the instrument if its surface or your hands are wet. (Do not use when it is raining).
■Keep your hands and fingers behind the barriers during measurements.
■Never unlock and open the battery case during measurements.
■Always verify proper operation on a known source before taking action as a result of the indication. The unit must
be proved before and after operation in accordance with safe isolation procedures.
■Never attempt to make any measurement in any abnormal conditions, such as a broken case or exposed metal
parts are present on the instrument or test probes.
■Do not make any modification to the instrument.
■Extreme caution and danger when live circuit LED flashes or lights up.
■Correct indication of LEDs is only guaranteed within a temperature range of-10°C up to 55°C (<85% RH)

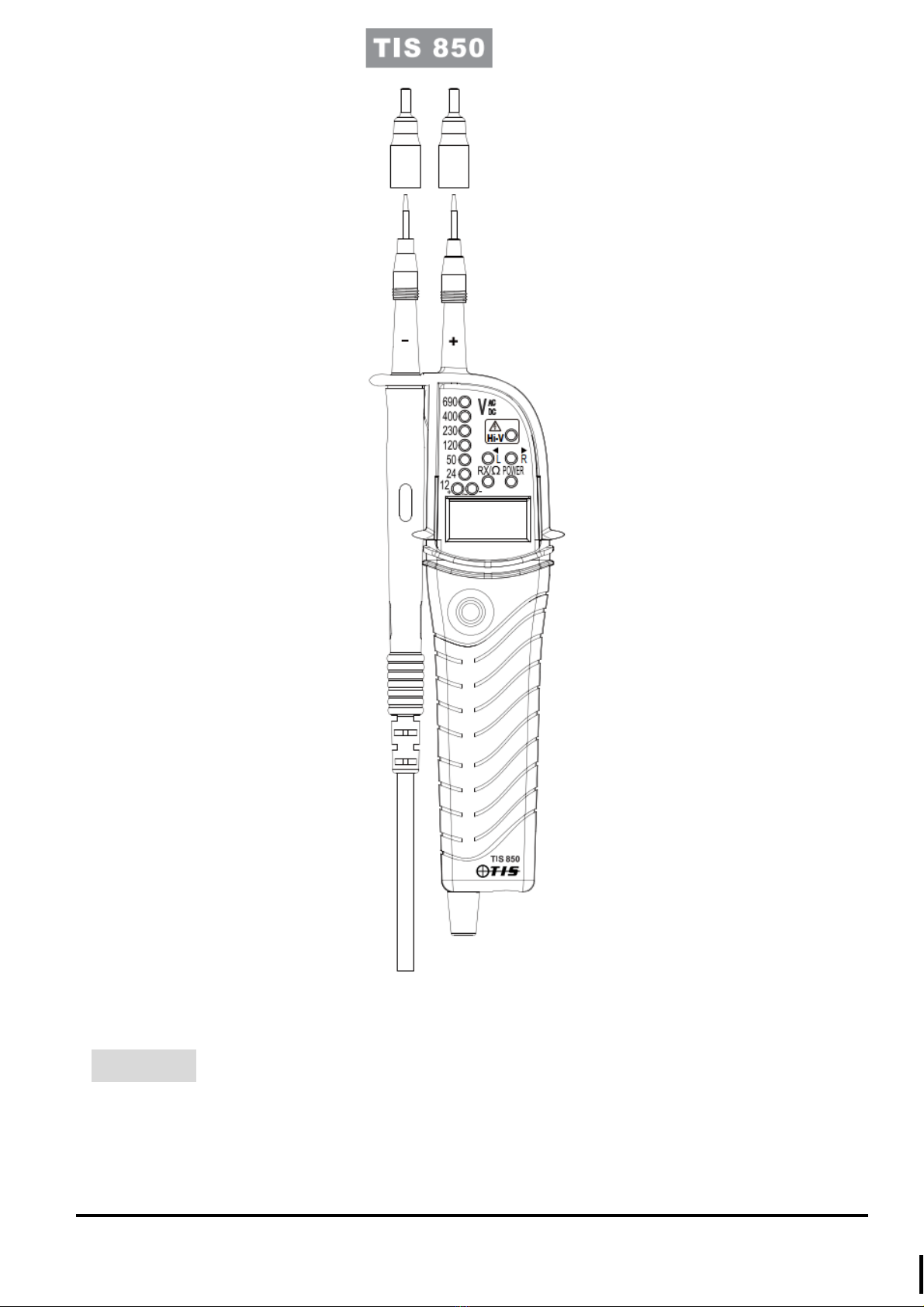

3. Instrument layout
