TM Tech Measure 1000 Manuale utente

Techno-Matic A/S

Granlidevej 22, Hornum

DK-9600 Aars

Denmark

Tel: +45 96987711

Fax: +45 98661822

tm@techno-matic.dk

www.techno-matic.dk

Tech Measure 1000

USER MANUAL

Tm1000 User Manual Ver. 4.10

2 Tm1000 Usermanual Ver.4.10.doc 21-09-05

21-09-05 Tm1000 Usermanual Ver.4.10.doc 3

Contents:

Introduction................................................................................................................ 5

An overview of the function keys:.............................................................................. 6

Main Screen: ............................................................................................................. 7

Editing presets:.......................................................................................................... 9

Diameter Calibration:...............................................................................................11

Editing the calibration table: ....................................................................................12

Length Calibration: ..................................................................................................13

General parameters:................................................................................................14

Manoeuvre Parameter:............................................................................................17

Roller Pressure:.......................................................................................................24

Proportional upper knives........................................................................................24

Proportional upper knives........................................................................................25

Proportional lower knives. .......................................................................................25

Colour Code: ...........................................................................................................27

Automatic Sawing:...................................................................................................27

Auto Tilt....................................................................................................................28

Saw Control: ............................................................................................................28

Aut. reverse if stuck .................................................................................................29

Indication of errors:..................................................................................................32

Searching CAN-net:.................................................................................................37

GOOD TO KNOW !!!

.............................................................................................38

Technical specifications:..........................................................................................38

Examples of printer write-outs: ................................................................................ 39

4 Tm1000 Usermanual Ver.4.10.doc 21-09-05

21-09-05 Tm1000 Usermanual Ver.4.10.doc 5

Introduction

- Congratulations on your new Tech Measure 1000-measuring system !

Tech Measure 1000 is a very precise measuring system, designed to make your work as

easy and efficient as possible.

The system has a robust construction and has the facility to write out all relevant data on

paper by means of a printer.

In the development of the Tech Measure 1000 measuring system, great attention has

been paid to choosing a logical construction, and to enabling the user to service the

system merely by following the instructions on the screen, wherever possible.

But it is important to get started in the right way, so we recommend that you read at least

the following five sections as the minimum:

"An overview of the function keys"

"Main screen picture"

"Editing presets"

"Diameter Calibration"

"Length Calibration"

6 Tm1000 Usermanual Ver.4.10.doc 21-09-05

An overview of the function keys:

A newly entered value is

accepted with

ENT

1) ARROW –keys are used to

leaf round in the menues.

2) When a menue point with

a “

“ in front is shown, the

sub-menu will be visible, by

pressing the ARROW-TO-THE-

RIGHT

3) when a menu point with a

“

“ at the front is shown, the

sub-menue point will be hidden

by pressing ARROW-TO-THE-

LEFT.

1) ESC leaves the

menu/sub-menu

2) ESC leaves the

box for changing a

number, without

changing that

number.

DEL deletes the

number entered

-one press per

number

- the last entry first.

SET

is used to change

a number/set up.

If the set up can be

“Yes” or “No” then this

is changed by

pressing SET

Otherwise a window is

displayed in which the

numbers are entered

and approved by ENT

or cancelled by ESC.

F1 to F4 activates the

sub roll-down menu.

0 to 9

used

to enter

numbers

F5 to F9

activates

1. to 5.

menu-

points.

(Arrow

UP/

DOWN

and ENT

can be

used

instead

21-09-05 Tm1000 Usermanual Ver.4.10.doc 7

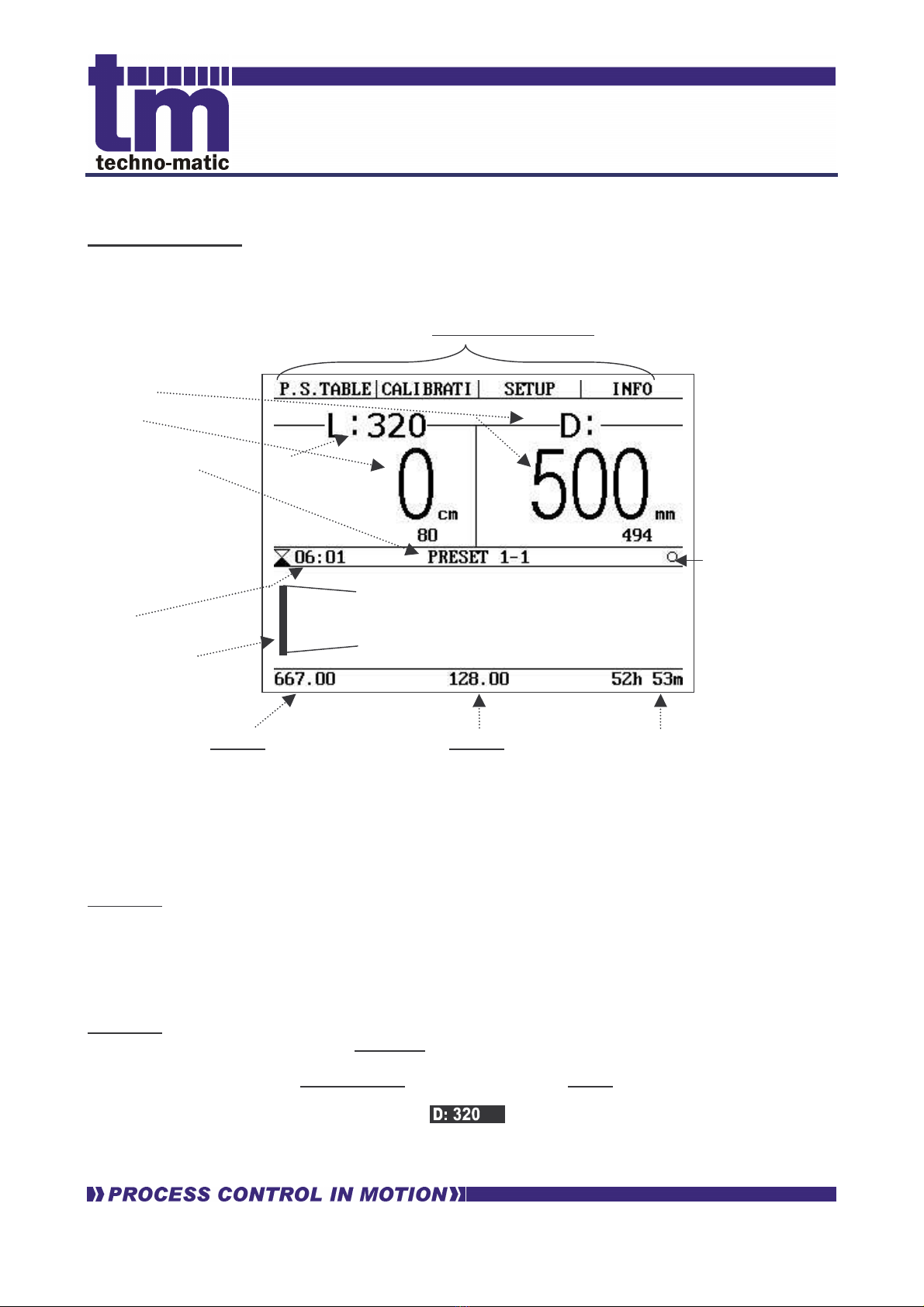

Main Screen:

On the ”Main Screen” you will find the most important information, you need. Please note

that some functions, not available on your system, might be explained as well.

Function keys F1 to F4’s functions

Diameter.See below.

Length. See below.

(Here 320mm)

ctive preset

Hour glass, which

shows the latest point

when a tree should

be harvested in order Indicator for:

to count up G15 time. One of the

saws out.

Clock.

Trunk shape

is displayed

continuously

Total harvested volume (m3) Harvested volume (m3) in Counted ”G15” time.

in the activated presets. the active preset (here 1-1).

PLEASE NOTE:

The SMALL figures (Here L 80 cm and D 494 mm) are the length and diameter at the upper saw.

These are estimates, based on the previously cut trees). These figures will of course only be

shown, if the upper saw function is activated.

G15 time:

Note that if the clock displays ”00.00”, the G15 time does not work. Check, therefore, that the time/date

settings are OK. Upon cutting a valid piece of trunk, the hour-glass is “turned round” so that all the ”sand” is

on top, whereupon it “runs” down to the bottom half of the glass, if no work is carried out. Upon cutting a

valid piece of trunk, while there is still sand in the top part of the hour-glass, the G15 time counter counts up

(bottom to the right on the screen).

Diameter:

The large number shows the diameter at the saw (the diameter, which has been measured previously).

Important: If ”mm” (millimetres) are not displayed, you are not working according to a valid diameter

calibration table! Which is why not millimetres, but only the number of pulses from the encoder are displayed

!!! If a small number is shown (as above 320 mm), the system runs according to this. When/If this goal is

met then the number is displayed “inverted” e.g.: (instead of D: 320).

8 Tm1000 Usermanual Ver.4.10.doc 21-09-05

Length:

The large number shows the actual length, at which the saw is situated at the moment (set to zero every

time it cuts). If a small number is shown (e.g. L: 400 cm), the system is running according to that. When/If

this goal is met then the number is displayed “inverted” e.g..: (instead of D: 400).

It is valid to saw, when at least one of the numbers is shown “inverted”!

The sawing is ”at the target”, when BOTH the length and the diameter are shown ”inverted” :

and

21-09-05 Tm1000 Usermanual Ver.4.10.doc 9

Editing presets:



The arrow-keys up/down highlights each single preset. Press “ENT” for editing the

highlighted preset.

Only activated presets can be edited. Further only activated presets are used during

felling, which means that you can have entered parameters in all 9 presets, but only use

the ones activated with a star “*”

Number of cubic meters of

cut timber in this preset

table.

Number of cubic meters of

wasted timber in this preset

table.

Active preset is marked by a

star “

“

A Preset changes from

active/inactive by pressing

“SET”, when SET is marked.

Press F1 for

”Preset Table”.

Press e.g. F5 for

“Table 1”.

10 Tm1000 Usermanual Ver.4.10.doc 21-09-05

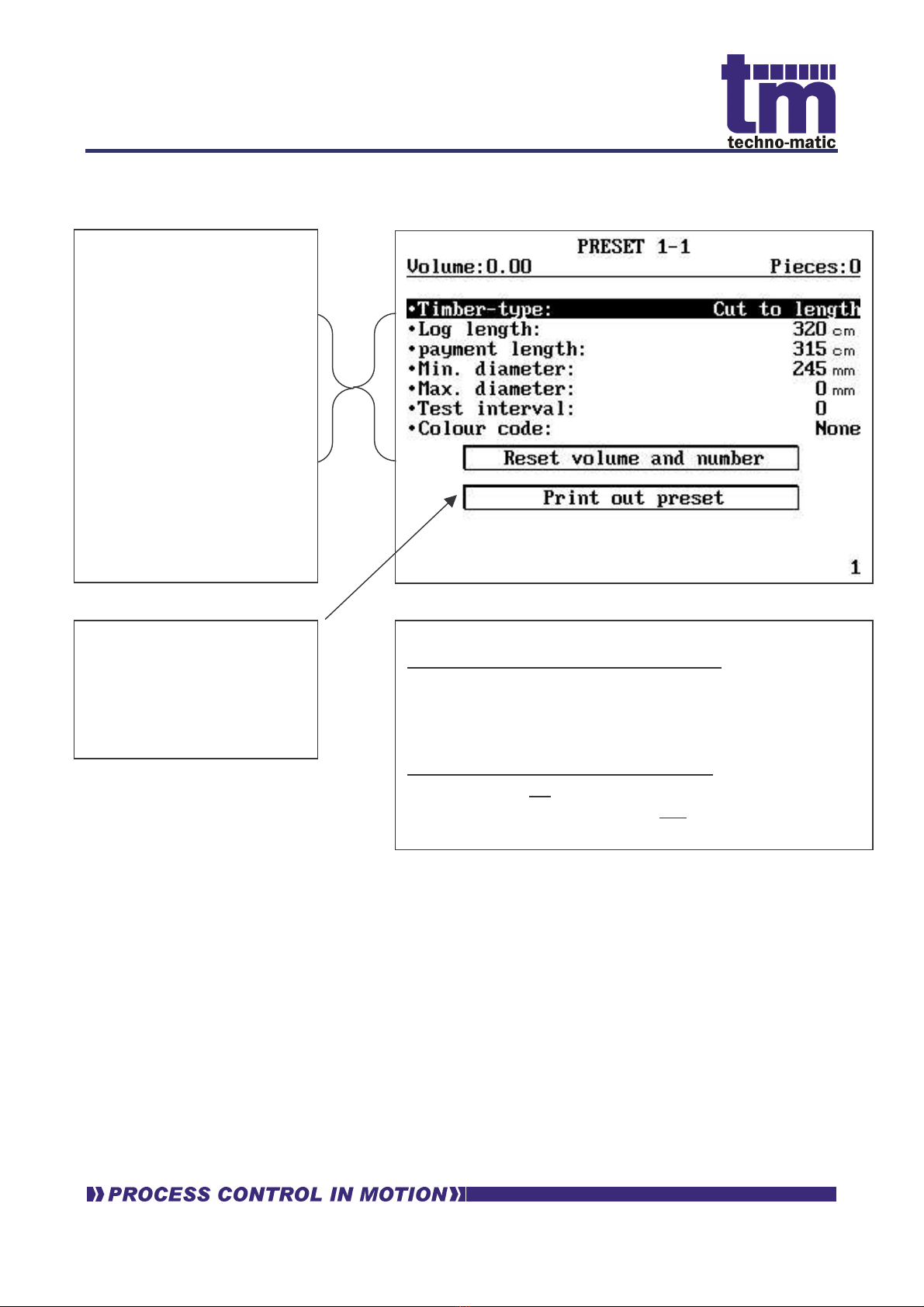

Printing out the settings for the preset:

Press the arrow up/down in order to highlight the “print

pre-set”. Press “ENT” to print out the settings in a

single preset.

Printing out the ENTIRE preset table:

Press “set-up” F3 (during which the ‘main display’ is

shown), and afterwards “print” F8.

Number of cubic meters in

this preset.

Choose type by means of

“SET”

Changing the

measurements: Press

“SET” and enter the value

wanted. Accept by means

of “ENT” or “SET”

or regret by “ESC”

Choose the colour code by

means of “SET”.

Zero setting of production

in this preset.
