Topcon KR-1 Manuale utente

KR-1

Auto Kerato-Refractometer

KR-1

AutoKerato-Refractometer

Fully automated

Easy-to-use

Kerato-Refractometer

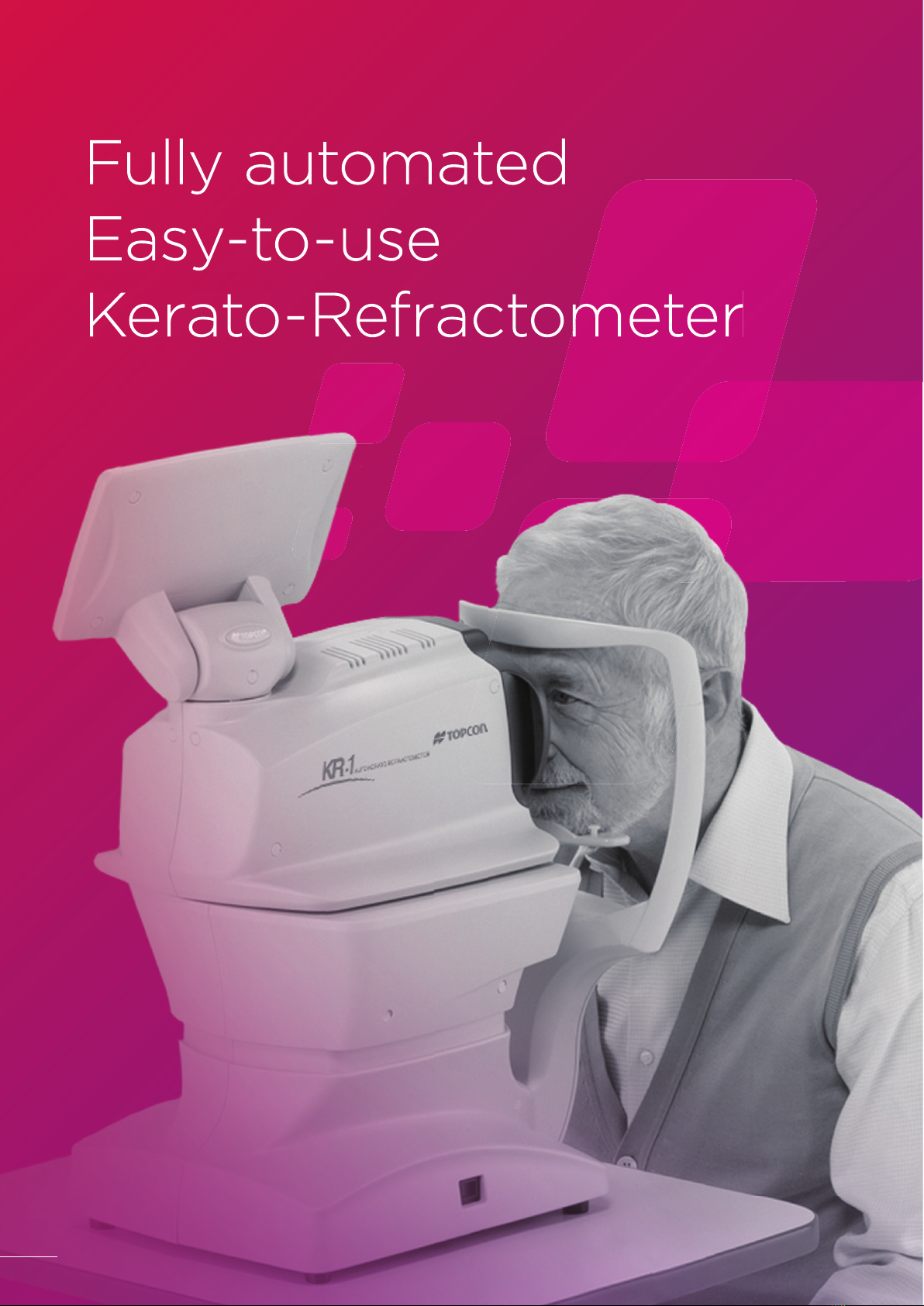

Fully automated

Easy-to-use

Kerato-Refractometer

KR-1

The Topcon KR-1 is a modern,

automated, easy-to-use

kerato-refractometer.

Controlled from the color

touchscreen and incorporating

Topcon’s Rotary Prism

technology.

Overview

KR-1Features

The Topcon KR-1 is a modern,

touchscreen and incorporating

Easy to use

Rotary Prism

Technology

Automated

Kerato-Refractometer

Patient FriendlySmall footprint.

Space Saving

Full 360° rotating monitor

allows operator to

maintain distance from patient

SimpleOperation

Simply touch the center of the pupil on the touchscreen control panel, and the KR-1 automatically captures

right then left eye information. The KR-1 provides an innovative operator experience.

Touch the pupil

image on the screen

for auto-alignment

Automatic capture

and R/L movement

Data displayed with

option to transfer

and/or print

Automatic

W o r k ﬂ o w

Easy-to-UseColorTouchscreenControlPanel

All operating procedures can be performed with the touchscreen control panel. The optimized user interface

provides an intuitive operator experience. The KR-1 rapidly captures data from the right eye before

moving automatically to capture the left eye. An easy-to-use manual capture option is also available,

featuring manual focus coupled with auto-alignment.

KR-1Features

Right Eye

Chinrest

Up/Down

Position

Reset

Measuring

Mode

Cataract

Fixation Target

FOG

Target Image

Corneal

Diameter

All Clear

Settings

Left Eye

Move device

forward and

backward

Start*

Auto/ Manual

*Pressing the ‘Start’ button results in immediate data capture, which may be necessary for less cooperative patients, or patients with signiﬁcant corneal

disease, that can make auto-alignment and focusing dicult.

Flexible

and Space

Saving Layout

Operation from

the front

(Seating)

Operation from

the front

(Standing)

Operation from

the side

Operation from

the patient’s side

The control panel can be rotated in any

direction. The compact device enables the

operator to support the patient easily during

measurement, even if the patient’s eyelid

needs to be lifted. These unique aspects

will contribute to space saving

and ﬂexible layout in your eye

examination room.

KR-1Features

CompactErgonomicDesign

The KR-1’s ergonomic design provides a more

comfortable position for the patient with an inclined

optical head (5°). The compact instrument enables

easier access for patients.

PeripheralKRT

The KR-1 allows the operator to capture 8 peripheral

corneal curvature measurements in addition to the

central data.

Topcon’s Rotary Prism

MeasuringSystem

With Topcon’s Rotary Prism Technology, the KR-1

provides stable measurement. The unique, eccentric

rotation of the measurement ring, is designed to

reduce the artifact from the fundus. Measuring Ring

Rotary Prism

Rotary Ring Image Sensor

Mirror

KR-1 Conventional model

Peripheral

Points

Corneal Apex

KRT Ring

System Chart

IMAGEnet®6

VIsual acuity chartDigital Phoropter

Other

data management

software

KR-1

USB LAN

LAN/RS232C RS232C/Light emitter

Bar-code scanner

Take your

device/

instrument

to the next

level with

Topcon

Harmony.

*Please contact Topcon subsidiaries in your region for the detailed system conﬁgurations.

Refractive Power Measurement

Spherical refractive power: -25D to +22D (0.12D/0.25D steps)*

Cylindrical refractive power: 0D to ±10D (0.12D/0.25D steps)*

Astigmatic axis angle: 0° to 180° (1°/ 5°steps)

Minimal measurable pupil diameter: φ2 mm

Corneal Curvature Measurement

Corneal curvature radius: 5.00mm to 10.00 mm (0.01mm step)

Corneal refractive power: 67.50D to 33.75D (0.12D/0.25D steps)

(keratometric corneal refractive index = 1.3375)

Corneal astigmatic axis angle: 0° to 180°(1°/ 5° steps)

Corneal astigmatic refractive power: 0D to ±10D (0.12D/0.25D steps)

PD Measurement Range 20mm to 85mm (1mm step)

Data Transport Terminal USB (Import), RS-232C (Export), LAN (Export)

Dimensions 286-326mm (W) × 445-526mm (D) × 466-615 mm (H)

Weight 19kg

Power Supply 100-240V AC, 50-60Hz, 75VA

SpeciﬁcationofKR-1

Not all products, services or oers are approved or oered in every market, and products vary from one

country to another. Contact your local distributor for country-speciﬁc information and availability.

In order to obtain the best results with this instrument, please be sure to review all user

instructions prior to operation.

IMPORTANT

*-25D ≦spherical refractive power + cylindrical refractive power and spherical refractive power + cylindrical refractive power ≦+22D

DISTRIBUTOR:

PT. TOPSINDO MEGAH UTAMA

Gedung Baja - Jl. P. Jayakarta No. 55. Tower C, 3rd Floor, Unit C 03-01.

Jakarta 10730. Indonesia

Phone: (+62) 21 6230 4970

Email: [email protected]

Website: www.topsindo.com
