Trail Tech Vapor Manuale utente
1
Table of Contents
Table of Contents
A Note To You
Precautions
SPECIFICATIONS
Overview
Installation
Measure Wheel Size
Data Setting Mode
Normal Mode Screens
VAPOR FEATURES
Troubleshooting
Glossary of Terms
Page #
1
2
3
4
6
9
14
16
28
30
40
42
Trail Tech powersport computers bring functionality and life to your
motor vehicle with high quality and innovation. To ensure you enjoy
years of trouble-free operation, this user’s manual contains valuable
information about how to operate and maintain your computer properly.
Please read this manual carefully.
A Note to You
Whenever you call to request service for Vapor, you need to know the
date of purchase, dealer’s name, address, and telephone number.
PURCHASE DATE
DEALER NAME
DEALER ADDRESS
DEALER PHONE
Keep this book and sales slip together for future reference.
2
Thanks for Buying a Trail Tech
Powersport Computer:
Please Record Important Information:
3
Precautions
When using Vapor, follow basic
precautions, including the
following:
• Read all instructions before
using Vapor.
• Use Vapor only for its intended
function.
• To reduce the risk of injury, do
not disassemble Vapor or its
accessories.
• Vapor can be used in the rain
but should not be used
underwater.
• Do not leave the main unit in
direct sunlight when not riding.
• Check relative positions and
gap between sensor and magnet
periodically.
• Do not bend, twist, kink or
otherwise abuse the black sensor
cable. A damaged cable may
produce incorrect readings.
• Do not abuse wires on back of
Vapor. The wires carry high
voltage power from the vehicles
ignition system. Damaged wires
may also produce incorrect
readings.
• Avoid contact with gasoline,
degreasers or other chemical
cleaners as they may damage
the computer.
WARNING:
REMEMBER TO PAY ATTENTION
TO THE TRAIL WHILE RIDING.
4
Specifications
FUNCTION
CURRENT SPEED
REVS PER MINUTE
RPM BAR GRAPH
MAXIMUM SPEED
DISTANCE
STOP WATCH
ODOMETER
RIDE TIME
ACCUM. RIDE TIME
12H or 24H CLOCK
LOW BATTERY
TIRE SIZE
DISPLAY
SPD
RPM
Graphical
MS
DST
TT
ODO
RT
ART
00:00:00
LO
RANGE
4 - 399.9 KM/H or M/H
0 - 19999 RPM
0 - 12000 RPM
4 - 399.9 KM/H or M/H
0.0 - 19999 KM or M
0 - 9999 hour 59 min
0.0 - 999999
0 - 999 hour 59 min
0 - 9999 hour 59 min
12:59:59 or 23:59:59
About 1 Year Life
0 - 3999 mm
SPEED/DISTANCE SENSOR
TEMPERATURE SENSORS
RPM SENSOR
PRODUCT DIMENSIONS
SCREEN DIMENSIONS
Non-contact Magnetic Speed Sensor
Ambient and Engine Temp. Sensors
Electrical Pulse Sensor
106.93x59.46x23.7mm WxHxD
(4.21x2.34x0.93” WxHxD)
78.75 x 28.6mm WXH
(3.1 x 1.13” WxH)
5
Specifications
UNITS
KM/H or M/H
KM/H or M/H
KM/H or M/H
KM/H or M/H
KM/H or M/H
Hours:Minutes
KM or M
Hours:Minutes
Hours:Minutes
H:M:S
2.5 Volts
INCREMENTS
0.1 KM/H or M/H
10 RPM
Variable
0.1 KM/H or M/H
0.1 KM/H or M/H
1 Second
1
1 Minute
1 Minute
ACCURACY
+/- 0.1%
+/- 0.1%
+/- 0.1%
+/- 0.1%
+/- 0.1%
+/- 0.1%
+/- 0.1%
+/- 0.1%
+/- 0.1%
+/- 0.1%
+/- 0.1%
PRODUCT WEIGHT
WHEEL CIRCUMFERENCE
OPERATION TEMPERATURE
STORAGE TEMPERATURE
BATTERY
BATTERY LIFE
EXTERNAL POWER INPUT
3.9 oz. (110 grams) (0.24 lbs.)
0 to 3999 mm
0°C to 60°C (32°F to 140°F)
-20°C to 80°C (-4°F to 176°F)
3V CR2032
About 1 Year
9.0-400 VAC/VDC
(No polarity requirements.)
Overview
6
Vapor holds a large amount of information in a small space. There
are three buttons for easy navigation, two LED’s for alerts and
warnings, and a brightly lit LCD panel for easy viewing.
YELLOW
LED RED LED
LEFT BUTTON MODE BUTTON RIGHT BUTTON
Vapor Computer:
Quickstart Commands:
• <MODE> = Switch between screens in Normal Mode.
• <LEFT> + <MODE> = Reset Trip Data: Maximum Speed, Distance,
Ride Time, Stop Watch, Max Engine Temperature, and Max RPM.
• <RIGHT> = Toggle between features in Normal Mode screens.
• <MODE> FOR 3 SEC = Edit Trip Distance (DST) value.
- <LEFT> or <RIGHT> = Increment or scroll distance value.
• <LEFT> <CENTER> + <RIGHT> = Enter Data Setting Mode.
- <MODE> = Move to next data setting screen.
- <LEFT> = Increment or scroll through current data setting.
- <RIGHT> = Move to next digit in data setting mode.
LCD
SCREEN
Parts & Features
7

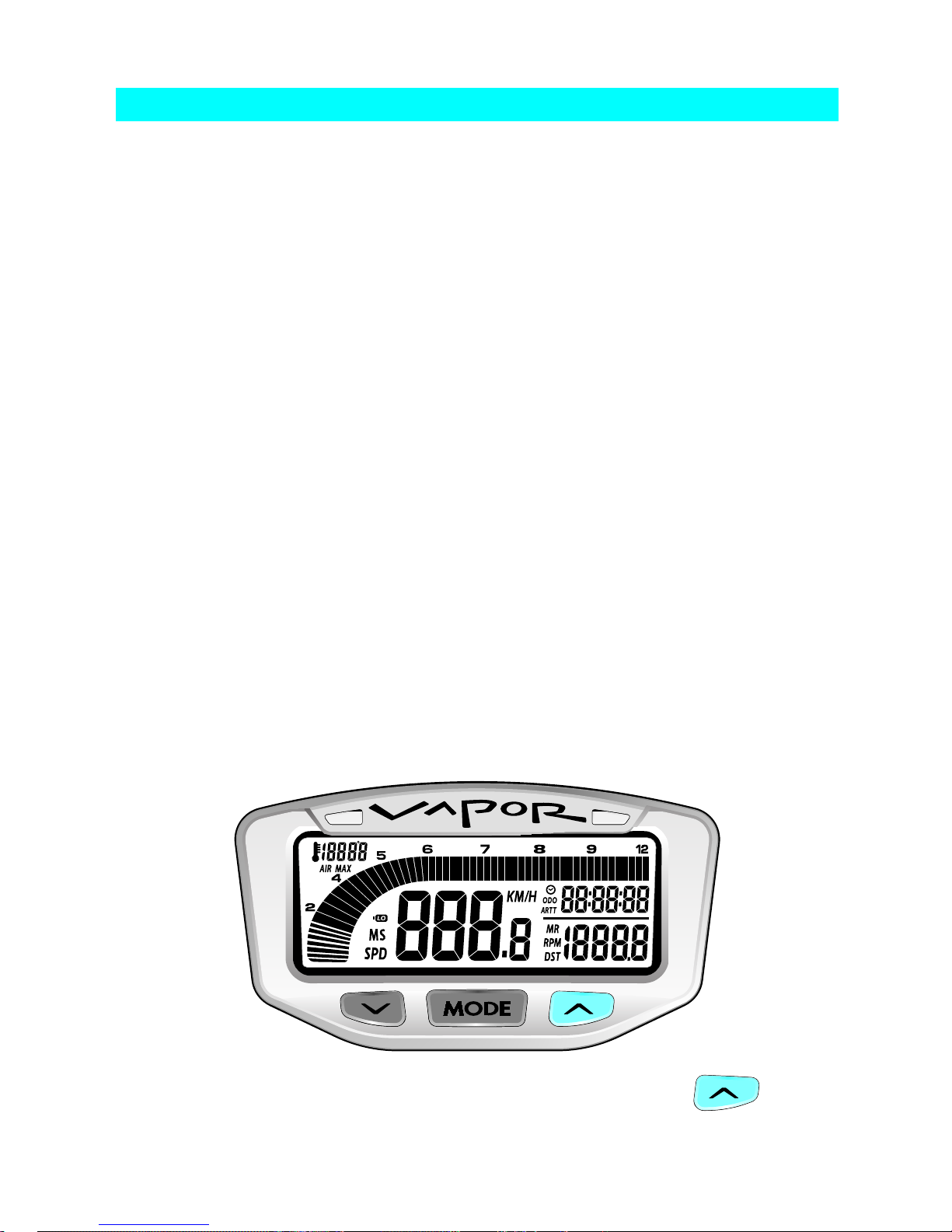

Vapor is equipped with a backlight for easy viewing during night-time
operation.
Using External 12V Power:
• Vapor will light up with all five LED’s.
• Vapor will remain lit as long as it senses wheel movement. After
20 minutes of inactivity Vapor shuts off the backlight. Press any
button, roll the wheels, or start the motor power and Vapor will light
up again.
• Shift and Temperature LED’s will be enabled.
Using Internal Battery Only:
• Vapor will only stay lit for 3 seconds.
• Vapor’s backlight will light up with 10% power to conserve battery
power.
• If the LO symbol is present, the backlight will not turn on. The LO
symbol appears when battery voltage drops below 2.45V.
• If ambient temperature is cold (below -5°C) the backlight will not
TO ACTIVATE BACKLIGHT MANUALLY, PRESS
Backlight:
If connected to 12V power, press any key to activate the backlight.
8
Parts & Features
Use of the Reset Button will erase data for the current ride including
clock and trip distance.
Vapor has an internal 3.0V watch type battery (#CR2032). The
computer can be run from this battery alone.
To change the battery, unscrew the battery cap on the back of the
computer with a coin. Make sure the positive side of the battery is
facing up when replaced.
REPLACE WITH BATTERY MODEL NUMBER #CR2032
Reset Button:
Internal Battery:
BATTERY
RESET
BUTTON
MOUNTING
HOLES
