Transcend TS128GSSD18M-M Manuale utente

M-

-M

M1.8” Portable Solid State Disk

Transcend Information Inc.

Description

Transcend’s 1.8" Solid State Drive (SSD) advanced,

eSATA / USB 2.0 external storage device is the perfect

way to add an extra hard drive to your computer for

downloading, backing up, and transporting and your

data. With both eSATA and USB 2.0 connection

options, the SSD18M gives you the ultimate in flexibility.

The USB interface provides maximum compatibility with

all types of notebooks and PCs, while the new

high-speed eSATA interface gives you the maximum

performance possible from your SSD with transfer

speeds up to 90MB/s. Combining portability, reliability,

and elegant exterior, the SSD18M is the perfect choice

for downloading, backing up, and transporting all your

data.

Features

•Build-in 1.8” high-speed solid state drive

•Slim, lightweight, pocket-friendly size

•Faster and more durable than 1.8”/2.5” hard drives

•Two connection options: eSATA or USB2.0

•Shock and vibration resistance

•LED indicator light

Placement

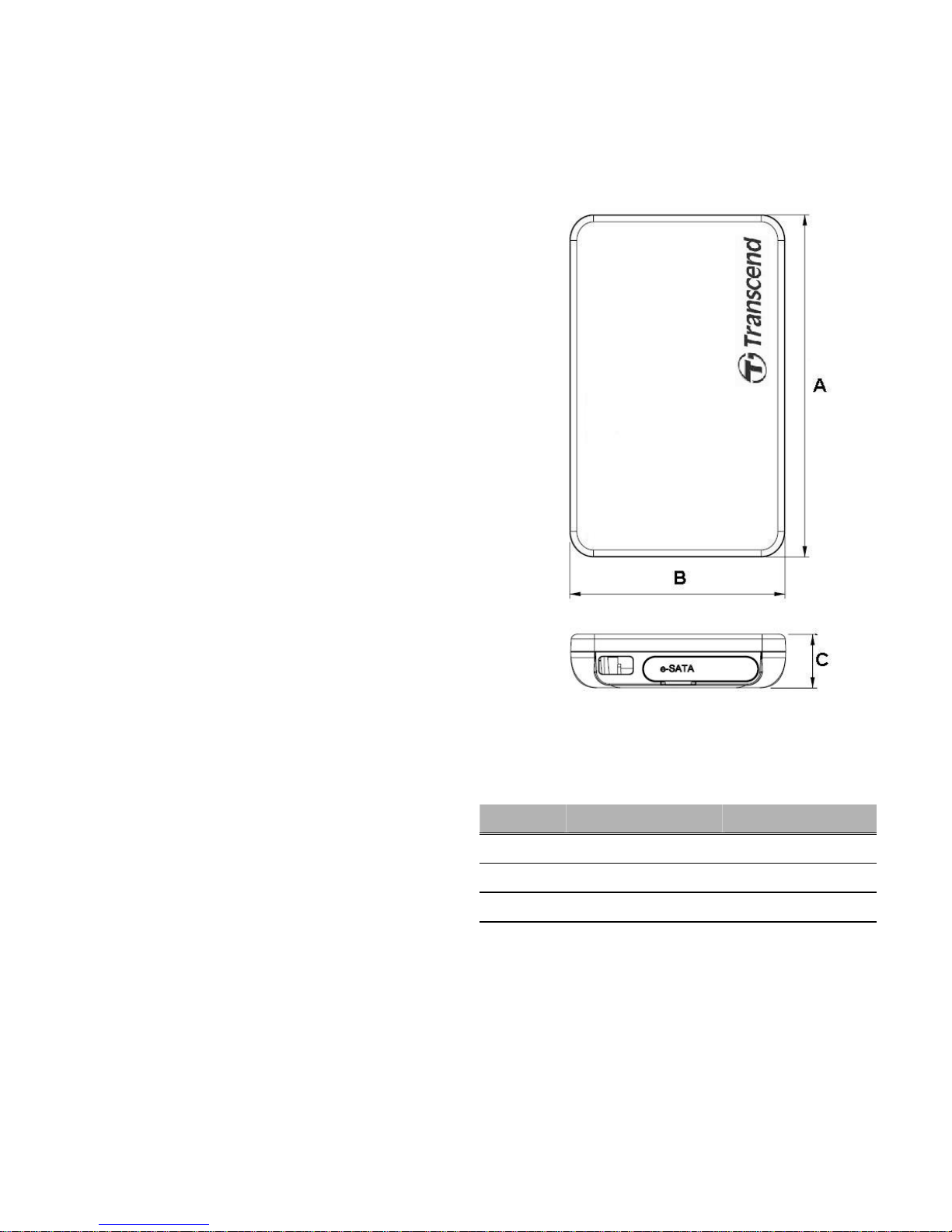

Dimensions

Side Millimeters Inches

A 80.00 ±1.00 3.150 ±0.040

B 50.00 ±1.00 1.969 ±0.040

C 12.50 ±1.00 0.492 ±0.040

System Requirements

•Desktop or notebook computer with a working eSATA

M-

-M

M1.8” Portable Solid State Disk

Transcend Information Inc.

or USB port.

•One of the following operating systems:

 Windows®2000 / XP /Vista

 Mac®OS 9.0, or later (USB only)

 Mac®OS 10.4, or later (eSATA)

 Linux®Kernel 2.4, or later (USB only)

Pinouts (USB)

Pin No. Pin Name

01 VCC

02 USB-

03 USB+

04 VSS

Pin Identification (USB)

Symbol Function

USB-

USB+

USB differential signal

The pair are used to transmit

Data/Address/Command

VCC USB Cable Power Detector

VSS Ground

Pinouts (eSATA)

Pin No. Pin Name

01 VSS

02 TX+

03 TX-

04 VSS

05 RX-

06 RX+

07 VSS

Pin Identification (eSATA)

Symbol Function

TX+/TX-

RX+/RX-

eSATA differential signal

The two pairs are used to

transmit

Data/Address/Command

VSS Ground

Ordering Information

Device

Description Capacity Transcend P/N

SSD18M 32GB TS32GSSD18M-M

SSD18M 64GB TS64GSSD18M-M

SSD18M 128GB TS128GSSD18M-M

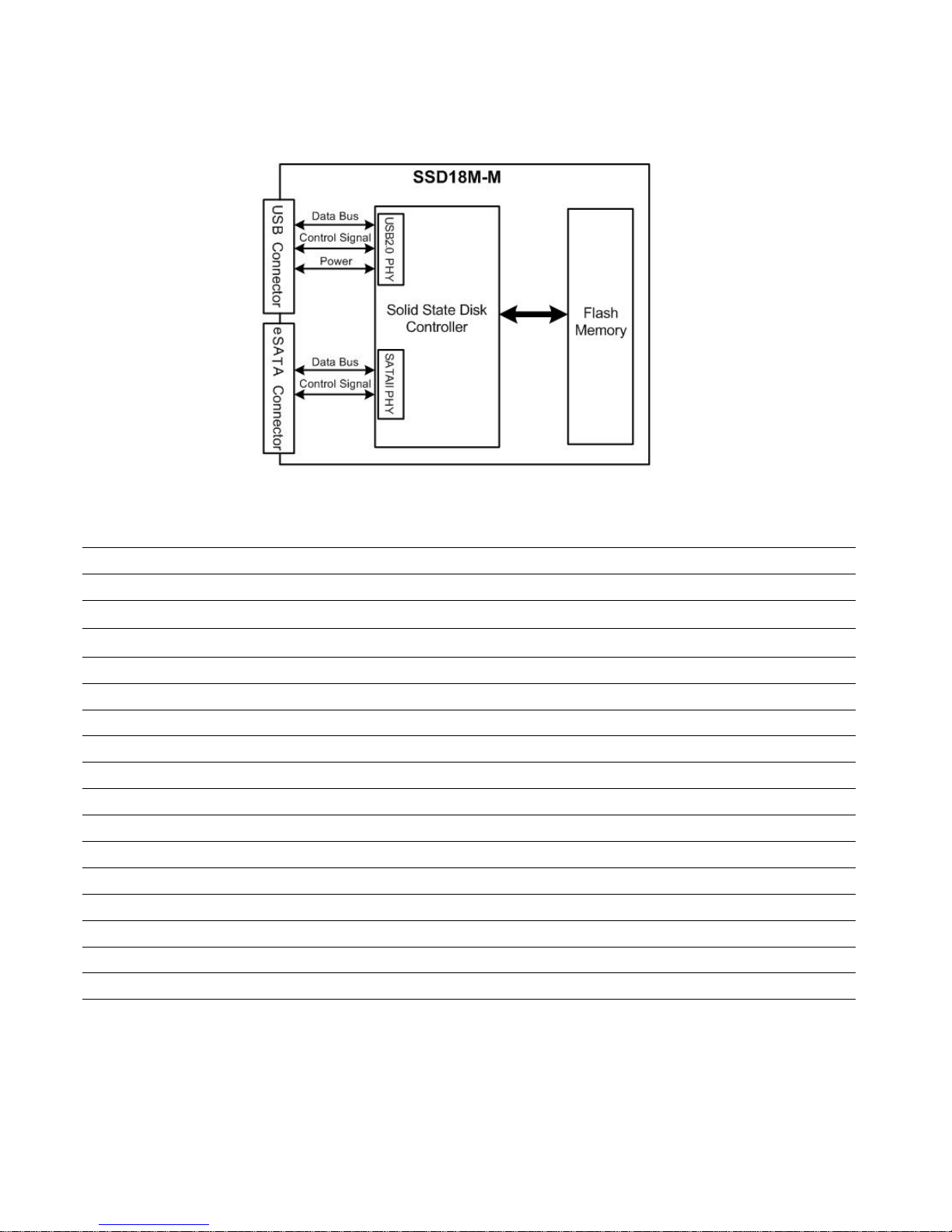

Block Diagram

M-

-M

M1.8” Portable Solid State Disk

Transcend Information Inc.

Specifications

Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes

Storage Media 1.8 inch solid state drive

Temperature Operating 0 ℃(32 ℉) to 70 ℃(158 ℉)

Storage -30 ℃(-22 ℉) to 70 ℃(158 ℉)

Max. Transfer Speed eSATA Read: 90MB/s Write: 50MB/s

USB 2.0 Read: 35MB/s Write: 25MB/s

Access Speed Less than 1ms

Operating Voltage DC 5V (from USB port)

Size (L x W x H) 80.00mm × 50.00mm × 12.50mm

Weight 50g (Max)

Certificates CE, FCC, BSMI

no warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product. Transcend reserves the

right to make changes in specifications at any time without prior notice.
