TRENDnet TEW-687GA Manuale utente

TEW-687GA

1.01

Quick Installation Guide

Table of Contents

Version 01.04.2011

English 1

1. Before You Start

2. Hardware Installation 2

3. Configure the TEW-687GA 4

4. Wi-Fi Protected Setup (WPS) Push Button Setup 8

Troubleshooting 10

Wireless Tips 12

1. Before You Start

ŸWireless router (e.g. TEW-691GR) or access point (e.g TEW-690AP)

ŸAn available DHCP Server – wireless routers usually have a built-in DHCPserver

ŸAmedia device (e.g. Blu-ray player, Internet-ready TV, etc.) or game console with

an Ethernet port

ŸWeb Browser: Internet Explorer (6.0 or higher)

Acomputer with network adapter installed

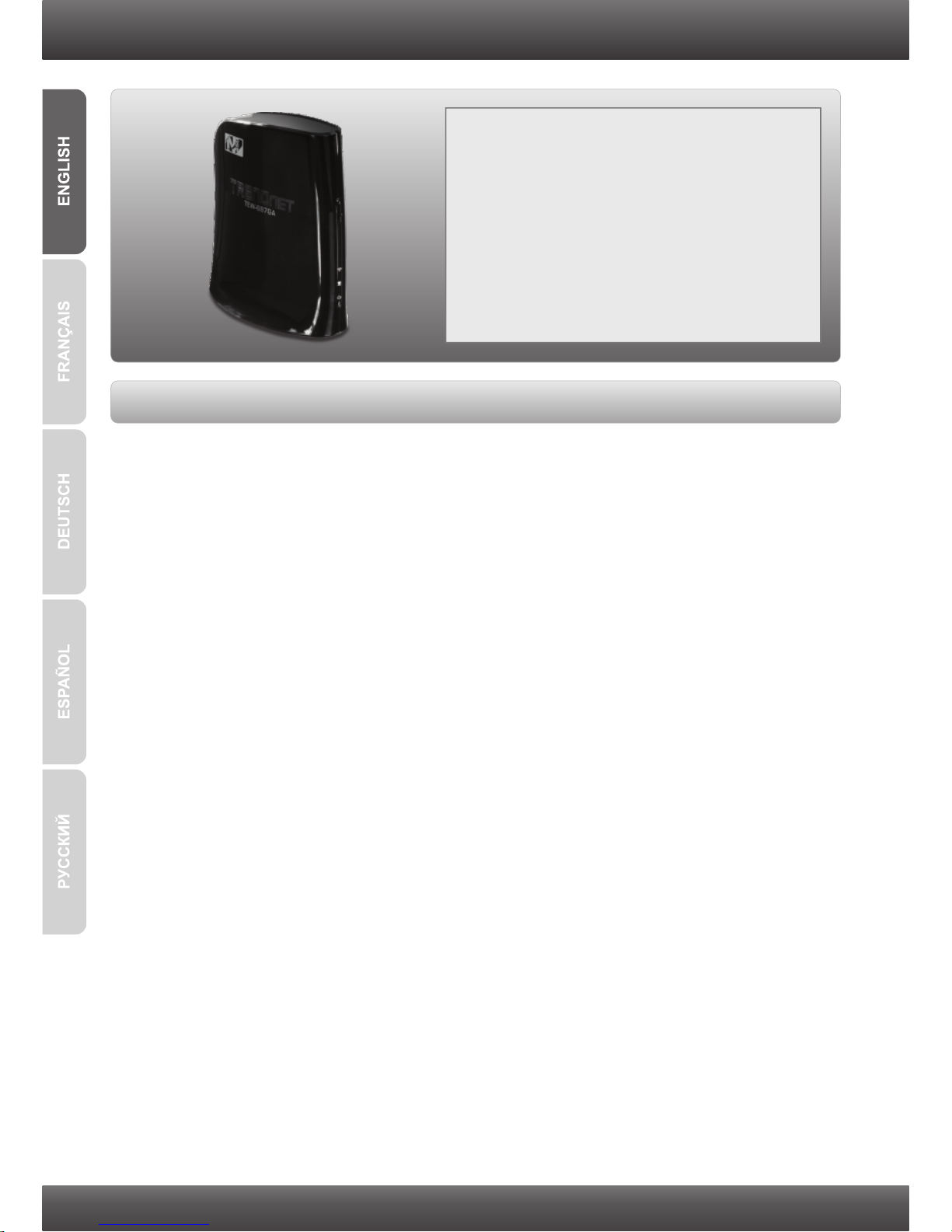

Package Contents

ŸCD-ROM (User's Guide)

ŸMulti-Language Quick Installation Guide

ŸPowerAdapter (12V DC, 0.5A)

ŸNetwork Cable (0.6m/2ft.)

TEW-687GA

System Requirements

2. Hardware Installation

Note:

1. Wi-Fi Protected Setup (WPS) allows you to quickly connect to your wireless router or

access point. If you would like to use WPS push button setup, please go directly to

section 4. Wi-Fi Protected Setup (WPS) Push Button Setup. If your wireless router or

access point does not support WPS, continue on to step 1.

2. Do not connect/install the TEW-687GAto your network until instructed to do so. Make

sure your computer's network adapter settings are set to obtain an IP address

automatically (see troubleshooting section).

1. Connect one end of the provided RJ-45 network

cable to the TEW-687GA's LAN port. Connect

the other end of the cable to your computer's

network port. Then boot up your computer.

2. Connect the PowerAdapter to the TEW-687GA

and then to a power outlet. (EU versions will

have a power button on the back. Push the

power button to the “On” position). Wait 30

seconds for the TEW-687GAto boot up.

Network Port (Blue/Blinking)

Wireless (Blue/Blinking)

Power (Blue/Solid)

3. Verify that the following panel lights are on:

Power, Network Port, and Wireless.

3. Configure the TEW-687GA

3. The Wizard will automatically appear. Click

Administration ŽWizard if the Wizard does

not automatically appear.

1. Open your web browser, type

http://TEW-687GA.trendnet in theAddress bar,

and then press Enter.

Password:

Note: User name and Password are case

sensitive.

Enter the User Name and password and then

click OK. Default Settings:

User name: admin

admin

4. Click Next.

7. Click Scan.

8. Select a SSID and then click Select. The SSID

is the wireless network name of your wireless

network (e.g. wireless router or access point).

9. Click Next.

5. Select DHCP Client to have theTEW-687GA

automatically obtain an IP address from your

DHCP server (router).

If Static IP address is selected you would need

to configure the following:

IP address: The assigned IPaddress should

match your network. This IPaddress should

not be used by any other network device on

your network.

Subnet Mask: In most cases, the default

Subnet Mask (255.255.255.0) should be fine.

Default Gateway: Enter the IP address of your

router for the Default Gateway.

Then click Next.

Note: It is recommended to manually configure

the LAN Interface Settings (IP address, Subnet

Mask, Default Gateway) in case you need to

access the device in the future. Please write

down the IP settings for future reference.

6. Select Manual Setup and then click Next.

12. Click OK.

13. Wait while your settings are being applied.

10. If Encryption is enabled on your wireless

network (e.g. access point or wireless router)

the correct Security Mode andAlgorithm will

automatically be selected. Enter the Pass

Phrase (wireless network password) and then

clickApply.

11. Verify that your settings are correct and then

clickApply.

14. Click Export Setting (optional). This saves

your configuration settings in a file, which can

be reloaded when needed.

15. Click Save (optional).

16. Give the file a name, then click Save.

18. Unplug the power adapter and disconnect the

TEW-687GAfrom your computer. Place the

TEW-687GAin your desired location. Please

refer to the Wireless Tips section for optimal

placement of the TEW-687GA.

19. Plug the power adapter of the TEW-687GA

and connect one end of a network cable to

the TEW-687GA's LAN port. Connect the

other end of the cable to your media device

(e.g. Blu-ray player, Internet ready TV, etc.)

or game console's network port. Verify that

the following panel lights are on: Power

(Blue/Solid), Network Port, (Blue/Blinking),

and Wireless (Blue/Blinking).

20. Verify that your media device or game console

is connected to your network. If the network

setting on your media device or game console

is set to obtain an IP address automatically

(dynamic IP) an IP address will be assigned

automatically. Please refer to the manual or

contact your media device or game console's

technical support for instructions.

Configuration is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TEW-687GA’s configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or

TRENDnet's website at http://www.trendnet.com.

Note: Follow the steps below to connect your media device (e.g. Blu-ray player,

Internet ready TV, etc.) or game console to theTEW-687GA.

17. Click Exit Wizard.

4. Wi-Fi Protected Setup (WPS) Push Button Setup

Note:

1: Wi-Fi Protected Setup (WPS) allows you to quickly connect to your wireless router or

access point.

2: Do not connect/install the TEW-687GAto your network until instructed to do so. Make

sure your network adapter settings are set to obtain an IP address automatically (see

troubleshooting section).

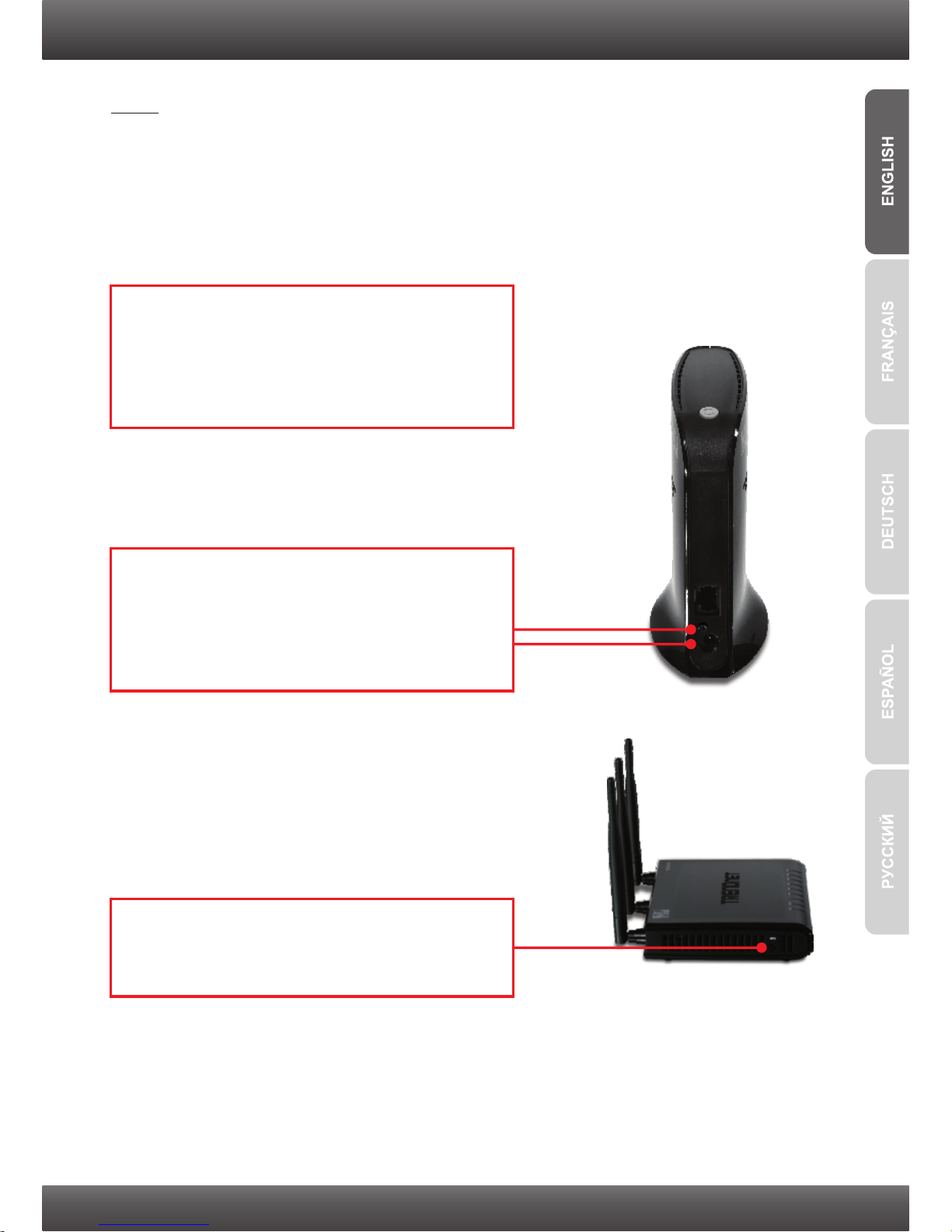

3. Press and hold the WPS button on your

wireless router or access point for 2 seconds.

The example shows a TEW-691GR.

1. Find a location where you would like to place

the TEW-687GA. The location must be within

the wireless coverage of your router or access

point. Please refer to the wireless tips sections

for additional information.

2. Connect the PowerAdapter to the TEW-687GA

and then to a power outlet. (EU Versions will

have a power button on the back. Push the

power button to the “On” position. ). Wait 30

seconds for the TEW-687GAto boot up.
