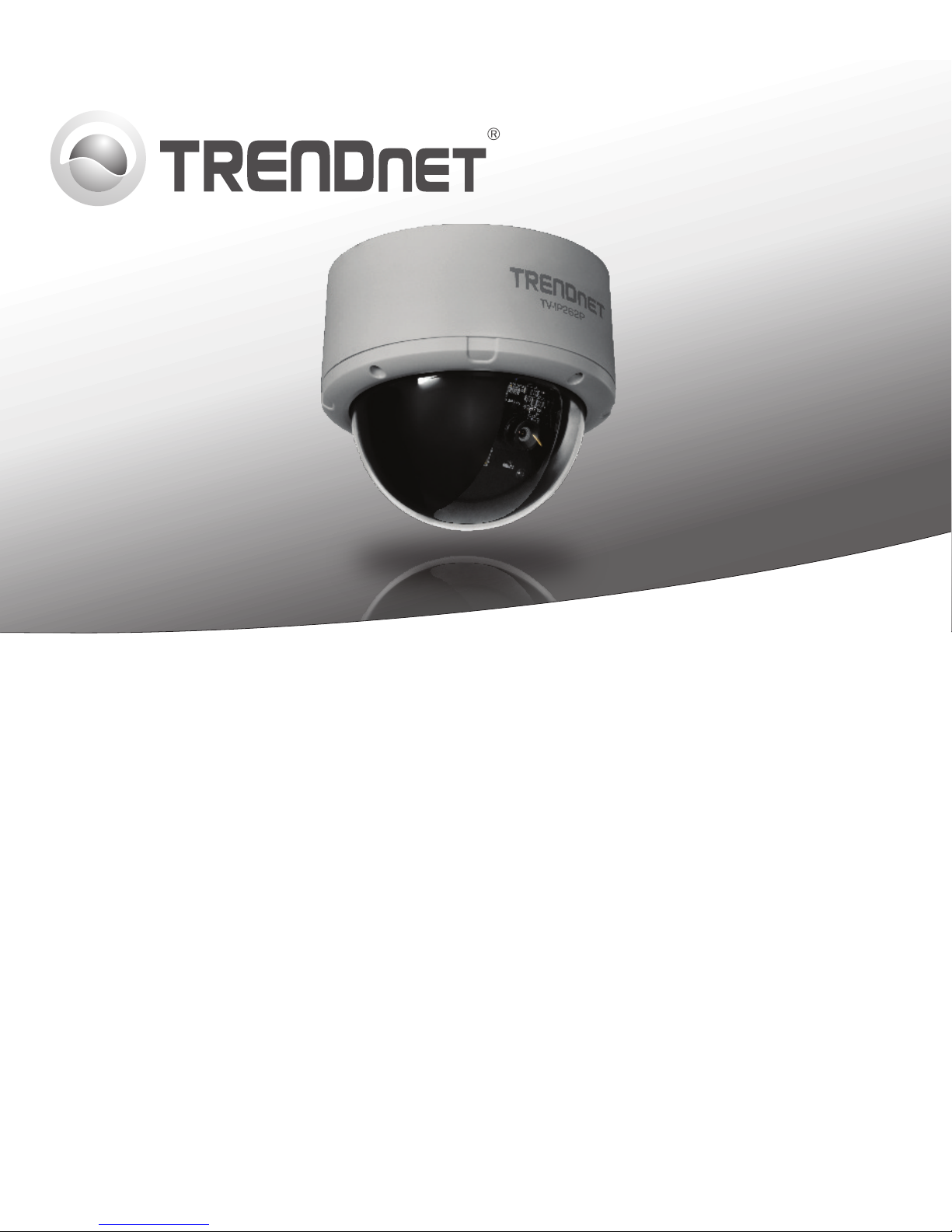

TRENDnet TV-IP262P Manuale utente

Megapixel PoE Dome Internet Camera

TV-IP262P

Quick Installation Guide (1)

TV-IP262P(V1.0R) / 05.21.2012

1. Before You Start

Minimum Requirements

TV-IP262P

CD-ROM (Utility and User's Guide)

Multi-Language Quick Installation Guide

Network cable (1.5 m / 5 ft.)

Mounting kit

Power adapter (12V DC, 1.25A)

A computer with an Ethernet port and web browser

CD-ROM drive

Wired network (e.g. router or switch with DHCP server)

Power over Ethernet (PoE) switch (e.g. TPE-S80 optional)

PoE Injector (e.g. TPE-113GI optional)

Note:

1. The TV-IP262P works with Power over Ethernet (PoE) devices that follow the IEEE 802.3af

standard.

2. The lens must be manually positioned and focused.

Package Contents

Supported Operating Systems 1-8 Cameras

CPU CPU

9-32 Cameras

Memory Memory

Windows 7 (32/64-bit) /

Windows Server 2008 /

Windows Vista (32/64-bit) /

Windows Server 2003 /

Windows XP (32/64-bit)

2GHz 2GHz2GB RAM

or above

4GB RAM

or above

SecurView Pro Requirements

1. Do not install or mount the IP camera until

after you complete the installation steps

below. Temporarily place the IP camera next

to your computer.

2. Insert the Utility CD-ROM into your CD-ROM

drive.

4. Congratulations! Your camera is now

connected to your network. Click TV-IP262P

to confirm access to the management

interface.

5. Once the management interface has opened

in your web browser, save the link of the IP

address to your desktop for ease of access.

6. See the User's Guide for information

concerning advanced management functions.

7. Install the camera in your desired location. To

connect the IP camera to your network using

the PoE functionality, please use either of the

following methods:

2. Hardware Installation and Configuration

3. Click Install Camera and follow the

instructions.

1. Connect the provided network cable from the Power over Ethernet switch (e.g. TPE-S80) to the

network port on the IP Camera.

2. Connect the switch to your network.

Using the TV-IP262P with a PoE switch (TPE-S80)

TPE-S80 Modem

TV-IP262P

WAN

1-100m PoE

TEW-731BR

Internet

1. Connect the power adapter to the TPE-113GI and then to a power outlet

2. Connect a network cable from the TV-IP262P to the TPE-113GI's PWR+DATA OUT port

3. Connect a network cable from a switch or router (e.g. TEW-731BR) to the TPE-113GI's DATA IN

port.

Using the TV-IP262P with an Injector (TPE-113GI)

Non-PoE

TPE-113GI

1-100m PoE

DATA

PWR+DATA

OUT

WAN

TV-IP262P

Modem

TEW-731BR

Internet

Note:

To manage m ultiple cameras and for more advanced features, please install the SecurView Pro

software. Install the software by clicking Install SecurView Pro in the Autorun window and refer to

the SecurView Pro User's Guide on the CD for more information.

Two User's Guides are included – one for the camera and one for the complementary management

software.

TRENDnet

20675 Manhattan Place

Torrance, CA 90501. USA
