TRENDnet TV-IP762IC Foglio di istruzioni
2440 Camino Ramon, Suite 125
San Ramon, CA 94583
Tel: (800)836-0199 Fax: (925)270-1894
Configure TRENDnet TV-IP762IC Wireless Day/Night Network
Camera for Cloud Recording, Remote Monitoring and Playback
Contents
Introduction .............................................................................................................................................. 2
Step 1: Connect Camera to the Network and Find Its IP Address ............................................................ 3
1.1 Connect Camera to the Network ................................................................................................... 3
1.2 Find the Camera’s IP Address ........................................................................................................ 3
Step 2: Access Camera's Web-based Configuration Tool ......................................................................... 6
2.1 Basic Setup Steps............................................................................................................................ 6
2.2 Setup or Re-Configure Wi-Fi .......................................................................................................... 9
Step 3: Configure the Video / Audio Profile............................................................................................ 10
Step 4: Configure Motion Detection....................................................................................................... 12
Step 5. Configure Action (i.e. FTP, and video/image recording settings) ............................................... 12
5.1 Configure Video/Audio Recording...............................................................................................13
5.2 Configure Image Snapshots Recording........................................................................................ 14
6. CameraFTP Viewer.............................................................................................................................. 16
Introduction
TREENDnet TV-IP762IC is a low-cost wireless Day/Night Network Camera that supports both
image snapshots and video/audio recording. It is designed for indoor use and supports image and
video resolutions of 1280x720. Motion (and audio) detection is also supported.
Basic camera information
Video / image resolution
1280x720, 640x352, 320x176
Audio recording
Supported
Image upload frequency
1 image/s to 1 image/day if recording continuously.
With motion detection, it supports 1 image/s and 1 image/2s
Video frame rate
1,2,3,5,6,10,15,30
Night-vision
Up to 16 feet
Image snapshot recording
Supported
Video clip recording
Supported. (Max clip length is 10 seconds/clip.)
Motion detection
Supported for both image and video clip based recording
Continuous recording
Continuous video clip recording is not fully supported;
Continuous image recording is fully supported.
Supported video format
.MP4 and .AVI (CameraFTP recommend .MP4)
Connection type
Wi-Fi and Ethernet cable; supports WPS
PoE (Power on Ethernet)
No
Indoor / outdoor
Indoor
Lowest pricing (as of
7/31/2015)
$59.99
Note: This document is not designed to replace the product manual from the manufacturer. The
information provided is based on our knowledge of the model TRENDnet TV-IP762IC. It may
not be accurate or up-to-date. Users shall contact the manufacturer for all camera-related issues
and contact us only for CameraFTP-related (i.e. cloud service / FTP) issues.
The first 2 steps are camera related and are very trivial. If you have finished these basic steps,
then you can skip Steps 1 and 2 below. CameraFTP’s service can be configured in just 3 steps
(i.e. Step 3, 4 and 5).
Step 1: Connect Camera to the Network and Find Its IP Address
1.1 Connect Camera to the Network
There are two ways to connect the IP camera to the Wi-Fi network. (1) If your Wi-Fi router does
not support WPS, then you need to connect the camera with the router using an Ethernet cable
first. You can configure the Wi-Fi settings in the camera's configuration pages later.
(2) If your Wi-Fi access point/router supports WPS (or QSS), then it is very easy to connect your
device to the network.
Turn on the camera, the power light is solid blue. Press the WPS button on your Wi-Fi access
point for three seconds (the WPS button usually starts flashing), then quickly press the WPS
button on your camera and hold it for a few seconds until the WPS light turns on. In about one
minute, you will see the camera's power light turn solid green (WPS light is off), indicating a
connection to the wireless router.
1.2 Find the Camera’s IP Address
If your camera is connected to the Wi-Fi router, or if you have connected the camera with a
router using an Ethernet cable, then you can run the manufacturer’s setup program to find the
camera’s IP address. From a PC in the same network, insert the camera’s software CD and run
the Setup Wizard. You will see the screen as shown below:
Click “Install Camera” and follow the instructions on the screen. After a few pages, it will start
searching for the camera - wait for the search to finish. If it finds your camera, then it will
display the screen below:
Click Next. It will ask you to change the default password (which is admin):
For security purposes, you should change the default password. Click Next to continue the setup
wizard, you will be able to finish the initial setup.
Click the URL in the above screen, it will launch a web browser window shown below.
Click the Setup icon as shown above, it will go to the basic setup page shown below:
Click Advanced Settings, and a new browser window (tab) will open as shown below. This
time, the host name in the URL section is the camera’s IP address.
Step 2: Access Camera's Web-based Configuration Tool
2.1 Basic Setup Steps
If you know the camera’s IP address, you can directly access the configuration page by visiting:
http://IP_ADDRESS/

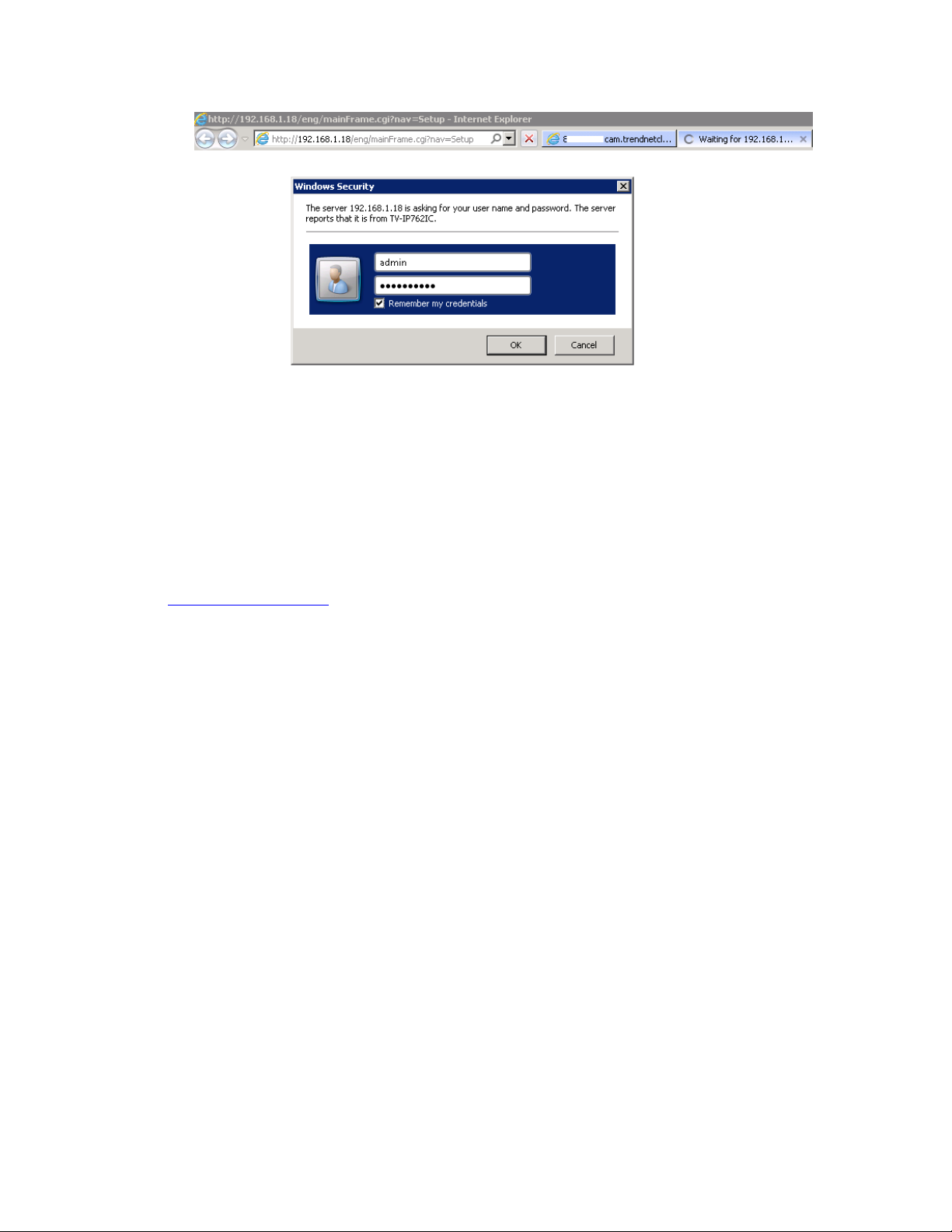

In the above screen, logon with the username “admin” and the updated password. (The default
username is admin and the password is also admin.) If you followed the above steps, then it will
go to the live view page directly.
Note: If you used other tool to find the camera’s IP address without changing the default
password, you will be asked to accept the agreement after logon, then change your password.
After that, the camera will reboot and you can then log on with your new password.)
After logon, the camera defaults to the live-view screen. You might be prompted to install an
ActiveX, Plug-in or Java, which will be required. If it does not work, you can try a different
browser. (E.g. IE or Firefox. In our tests, the plug-in does not work with Chrome).
In the live-view window, click the Setup button to enter the main setup page:
If you haven’t setup this camera before, you can quickly follow the wizard to finish the basic
setup. Usually you just click Next for each step. See the screenshots below:
Basic Setup Step 1: LAN SETTINGS. Usually you will use the default DHCP option. SO click
Next.

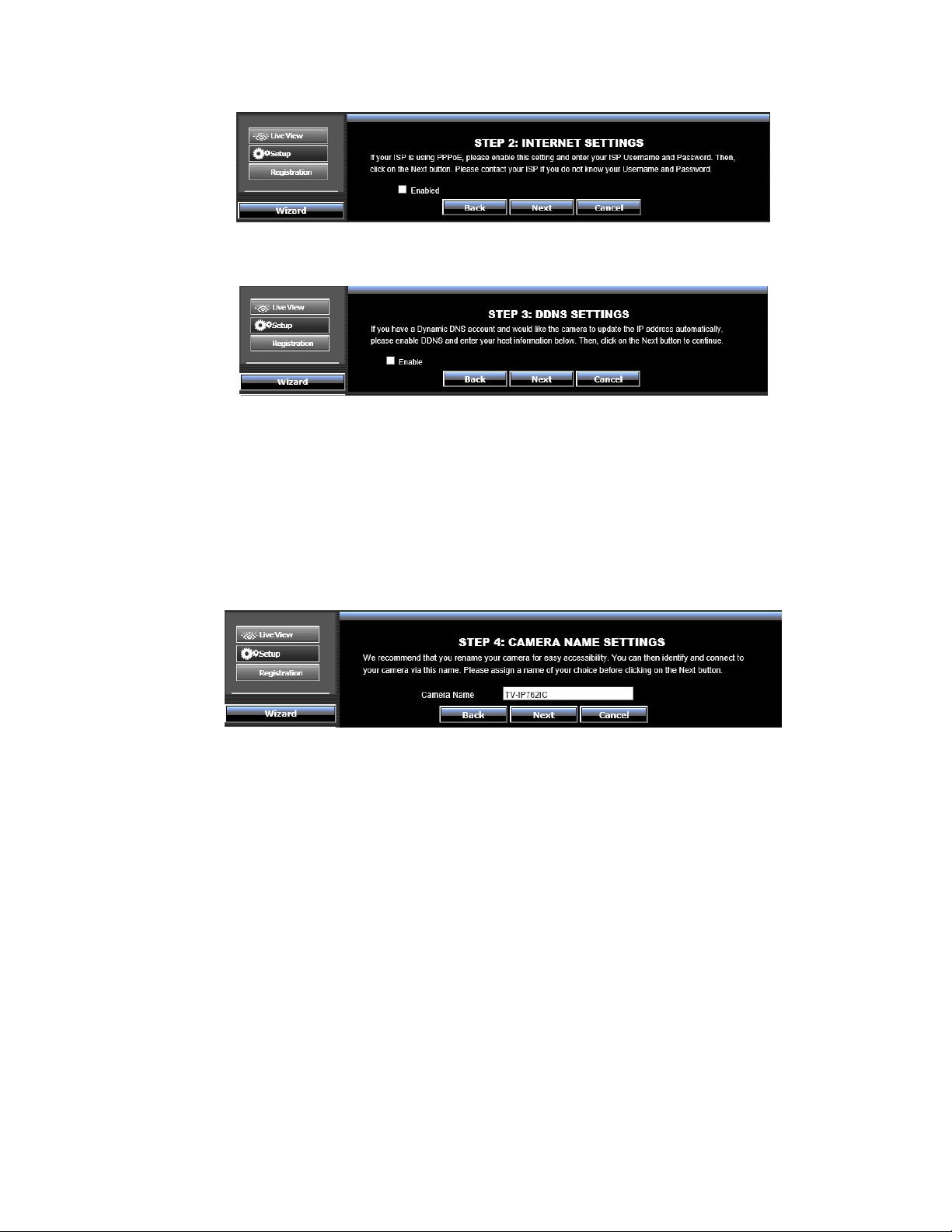

Basic Setup Step 2: INTERNET SETTINGS. Your IP camera is connected to a Wireless Router.
So this step is not needed. Just click Next.
Basic Setup Step 3: DDNS Settings. Just click Next.
Note: If you use CameraFTP service, then DDNS service is not needed. You can log on to your
CameraFTP account and view or play back your cameras online. You can also download our
mobile viewer apps for iOS, Android and Windows Phone.
Basic Setup Step 4: You can simply click Next. CameraFTP service does not use this camera
name. A camera name on CameraFTP should be the same as the cloud folder’s name to store the
recorded footage.

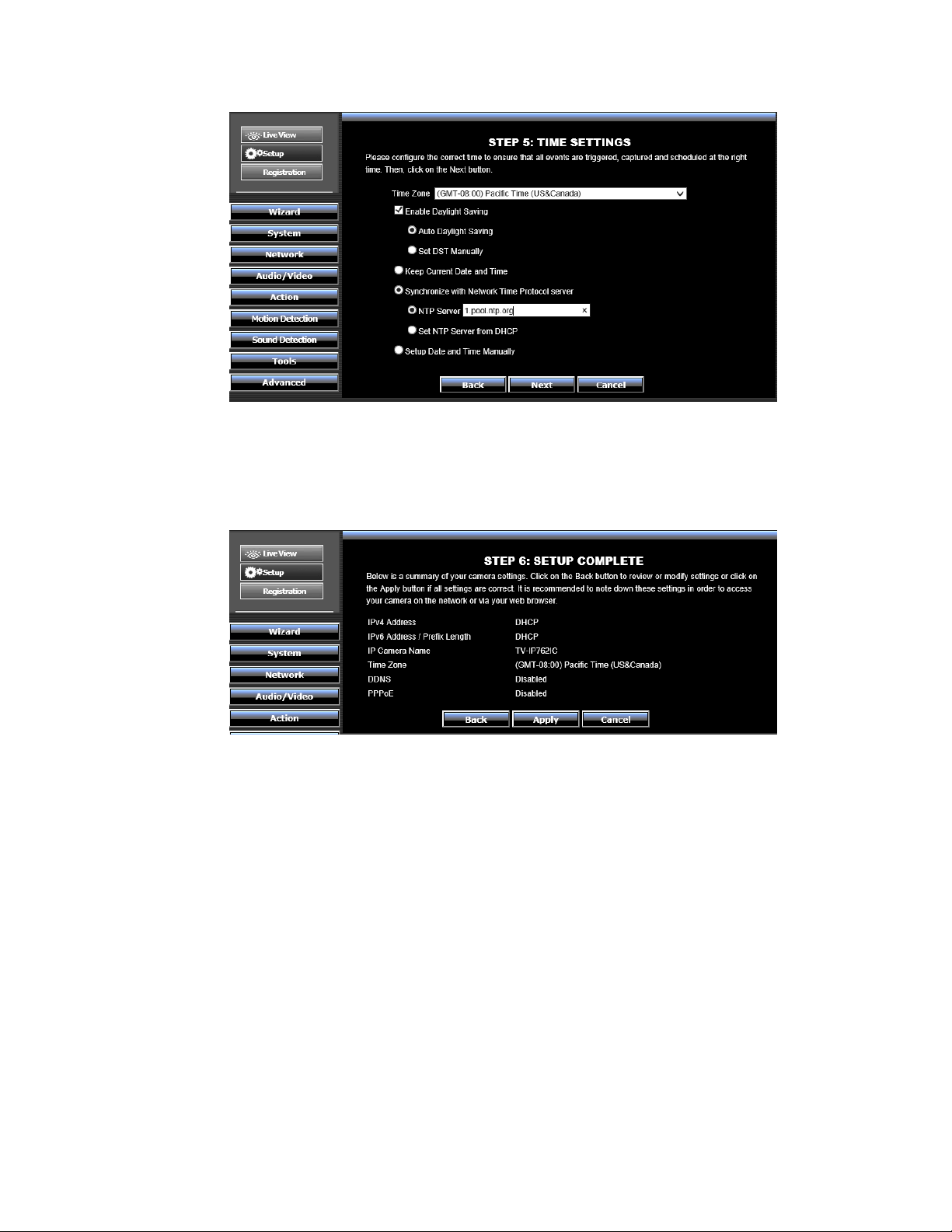

Basic Setup Step 5: This step does not directly affect your service with CameraFTP. However, it
affects the time displayed on your recorded images / videos. You can manually update the time,
or synchronize with a public time server. You can enter NTP Server name as:
0.pool.ntp.org, 1.pool.ntp.org or 2.pool.ntp.org. After done, click Next.
Basic Setup Step 6: Click Apply to save the changes. The camera will reboot. It will take about
one minute to finish rebooting. After you reconnect to the camera, it will default to the same
setup main page. Don’t run the wizard again.
2.2 Setup or Re-Configure Wi-Fi
If you had already connected the camera with your wireless router, then skip this step.
Otherwise, click the Network tab, then click Wireless Setup, you will see the screen below.
Click Rescan to find all available Wi-Fi connections, then select your connection. Enter the
wireless key, after done, click Apply.
If Wi-Fi is configured successfully, you can unplug your network cable later. Since this may
cause IP address to change, please wait until all setup steps are completed.
Step 3: Configure the Video / Audio Profile.
This camera is capable of recording image/video of different sizes, formats and frame rates. You
need to create a profile that matches with the subscription plan you ordered.
To configure your video/audio/image profile, please click the “Audio / Video”tab, then click on
“Audio and Video”.
