TRENDnet TFC-1600 Manuale utente
TFC-1600
Media Converter
Chassis System
User’s Guide
FCC Warning
This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with this user’s guide, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will
be required to correct the interference at his or her own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.

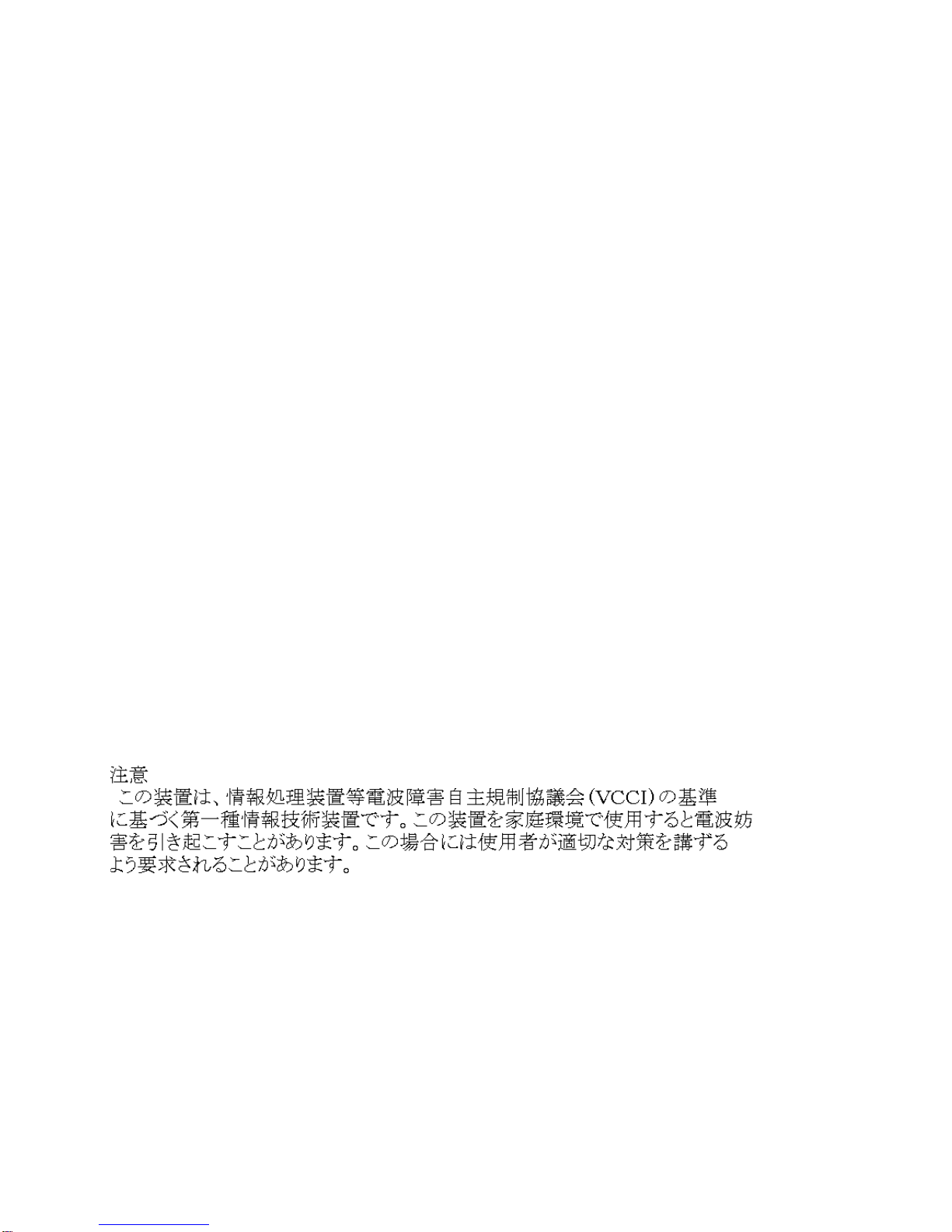

VCCI Warning
This is a product of VCCI Class A Compliance.
P/N:6012-MCR1160
i
TABLE OF CONTENTS
PREFACE..............................................................................................3
19” MEDIA CONVERTER CHASSIS SYSTEM...............................4
PRODUCT FEATURES.........................................................5
PRODUCT FEATURES ............................................................................5
UNPACKING AND INSTALLATION....................6
UNPACKING..............................................................................................6
INSTALLATION........................................................................................6
DECIDING HOW TO INSTALL THE SYSTEM.................................7
.Mounted to 19-inch standard rack................................................8
.Installing Media Converter............................................................9
.Connecting to Power (Power Supply).......................................10
.Installing and Removing the Power Supply.............................11
UNDERSTANDING LED INDICATORS.........12
FRONT PANEL........................................................................................12
POWER AND FAN LED ......................................................................12
TECHNICAL SPECIFICATIONS............................13
ORDERING INFORMATION......................................15
1. 100TX ~ 100FX MEDIA CONVERTER............................15
2. 10/100TX ~ 100FX MEDIA CONVERTER.....................16
ii
3. 1000T ~ 1000SX/LX MEDIA CONVERTER..................17
4. 100FX ~ 100FX MEDIA CONVERTER............................17
5. 1000SX ~ 1000LX MEDIA CONVERTER.......................18
1000LX ~ 1000LX MEDIA CONVERTER ......................18
6. POWER SUPPLY..........................................................................18
7. CPU MODULE............................................................................18
3
PREFACE
This manual describes how to install and use the 19” Media Converter
Chassis System. The system introduced here is capable of housing up
to sixteen media converters, each of which offers one channel media
conversion solution.
Below is a list of the available media conversions:
100BASE-TX ? 100BASE-FX
10/100BASE-TX ? 100BASE-FX
100BASE-FX ? 100BASE-FX (multi-mode ? single-mode)
1000BASE-T? 1000BASE-SX/LX
1000BASE-SX ? 1000BASE-LX (multi-mode ? single-mode)
In this manual, you will find:
?? Introduction of the Chassis System
?? Product features
?? Illustrative LEDs functions
?? Installation instructions
?? Specifications
?? Ordering Information
The chassis shown in the figures of this manual is fitted with
redundant power supplies. The chassis comes with only one power
supply. Youcan order the proprietary media converters and a second
power supply separately.
Attention!
4

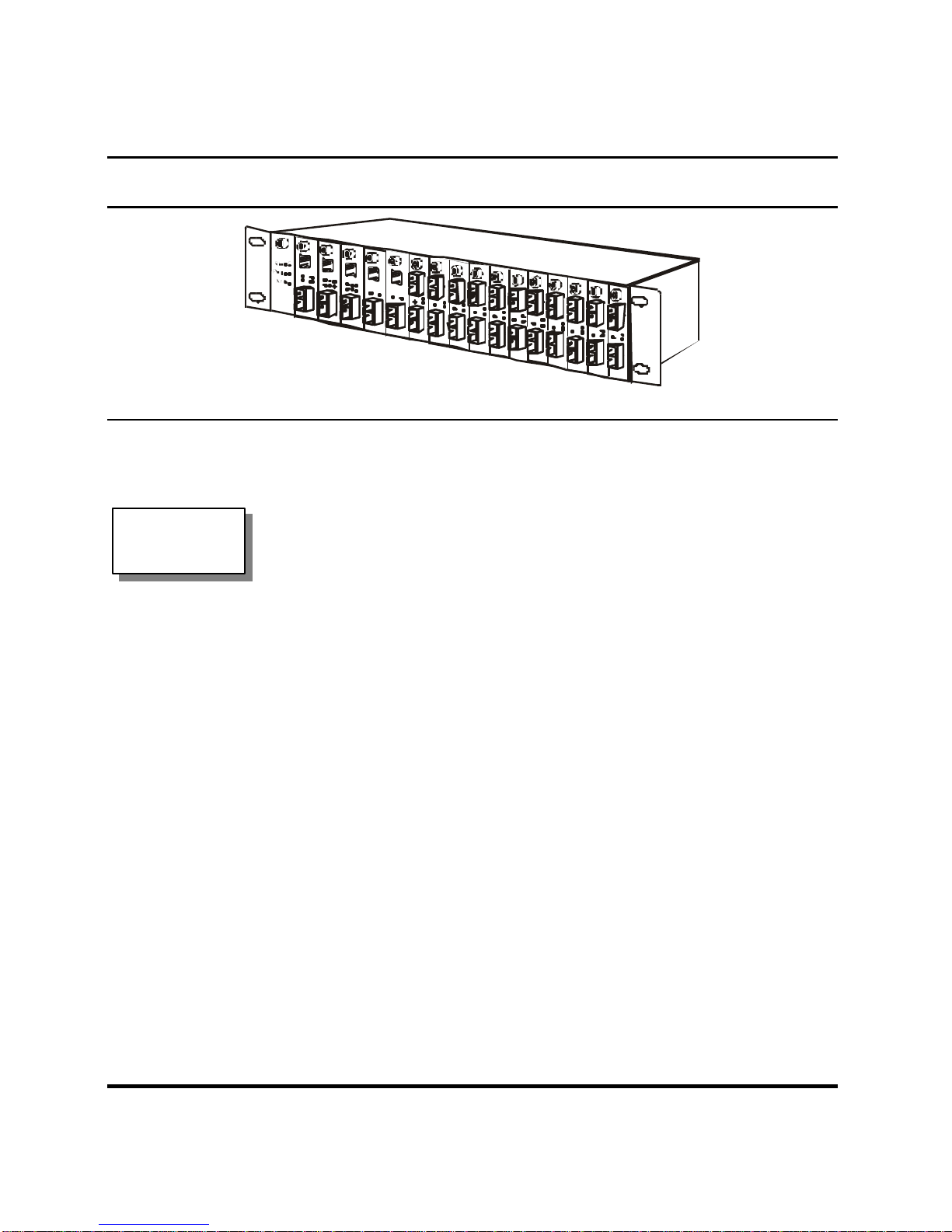

19” Media Converter Chassis System
The chassis can be equipped with two power supplies and sixteen media
converters.
The chassis systemships with only one power supply.
Proprietary media converters and a second power
supply are not included!
Attention!
5
PRODUCT FEATURES
This chapter describes the features of the Media Converter Chassis
System.
Product Features
?? Plug-and-Play
?? Houses up to Sixteen media converters
?? Front panel LEDs for bay and fan power status
?? Standard 19” rackmountable size, 2 Unit Height (2U)
?? Non-stop operation & minimal downtime
?? The following items are designed to be “hot swappable” to allow
quick replacement with no downtime:
-Media converters
-Redundant Power supplies
?? Cooling fan comes with power supply
?? Power redundancy & power isolation
?? One high quality internal power supply provided. Optional second
power supply can be purchased for load-sharing
?? Load sharing mechanism: If one power supply failed, the other
power supply is capable of taking over immediately
?? Media Converter Power Isolation; ensures the module bays are
electrically isolated from each other
6
UNPACKING AND INSTALLATION
This chapter provides unpacking and installation information for the
Chassis. To avoid causing any damage to the Chassis, we recommend
that you read this chapter carefully before starting installation.
Unpacking
When unpacking the product package, you shall find these items listed
below.
?? 19” Media Converter Chassis System
?? One power supply installed in the chassis
?? One AC power cord
?? User’s Manual
?? Accessories: rack-mount screws (8 pcs.), rack-mountears(2pcs.),
rubber foot (4 pcs.)
If any item is found missing or damaged, please contact your local
reseller for replacement.
Installation
The site where you place the chassis system may greatly affect its
performance. When installing, take the following into your
consideration:
