TRENDnet TFM-561U Manuale utente

- 1 -

Table of Contents

Package Contents..............................................................................................................................2

Comprehensive Modem Installation Instructions...............................................................................2

Modem Installation.......................................................................................................................2

System Setup....................................................................................................................................4

Setup instructions for Windows 7..................................................................................................4

Setup instructions for Vista ...........................................................................................................8

Setup instructions for Windows XP/2000....................................................................................12

Linux..........................................................................................................................................16

Communication Software............................................................................................................17

Limited Warranty............................................................................................................................18

- 2 -

Package Contents

TFM-561U

Multi-Language Quick Installation Guide

CD-ROM (Utility & User’s Guide)

One RJ-11 telephone cable

Please contact the local dealer if there any item missing.

Comprehensive Modem Installation Instructions

Modem Installation

This section will provide instructions for the installation of your modem. There are hardware

installation and system setup two parts for the modem. The modem hardware must be

installed into the computer correctly before you start the system setup.

Hardware Installation

1. Turn the computer on

2. Find an available USB 1.1/2.0 port of your computer

3. Plug the USB cable into computer’s USB port

4. Plug one end of telephone cable into the RJ-11 port of the modem. Plug another end of

the telephone cable into the telephone wall jack

5. The hardware installation is now completed

- 3 -

NOTE: The phone wall jack must be an ANALOG phone line (found in most of homes).

Many offices are equipped with digital phone lines. Please be sure that you know which

type of phone line you are using. The modem will be damaged if using a digital phone line.

LED Indicators

LINK:

Off: No connection to ISP(Internet Service Provider)

Solid(green): Connection to ISP(Internet Service Provider)

DATA:

Off: No data transmission

Blinking(green): Indicates there is data transmission

- 4 -

System Setup

Setup instructions for Windows 7

STEP 1. When the system was complete, windows will detect the modem automatically.

The system have auto install the modem for system default

STEP 2. Insert the included CD-ROM into computer’s CD-ROM drive.

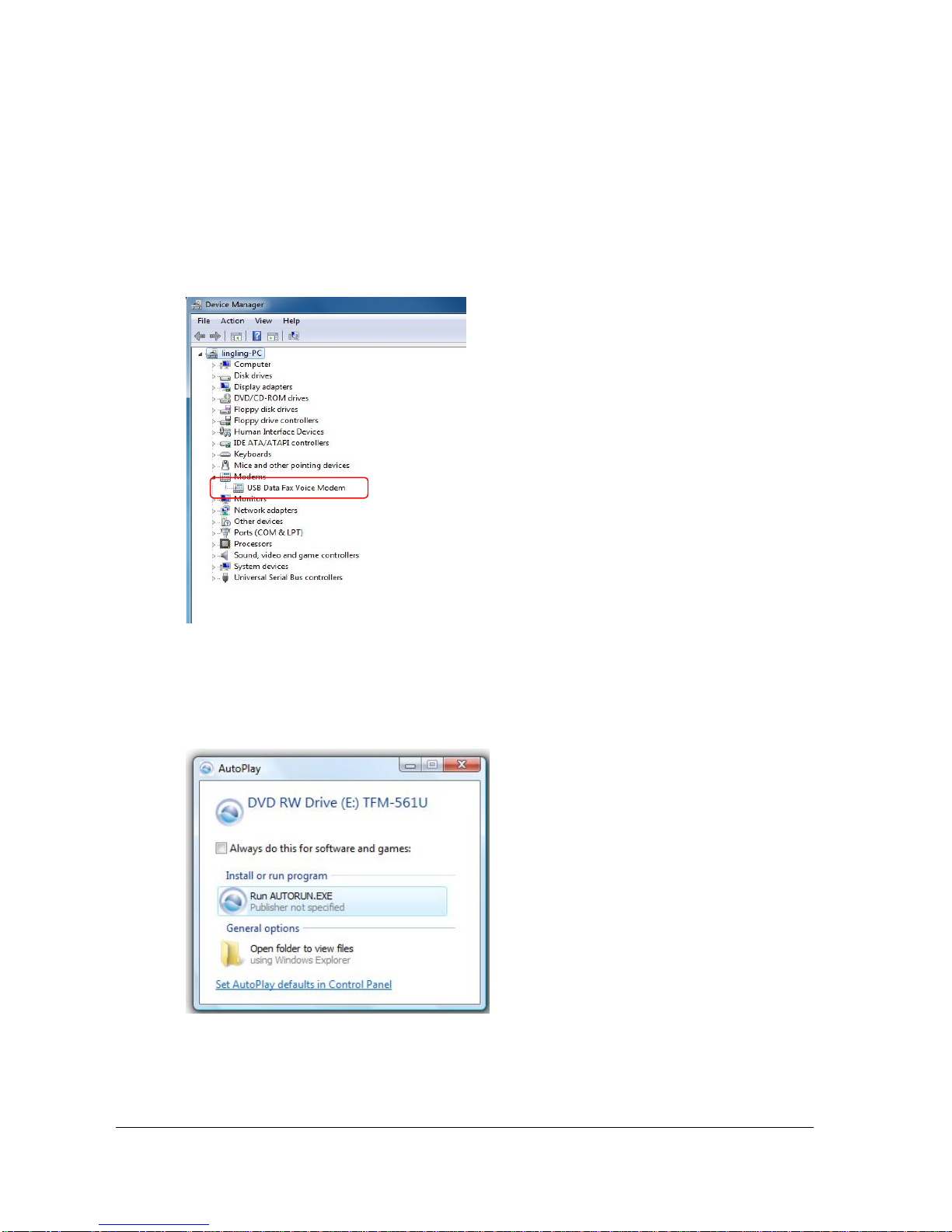

STEP 3. When Autoplay screen pop up, Click Run Autorun.exe

- 5 -

STEP 4: Click Install Driver, and then select the driver which suitable for your Operation

System.

STEP 5. Click OK to install the driver.

- 6 -

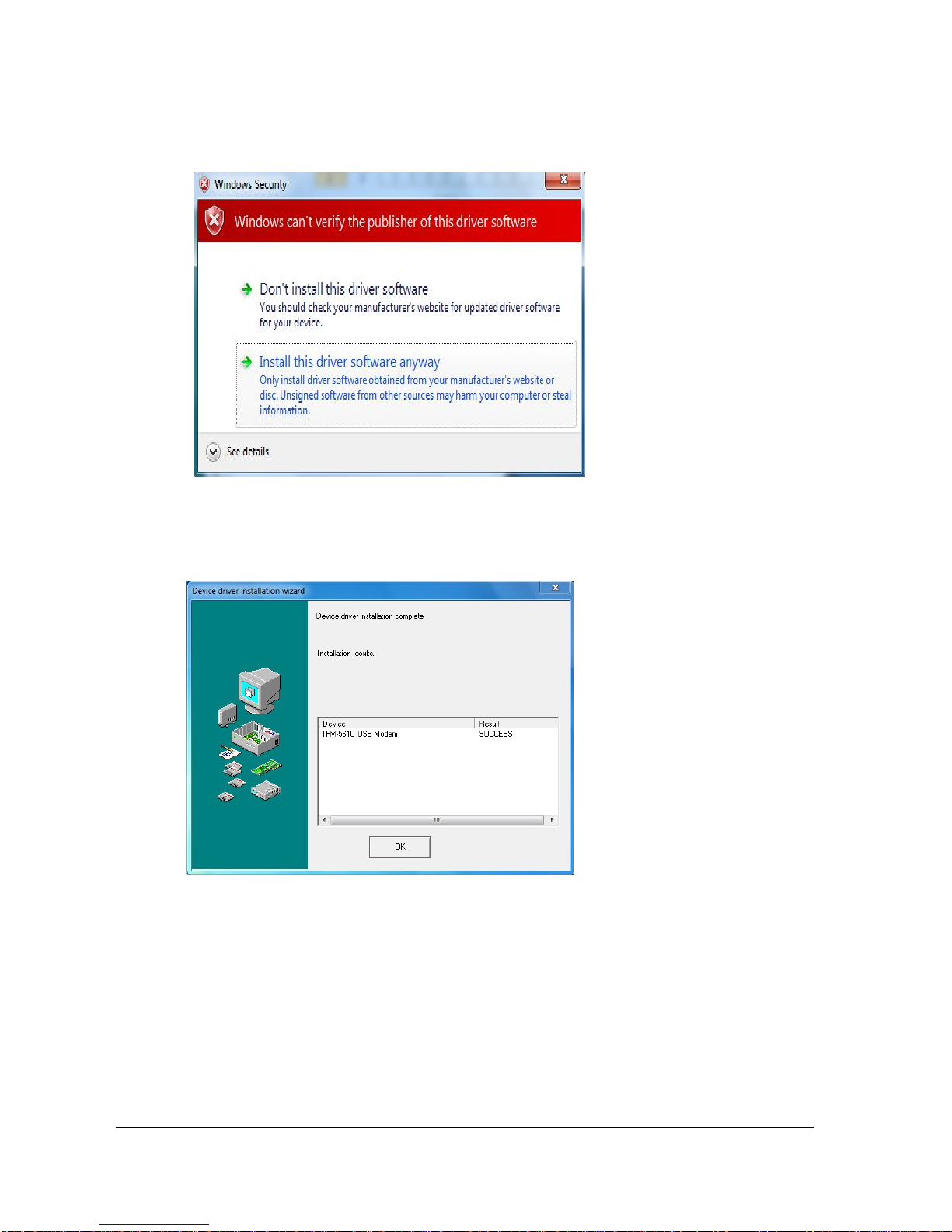

STEP 6. Click Install this driver software anyway

STEP 7. Click OK to finish the installation

STEP 8. To check your installation, go to Start > Setting > Control Panel > Double-click

on the Phone and Modem Options icon.

- 7 -

STEP 9. Verify if the modem TFM-561U USB Modem has been installed to your computer.

Click OK to exit.

- 8 -

Setup instructions for Vista

STEP 1. When the Found New Hardware Wizard appears, click Cancel

STEP 2. Insert the included CD-ROM into computer’s CD-ROM drive.

STEP 3. When Autoplay screen pop up, Click Run AUTORUN.EXE

STEP 4: Click Install Driver, and then select the driver which suitable for your Operation

System.

- 9 -

STEP 5. Click OK to install the driver.

STEP 6. Click Install this driver software anyway
