TFM-PCIV92A
Quick Installation Guide
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
5
2
6
1. Before You Start
2. How to Install .....................................................................................
3. Verify Installation ...............................................................................
................................................................................
Table of Contents
Version 02.21.2006
System Requirements
Application
TFM-PCIV92A
Driver CD-ROM
Quick Installation Guide
1 x RJ-11 Cable
Computer with an available PCI slot Version 2.2
CPU: Intel Pentium III Processor 260Mhz or above
Memory: 32MB or above
Hard Drive Space: 4MB or above
Windows 2003 server/XP/2000/ME/98(SE)
Package Content

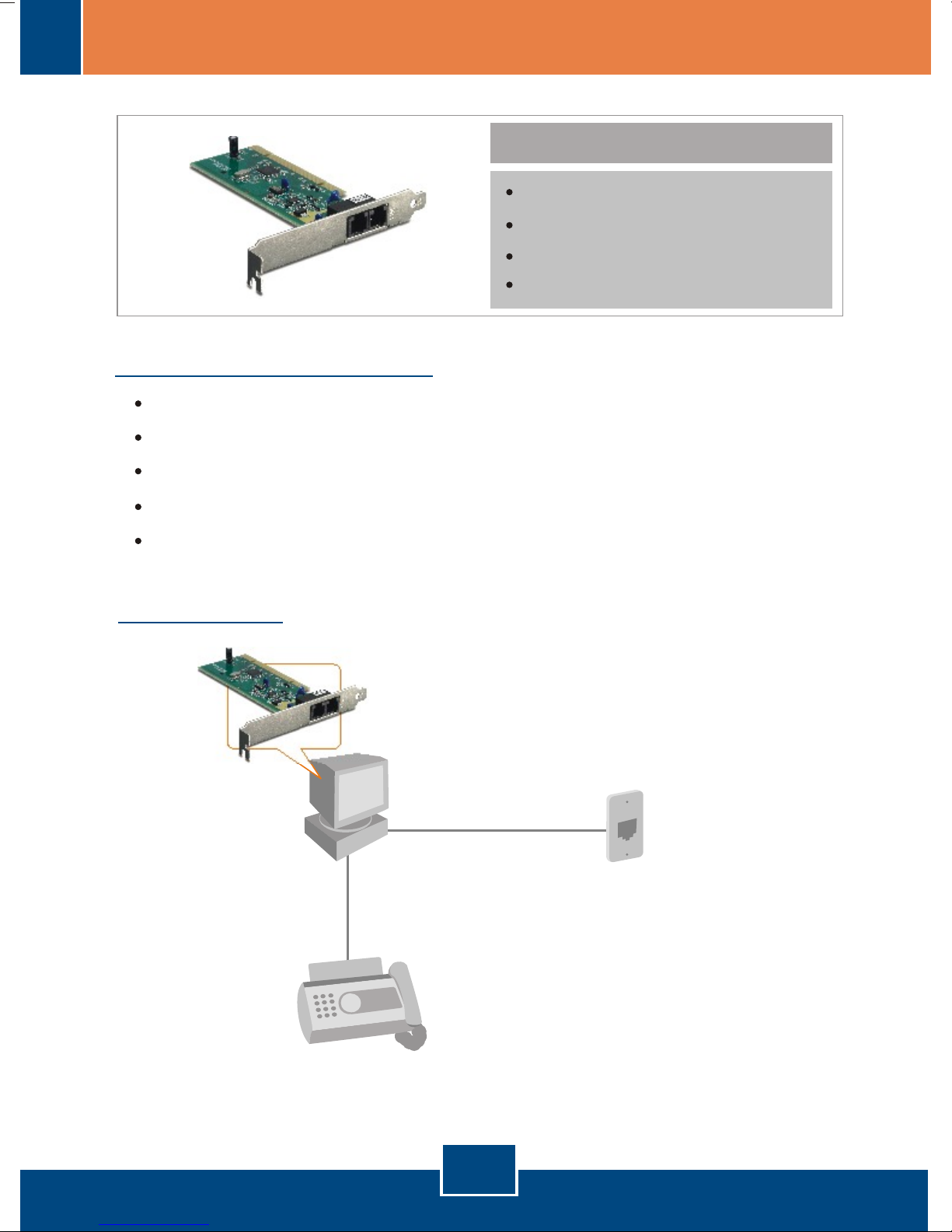

1. Before You Start
English
1
Phone Jack
Workstation with 56K High Speed
Internal PCI Data/Fax/Voice Modem
(TFM-PCIV92A)
Telephone or
Fax Machine
2. How to Install
English
2
1. After inserting the Driver CD-ROM,
the installation menu appears.
Click Install Modem driver.
2. Click Windows 2000 & XP.
3. Click OK.
4. The progress window appears.
Important! DO NOT install the TFM-PCIV92A in the computer until instructed
to do so.
Windows 2000/XP
English
3
5. After the progress window
disappears, close the installation
menu. Click X.
Note: You must leave the Driver CD-ROM in your computer's CD-ROM Drive
before following the instructions below. Please refer to your computer's user
manual regarding hardware installation.
6. Turn OFF computer and
peripherals, and then disconnect
all cables.
7. Open your computer's case.
8. Insert PCI Card firmly into free PCI
Card slot of desktop PC, replace
the computer's case, and then
reconnect your computer's cables.
English
4
9. Connect a telephone wire from the
modem's LINE port to a phone
jack.
10. Turn ON your computer and wait
until the Windows desktop
appears.
For detailed information regarding the TFM-PCIV92A configuration and
advanced settings, please refer to the User's Guide CD-ROM or TRENDnet's
website at www.trendnet.com.
The Installation for TFM-PCIV92A is Now complete.
English
5
3. Verify Installation
1. Right-click My Computer and click
Properties. Under the Hardware
tab, click Device Manager.
Windows 2000/XP
2. Expand the “Modems” heading to
verify that the Agere Systems PCI
Soft Modem has been installed
and that no question marks or
exclamation points are visible.
Q1:
A1:
Q2:
A2:
Q3:
A3.1:
A3.2:
A3.3:
I installed the modem into my computer's PCI Card slot and my computer does not
detect the modem. What should I do?
Make sure the computer meets the minimum system requirements and that the modem
is properly inserted in the PCI slot. You may also try installing the modem into a different PCI
slot.
Does the modem connect to the computer's sound card via an internal cable?
The TFM-PCIV92A does not require an internal audio/microphone cable.
After successful installation of the TFM-PCIV92A, I tried to connect to the Internet but I
do not get a dial tone. What should I do?
Unplug the telephone wire from the computer, and check for a dial tone by connecting
the telephone wire directly from the wall outlet to a telephone. If there is no dial tone, then
the problem is in your telephone wire or telephone system. Call your telephone service
provider for assistance. If there is a dial tone, reconnect the cables to the modem and verify
that the telephone cord is securely connected at the modem and phone jack.
The TFM-PCIV92A does not have an internal speaker. Make sure that your sound card
is properly installed and that your speakers are turned on. Also check that your sound card is
not set to mute.
If a PBX or other phone system is installed, check modem performance with a direct
line from your telephone company. Some PBX may cause the telephone line condition
change and effect modem performance.
If you still encounter problems or have any questions regarding the TFM-PCIV92A, please refer to
the User's Guide included on the Driver CD-ROM or contact Trendnet's Technical Support
Department.
6
Troubleshooting
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de
alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.
Copyright ©2006. All Rights Reserved. TRENDnet.
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com
TRENDnet Technical Support
US Canada
24/7 Tech Support
Toll Free Telephone: 1(866) 845-3673
Europe (Germany France Italy Spain Switzerland UK)
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
Worldwide
Telephone: +(31) (0) 20 504 05 35
Toll Free Telephone: +00800 60 76 76 67
.
. . . . .
20675 Manhattan Place
Torrance, CA 90501
USA
