Quick Installation Guide

Table of Contents

Version 11.07.05

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. How to Connect .................................................................................

3. Using the Print Server ........................................................................

.................................................................................

1. Before You Start

English

Quick Installation Guide

Utility CD-ROM

Power Adapter (5V, 2.5A)

100-P21

Package Content

System Requirements

1. Pentium 100Mhz or faster processor

2. 8MB RAM or more

3. Windows, Linux, Mac OS X, or other OS

Cable/DSL Modem

10/100Mbps Multi-Port Print Server

(TE100-P21)

Workstations with Fast Ethernet adapter

(TE100-PCIWN)

USB 2.0 Printer

Parallel

Printer

Cable/DSL 4-Port Broadband Router

(TW100-S4W1CA) Internet

2. Connect the RJ45 cable to the LAN port and

to your network hub or switch.

1. Connect a Parallel or USB printer to the printer

ports.

3. Plug the AC power adapter into the Print

Server.

2. How to Connect

English

Note: Please power off all printers before connecting them to the print server.

Then turn on each printer after you make your hardware connections.

English

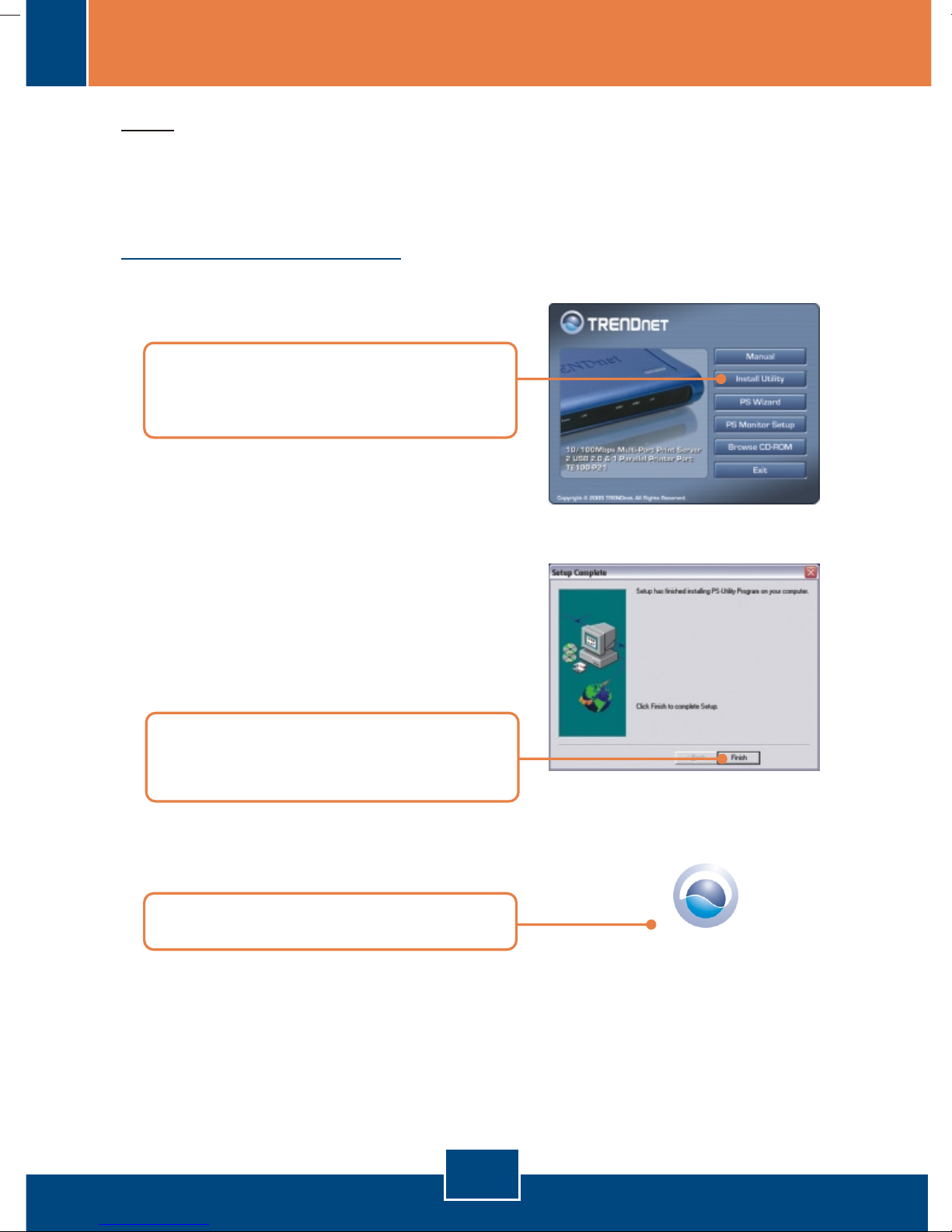

1. After inserting the installation CD,

click Install Utility.

2. Go through each installation step

and click Finish.

3. Using the Print Server

Note: For MAC Users, change your computer’s IP address to 192.168.0.X

(where X is an available number from 2-254), and enter 192.168.0.1 in your

web browser to access the Print Server's Web Utility.

For Windows Users

3. Double-click the PS-Utility icon.

PS-Utility

V3.00

6. Click Show Web Setup on PS-

Utility. Take note and write down

the Server Name and the Printer

Name.

5. Select Manually Assign and type

in an IP Address that matches

your current network segment.

Click OK. Another pop-up window

will appear to confirm the change.

Click OK.

4. Click Change IP Address.

English

Note: If you are using Windows 95/98(SE)/ME, then make sure that NETBEUI

is installed before you follow the instructions below. If you are using Windows

2000/XP, then you can simply add your printer using the instructions below. For

TCP/IP Printing instructions, please consult the User's Guide on the CD-ROM

for details.

7. Go into Control Panel and double-

click Printers and Faxes. Click

Add Printer.

8. Click Next on the Add Printer

Wizard, and select the network

printer option. Click Next.

12. Select Yes and click Next. Click

Finish to complete the

installation.

11. Select the appropriate driver for

your printer and click Next.

10. Click OK.

English

Note: For more detail on advanced features, please consult the User's Guide.

Your installation is now complete.

9. Select Connect to this printer

and type in the server name and

the printer name in the following

format:

\\server_name\printer_name

Click Next.

Q1.

A1.

Q2.

A2.

Q3.

A3.

Q4.

A4.

Q5.

A5.

I cannot add a network printer after I typed the server name and

printer name.

Please double check your hardware connections. Make sure that

your printer is connected properly to the print server and your power

adapter is connected properly to a power outlet.

I have double checked my hardware connections and have verified

that everything is connected properly, but I still cannot connect to my

printer after I typed in the server name and printer name.

Make sure that you are typing the correct printer name. If your USB

printer is connected to the USB2 slot, then use the Printer Name that

is by the USB2 heading in the web configuration utility. The following

examples will give you a better idea of how the print server maps

each physical port with a logical name:

LPT port = \\PS-567787\PS-567787-LP1

USB1 port = \\PS-567787\PS-567787-U1

USB2 port = \\PS-567787\PS-567787-U2

I verified that the hardware installation is correct and typed the

correct printer name, but I still cannot find the network printer.

Make sure that the server name and printer name is entered correctly.

There should be no spaces, and the back slashes that separate the

server name and printer name should be this “\\”, instead of this ”//”.

I typed in the server name and printer name correctly and

successfully installed the network printer. But I can't print a test page.

Make sure that the printer is online by turning the printer on. Make

sure the power adapter of your printer is properly connected to a

power outlet.

I successfully added a network printer to my computer, and my

printer is receiving power. I can also print a test page, but I cannot print

anything from Microsoft Word or other applications.

Make sure to set the newly installed network printer to your default

printer.

Troubleshooting

Q6.

A6.

Q7.

A7.

I configured my print server to automatically receive an IP Address

from a DHCP server, and now I cannot go into the print server's web

utility.

Press the Reset button at the back of the TE100-P21, hold the button

for 15 seconds, release the button, and enter http://192.168.0.1 in a

web browser to access the web utility feature.

I pressed the reset button and held it for 15 seconds. I also typed in

http://192.168.0.1 in a web browser, but I still cannot access my print

server.

Make sure to change your local IP address to 192.168.0.xxx where

xxx is an available number between 2 to 254. You can also use the

PS-Utility to locate the print server's IP address, or enable UPnP.

If you have any questions regarding the print server, please contact TRENDnet

Technical Support Department.
