1. Before You Start
English
1
Package Contents
System Requirements
Note:
1. Do not perform the following unless instructed to do so:
1. Install the utility
2. Connect printer to Print Server
3. Connect computer to Print Server
2. The utility must be installed on each computer in order to use your multi-
function printer.
?T
?Utility CD-ROM
?Multi-Language Quick Installation
Guide
?P
E100-MP1UN
ower Adapter (5V, 2A)
?
?CPU: 300Mhz or above/ 800Mhz or above (Windows Vista)
?Memory: 256MB RAM or above/ 512MB RAM or above (Window Vista)
?Windows 2000/XP/2003 Server/Vista (32bit)
CD-ROM Drive
Application
Cable/DSL
Modem

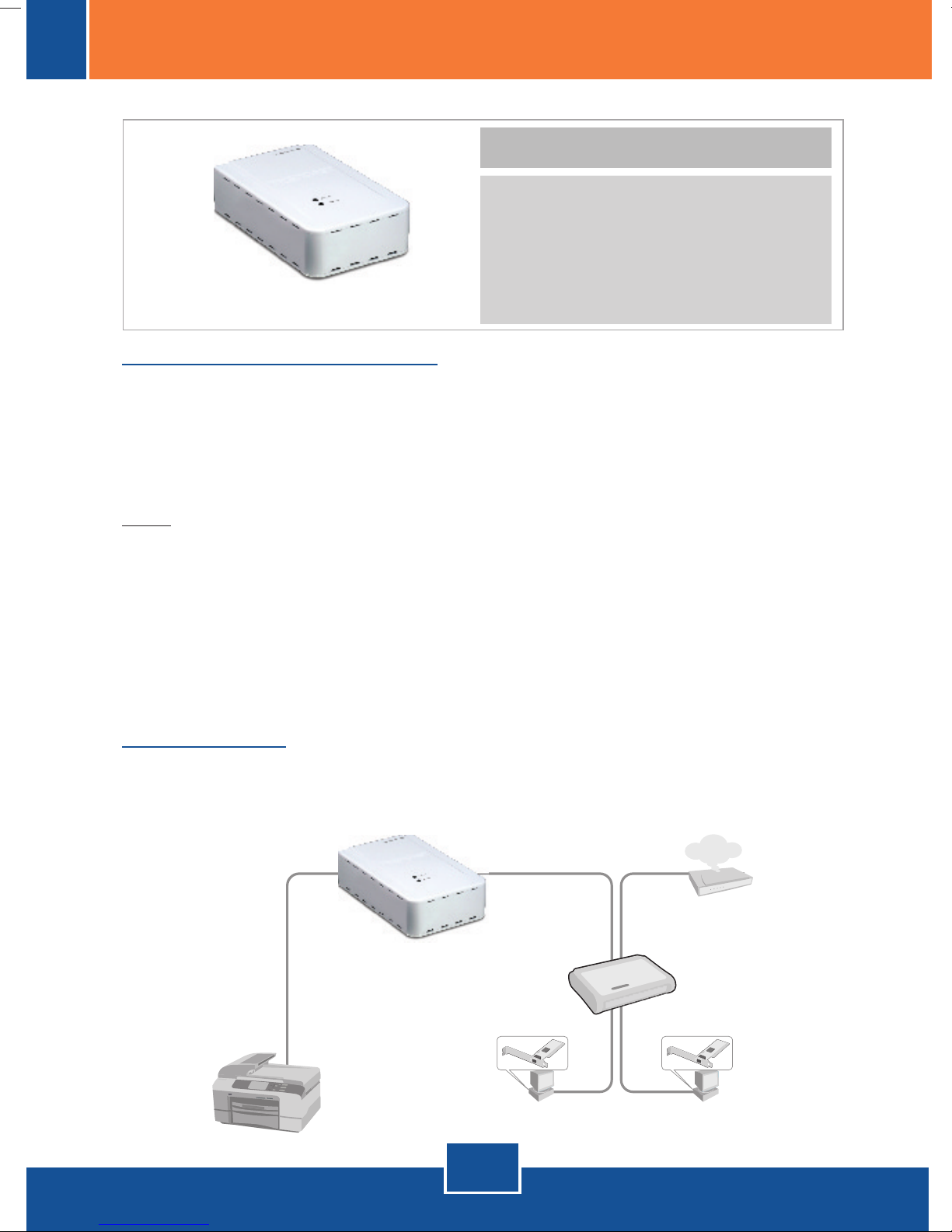

1-Port Multi-Function Print Server
(TE100-MP1UN)
Workstations with Fast Ethernet Adapter
(TE100-PCIWN)
Multi-Functional
USB 2.0 Printer
4-Port Gigabit Firewall Router
(TWG-BRF114)
Internet
2. How to install
Note: Please refer to your printer's manual for printer installation instructions.
1. Install the printer drivers to your
computer. Then power down the
printer and disconnect the printer
from your computer.
2. Insert the Utility CD-ROM into your
CD-ROM drive.
4. Click Install Utility. Then click
Setup Wizard.
English
2
3. Click Run Autorun.exe (Windows
Vista only).
5. Connect the USB Printer to the
USB port on the Print Server.
Then click OK.
6. Connect a RJ-45 network cable
from a Switch/Router to the LAN
port of the Print Server.
7. Connect a RJ-45 network cable
from a Switch/Router to the
Ethernet port on your computer
and then click OK.
English
3
9. Connect the AC Power Adapter to
the Print Server and then to a
power outlet. Then click OK.
10. Verify the Status LED is on and
the Error LED if off on the Print
Server. Then click Yes.
8. Power ON your printer and then
click OK.
English
4
11. Select the print server and then
click Next.
12. Configure the IP address of the
print server to be in the same
subnet as your network and then
click Next.
13. Copy down the IP address and
then click Next.
14. Click Finish.
English
5
17. Click Finish.
18. Click on Resource and then click
Connect.
15. Click Yes.
16. Click Next and then follow the
InstallShield Wizard instructions.
English
6
19. The printer driver wizard appears.
Follow the printer driver wizard to
install the printer.
20. Click OK.
Print Server configuration is now complete.
For detailed information regarding the TE100-MP1UN configuration and
advanced settings, please refer to the User's Guide on the Utility CD-ROM or
TRENDnet's website at www.trendnet.com
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.TRENDnet.com/register
Thank you for choosing TRENDnet
English
7
3. Printing
Note: Only one user can use the print server at a time. Once a user has
finished using the print server, another user can use it.
2. Status will now show the client
computer and IP address that is
currently using the printer.
3. User can now start printing.

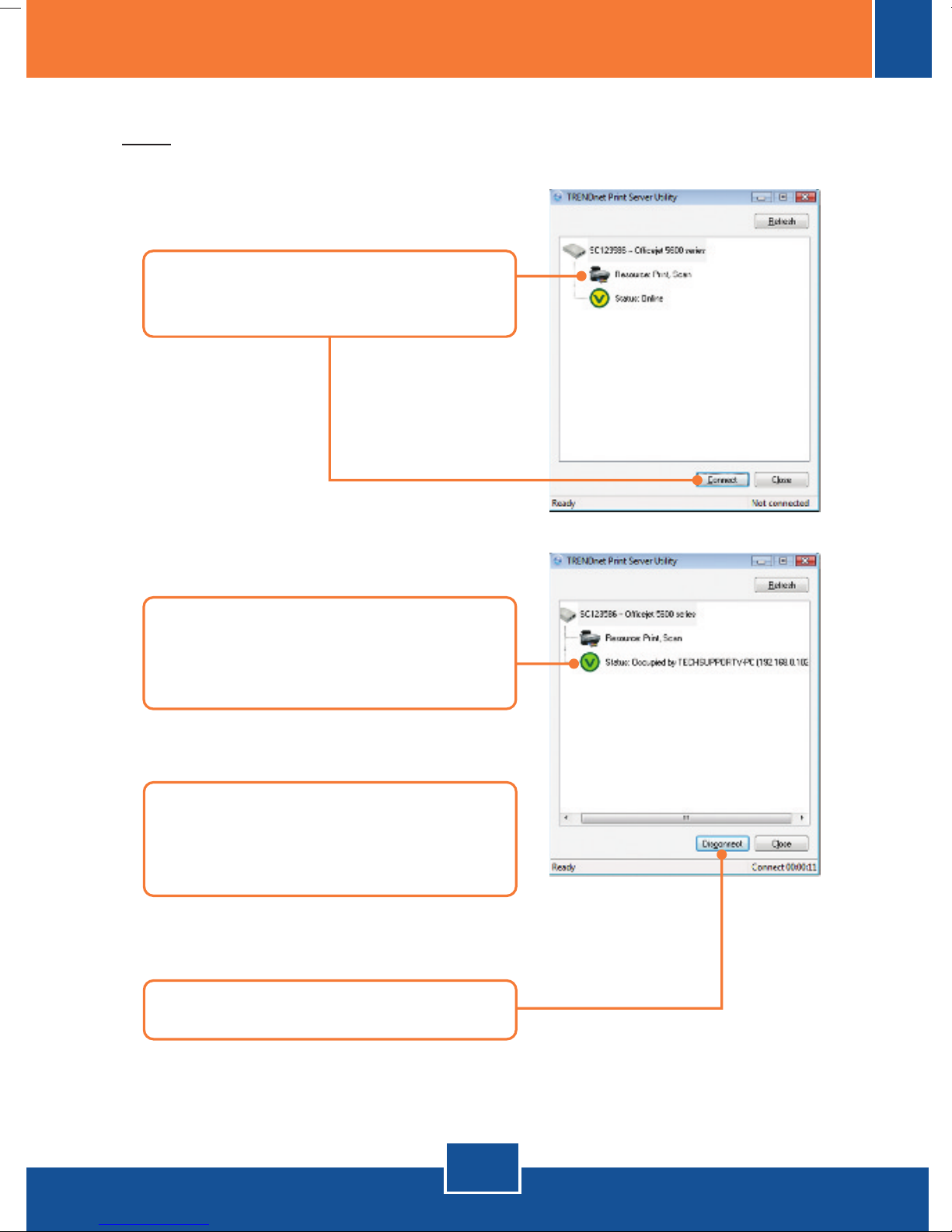

1. Click on Resource and then click
Connect.
4. Click Disconnect.
English
8
4. Faxing
Note: Only one user can use the print server at a time. Once a user has
finished using the print server, another user can use it.
2. Status will now show the client
computer and IP address that is
currently using the printer.
1. Click on Resource and then click
Connect.
3. User can now start Faxing. Follow
the Multifunction printer software
instructions for faxing.
4. Click Disconnect.
