TRENDnet TE100-S24V Manuale utente

TE100-S24V

24-Port 10/100Mbps

Fast Ethernet

Smart Switch

User’s Guide

FCC Warning

This equipment has been tested and found to comply with the

regulations for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with this user’s guide, may

cause harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the

interference at his/her own expense.

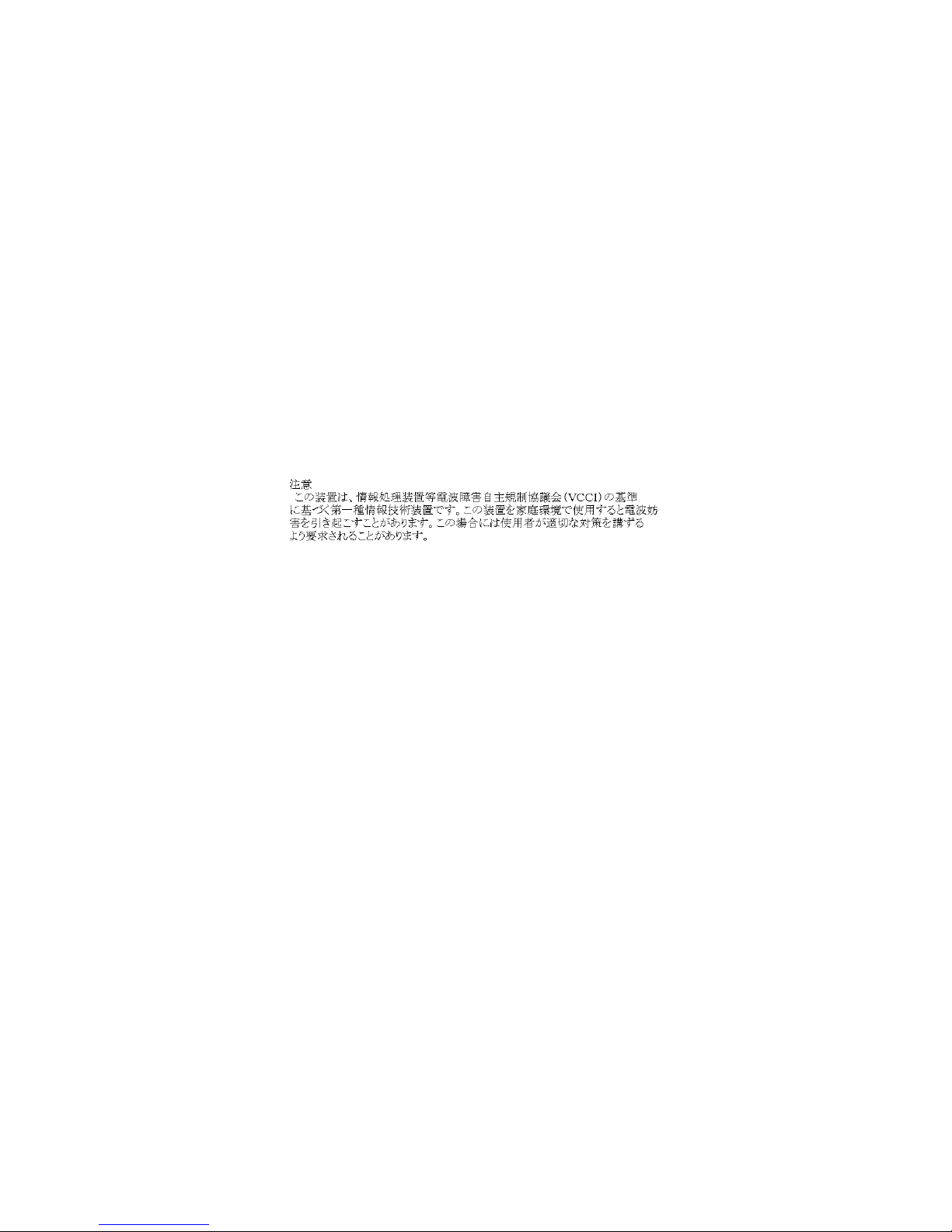

VCCI Warning

This is a product of VCCI Class A Compliance.

CE Mark Warning

This is a Class A product. In a domestic environment, this

product may cause radio interference, in which case the user may

be required to take adequate measures.

UL Warning

a) Elevated Operating Ambient Temperature- If installed in a

closed or multi-unit rack assembly, the operating ambient

temperature of the rack environment may be greater than room

ambient. Therefore, consideration should be given to installing

the equipment in an environment compatible with the

manufacturer's maximum rated ambient temperature (Tmra).

b) Reduced Air Flow- Installation of the equipment in a rack

should be such that the amount of air flow required for safe

operation of the equipment is not compromised.

c) Mechanical Loading- Mounting of the equipment in the rack

should be such that a hazardous condition is not achieved due to

uneven mechanical loading.

d) Circuit Overloading- Consideration should be given to the

connection of the equipment to the supply circuit and the effect

that overloading of circuits might have on over current protection

and supply wiring. Appropriate consideration of equipment

nameplate ratings should be used when addressing this concern.

e) Reliable Earthing- Reliable earthing of rack-mounted

equipment should be maintained. Particular attention should be

given to supply connections other than direct connections to the

branch circuit (e.g., use of power strips).

TABLE OF CONTENTS

ABOUT THIS GUIDE..............................................................1

PURPOSE...................................................................................1

TERMS/USAGE ..........................................................................1

INTRODUCTION.....................................................................3

FAST ETHERNET TECHNOLOGY .................................................3

SWITCHING TECHNOLOGY.........................................................4

VLAN (VIRTUAL LOCAL AREA NETWORK) ..............................4

FEATURES.................................................................................6

UNPACKING AND INSTALLATION ...................................7

UNPACKING ..............................................................................7

INSTALLATION ..........................................................................7

RACK MOUNTING .....................................................................8

CONNECTING NETWORK CABLE ................................................9

AC POWER .............................................................................10

IDENTIFYING EXTERNAL COMPONENTS ...................10

FRONT PANEL .........................................................................10

REAR PANEL...........................................................................11

UNDERSTANDING LED INDICATORS ............................12

POWER AND SYSTEM LEDS.....................................................12

PORTS 1~24 STATUS LEDS.....................................................12

FIBER MODULE LEDS.............................................................13

CONFIGURATION................................................................14

CONSOLE PORT (RS-232 DCE) ..............................................14

CONFIGURING THE SWITCH .....................................................14

MAIN MENU ...........................................................................17

CONFIGURING SETUP SETTINGS ..............................................17

CONFIGURING SYSTEM SETTING .............................................22

CONFIGURING FILE SETTING ..................................................23

STATISTICS .............................................................................25

TECHNICAL SPECIFICATIONS........................................27

ABOUT THIS GUIDE

Congratulations on your purchase of the 24-Port 10/100Mbps

Fast Ethernet Smart Switch. This device integrates 100Mbps Fast

Ethernet and 10Mbps Ethernet network capabilities in a highly

flexible package.

Purpose

This guide discusses how to install your 24-Port 10/100Mbps

Fast Ethernet Smart Switch.

Terms/Usage

In this guide, the term “Switch” (first letter upper case) refers to

your 24-Port 10/100Mbps Fast Ethernet Smart Switch, and

“switch” (first letter lower case) refers to other Ethernet

switches.

INTRODUCTION

This chapter describes the features of the 24-Port 10/100Mbps

Fast Ethernet Smart Switch and some background information

about Ethernet/Fast Ethernet switching technology.

Fast Ethernet Technology

The growing importance of LANs and the increasing complexity

of desktop computing applications are fueling the need for high

performance networks. A number of high-speed LAN

technologies have been proposed to provide greater bandwidth

and improve client/server response times. Among them,

100BASE-T (Fast Ethernet) provides a non-disruptive, smooth

evolution from the current 10BASE-T technology. The non-

disruptive and smooth evolution nature, and the dominating

potential market base, virtually guarantee cost-effective and high

performance Fast Ethernet solutions.

100Mbps Fast Ethernet is a standard specified by the IEEE 802.3

LAN committee. It is an extension of the 10Mbps Ethernet

standard with the ability to transmit and receive data at 100Mbps,

while maintaining the CSMA/CD Ethernet protocol. Since the

100Mbps Fast Ethernet is compatible with all other 10Mbps

Ethernet environments, it provides a straightforward upgrade and

takes advantage of the existing investment in hardware, software,

and personnel training.

Switching Technology

Another approach to pushing beyond the limits of Ethernet

technology is the development of switching technology. A switch

bridges Ethernet packets at the MAC address level of the

Ethernet protocol transmitting among connected Ethernet or Fast

Ethernet LAN segments.

Switching is a cost-effective way of increasing the total network

capacity available to users on a local area network. A switch

increases capacity and decreases network loading by dividing a

local area network into different segments, which don’t compete

with each other for network transmission capacity.

The switch acts as a high-speed selective bridge between the

individual segments. The switch, without interfering with any

other segments, automatically forwards traffic that needs to go

from one segment to another. By doing this the total network

capacity is multiplied, while still maintaining the same network

cabling and adapter cards.

Switching LAN technology is a marked improvement over the

previous generation of network bridges, which were

characterized by higher latencies. Routers have also been used to

segment local area networks, but the cost of a router, the setup

and maintenance required make routers relatively impractical.

Today switches are an ideal solution to most kinds of local area

network congestion problems.

VLAN (Virtual Local Area Network)

A VLAN is a group of end-stations that are not constrained by

their physical location and can communicate as if a common
