TRENDnet TK-204UK - DVI USB KVM Switch Manuale utente
TK-204UK
H/W: V1.0R
Quick Installation Guide

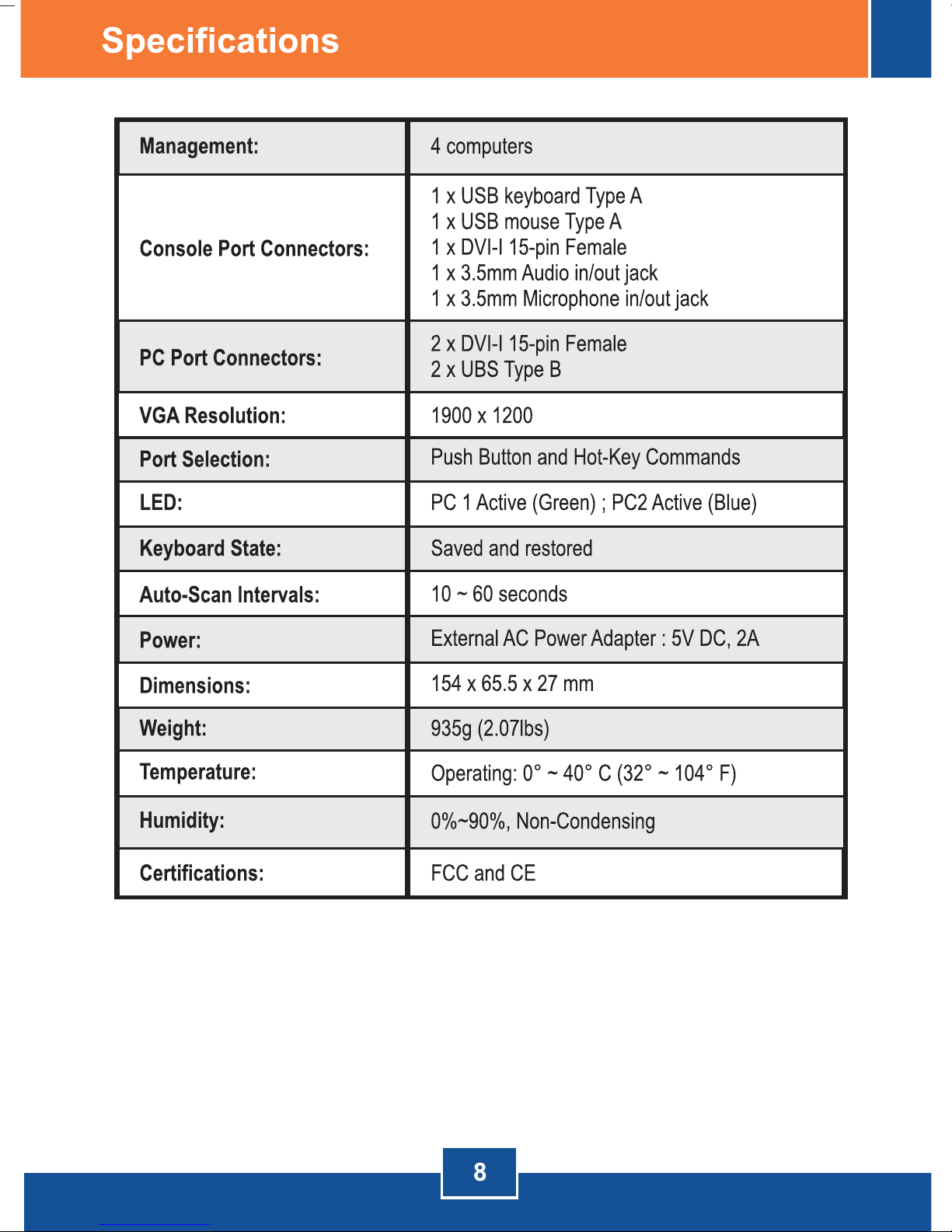

Specifications ............................................................................................
Troubleshooting .........................................................................................
English .....................................................................................................
1. Before You Start
2. How to Install .....................................................................................
3. Operation ...........................................................................................
4. Using the KVM Utility ..........................................................................
................................................................................
1
1
2
4
5
8
9
System Requirements
?TK-204UK
?Utility and User Guide CD-ROM
?Quick Installation Guide
?AC Power Adapter (5V DC, 2A)
?2 sets of DVI Audio KVM Cables
?2 sets of Type A to Type B USB
Cables
Package Contents
Application
?USB Keyboard
?USB Mouse
?DVI Monitor
?PC with DVI port
?Speakers (optional)
?Microphone (optional)
?Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux, Mac.
English
1
1. Before You Start
PC 1 PC 2
2-Port DVI USB KVM Switch
with Audio Kit
(TK-204UK)
Monitor USB
Keyboard
USB
Mouse
Microphone
Speakers
KVM USB DVI
2. How to Install
English
1. Turn OFF all computers.
2. Connect the shared USB
keyboard, DVI monitor, USB
mouse, speakers (optional) and
microphone (optional) to the KVM
switch's Console Port.
To KVM
To Computer
3. Use the KVM and USB cables to
connect your PCs to the KVM
Switch.
2
English
3
Your installation is now complete.
5. Turn ON the connected computers
one-by-one and wait until each
computer's desktop appears.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
4. Connect the included AC Power
Adapter to the KVM switch and
then to a power outlet.
English
4
3. Operation
Note: To switch between computers, you can use the face-panel buttons of the
KVM Switch, a hot-key command sequence via keyboard, or the Client
Software Utility (Windows only).
Push Buttons
Press the push buttons to switch
between computers.
Hot-Key Commands
After pressing the ScrLk key, you have 2 seconds to press the ScrLk key again.
You then have another 2 seconds to press a command key. A beep confirms
that the KVM switch is in "Hot-Key" mode. If you do not press a key within 2
seconds, the switch will exit hot-key mode.
To switch between computers, press:
User Definable Hot Key Command
When using the below command, you must press on all the keys
simultaneously.
Y represents any symbol as defined in the KVM Utility program. By default, Y =
1 for port 1 and Y = 2 for port 2. For information on using the KVM Utility
program, see section 4 Using the KVM Utility.
LED Indicators
Green LED light: Computer 1
Blue LED light: Computer 2
English
5
4. Using the KVM Utility
For Windows Users
4. Double click on the KVM Utility
icon.
3. Click Finish.
1. Click Utility Install.
2. Click Next. Then follow the Setup
Wizard instructions.
English
6
5. If you would like to modify the hot
key, type in a character. You can
enter any number, letter or symbol.
Control keys such as Alt, Ctrl, Shift,
CAPS LOCK, Tab, Esc, and Num
Lock and function keys can not be
used.
Example: CTRL + ALT + A.
6. Click on the check box for Fix
Audio to a port and then select the
port from the dropdown list.
7. Select a desired Auto Scan period
(10~60). Options are in
increments of 5 seconds.
8. Once you made all desired
changes, then click OK.
9. Right click on the KVM utility icon
in the system tray. If your
computer is connect to computer 1
port, you should see an icon with
the number 1. If your computer is
connected to computer 2, you
should see an icon with the
number 2.
English
7
10. Select the PC and you want to
switch to.
11. Click Start Auto-Scan to start
Auto-Scan. Right click the KVM
Utility icon and select
Stop Auto-Scan to stop Auto-
Scan.
