TRENDnet TEW-310APB Manuale del proprietario

Note

TEW

310APBX functions just like TEW

310APB and

the configuration procedures are the same as the TEW-

310APB. The only difference between the two models is the

TEW-310APBX comes with 2 detachable antennas. Below is

the antenna installation instruction.

Replacing the Antenna with High Gain Antenna

You can also replace one of the antennas with a higher gain

TRENDnet antenna (4dBi Indoor Omni Directional, 6dBi Indoor

Patch Directional, or 14dBi Outdoor Directional). At default,

both antennas are transmitting/receiving data. When installing

the high gain antenna, you can choose to install it on either the

left or right antenna position. After that, go to the Access

Point's configuration page, select "Advanced Settings", and at

the bottom of the page, select the desired antenna position.

Before You Begin

You can configure TEW-310APB with Web Browser or the included Windows Utility

(22M AP Utility).

It’s best to connect the TEW-310APB to an Ethernet Hub or Ethernet Switch and

then connect a computer (with an Ethernet adapter) to this Hub/Switch and perform

the configuration from the computer. The default IP address for the TEW-310APB is

192.168.1.1 with Subnet Mask 255.255.255.0. The DHCP Service is enabled and the

unit will distribute IP addresses to computers in the network that request IP addresses.

See the User’s Guide on the CD-ROM for detail information in setting IP address for

your network adapter.

If you already have a DHCP Server in the network (i.e., an Internet Router), please do

not connect TEW-310APB to the network, you must disable the TEW-310APB’s DHCP

service, enable its DHCP Client to request IP address, and the you can connect the TEW-

310APB to the network. To find out TEW-310APB’s IP address, you can simply run the

Windows 22M AP Utility software that is in the included CD-ROM.

If you have TEW-301PC or TEW-303PI wireless adapter installed in a computer, with the

default settings (ESSID: default), you will be able to connect and configure the TEW-

310APB (Note: you will still need to configure the TEW-301PC or TEW-303PI TCP/IP

settings to obtain IP address automatically).

Package Contents

This product can be set up using any current web browser, i.e., Internet

Explorer 5.x or above, Netscape Navigator 4.x or above.

• TEW

310A

PB/TEW

310APBX Wireless Access Point

• CD-ROM (containing Manual and Warranty)

• Quick Installation Guide

• Ethernet (CAT5 UTP/Straight Through) Cable

• 5V DC, 2A Power Adapter

Ifanyoftheaboveitemsaremissing,pleasecontactyourreseller.

TEW

310APB/TEW

310APBX

Wireless Access Point + Bridge

Quick User Installation Guide

Warning!

Using a power supply with a different voltage rating will damage and

void the warranty for this product.

Note

: TEW

310APBX

comes with two

detachable antennas.

1. Connecting The TEW-310APB Wireless

Access Point To Your Network

a. First, connect the power adapter to the receptor at the back of the

TEW-310APB and then plug the other end of the power adapter to an

electrical outlet. The Power LED will light, indicating the unit is

receiving power.

b. Using the Straight-Through Ethernet cable (included), insert one end

of the cable to the Ethernet port on the back of the TEW-310APB

and the other end of the cable to Ethernet Hub or Switch. The Link

LED on the TEW-310APB will illuminate to indicate a proper Ethernet

connection. Also, connect the computer that you will be using to

configure the TEW-310APB to the Hub or Switch; the Hub/Switch’s

LEDs will display Link for the TEW-310APB and the computer’s

connections. (Note: you can also connect the computer’s Ethernet

card directly to the TEW-310APB’s Ethernet port using a crossover

UTP RJ-45 cable (not included)).

c. Computers with 802.11b wireless adapters can connect to the TEW-

310APB. Simply set the wireless adapter to Infrastructure mode with

default as its ESSID and WEP (encryption) disabled. The TEW-

301PC Wireless CardBus Adapter and the

TEW-303PI Wireless

PCI Adapter will connect, out of the box

, with the TEW-310APB,

using their default wireless settings.

Ethernet Port

(RJ

45 port):

Supports 10/100Mbps. Use

Ethernet cable to connect

this port to another Ethernet

port on the Ethernet Hub,

Switch, or Internet Router.

Receptor for

Power Adapter

Diversity Antenna

Reset button:

Press this

button to reset all

configurations back to

factory default settings.

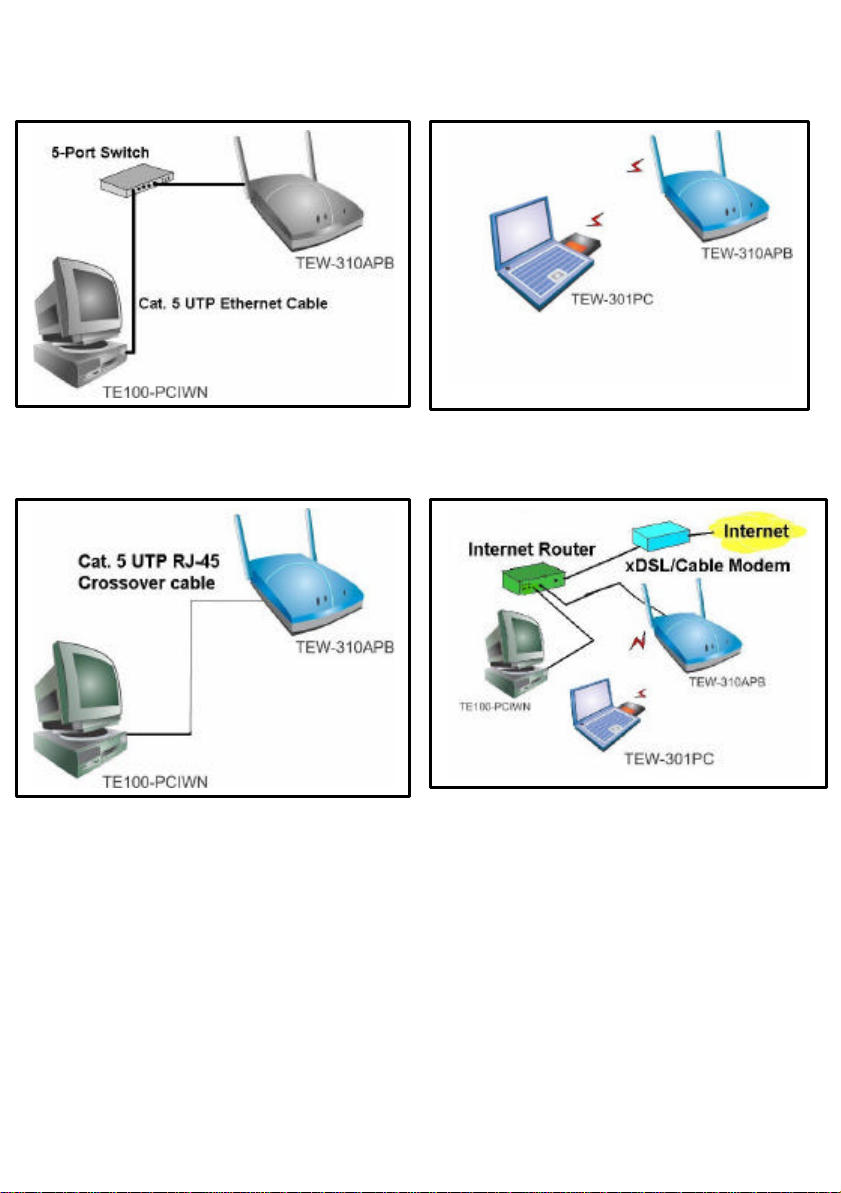

When you have completed the steps in the previous page, your

connected network should look similar to one of these:

* Configure with Ethernet networked

Computer via 5-Port Switch

*** Configure with Ethernet networked

Computer via Crossover UTP RJ-45 cable

** Configure with Computer with

Wireless Network Adapter

Application Diagram:

Internet sharing

using wireless Access Point

2. Configure Network Card’s IP Address

Click Internet Protocol (TCP/IP)

Click Properties

Please

follow the instructions below to

configure the computer’s network card’s

TCP/IP settings.

For Microsoft Windows XP

: From the

Desktop, right click on My Network Places>

select Properties > double-click on the

Network Connection

Select

Obtain an IP address

automatically

Select

Obtain DNS server

address automatically

Click OK

Obtain IP address Automatically

When you have a DHCP server (i.e. Router with

DHCP Server enabled) on the network

For Windows 2000:

From the Desktop, right click on My network

places and select Properties > Double-click on

the Local Area Connection associated

with the wireless adapter > select Properties.

Click Internet Protocol (TCP/IP)

Click Properties

Select

Obtain an IP address

automatically

Select

Obtain DNS server

address automatically

Click OK

Obtain IP address Automatically

When you have a DHCP server (i.e. Router with

DHCP Server enabled) on the network

Follow Windows prompt an

d restart the

computer.

For Windows Me and 98:

From the Desktop, right click on

Network Neighborhood > select Properties.

Click TCP/IP ?Network Adapter

Click Properties

Select

Obtain an IP address

automatically (if the Wireless

Router or Access Point has DHCP

server enabled)

Click OK

Obtain IP address Automatically

When you have a DHCP server (i.e. Router with

DHCP Server enabled) on the network

Follow Windows prompt to restart the

computer.

Click to check

Detect connection to

network media

For Macintosh OS:

After you have completed the

hardware

installation, power on all the equipments,

and then power on your Macintosh.

In the Finder, go to the Apple menu in

the upper left hand corner of the screen

and select System Preferences.

Select Network

Click on TCP/IP tab

At the Configure drop-down menu,

select Using DHCP

Click on Save

Open the web browser and go to address

http://192.168.1.1 (default setting) to

enter the configuration page.

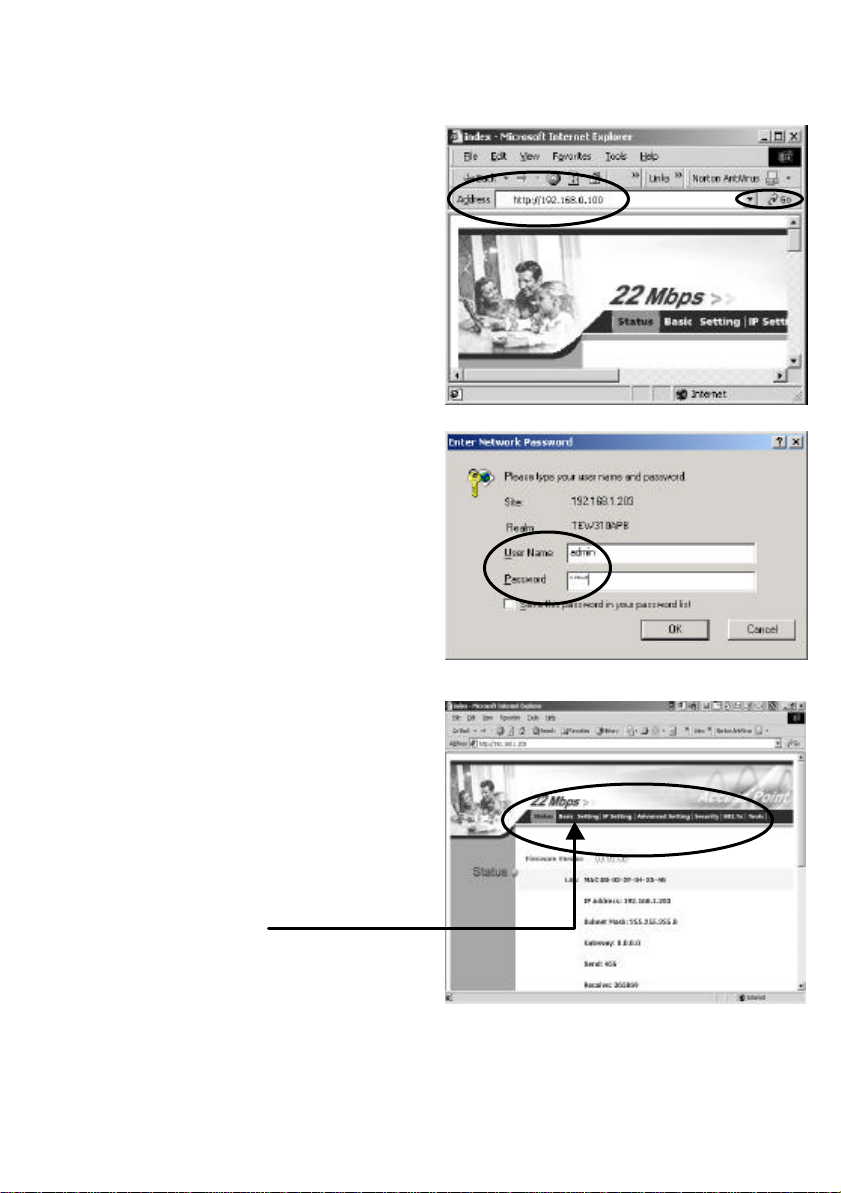

3. Configure TEW-310APB Using

Web Browser

Open your web browser, at the Address

box, type in http://192.168.1.1and press

Enter or click on Go.

Enter Network Password

windows,

in User Name box, type in admin, in

Password box, also type in admin and

click Ok.

You will see the

Status

screen with

menu bar.

The Status screen displays wired LAN

(Local Area Network) and Wireless

network configurations.

Click on

Basic Setting
