TRENDnet TEW-638APB Manuale utente

TEW-638APB

H/W: V1

Quick Installation Guide

Table of Contents

English ...................................................................................................... 1

1. Before You Start

2. Hardware Installation ..........................................................................

................................................................................

Table of Contents

Version 01.31.2009

Troubleshooting ........................................................................................ 8

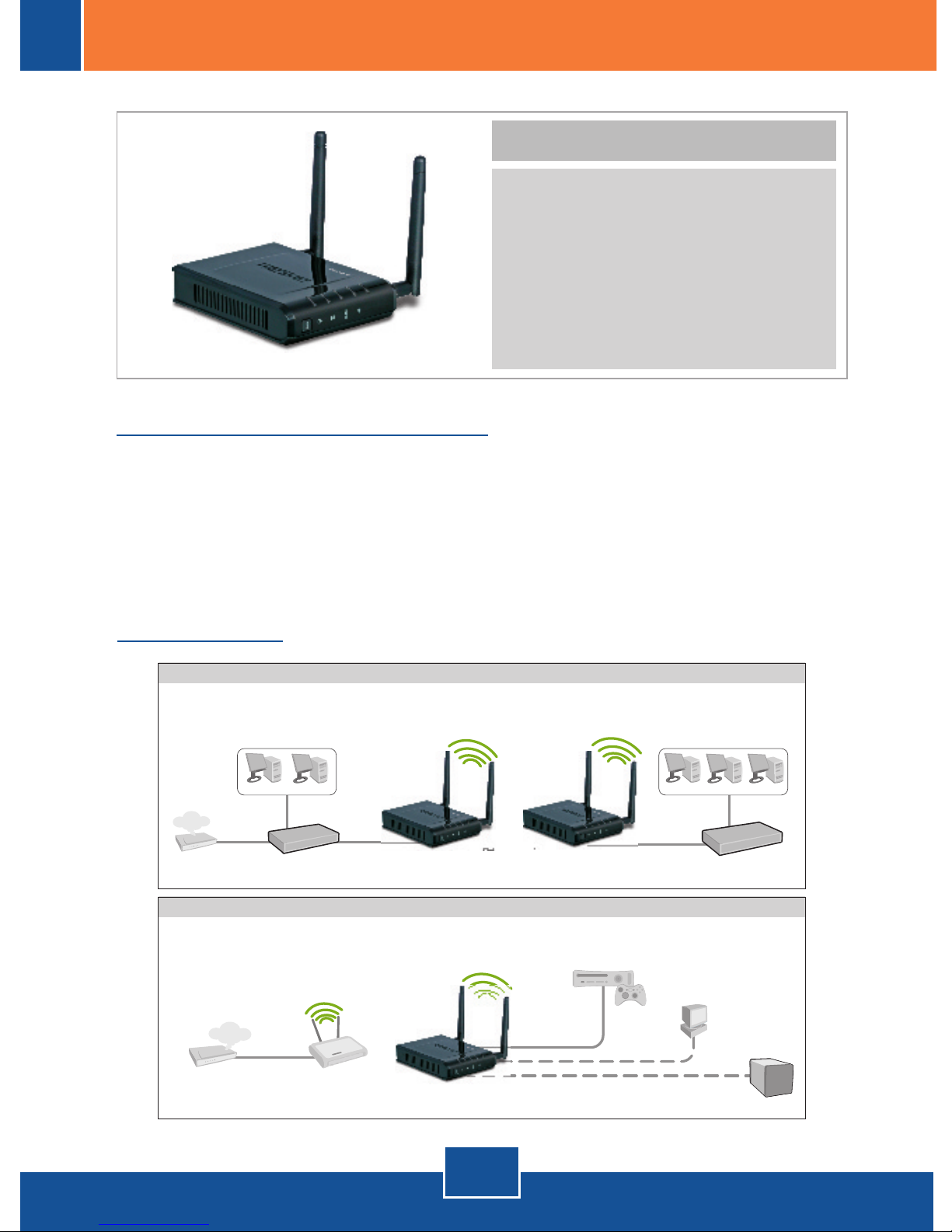

Installation Requirements

Application

Package Contents

1. Before You Start

English

TEW-638APB

User's Guide CD-ROM

Multi-Language Quick Installation

Guide

AC Power Adapter (12V DC, 1A)

1 RJ-45 cable

?A computer with a network adapter or wireless adapter properly installed.

?A router with an available network LAN port

?A RJ-45 network cable

Web Browser: Internet Explorer (6 or higher)

300Mbps Wireless N Access Point

(TEW-638APB)

Wireless N Router

Internet

AP Client

300Mbps Wireless N Access Point

(TEW-638APB)

4-Port Gigabit Firewall Router

(TWG-BRF114)

2-Bay SATA I/II Network

Storage Enclosure

(TS-S402)

Cable/DSL Modem

Workstation

Game Console

8-Port 10/100Mbps Switch

(TE100-S8)

Cable/DSL

Modem

Internet

Bridge Mode

LAN B

LAN A

Bridge Mode

AP Client Mode

2. Hardware Installation

English

For Windows Users

3. Click Setup Wizard.

1. Insert Driver CD-ROM.

2. Click Run Setup.exe (Windows

Vista only)

4. Click I accept the terms in the

License Agreement and then click

Next.

Note:

1: Locate an optimum location for the Access Point. The best place for the

Access Point is usually at the center of your wireless network.

2: Disable any anti-virus and firewall programs before starting hardware

installation.

English

6. Connect a RJ-45 cable from a LAN

port on your Router to the Ethernet

port on your computer.

5. Connect the provided RJ-45 cable

from a LAN port on your Router to

the LAN port on the TEW-638APB.

Then click Next.

7. Connect the AC Power Adapter to

the Access Point and then to a

power outlet and then click Next.

8. Select the TEW-638APB from the

list and then click Configure.

English

10. Select Access Point and then

click Next.

Note: For AP Client setup, please

refer to the User's Guide for step

by step instructions. The User's

Guide can be found on this

product's CD-ROM.

11. Select Dynamic IP Address

Configuration and then click

Configure.

9. Enter a password and then click

admin.

12. Select Manual setup and then

click Next.

English

16. Select the desired WPA mode,

enter characters for your Pre-

Shared key, keep Cipher Type as

TKIP and AES and then click

Next. For WPA-PSK or WPA2-

PSK, the Pre-Shared Key must

be between 8 and 63 ASCII or 64

HEX characters. Make sure to

copy down the Pre-Shared Key.

14. Select the desired Wireless

Mode and then click Next.

15. Select a Security Mode and then

click Next (example shows

WPA-PSK).

13. Enter a SSID and then click Next.

By default, the SSID is

TRENDnet638.

English

19. Click Confirm to apply the

settings.

18. Give the file a name, then click

Save (optional).

20. Click Exit.

17. Click Save (optional).

English

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Note: To connect a wireless computer to the TEW-638APB, refer to Question 1

in the Troubleshooting section.

Your configuration is now complete.

For detailed information regarding the TEW-638APB's configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

CD-ROM, or TRENDnet's website at http://www.trendnet.com.

21. Click Yes to exit.

Troubleshooting

Q1:

A1:

A2:

A3:

A4:

A5:

All the settings are correct, but I can not make a wireless connection to the Access

Point.

First, double check that the wireless LED on the Access Point is lit. Second, power cycle

the Access Point. Unplug the power to the Access Point. Wait 15 seconds, then plug the

power back in. Third, contact the manufacturer of your wireless network adapter. Make sure

the wireless network adapter is configured with the proper SSID. The default SSID of the

Access Point is TRENDnet638. If you have enabled any encryption on the Access Point,

make sure to configure the wireless network adapter with the same Pre-shared key.

: I am trying to connect additional wireless adapters, but I don't remember the encryption

(network) key. What should I do?

From a wired computer, log on to the access point configuration page. Click Wireless ->

Security. The encryption key will be listed here.

: I have a wireless adapter that supports WiFi Protected Setup (WPS) push button setup.

How do I setup WPS between the TEW-638APB and my wireless adapter?

First, press on the WPS button on the front of the TEW-638APB for 10 seconds.

Second, refer to your wireless adapters for instructions on setting up WPS.

: I followed the Quick Installation Guide and setup a new password. When I log in to the

browser configuration an access error message appears. What should I do?

The default user name is admin and the default password is admin. When you log in to

the browser configuration for the first time, make sure to enter admin for user name. Do not

leave the user name field blank.

: How do I configure AP mode on the TEW-638APB?

Please refer to the User Guide. The User Guide is on the Utility CD-ROM drive.

If you still encounter problems or have any questions regarding the TEW-638APB,

please contact TRENDnet's Technical Support Department.
