TRENDnet TEW-638APB Manuale utente

TRENDNET 1

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

zConsult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

The availability of some specific channels and/or operational frequency bands are country

dependent and are firmware programmed at the factory to match the intended destination.

The firmware setting is not accessible by the end user.

European Union Notice:

Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), the EMC

Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission

of the European Community.

Compliance with these directives implies conformity to the following European Norms:

zEN 60950 Product Safety

zEN 300 328 Technical requirement for radio equipment

zEN 301 489-1/-17 General EMC requirements for radio equipment

Trademark recognition

All product names used in this manual are the properties of their respective owners and are

acknowledged.

Table of Contents

Getting Started with the TEW-638APB.................................5

Package Contents .......................................................….5

Minimum System Requirements ..................................…5

Introduction............................................................................6

Features........................................................................…6

Hardware Overview ...............................................................7

Rear Panel.....................................................................…7

Front Panel....................................................................…8

Installation Considerations ...............................................8

Getting Started ............................................................….9

Access Point Mode…………………………………………..9

AP Client Mode………………………………………………17

Using the Configuration Menu..............................................29

Network........................................................................….30

Wireless........................................................................…32

Administrator....................................................................44

Glossary................................................................................48

Package Contents

zTEW-638APB wireless n (Draft) AP

zCAT-5 Ethernet Cable (the TEW-638APB’s Ethernet ports is Auto-MDIX)

zPower Adapter (12.0V, 1.0A)

zCD-ROM with Manual & Wizard

zQuick Installation Guide

Using a power supply with a different voltage than the one included with your product

will cause damage and void the warranty for this product.

Minimum System Requirements

Installation Requirements

•Web Browser: Internet Explorer (6 or higher) Mozilla or Safari.

•A computer with a network adapter or wireless adapter properly installed.

•CD-ROM drive

•A router with an available network LAN port.

•A RJ-45 network cable.

Introduction

The versatile 300Mbps Wireless N Access Point is designed to create a scalable high speed

wireless n network or to connect a wired device to an existing wireless network.

Use multiple 300Mbps Wireless N Access Points together to extend your network using

Wireless Distribution System (WDS), Wireless Bridge and AP Client Modes.

Expand a wireless network without running additional cabling with Wireless Distribution

Service (WDS) technology by connecting multiple access points wirelessly. Use Wireless

Bridge Mode to connect devices such as game consoles, printers and digital video recorders

(DVR) to your wireless network. Advanced antenna technology (MIMO) increases wireless

coverage and WPA / WPA2 encryption protects your wireless network.

Features

•Compact high performance wireless n access point

•Wireless Bridge mode for Ethernet-to-wireless bridging function

•Works as an access point and a wireless adapter

•Compliant with IEEE 802.wireless n (draft 2.0), IEEE 802.wireless g and 802.11b standards

•compatible with 802.11b/g/n networks

•Up to a 300Mbps data rate using an 802.wireless n

•Expand a wireless network using AP client mode or Wireless Distribution System (WDS)

•Support for the 802.11e Quality of Service (QoS) standard

•2 removable antennas to support high speed performance and expanded coverage

•Supports Wi-Fi Protected Setup (WPS) feature allowing you to integrate other WPS devices into your network

quickly

•Indoor coverage up to 100 meters (328ft.)*

•Outdoor coverage up to 300 meters (984ft.)*

•3-year limited warranty

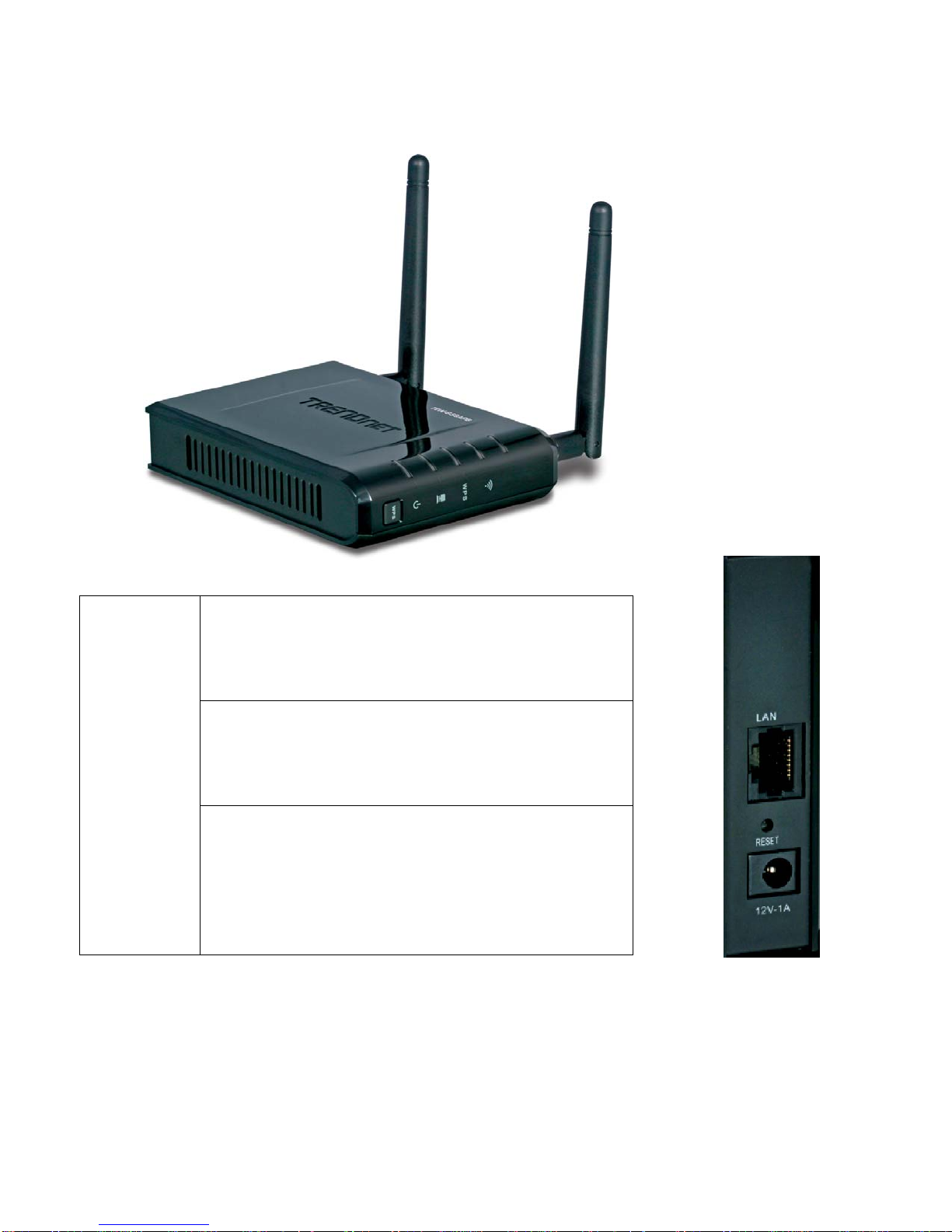

Hardware Overview

Rear View Auto MDI/MDIX 10/100Mbps LAN Ports

This port automatically senses the cable type when

connecting to Router.

Reset Button

Pressing the reset button restores the AP to its

original factory default settings.

DC-IN

The DC power input connector is a single jack socket

to supply power to the TEW-638APB. Please use the

Power Adapter provided on the TEW-638APB

package.

Front View WLAN LED

A solid light indicates that the wireless segment

is ready. This LED blinks green during wireless

data transmission.

WPS LED

This LED blinks green during WPS function is

enabled.

LAN LED

A solid light indicates a connection to a Router

on the LAN port. This LED blinks green during

data transmission

POWER LED

A solid green light indicates a proper connection

to the power supply

WPS Button

Press the button to enable WPS function.

Installation Considerations

The TEW-638APB AP lets you access your network, using a wireless connection, from virtually

anywhere within its operating range. Keep in mind, however, that the number, thickness and location

of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.

Typical ranges vary depending on the types of materials and background RF (radio frequency) noise

in your home or business. The key to maximizing wireless range is to follow these basic guidelines:

1 Keep the number of walls and ceilings between the TEW-638APB and other network devices

to a minimum - each wall or ceiling can reduce your wireless product’s range from 3-90 feet

(1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

2 Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at

a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks

over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a

wall or ceiling (instead of at an angle) for better reception.

3 Building Materials can impede the wireless signal - a solid metal door or aluminum studs may

have a negative effect on range. Try to position wireless devices and computers with wireless

adapters so that the signal passes through drywall or open doorways and not other materials.

4 Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances

that generate extreme RF noise.

Page 9

Getting Started

For a typical wireless setup at home or office, please do the following:

1. Insert Setup Wizard CD into your CD-ROM drive.

2. The Welcome screen appears on your monitor. Click Setup Wizard button.

3. Read the License Agreement and click Next to continue the installation.

Page 10
