TRENDnet TEW-638PAP Manuale utente

TEW-638PAP

1.01

Quick Installation Guide

Table of Contents

English 1

1. Before You Start

2. Hardware Installation 2

3. Power-over-Ethernet Installation 8

Troubleshooting 10

Version 01.08.2010

1. Before You Start

?A computer with a network adapter or wireless adapter properly installed

?A router with an available network LAN port

?An available DHCP Server – routers usually have a built-in DHCP server

?Power over Ethernet (PoE) Switch (e.g. TPE-80WS) (Optional)

?Injector (e.g. TPE-111GI) (Optional)

Note: The TEW-638PAP only works with Power over Ethernet (PoE) devices that

follow the IEEE 802.3af standard.

Web Browser: Internet Explorer (6 or higher)

Package Contents

?Multi-Language Quick Installation Guide

?CD-ROM (Utility and User's Guide)

?AC Power Adapter (12V DC, 0.5A)

?Cat. 5 Ethernet Cable (0.6m / 2ft.)

TEW-638PAP

System Requirements

2. Hardware Installation

1. Insert Utility CD-ROM into your computer's

CD-ROM drive.

2. Click Run Setup.exe (Windows 7/Vista only)

Note:

1. Locate an optimum location for the Access Point. The best place for the Access Point

is usually at the center of your wireless network.

2. Disable any anti-virus and firewall programs before starting hardware installation.

3. For Power-Over-Ethernet installation instructions, please refer to section

3. Power-Over-Etherent installation.

For Windows Users

3. Click Setup Wizard.

4. Click I accept the terms in the License

Agreement and then click Next.

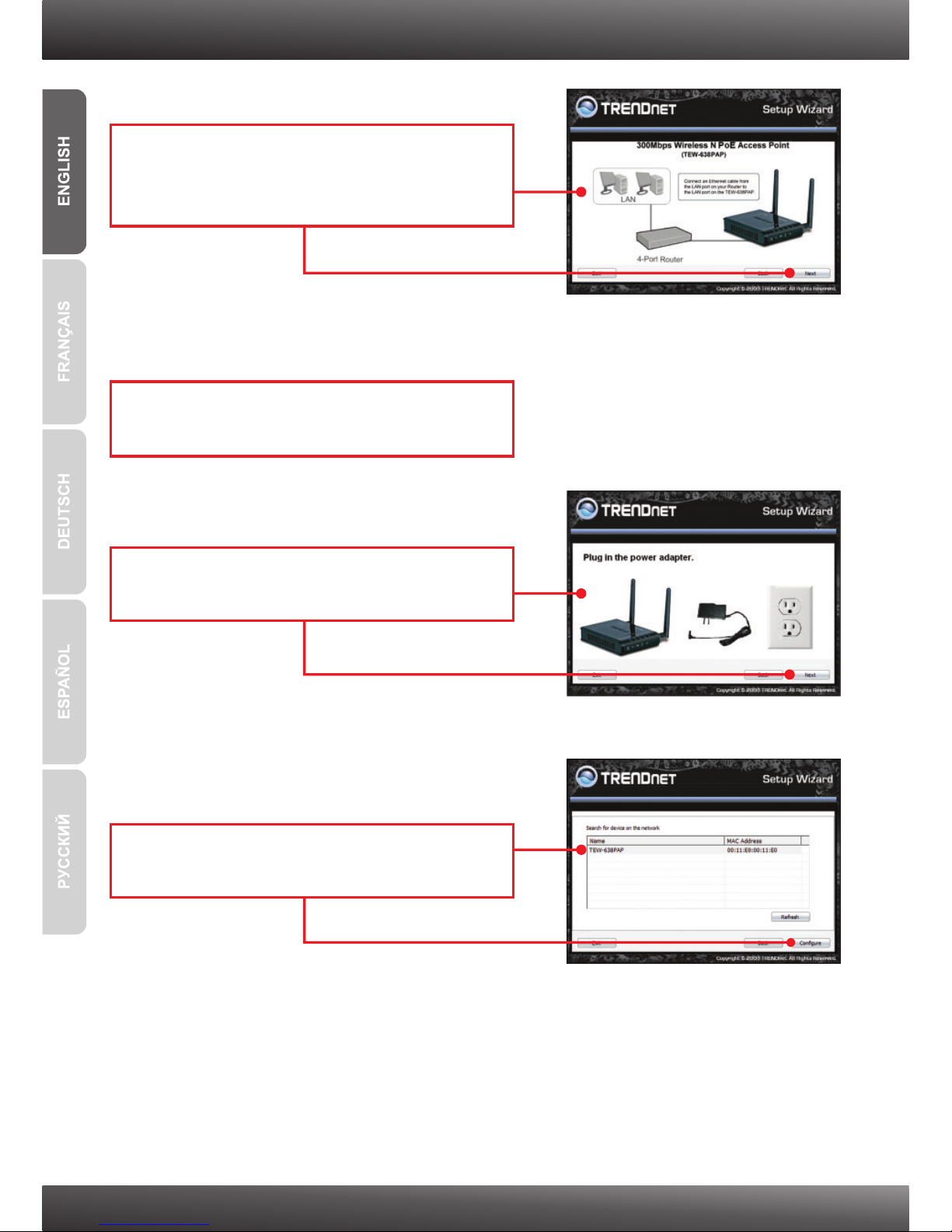

5. Connect the provided RJ-45 cable from a LAN

port on your Router to the LAN port on the

TEW-638PAP. Then click Next.

6. Connect a RJ-45 cable from a LAN port on your

Router to the Ethernet port on your computer.

8. Select the TEW-638PAP from the list and then

click Configure.

7. Connect the Power Adapter to the Access Point

and then to a power outlet and then click Next.

9. Enter a password and then click Login. The

default password is admin.

10. Select Access Point and then click Next.

Note: For AP Client setup, please refer to the

User's Guide for step by step instructions.

The User's Guide can be found on this

product's CD-ROM.

11. Select Dynamic IP Address Configuration

and then click Configure.

12. Select Manual setup and then click Next.

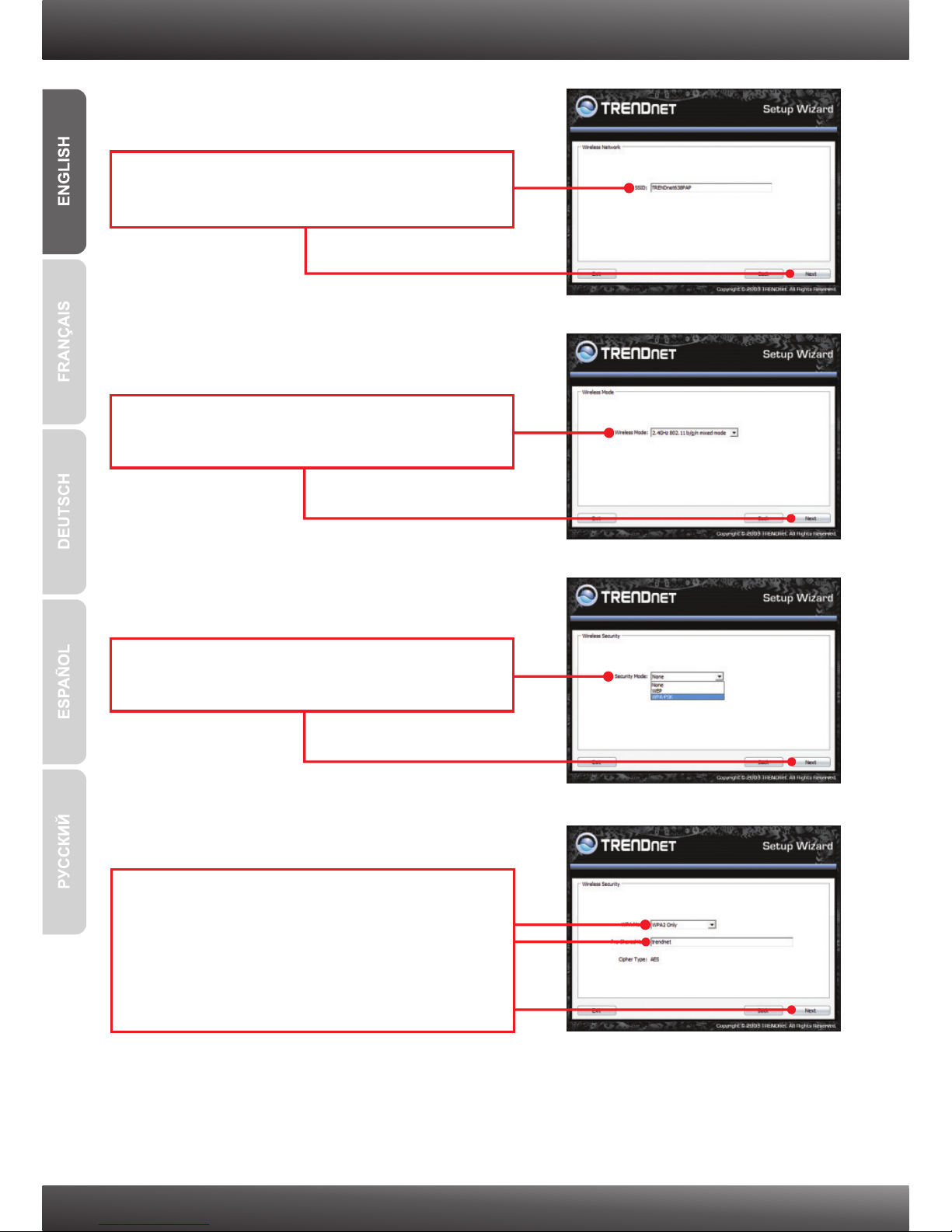

13. Enter a SSID and then click Next. By default,

the SSID is TRENDnet638PAP.

14. Select the desired Wireless Mode and then

click Next.

15. Select a Security Mode and then click Next

(example shows WPA-PSK).

16. Select the desired WPA mode, enter

characters for your Pre-Shared key and then

click Next. For WPA-PSK or WPA2-PSK, the

Pre-Shared Key must be between 8 and 63

ASCII or 64 HEX characters. Make sure to

copy down the Pre-Shared Key.

17. Click Save (optional).

18. Give the file a name, then click Save

(optional).

19. Click Configure to apply the settings.

20. Click Exit.

Note: to connect a wireless computer to the TEW-638PAP, please refer to the first

question in the troubleshooting section.

Your Installation is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TEW-638PAP’s configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or

TRENDnet's website at http://www.trendnet.com.

21. Click Yes to exit.

22. Connect the 2dBi detachable antennas to the

TEW-638PAP.

3. Power-over-Ethernet Installation

Using the TEW-638PAP with a PoE switch

1. Connect a RJ-45 cable from the Power-Over-

Ethernet Switch (e.g. TRENDnet TPE-80WS) to

the LAN port on the Access Point.

2. Verify that the wireless, LAN, and power LEDs

are on.
