TRENDnet TEW-655BR3G Manuale utente

Quick Installation Guide

TEW-655BR3G

1.01

Table of Contents

English 1

1. Before You Start

2. Hardware Installation 4

3. Configure the TEW-655BR3G 6

4. LEDs 10

Troubleshooting 11

Wireless Tips 13

Version 03.17.2010

1. Before You Start

?Web Browser: Internet Explorer (6.0 or above)

?Broadband Internet or 3G Internet Service

?Cable/DSL Modem or 3G USB Adapter*

?TA-CC Car Charger (optional)

A computer with a wireless network adapter properly installed.

Package Contents

?CD-ROM (User’s Guide)

?Multi-Language Quick Installation Guide

?Cat.5 Ethernet Cable (1.5m/ 6ft)

?Power Adapter (5V DC, 2.5A)

?Lithium Ion Battery (3.7V, 1700mAh)

TEW-655BR3G

System Requirements

* For a list of compatible 3G USB Adapters, please go to

http://www.trendnet.com/products/TEW-655BR3G.

Collect Internet Service Provider (ISP) Information

During the installation of your 150Mbps Mobile Wireless N Router, the Setup Wizard will

automatically detect your ISP connection type. If the router cannot detect your ISP

connection type, you can manually specify the connection type. Please verify your

Internet connection type with your ISP and ensure you have all the information for one

of the following connection types:

1. 3G (Auto Detection) connection

Pin Code (Optional): ________________

2. 3G (Manual) connection

Country: ________________

Telecom: ________________

3G Network: ________________

APN (Optional): ________________

Pin Code (Optional): ________________

Dialed Number: ________________

Account (Optional): ________________

Password (Optional): ________________

3. iBurst connection

Account: _________

Password: ________________

Primary DNS:_____. _____._____._____

Secondary DNS:_____. _____._____._____

Service Name (Optional): ________________

Assigned IP Address (Optional): ________________

4. Dynamic IP connection

HostName: ________________

ISP registered Mac Address: ________________

5. Static or Fixed IP connection

Static IP Address:_____. _____._____._____ (e.g. 215.24.24.129)

Static Subnet Mask: _____. _____._____._____

Static Gateway: ____. _____._____._____

Static Primary DNS:_____. _____._____._____

Static Secondary DNS:_____. _____._____._____

6. PPPoE connection

Account : _________

Password: ________________

Primary DNS:_____. _____._____._____

Secondary DNS:_____. _____._____._____

Service Name (Optional): ________________

Assigned IP Address (Optional): ________________

7. PPTP connection

IP Mode: Dynamic IP Address or Static IP Address

My IP Address:_____. _____._____._____ (e.g. 215.24.24.129)

My Subnet Mask: _____. _____._____._____

Gateway IP: ____. _____._____._____

Service IP Adress / Name: ________________

PPTP Account:_____. _____._____._____

PPTP Password:_____. _____._____._____.

8. L2TP connection

IP Mode: Dynamic IP Address or Static IP Address

IP Address:_____. _____._____._____ (e.g. 215.24.24.129)

Subnet Mask: _____. _____._____._____

WAN Gateway IP: ____. _____._____._____

Service IP Adress / Name: ________________

L2TP Account:_____. _____._____._____

L2TP Password:_____. _____._____._____.

2. Hardware Installation

Cable/DSL Modem

Internet

1. Verify that you have an Internet connection

when connecting the 3G USB adapter to your

computer. Open your browser (e.g. Internet

Explorer) and type in a URL (e.g.

http://www.trendnet.com) in the address bar.

Note: You may need to activate your Internet

connection. Please contact your ISP for more

information.

2. Remove the battery lid. The battery lid is

located on the bottom of the router.

4. Secure the battery lid back into the router.

3. Insert the battery into the router.

7. If you are using the TEW-655BR3G for the first

time, you will need to charge your battery for 8

hours.

10. Verify that the following panel lights are on:

Power, Wireless, Ethernet and 3G (USB).

5. Connect one end of the provided RJ-45 cable

to the TEW-655BR3G's Ethernet port. Connect

the other end of the cable to the computer's

Ethernet port.

6. Connect the AC Power Adapter to the wireless

router and then to a power outlet.

8. Connect your 3G USB adapter to the USB port

on the TEW-655BR3G.

9. Move the Power switch to the on position.

3. Configure the TWE-655BR3G

Note:

1. Gather all information related to your Internet Connection before you start.

If necessary, contact your Internet Service Provider (ISP).

2. Below are steps for connecting to a 3G Internet connection. For instructions

connecting to a Broadband Internet connection, please see question 5 in the

Troubleshooting section.

1. Open your web browser, type

http://192.168.10.1 in the Address bar, and

then press Enter.

3. Select Wizard and then click Enter.

4. Click Next.

2. Enter the System Password, and then click

System Password: admin

Note:

1. To protect your network from any unauthorized access it is recommended to enable

wireless encryption.

2. The example below is for WPA2-PSK security. If you select WPA-PSK or WPA2-PSK,

make sure your wireless adapters support WPA or WPA2. If your wireless adapters

do not support WPA or WPA2, then select WEP.

5. Enter the Old password (By default, the

Password is admin), enter a New Password,

reconfirm the New Password and then click

Next.

6. Select your Time Zone and then click Next.

7. Select Wireless WAN for WAN Interface.

Select 3G or iBurst (the example shown is for

3G). Then click Next. Configure the settings

based on information provided by your ISP.

Follow the wizard instructions to complete the

configuration.

Note: Each WAN type may have different

options.

8. Enter the desired Network ID (SSID) and then

click Next.

9. Select the desired Authentication mode,

select the desired Encryption type and enter

characters for your Pre-Shared key and then

click Next. For WPA-PSK or WPA2-PSK, the

Pre-Shared Key must be between 8 and 63

ASCII or 64 HEX characters. Make sure to

copy down the Pre-Shared Key.

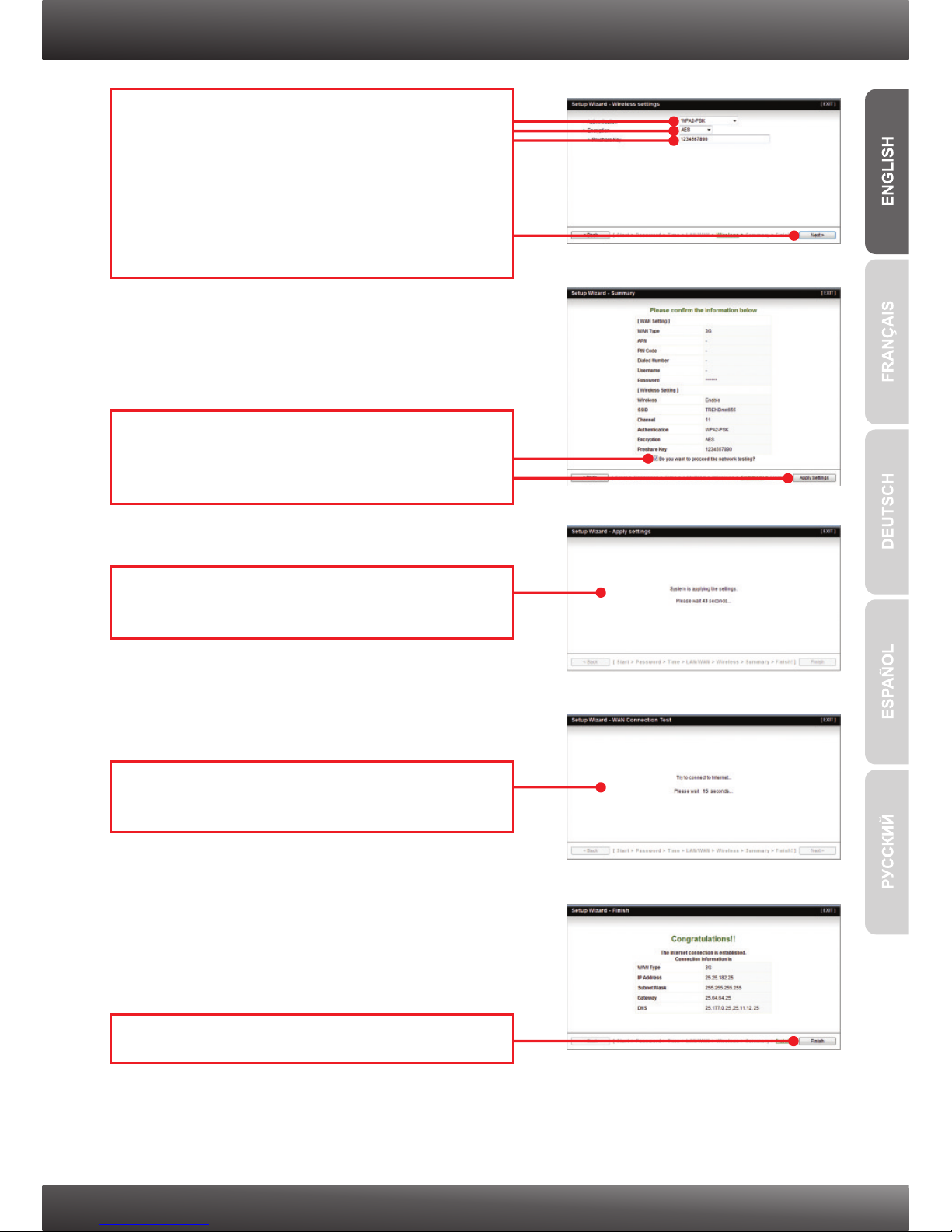

10. Check Do you want to proceed with

network testing? and then click Apply

Settings.

11. Wait around 43 seconds while the router

reboots.

12. Wait around 15 seconds while the router tests

the Internet connection.

13. Click Finish.
