Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation, operation

and storage of all Tripp Lite UPS Systems. Failure to heed these warnings will void your warranty.

UPS Location Warnings

• Use caution when lifting UPS. Because of the considerable weight of all Rackmount UPS

systems, at least two people should assist in lifting and installing them.

• Install your UPS indoors, away from excess moisture or heat, dust or direct sunlight.

• For best performance, the ambient temperature near your UPS should be between 0° C and

40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its

vents or fan openings.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even

when the UPS is not connected to an AC supply.

• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS’s plug

in a way that would eliminate the UPS's connection to ground. Do not use adapters that

eliminate the UPS’s connection to ground.

• Do not plug your UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the generator must provide

filtered, frequency-regulated computer-grade output. Connecting your UPS to a generator will

void its Ultimate Lifetime Insurance.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which a malfunction or

failure of a Tripp Lite UPS System could cause failure or significantly alter the performance

of a life-support device.

• Do not connect surge suppressors or extension cords to the output of your UPS. This might

overload the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS or

batteries. Do not short or bridge the battery terminals with any object. Unplug and turn off the

UPS before performing battery replacement. Use tools with insulated handles. There are no

user-serviceable parts inside the UPS. Battery replacement should be performed only by

authorized service personnel using the same number and type of batteries (sealed Lead-Acid).

The batteries are recyclable. Refer to your local codes for disposal requirements or in the

USA only call 1-800-SAV-LEAD or 1-800-8-BATTERY (1-800-822-8837) or visit

www.rbrc.com for recycling information. Tripp Lite offers a complete line of UPS System

Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at www.tripplite.com to

locate the specific replacement battery for your UPS.

• During hot-swap battery replacement, the UPS will not provide backup power in the event of

a blackout or other power interruptions.

• Do not operate UPS without batteries.

• When adding external battery packs to select models with external battery pack connectors,

connect only Tripp Lite-recommended battery packs of the correct voltage and type. Do not

connect or disconnect battery packs when the UPS is operating on battery power.

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 2

Mounting (Rack)

Mount your equipment in either a 4-post or 2-post rack or rack enclosure. The user must determine

the fitness of hardware and procedures before mounting. If hardware and procedures are not suit-

able for your application, contact the manufacturer of your rack or rack enclosure. The procedures

described in this manual are for common rack and rack enclosure types and may not be appropriate

for all applications.

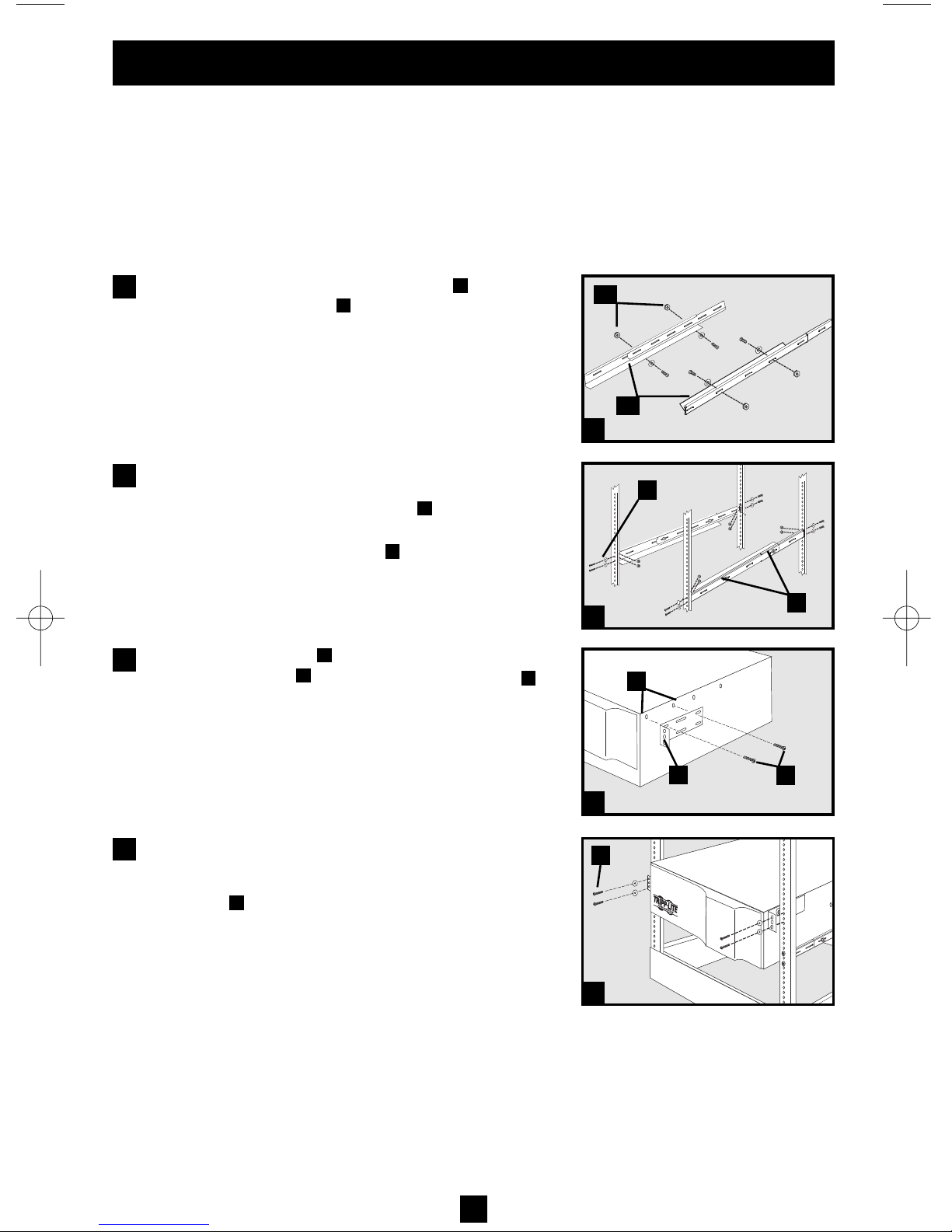

4-Post Mounting

Connect the two segments of each shelf using the

included screws and nuts . Leave the screws slightly

loose so that the shelves can be adjusted in the next step.

Adjust each shelf to fit your rack, then mount them in

the lowest available space of your rack with the

screws, nuts and washers provided . Note that the

support ledges should face inward. Tighten the screws

that connect the shelf segments .

Attach mounting ears to the front mounting holes

of your equipment using the screws provided .

The ears should face forward.

Using an assistant if necessary, lift your equipment

and slide it onto the mounting shelves. Attach your

equipment to the rack by using the appropriate

hardware through its mounting ears and into the

rack rails.

2-Post (Telecom) Mounting

If you desire to mount your UPS in a 2-post rack, a Tripp Lite 2-Post Rackmount Installation Kit

(Model: 2POSTRMKITWM, sold separately) will be required. Refer to the 2POSTRMKITWM

Owner's Manual for complete installation procedures.

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 3

Mounting (Tower)

Mount your UPS models in an upright, tower position using included hardware. The user must

determine the fitness of hardware and procedures before mounting.

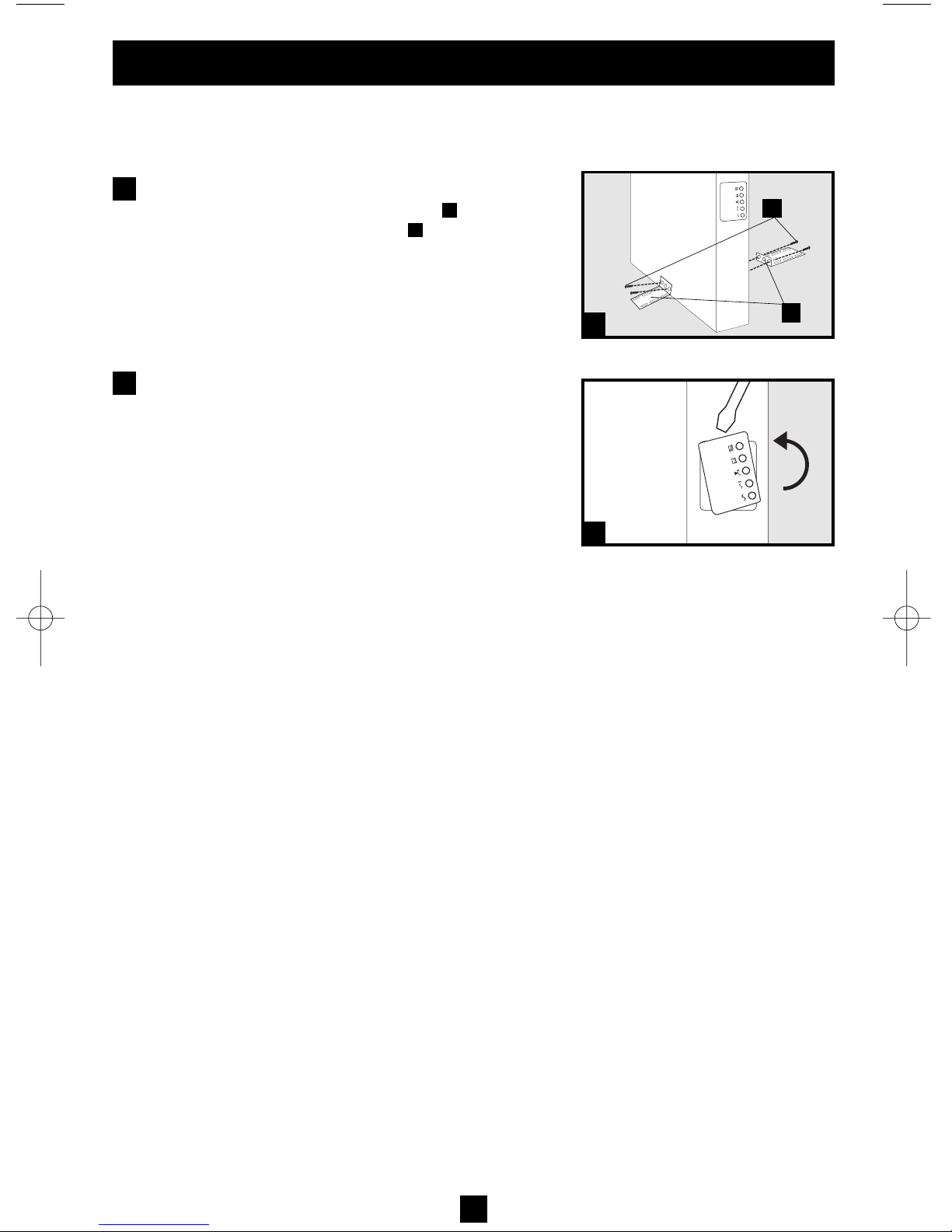

Stand your UPS on its side with the LED/Control panel

at the top. Attach one rack mounting ear to each side

of the UPS using included screws . Attach the rack

mounting ears to the floor with user-supplied

hardware.

Rotate the LED/Control panel to view it easier while

the UPS is tower mounted. Insert a small screwdriver,

or other tool, in the slots on either side of the panel.

Pop the panel out; rotate it; and pop the panel back in

place.

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 4

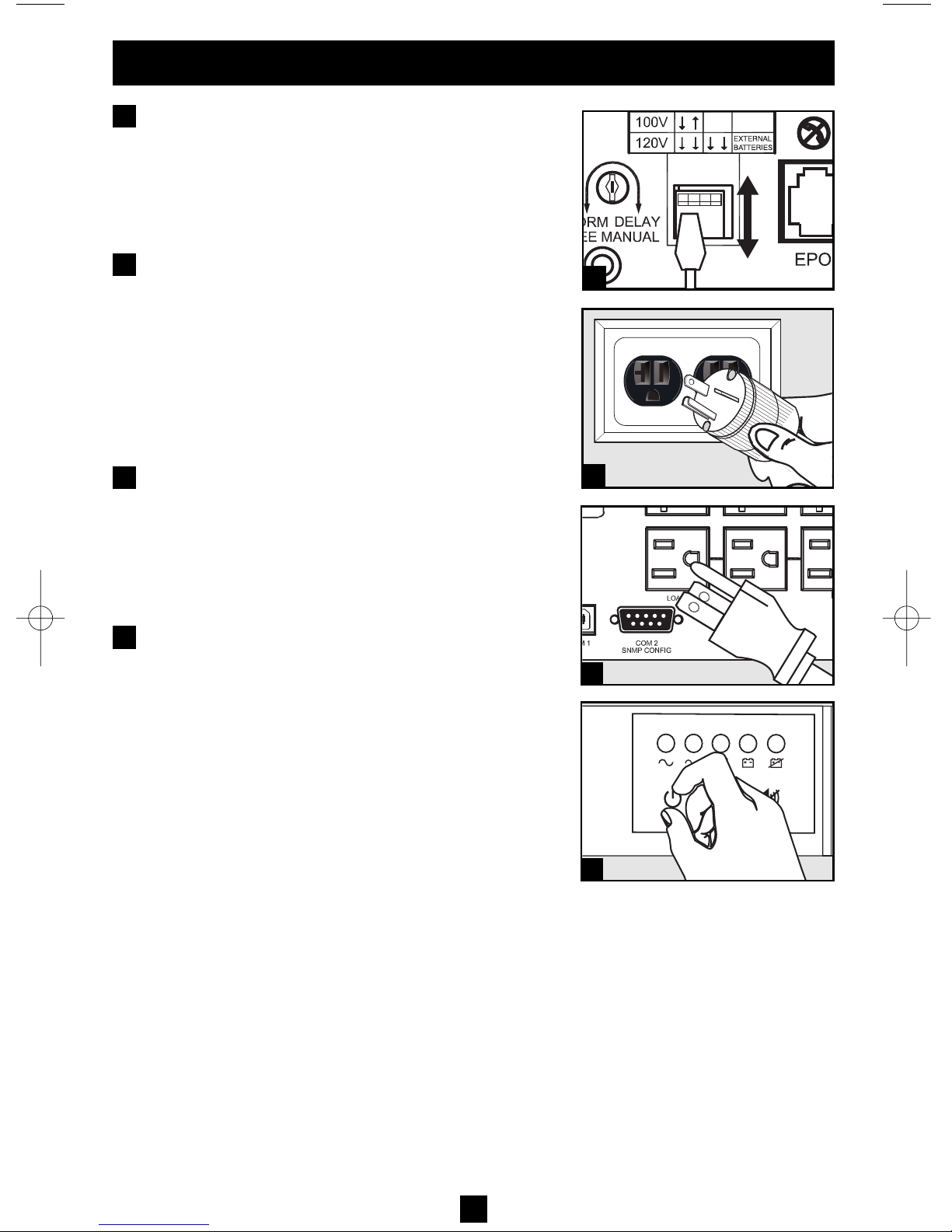

Quick Installation

With the UPS disconnected from

utility power, use a small tool to

set the Voltage DIP Switches to

match your input voltage (UPS is

preset to the 120V setting).

Plug the UPS into an outlet on a

dedicated circuit.*

NOTE! after you plug the UPS into a live AC outlet,

the UPS (in “Standby” mode) will automatically

charge its batteries,** but will not supply power to

its outlets until it is turned ON (see Step 3 below).

* Includes an additional plug which can be switched by a qualified

electrician. ** The BATTERY CHARGE LED will be the only LED

illuminated.

Plug your equipment into the UPS.*

* Your UPS is designed to support only electronic equipment. You will

overload the UPS if the total VA ratings for all the equipment you con-

nect exceeds the UPS's Output Capacity. To find your equipment's VA

ratings, look on their nameplates. If the equipment is listed in amps,

multiply the number of amps by 120 to determine VA. (Example: 1 amp

× 120 = 120 VA). If you are unsure if you have overloaded the UPS's out-

lets, see “OUTPUT LOAD LEVEL” LED description.

Turn the UPS ON.

Press and hold the “ON/OFF/STANDBY” button for

one second. The alarm will beep once briefly after one

second has passed. Release the button.

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 5

Optional Installation

These connections are optional. Your UPS will function

properly without these connections.

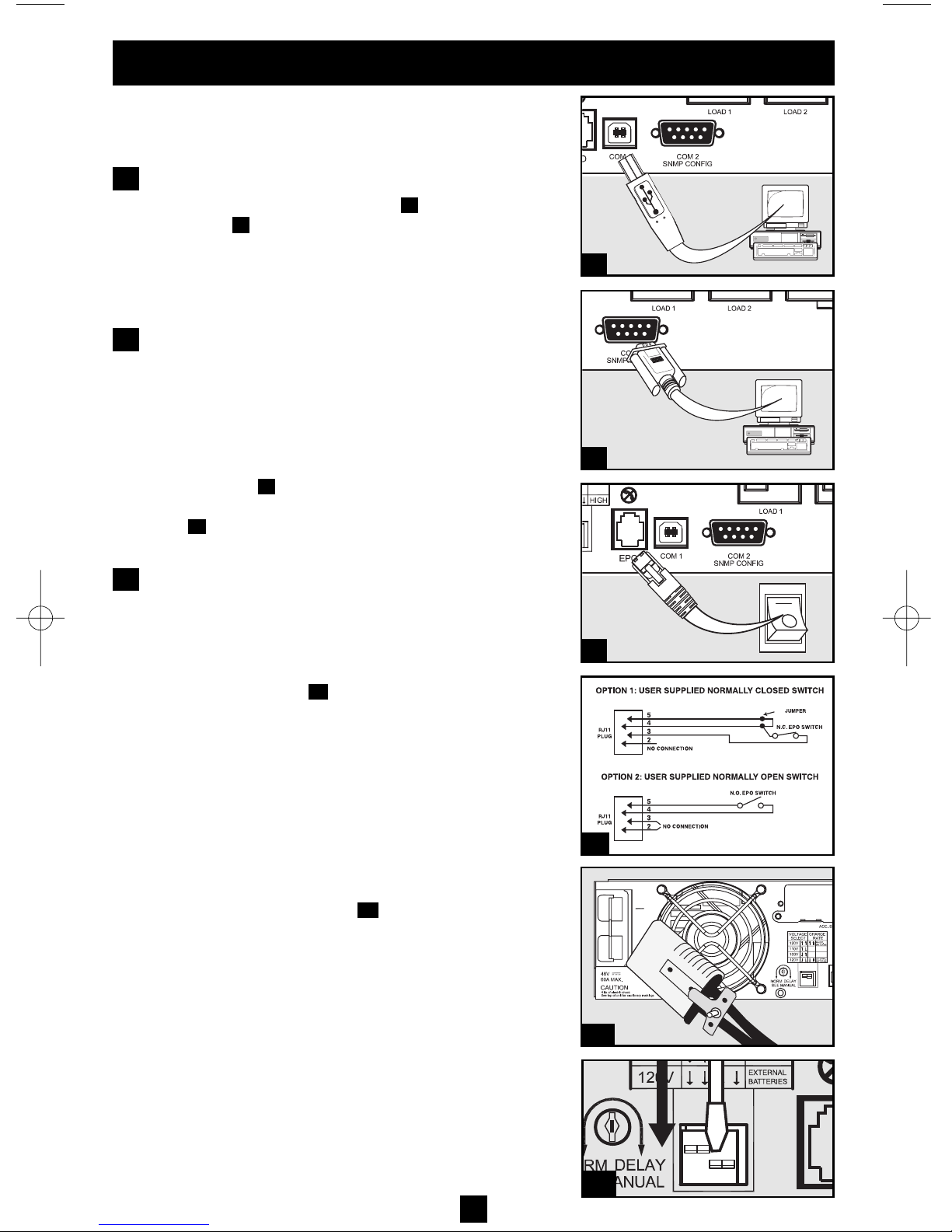

USB and RS-232 Serial

Communications

Use the included USB cable (see ) and DB9 serial

cable (see ) to connect the communication port on

your computer to the communication port of your

UPS. Install on your computer the Tripp Lite

PowerAlert Software appropriate to your computer’s

operating system.

EPO Port Connection

This optional feature is only for those applications

which require connection to a facility’s Emergency

Power Off (EPO) circuit. When the UPS is connected

to this circuit, it enables emergency shutdown of the

UPS’s inverter.

Using the cable provided, connect the EPO port of

your UPS (see ) to a user-supplied normally closed or

normally open switch according to the circuit diagram

(see ). The EPO port is not a phone line surge sup-

pressor; do not connect a phone line to this port.

External Battery Connection

Your UPS comes with a robust internal battery sys-

tem; external batteries are needed only to extend run-

time. Adding external batteries will increase recharge

time as well as runtime.

The illustration (see ) shows the location of your

UPS’s External Battery Connector, where you will

insert the battery pack cable. Complete installation

instructions for your battery pack appear in the battery

pack owner’s manual. Make sure that cables are fully

inserted into their connectors. Small sparks may result

during battery connection; this is normal.

Do not connect or disconnect battery packs when the

UPS is running on battery power.

If you connect any external batteries, set the Battery

Charge Level Switches (see ) to the down position.

This will increase your UPS’s charger output so that

the additional batteries charge faster.

Caution! DO NOT set the Battery Charge Level

Switches to the down position without an external

battery connected. There is a risk of damaging the

UPS’s internal battery system.

4-5

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 6

“ON/OFF/STANDBY” Button

• To turn the UPS ON: with the UPS plugged into a live AC wall outlet*, press

and hold the “ON/OFF/STANDBY” button for one second.** Release the but-

ton. If utility power is absent, you can “cold-start” the UPS (i.e.: turn it ON and

supply power for a limited time from its batteries***) by pressing and holding

the “ON/OFF/STANDBY” button for one second.**

• To turn the UPS OFF: with the UPS ON and receiving utility power, press and

hold the “ON/OFF/STANDBY” button for one second.** Then unplug the UPS

from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS (in ”Standby” mode) will automatically charge

its batteries, but will not supply power to its outlets until it is turned ON. ** The alarm will beep once

briefly after the indicated interval has passed. *** If fully charged.

“MUTE/TEST” Button

To Silence (or “Mute”) UPS Alarms: briefly press and release the MUTE/TEST

button.*

To Run a Self-Test: with your UPS plugged in and turned ON, press and hold

the MUTE/TEST button. Continue holding the button until the alarm beeps sev-

eral times and the UPS performs a self test. See “Results of a Self-Test” below.

Note: you can leave connected equipment on during a self-test. Your UPS, how-

ever, will not perform a self-test if the UPS is not turned on (see

“ON/OFF/STANDBY” Button description).

CAUTION! Do not unplug your UPS to test its batteries. This will remove

safe electrical grounding and may introduce a damaging surge into your

network connections.

Results of a Self-Test: The test will last approximately 10 seconds as the

UPS switches to battery to test its load capacity and battery charge.

• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm contin-

ues to sound after the test, the UPS’s outlets are overloaded. To clear the over-

load, unplug some of your equipment and run the self-test repeatedly

until the “OUTPUT LOAD LEVEL” LED is no longer lit red and the

alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user immediately

following a self-test may cause the UPS to shut down and cease supplying

output power in the event of a blackout or brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues

to sound after the test, the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED remains lit, contact Tripp Lite for service.

If your UPS requires battery replacement, visit www.tripplite.com to

locate the specific Tripp Lite replacement battery for your UPS.

Basic Operation

Buttons (Front Panel)

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 7

Basic Operation

continued

Indicator Lights (Front Panel)

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet

and turned ON.

“POWER” LED: this green LED lights continuously when the UPS is ON and

supplying connected equipment with AC power from a utility source. The LED

flashes and an alarm sounds (4 short beeps followed by a pause) to indicate the

UPS is operating from its internal batteries during a blackout or severe

brownout. If the blackout or severe brownout is prolonged, you should save

files and shut down your equipment since internal battery power will eventual-

ly be depleted. See “BATTERY CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: this green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage on the

utility line without the assistance of battery power. The UPS will also emit a

slight clicking noise. These are normal, automatic operations of the UPS, no

action is required on your part.

“OUTPUT LOAD LEVEL” LED: this multicolored LED indicates the

approximate electrical load of equipment connected to the UPS's AC outlets. It

will turn from green (light load) to yellow (medium load) to red (overload). If

the LED is red (either illuminated continuously or flashing), clear the overload

immediately by unplugging some of your equipment from the outlets until the

LED changes from red to yellow (or green). CAUTION! Any overload that is

not corrected by the user immediately may cause the UPS to shut down and

cease supplying output power in the event of a blackout or brownout.

“BATTERY CHARGE” LED: when the UPS is operating from utility power,

this LED indicates the approximate charge state of the UPS's internal batteries:

red indicates the batteries are beginning to charge; yellow indicates the batteries

are roughly midway through charging; and green indicates the batteries are fully

charged. When the UPS is operating from battery power during a blackout or

severe brownout, this LED indicates the approximate amount of energy (ulti-

mately affecting runtime) which the UPS’s batteries will provide: red indicates

a low level of energy; yellow indicates a medium level of energy; and green

indicates a high level of energy. Since the runtime performance of all UPS bat-

teries will gradually deplete over time, it is recommended that you periodically

perform a self-test (see MUTE/TEST Button description) to determine the energy

level of your UPS batteries BEFORE a blackout or severe brownout occurs.

During a prolonged blackout or severe brownout, you should save files and shut

down your equipment since battery power will eventually be depleted. When the

LED turns red and an alarm sounds continuously, it indicates the UPS's batteries

are nearly out of power and UPS shut down is imminent.

“BATTERY WARNING” LED: this LED lights red and an alarm sounds

intermittently after you initiate a self test (See “MUTE/TEST” Button description)

to indicate the UPS batteries need to be recharged or replaced. Allow the UPS

to recharge continuously for 12 hours, and repeat the self-test. If the LED con-

tinues to light, contact Tripp Lite for service. If your UPS requires battery

replacement, visit www.tripplite.com to locate the specific Tripp Lite replace-

ment battery for your UPS.

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 8

Basic Operation

continued

Other UPS Features (Rear Panel)

AC Receptacles: Your UPS features 15- and 20-amp AC outlets. These output

receptacles provide your connected equipment with AC line power during nor-

mal operation and battery power during blackouts and brownouts. The UPS pro-

tects equipment connected to these receptacles against damaging surges and line

noise. If you have a serial or USB connection to your UPS, you can remotely

reboot connected equipment by turning the receptacles OFF and ON using Tripp

Lite's PowerAlert Software. The receptacles are divided into one or more load

banks (labelled “LOAD 1,” etc.) which may be remotely switched OFF and ON

using Tripp Lite UPS software without interrupting power to equipment con-

nected to the other outlets. Outlets labelled “UNSWITCHED” may not be

remotely switched off. See software instructions for details.

Communications Ports (USB or RS-232): These ports connect your UPS to any

workstation or server. Use with Tripp Lite’s PowerAlert Software and included

cables to enable your computer to automatically save open files and shut down

equipment during a blackout. Also use PowerAlert Software to monitor a wide

variety of AC line power and UPS operating conditions. Consult your

PowerAlert Software manual or contact Tripp Lite Customer Support for more

information. See “USB and RS-232 Serial Communications” in the “Optional

Installation” section for installation instructions.

EPO (Emergency Power Off) Port: Your UPS features a EPO port that may

be used to connect the UPS to a contact closure switch to enable emergency

inverter shutdown. See Optional Installation.

Accessory Slot: Remove the small cover panel from this slot to install optional

accessories to remotely monitor and control your UPS. Refer to your accessory’s

manual for installation instructions. Contact Tripp Lite Customer Support at

(773) 869-1234 for more information, including a list of available SNMP, network

management and connectivity products.

Voltage DIP Switches: These switches enable you to set the UPS to match actual

input voltage. If the Voltage DIP Switches are set above or below input voltage, the

UPS will treat the input as a continuous overvoltage or undervoltage condition, and

will automatically adjust input voltage to match the Voltage DIP Switch setting.

This will cause constant, unnecessary wear on the UPS system. Note: The Voltage

DIP Switches must be set with the UPS turned OFF and disconnected from

utility power. If the switches are set while the UPS is connected to utility

power, the setting will not take effect.

15 amp/120V

NEMA 5-15R

20 amp/120V

NEMA 5-20R

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 9

Basic Operation

continued

Power Sensitivity Adjustment: This dial is normally set fully counter-clockwise,

which enables the UPS to provide maximum protection against waveform distortions

in its AC input. When such distortion occurs, the UPS will normally switch to

providing sine wave power from its battery reserves for as long as the

distortion is present. In areas with poor utility power or where the UPS’s input

power comes from a backup generator, chronic waveform distortion could

cause the UPS to switch to battery too frequently, draining its battery reserves.

You may be able to reduce how often your UPS switches to battery due to mod-

erate waveform distortion by experimenting with different settings for this dial.

As the dial is turned clockwise, the UPS becomes more tolerant of variations in

its input power’s AC waveform. NOTE: The further the dial is adjusted clockwise,

the greater the degree of waveform distortion the UPS will allow to pass to con-

nected equipment. When experimenting with different settings for this dial,

operate connected equipment in a safe test mode so that the effect on the equip-

ment of any waveform distortions in the UPS’s output can be evaluated without

disrupting critical operations.

External Battery Connector: Use to connect Tripp Lite external battery packs for

additional runtime. Refer to instructions available with the battery pack for

complete connection information and safety warnings.

Battery Charge Level Switches: Controls the UPS system’s battery charge rate.

If you connect any external batteries, set the Battery Charge Level Switches to

the down position. This will increase your UPS's charger output so the addition-

al batteries charge faster. CAUTION! DO NOT set the Battery Charge Level

Switches to the down position without an external battery connected. There

is a risk of damaging the UPS’s internal battery system.

Input Breaker: Protect your electrical circuit from overcurrent draw from the

UPS load. If these breakers trip, remove some of the load, then reset them by

pressing the breaker(s) in.

Ground Screw: Use this to connect any equipment that requires a chassis ground.

Charge Rate Setting

(when External

Batteries are

connected)

Charge Rate Setting

(when External

Batteries are not

connected)

200607114 93-2586 SMART2200RMXL2U OM.qxd 7/21/2006 2:04 PM Page 10

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Tripp Lite UPS

Tripp Lite

Tripp Lite SmartPro 3U Rackmount Manuale utente

Tripp Lite

Tripp Lite OMNIVS1000 Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU1000RT2UHV Manuale utente

Tripp Lite

Tripp Lite SmartPro Rackmount SMX3000XLRT2U Guida alla configurazione

Tripp Lite

Tripp Lite TE Series Manuale utente

Tripp Lite

Tripp Lite OMNISMART1400HG Istruzioni per l'installazione e il funzionamento

Tripp Lite

Tripp Lite Smart Pro 450 RT Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART2200RM2U Manuale utente

Tripp Lite

Tripp Lite SUT20K Manuale utente

Tripp Lite

Tripp Lite OmniPro INT 300 Istruzioni per l'installazione e il funzionamento

Tripp Lite

Tripp Lite SmartPro SLT SMX1050SLT Manuale utente

Tripp Lite

Tripp Lite BCPRO1400 Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART1000RM2U Manuale

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL3UHV Manuale utente

Tripp Lite

Tripp Lite SmartPro INT 450-1500VA Manuale utente

Tripp Lite

Tripp Lite SmartOnline 3-Phase UPS Systems SU20KX Manuale utente

Tripp Lite

Tripp Lite SMART550USBWD Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU80K Manuale utente

Tripp Lite

Tripp Lite SmartOnline AGPS5548 Manuale utente

Tripp Lite

Tripp Lite SmartPro SLT SMX750SLT Manuale utente

Tripp Lite

Tripp Lite OmniSmart OMNI1500LCD Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU8000RT3UG Manuale utente

Tripp Lite

Tripp Lite INTERNET600U Manuale utente

Tripp Lite

Tripp Lite BC350 Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
