TSI Instruments 5200 Series Manuale utente

www.tsi.com

Gas Flow

Multi-Meter

5200 Series

Quick Start Guide

P/N 6012621, Revision C

May 2023

2 Quick Start Guide

Instrument Kit Components

5200 Series Low Flow Gas Multi-Meter

Qty

Item Description

Part/Model

Low Flow Gas Flow Multi-Meter, 3/8-inch tube ends

Measures Flow, Temperature, Absolute Pressure

5200

Low Flow Gas Flow Multi-Meter, 3/8-inch tube ends

Measures Flow, Volume, Temperature, Absolute

Pressure, Differential Pressure

5210

Low Flow Gas Flow Multi-Meter, 3/8-inch tube ends

Measures Flow, Volume, Temperature, Absolute

Pressure, Differential Pressure, Relative Humidity

5220

Low Flow Gas Flow Multi-Meter (High Accuracy),

3/8-inch tube ends, includes Tabletop Stand

Measures Flow, Volume, Temperature, Absolute

Pressure, Differential Pressure, Relative Humidity

5230

Low Flow Gas Flow Multi-Meter (Wide Accuracy Spec),

3/8-inch tube ends

Measures Flow, Temperature, Absolute Pressure

5203

Calibration Certificate

N/A

5200 Series Standard Accessory Kit

52000

Low Pressure Measurement Kit

(5210, 5220, 5230 models only)

5200-LPMK

License key for FLO-Sight™ PC Software

(Includes a free trial of the advanced version)

5000-PC

*FLO-Sight software can be downloaded from www.tsi.com.

Download Operator’s Manual at TSI.com

Gas Flow Multi-Meter 5200 Series 3

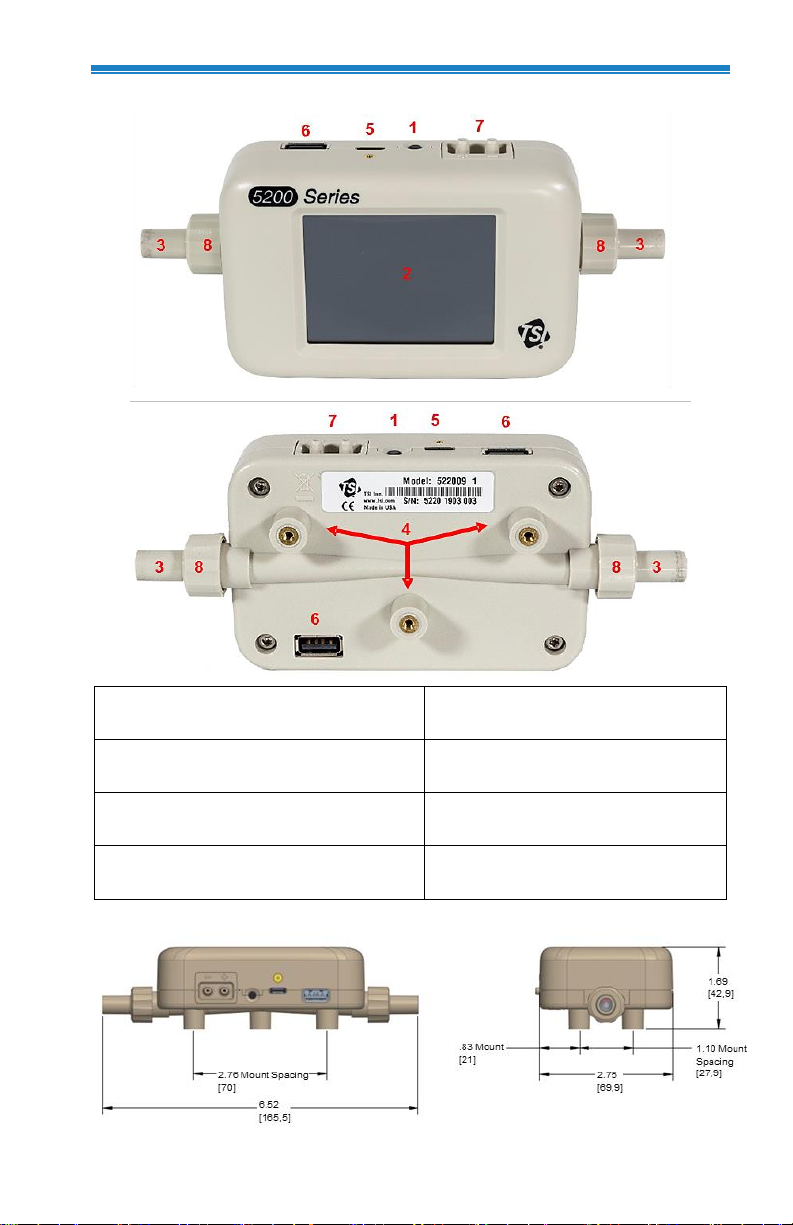

Instrument Overview

1. Power Button (On/Off)

5. USB-C Power/

Communications Port

2. Color Touchscreen Display*

6. USB-A Communications

Ports (2)

3. Interchangeable Tube Ends

7. Low Differential Pressure Ports

(5210/5220/5230 models only)

4. Mounting Inserts (M3 thread)

8. Collars

Dimensions shown in inches [mm]

4 Gas Flow Multi-Meter 5200 Series

Setup Basics

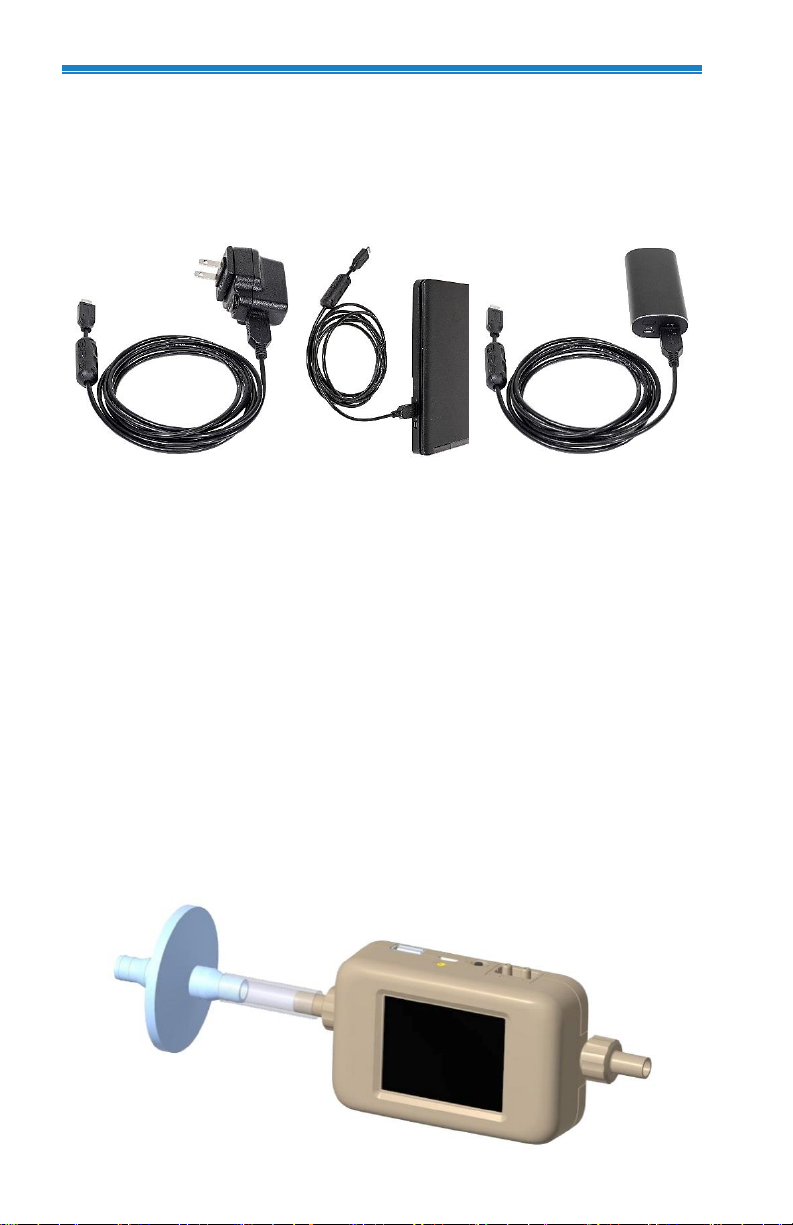

Supplying Power

Connect the USB cable from the USB-C port on the meter to the

USB-A port of: 1) the 5000 Series power supply, 2) a computer, or

3) other USB sources that can provide 5 VDC.

USB Hub Cable

Some computer USB ports are not capable of sufficiently powering up

the Meter. If you are unable to power your Meter from the computer,

connect the USBC-A power cable to the provided USB hub cable and

plug the hub cable into the computer.

Turning Meter ON/OFF

The Meter may power itself on when connected to a power source. If

not, press the power button to turn the Meter on. To turn the meter off,

press and hold the power button for 5 seconds.

Connect Inlet Filter

TSI®recommends an inlet filter be used at all times while operating the

Flow Multi-Meter.

Gas Flow Multi-Meter 5200 Series 5

Changing Tube Ends

1. Unscrew collars and remove tube ends.

2. Insert replacement tube ends into the meter while aligning the

anti-rotation locking notch on the tube end with the tab on

the meter.

3. Screw collars back onto the meter.

6 Gas Flow Multi-Meter 5200 Series

Touchscreen Display Overview

Meter Home Screen

1. Meter Home Tab

6. Volume and Triggers Tab *

2. Measurement Readings

7. Log Data Button *

3. Type of Gas

8. Menu Dropdown Screen

4. Flow Directional Indicator

9. Device Name and Information

5. Pause Display Button

10.Alerts Indicator

*Available on 5210, 5220, and 5230 models only

Pause Display Button

The Pause Button is used to pause the display from updating. The

current measurement values will remain fixed on the screen. The Meter

will continue to make measurements while paused, and pausing the

display does not affect any active datalog sessions.

When paused, the button’s icon will change to a play icon .

Press the button again to resume display updates.

Gas Flow Multi-Meter 5200 Series 7

Touchscreen Display Overview (continued)

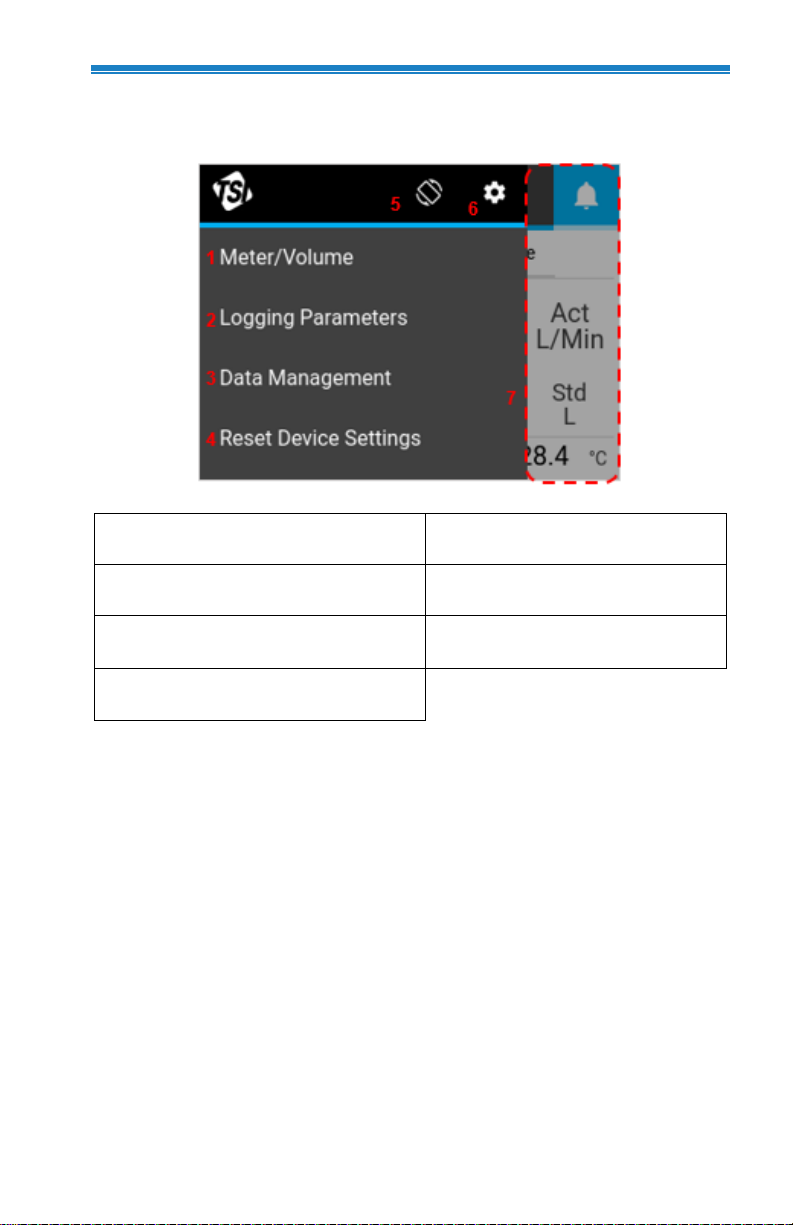

Menu Screen

1. Go to Meter Home Screen

5. Rotate Display 180º

2. Set Logging Parameters *

6. Settings Menu

3. Data Management *

7. Press anywhere outside menu

to close menu screen

4. Reset Device Settings

*Available on 5210, 5220, and 5230 models only

Touchscreen Display

The touchscreen display is resistive and responds to pressure from

your finger or other objects. You can also operate the Meter while

wearing gloves.

8 Gas Flow Multi-Meter 5200 Series

Configuring the Meter

Measurement Parameters

Press a value field, use the scroll arrows to select a parameter, and

click Save.

Units of Measurement

Press a units field, use the scroll arrows to select the desired units, and

click Save.

Gas Flow Multi-Meter 5200 Series 9

Configuring the Meter (continued)

Type of Gas

Press the type of gas field, use the scroll arrows to select the type of

gas, and click Save.

NOTICE

If an Air/Oxygen mix is selected, the Meter assigns a 21%

oxygen mix. The oxygen concentration can be customized

using FLO-Sight™ Software.

Volume and Triggers

(Models 5210, 5220, and 5230 only)

Volume is a calculated measurement that integrates flow over time and

is controlled through triggers. You can set begin and end triggers for

volume measurements using flow rate, absolute pressure, or low

differential pressure values.

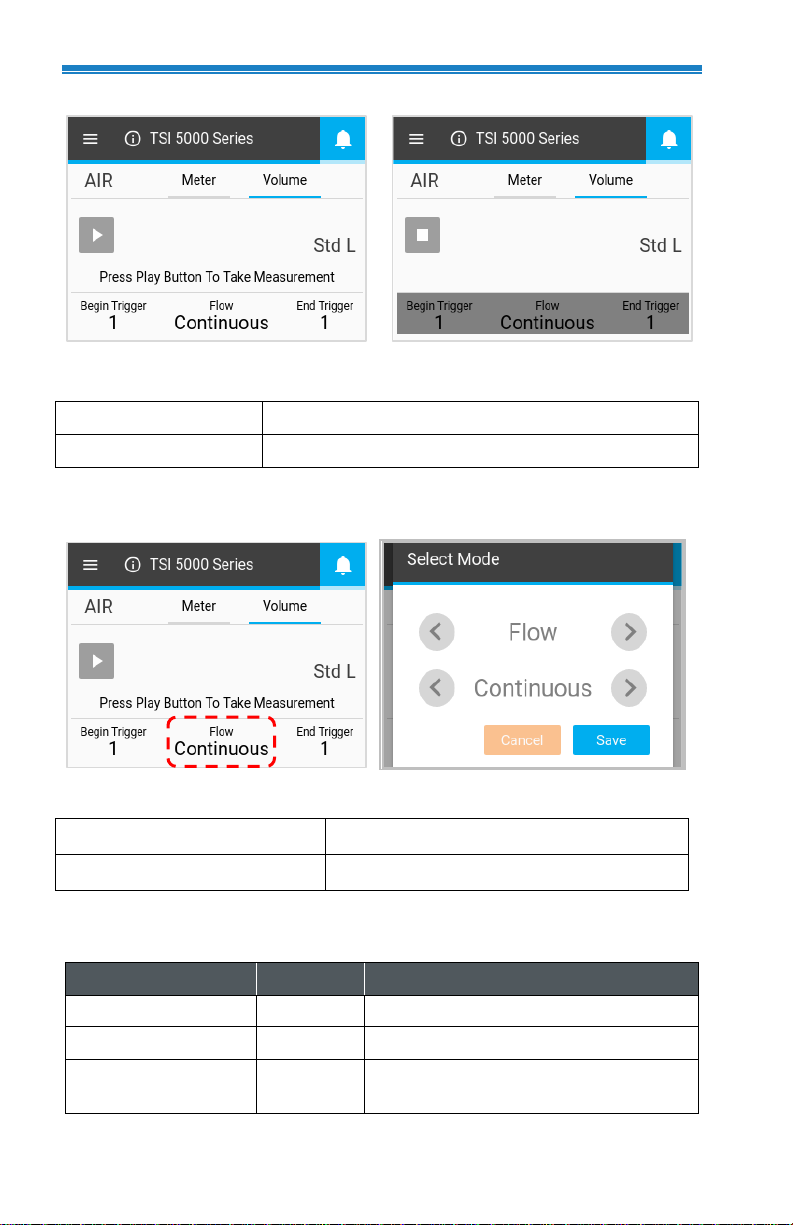

Setting Triggers

The meter must be stopped to edit trigger settings. On the Volume tab,

confirm that the Meter is stopped (shown below left) and press on the

field you would like to edit.

If a volume measurement is active (shown below right), then press the

Stop button to cancel the measurement and allow edits to be made

to trigger settings.

10 Gas Flow Multi-Meter 5200 Series

Volume and Triggers (continued)

In the Select Mode screen, you can choose:

Trigger Parameter

Flow, Absolute Pressure, or Low Pressure

Test Mode

Single or Continuous

Use the arrows to scroll through the selection options and click Save

to complete.

In the Select Trigger screens, you can choose:

Begin / End Trigger Values

Select from available values

Begin / End Trigger Slopes

Positive or Negative

Note trigger options for the volume begin and end triggers. These are

set as the default options and cannot be changed by the user.

Trigger

Units

Trigger Values

Flow

Std L/min

+/–0.1, 0.5, 1, 2, 3, 5, 7.5, 10, 20

Absolute Pressure

kPa

90, 95, 98, 100, 102, 104, 107, 110

Low Differential

Pressure

cmH2O

+/–0.5, 1, 2, 3, 4, 5, 10
