Turtle Beach Earforce PX4 Manuale utente

User GUide

Wireless Dolby®surrounD sounD GaminG HeaDset

Wireless

For: PS4™ I PS3™

Xbox 360® I Mobile

Congratulations on your purchase of the Ear Force PX4 headset from Turtle Beach. The PX4 works with your

Xbox360, PS3, PS4 and all of your favorite mobile devices. Welcome to the Turtle Beach Audio Advantage!

For our Knowledgebase and Technical Support Contact info please visit: http://www.turtlebeach.com/support

Table of Contents

Package Contents P4

Features P5

PX4 Headset - Left View P6

PX4 Headset - Right View P7

PX4 Transmitter P8

PS3™ Setup/System Settings Conﬁguration P9

Xbox 360® Setup/System Settings Conﬁguration P12

Xbox 360® E Setup/System Settings Conﬁguration P15

PS4™ Setup/System Settings Conﬁguration P17

Home Theater Setup P21

Connecting a Digital Music Player P22

Dolby® Digital Processing P23

Surround Sound P24

Bluetooth Setup P25

Charging the Headset P27

Adjusting Sound P28

Pairing Instructions P30

Speciﬁcations P31

Compliance / Conformity P32

Warranty P35

Go to Table of Contents

Package Contents

Digital Optical Cable 2.5mm to 3.5mm

Mobile Adapter Cable/

PS4 Chat Cable

Headset Charging

Cable

PX4 Headset

Turtle Beach Sticker

Xbox 360

Talkback Cable

PX4 Wireless

Transmitter

Detachable

Boom Mic

E F G

C D

Go to Table of Contents

The Ear Force™ PX4 is a premium, Dolby surround sound headset designed for PS3™, PS4™ and Xbox360® gaming. To

get the most from your PX4, please take a few minutes to review this introduction.

Dolby® Surround Sound

The PX4 transmitter processes Dolby Digital surround sound from your PS3™, PS4™ or Xbox360® and sends it to the

headset via digital RF. The result is an immersive sound environment that makes you feel as if you’re right in the middle

of the action. It also helps you react quicker by hearing exactly where the sound cues in the game are coming from.

Dual-Band Wi-Fi

The Ear Force PX4 headset provides wireless CD-quality game sound via dual-band digital RF (radio frequency) that

communicates with the PX4 transmitter. This advanced dual-band Wi-Fi technology uses either 5GHz or 2.4GHz signals

to transmit high ﬁdelity digital audio and ﬁnds the optimum frequency to help eliminate interference with other wireless

devices and Wi-Fi networks. Unlike the RF technology used in most other wireless headsets, the dual-band Wi-Fi

technology found in the PX4 coexists with wireless networks for optimum performance.

Dual Pairing Bluetooth ®

The PX4 incorporates Bluetooth technology which can be used to simultaneously pair to two Bluetooth-enabled devices

at once. For example, you can pair the PX4 to your PS3 and your mobile phone at the same time. This allows you to use

your PX4 to accept phone calls all while totally immersed in the action of the game.

Rechargeable Battery

The PX4 also features a rechargeable lithium polymer battery that provides up to 15 hours of continuous game play on a

single charge. The battery can also be recharged while gaming with the included charging cable so you’ll never miss out

on the action.

Engineered for High-Quality Sound

The PX4 headset is engineered to deliver high-quality audio that makes it ideal for gaming, movies and digital music

playback. The high-ﬁdelity, 50mm speakers are encased in acoustically-tuned ear cups with soft fabric cushions and

deliver extended bass with extraordinary dynamic range for optimum audio performance.

Features

Go to Table of Contents

PX4 Headset - Left View

To turn on/off the headset: Press and hold the

power button until you hear two rapid tones

To enter pairing mode(Headset off): Press and

hold the power button until the LED begins to

blink rapidly and evenly(about 6 seconds).

Tone Button: Press this button to activate the

different EQ presets. A beep will indicate which

preset is selected. (see pg. 28)

Blast Limiter Button: Press this button to activate

the different Blast Limiter presets. A beep will

indicate which preset is selected. (see pg. 28)

Variable Mic Monitor: Adjusts the level of your

voice heard in the headset. (see pg. 29)

NOTE: Turning up the mic monitor may cause the

mic to pick up room sounds which will make the

silence detector not automatically shut off the

headset when it’s not being used. If the power is

not automatically shutting down, turn down this

mic monitor control.

Wired Chat Jack: Used for chat on the Xbox360/

PS4 (see pg 12 & pg 17)

Game Volume: Turn to adjust the game

sound level.

Removable Microphone with Adjustable Boom:

The microphone can be removed from the

headset when chat is not required by detaching it

from the boom.To properly position the mic: Make

sure that the triangle indicator on the Mic Boom

Plug is facing the headset. (The Metal Clip on the

Microphone Foam Cover should be facing away

from your mouth)

Go to Table of Contents

PX4 Headset - Right View

Bluetooth® Volume: Press Chat (+) or Chat (–) to

adjust Bluetooth volume level. A tone will sound each

time the volume level changes.

Bluetooth Status LED:

Paired: Flashing Blue once per second

Unpaired: Flashing blue twice per second

Pairing Mode: Flashing blue and red alternating

Bluetooth Multi-Function Button (BT MFB):

Powers on the Bluetooth and performs several other

functions described in the “Bluetooth” section. (see

pg. 25)

NOTE: The Bluetooth feature is normally powered

on. If it is not paired to another device, it will

automatically turn off after 5 minutes to conserve

battery power.

Mic Mute Button: Press to turn on/off your

microphone. When the microphone is turned on you

will hear a high tone. When it has been muted you

will hear a low tone.

Headset Charging Port: The headset may be charged

by connecting this Mini USB input to a free USB port

on your gaming console using the included Headset

Charging Cable. (see pg. 27)

NOTE: The Headset Charging Cable included with

the PX4 can only be used to charge the headset and

cannot be used as a standard USB data cable.

Charging LED: Turns red when charging and turns off

when charged.

Go to Table of Contents

PX4 Transmitter

Digital Input LED: This LED turns on when a digital input signal

is detected. When this LED is ON, the analog input is turned off.

Surround Sound LED: The LED will light whenever the digital

input is being processed by the surround sound decoder.

When this LED is off, the audio signal will be heard in stereo.

Dolby® Digital LED: The LED will light whenever a Dolby

Digital encoded signal is detected on the digital input.

Power/Link LED: When the transmitter is powered on and

communicating with the headset, this LED will be on solid. If

the LED is slowly pulsing/off it indicates the transmitter can’t

communicate with the headset. This could happen when

the headset is out of range, turned off or not paired with the

transmitter.(see pg 30)

Digital Input and Output: The Digital In is used to connect

your PX4 to a Xbox360/PS3/PS4 for audio. The Digital Out can

be used to pass through audio to a home theater system.

Analog Input Jack: Provides a 3.5mm input for digital music

players or additional audio sources. (3.5mm cable sold

separately) NOTE: The analog input is deactivated whenever

a digital input is active, so both the digital and analog inputs

cannot be used at the same time.

Pair Button: Press and hold to activate pairing mode.

(See pg. 30)

Surround Sound Angles Button: Press to select different

HRTF surround angles. (see pg. 24)

Surround Sound On/Off Button: Pressing this button toggles

between surround sound and stereo sound. When surround

sound is active, the Surround Sound LED will be lit.

Transmitter Range

The transmitter sends game audio from your Xbox 360®

console to the headset via digital radio frequency (RF) signal,

so a direct line of sight is not required. When you’re out

of range, you may hear popping or clicking sounds if the

headset loses the RF signal. For best performance, place the

transmitter in an open area that is unobstructed by objects

that might absorb RF signals from the internal antenna.

Avoid placing it on a metal surface, such as the top of a home

theater A/V receiver.

SurrouND

aNGleS

SurrouND

oN/ oFF

PaIr

7 8 9

1 2 3 4

Optimum range:

within 30 ft.

Go to Table of Contents 9

PS3™ Setup/System Settings Conﬁguration

DIGITAL OUT

(OPTICAL)

PS3 Hardware Setup

Note: Remove the clear plastic covers from both ends of your Digital Optical Cable before setting up your transmitter.

Go to Table of Contents 10

PS3™ Setup/System Settings Conﬁguration

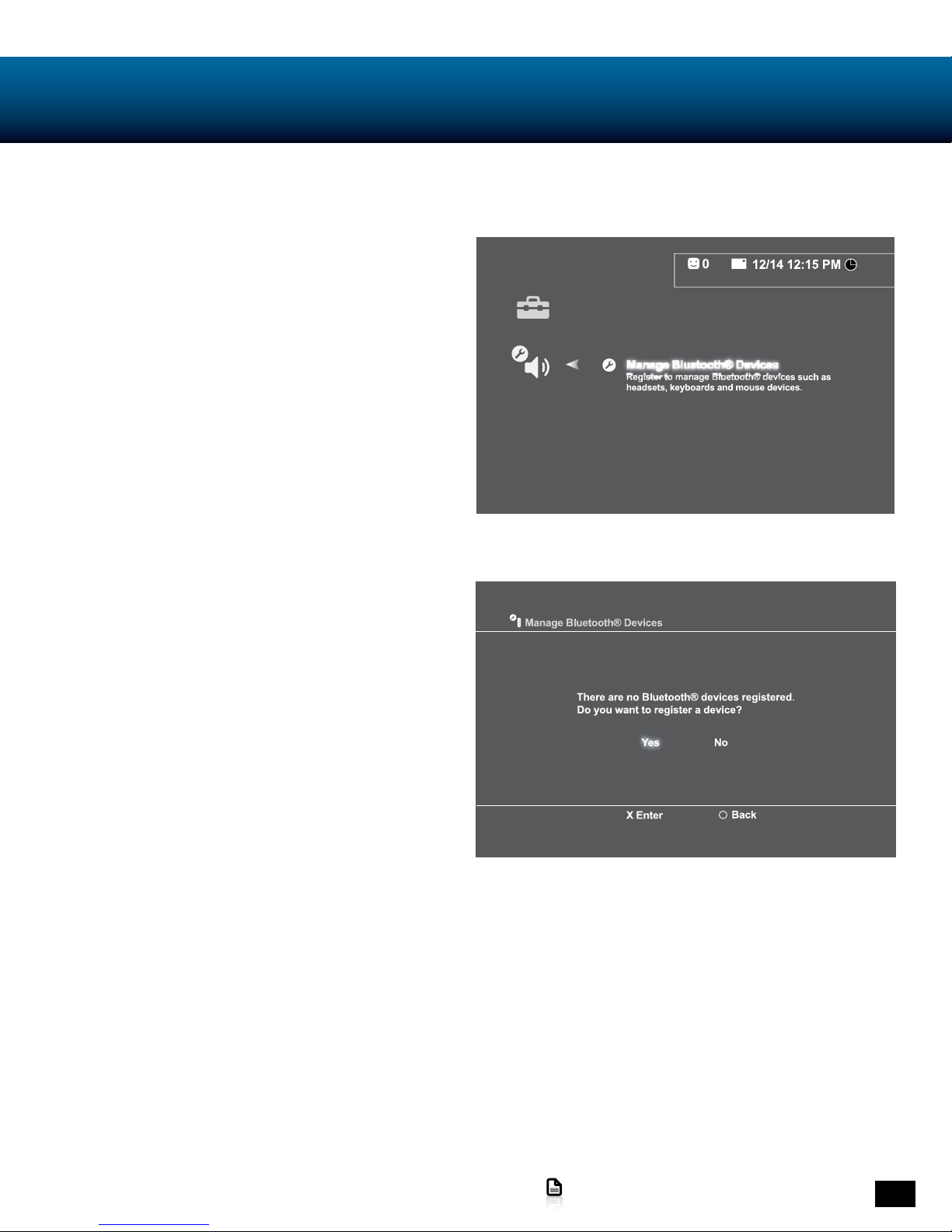

PS3 Bluetooth Conﬁguration

1. In the PS3 menu Navigate to Settings > Accessory Settings >

Manage Bluetooth Devices.

2. Power off PX4 Bluetooth. Hold BT MFB for 5 seconds until

Bluetooth LED switches off.

3. On the PS3, scan for Bluetooth devices.

4. With PX4 powered ON, but Bluetooth OFF, hold BT MFB until

Bluetooth LED ﬂashes blue and red, then release.

5. On the PS3 select “Turtle Beach Bluetooth Chat”, then enter

“0000” as the Pass Key. The Bluetooth LED on the headset

will ﬂash blue once per second, indicating that the PX4’s

Bluetooth has paired to your PS3.
