TYAN S8236 Istruzioni per l’uso

S8236

Version 1.0

this manual may be reproduced or translated without prior written consent from

MiTAC International Corporation.

Trademark

All registered and unregistered trademarks and company names contained in this

manual are property of their respective owners including, but not limited to the

following.

TYAN®is a trademark of MiTAC International Corporation.

AMD®is a trademark of AMD®Corporation.

Intel®is a trademark of Intel®Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft®, Windows®are trademarks of Microsoft Corporation.

Winbond®is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by MiTAC International

Corporation and has been reviewed for accuracy and reliability prior to printing.

MiTAC assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN®products including liability or

warranties relating to fitness for a particular purpose or merchantability. MiTAC

retains the right to make changes to product descriptions and/or specifications at

any time, without notice. In no event will MiTAC be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Contents

Before you begin….................................................................................... 4

Chapter 1: Instruction ................................................................................ 5

1.1 Congratulations ................................................................................. 5

1.2 Hardware Specifications.................................................................... 5

1.3 Software Specifications ..................................................................... 8

Chapter 2: Board Installation..................................................................... 9

2.1 Board Image .................................................................................... 10

2.2 Block Diagram ................................................................................. 11

2.3 Board Parts, Jumpers and Connectors ........................................... 12

2.4 Installing the Processor and Heat sink ............................................ 22

2.5 Thermal Interface Material .............................................................. 25

2.6 Tips on Installing Motherboard in Chassis ...................................... 26

2.7 Installing the Memory ...................................................................... 28

2.8 Attaching Drive Cables .................................................................... 34

2.9 Installing Add-In Cards .................................................................... 35

2.10 Connecting External Devices ........................................................ 36

2.11 Installing the Power Supply ........................................................... 37

2.12 Finishing Up................................................................................... 38

Chapter 3: BIOS Setup ............................................................................. 39

3.1 About the BIOS................................................................................ 39

3.2 Main Menu....................................................................................... 41

3.3 Advanced Menu............................................................................... 42

3.4 PCI/PnP Menu................................................................................. 62

3.5 Boot Menu ....................................................................................... 64

3.6 Security Menu.................................................................................. 68

3.7 Chipset Menu .................................................................................. 69

3.8 Exit Menu......................................................................................... 83

Chapter 4: Diagnostics............................................................................. 85

4.1 Beep Codes..................................................................................... 85

4.2 Flash Utility ...................................................................................... 85

4.3 AMIBIOS Post Code........................................................................ 86

Glossary..................................................................................................... 89

Technical Support .................................................................................... 95

http://www.tyan.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x S8236 Motherboard

1 x S8236 User’s manual

1 x S8236 Quick reference guide

1 x TYAN®Driver CD

1 x I/O shield

2 x Serial ATA Cable

1 x USB 2.0 Cable

1 x Mini-SAS to 7-Pin SATA Cable

2 x Mini-SAS to Mini-SAS Cable (S8236WGM3NR Only)

http://www.tyan.com

Chapter 1: Instruction

1.1 Congratulations

You have purchased the powerful TYAN® S8236 motherboard, based on the

AMD®SR5690 & SP5100 chipsets. The S8236 is designed to support dual

AMD®45nm 8-Core/12-Core Opteron 6100 Series Processors and up to 256GB

of 800, 1066 and 1333MHz DDR3 memory modules. Leveraging advanced

technology from AMD®, the S8236 is capable of offering scalable 32 and 64-bit

computing, high-bandwidth memory design, and lightning-fast PCI-E bus

implementation.

The S8236 not only empowers you in today’s demanding IT environment but also

offers a smooth path for future application upgradeability. All of these rich feature

sets provides the S8236 with the power and flexibility to meet demanding

requirements for today’s IT environments.

Remember to visit the TYAN® website at http://www.tyan.com. There you can

find all the information on all TYAN®products as well as all the supporting

documentation, FAQs, Drivers and BIOS upgrades.

1.2 Hardware Specifications

S8236WGM3NR

Supported CPU Series

AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors (Magny-

Cours) / (4) HT3; 12MB L3 per socket

Features

HyperTransportTM3 technology (HT3) links provide up to 102.4 GB/s

peak bandwidth per processor; Quad 16-bit HyperTransportTM3

technology (HT3) links provide up to 6.4GT/s per link.

Socket Type / Q'ty G34 / (2)

Average CPU Power

(ACP) wattage Up to 105W

Processor

System Bus Up to 6.4 GT/s Hyper-Transport link support

Chipset AMD SR5690 + SP5100

Chipset Super I/O Winbond W83627

Supported DIMM Qty

(8)+(8) DIMM slots

DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz

Capacity Up to 256GB (total)

Memory channel 4 Channels per CPU

Memory

Memory voltage 1.5V or 1.35V

PCI-E (2) PCI-E Gen.2 x16 slots

Expansion Slots Recommended TYAN

Riser Card

M2091, PCI-E x16 1U riser card (left) and M2091-R, PCI-E x16 1U riser

card (right)

Recommended

Barebone / Chassis 2U Barebone GT24-B8236

Port Q'ty (3)

LAN Controller Intel 82574L / Intel 82576EB

Connector (2) Mini-SAS connectors (totally support 8 ports)

Controller LSI SAS2008

Speed 6.0 Gb/s

SAS

RAID RAID 0/1/1E/10 (LSI Integrated RAID)

Storage

SATA Connector (1) Mini-SAS (4-port) + (2) SATA

http://www.tyan.com

Controller AMD SP5100

Speed 3.0 Gb/s

RAID RAID 0/1/10/5 (Promise Integrated RAID)

Connector type D-Sub 15-pin

Resolution 1600x1200@60Hz

Graphic

Chipset Aspeed AST2050

USB (8) USB2.0 ports (3 at rear, 4 via cable, 1 type A onboard)

COM (2) ports (1 at rear, 1 via cable)

SAS (2) Mini-SAS (4-in-1) connectors

VGA (1) D-Sub 15-pin VGA port

RJ-45 (4) GbE ports

Power ATX12V / SSI EEB spec. 2008 / Universal 24-pin + 8-pin + 8-pin

power connectors

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (1) Mini-SAS connector & (2) SATA-II connectors

Chipset Winbond W83793G

Voltage Monitors voltage for CPU, memory, chipset & power supply

Fan Total (8) 4-pin headers

Temperature Monitors temperature for CPU & system environment

LED Fan fail LED indicator / Over temperature warning indicator / Fan &

PSU fail LED indicator

System Monitoring

Others Watchdog timer support

Onboard Chipset Onboard Aspeed AST2050

AST2050 IPMI

Feature

IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0

virtual hub / BIOS update

Server Management

AST2050 iKVM

Feature

24-bit high quality video compression / Dual 10/100 Mb/s MAC

interfaces

Brand / ROM size AMI / 4MB

BIOS Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI

2.0 power management /Power on mode after power recovery / User-

configurable H/W monitoring

Form Factor SSI EEB

Physical Dimension Board Dimension 12"x13" (305x330mm)

Operating System OS supported list Please visit our Web site for the latest update.

FCC (DoC) Class B

Regulation CE (DoC) Yes

Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

Operating

Environment In/Non-operating

Humidity 90%, non-condensing at 35° C

RoHS RoHS 6/6 Complaint

Yes

Motherboard (1) S8236 Motherboard

Manual (1) User's manual / (1) Quick Ref. Guide

Installation CD (1) TYAN installation CD

I/O Shield (1) I/O Shield

SATA (2) SATA signal cables / (1) Mini-SAS cable

Package Contains

Cable

SAS (2) Mini-SAS cables

Optional accessories

Riser Card M2091-R, PCI-E x16 1U riser card (right) / M2091, PCI-E x16 1U riser

card (left)

S8236GM3NR

Supported CPU Series

AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors (Magny-

Cours)

Socket Type / Q'ty G34 / (2)

Average CPU Power

(ACP) wattage Up to 105W

Processor

System Bus Up to 6.4 GT/s Hyper-Transport link support

Chipset AMD SR5690 + SP5100

Chipset Super I/O Winbond W83627

http://www.tyan.com

Supported DIMM Qty

(8)+(8) DIMM slots

DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz

Capacity Up to 256GB (total)

Memory channel 4 Channels per CPU

Memory

Memory voltage 1.5V or 1.35V

PCI-E (2) PCI-E Gen.2 x16 slots

Expansion Slots Recommended TYAN

Riser Card

M2091, PCI-E x16 1U riser card (left) and M2091-R, PCI-E x16 1U

riser card (right)

Recommended

Barebone / Chassis 2U Barebone GT24-B8236

Port Q'ty (3)

LAN Controller Intel 82574L / Intel 82576EB

Connector (1) Mini-SAS (4-port) + (2) SATA

Controller AMD SP5100

Speed 3.0 Gb/s

Storage SATA

RAID RAID 0/1/10/5 (Promise Integrated RAID)

Connector type D-Sub 15-pin

Resolution 1600x1200@60Hz

Graphic

Chipset Aspeed AST2050

USB (8) USB2.0 ports (3 at rear, 4 via cable, 1 type A onboard)

COM (2) ports (1 at rear, 1 via cable)

VGA (1) D-Sub 15-pin VGA port

RJ-45 (4) GbE ports

Power ATX12V / SSI EEB spec. 2008 / Universal 24-pin + 8-pin + 8-pin

power connectors

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (1) Mini-SAS connector & (2) SATA-II connectors

Chipset Winbond W83793G

Voltage Monitors voltage for CPU, memory, chipset & power supply

Fan Total (8) 4-pin headers

Temperature Monitors temperature for CPU & system environment

LED Fan fail LED indicator / Over temperature warning indicator / Fan &

PSU fail LED indicator

System Monitoring

Others Watchdog timer support

Onboard Chipset Onboard Aspeed AST2050

AST2050 IPMI Feature

IPMI 2.0 compliant baseboard management controller (BMC) / USB

2.0 virtual hub / BIOS update

Server Management

AST2050 iKVM

Feature

24-bit high quality video compression / Dual 10/100 Mb/s MAC

interfaces

Brand / ROM size AMI / 4MB

BIOS Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI

2.0 power management /Power on mode after power recovery /

User-configurable H/W monitoring

Form Factor SSI EEB

Physical Dimension Board Dimension 12"x13" (305x330mm)

Operating System OS supported list Coming soon

FCC (DoC) Class B

Regulation CE (DoC) Yes

Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

Operating

Environment In/Non-operating

Humidity 90%, non-condensing at 35° C

RoHS RoHS 6/6 Complaint Yes

Motherboard (1) S8236 Motherboard

Manual (1) User's manual / (1) Quick Ref. Guide

Installation CD (1) TYAN installation CD

I/O Shield (1) I/O Shield

Package Contains

Cable SATA (2) SATA signal cables / (1) Mini-SAS cable

Optional accessories Riser Card M2091-R, PCI-E x16 1U riser card (right) / M2091, PCI-E x16 1U

riser card (left)

http://www.tyan.com

1.3 Software Specifications

For OS (operation system) support, please check with TYAN®support for latest

information.

Remember to visit our Web site at http://www.tyan.com for the latest AST2050

User’s Guide.

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, MiTAC recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic

bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE: Do not apply power to the board if it has been damaged.

http://www.tyan.com

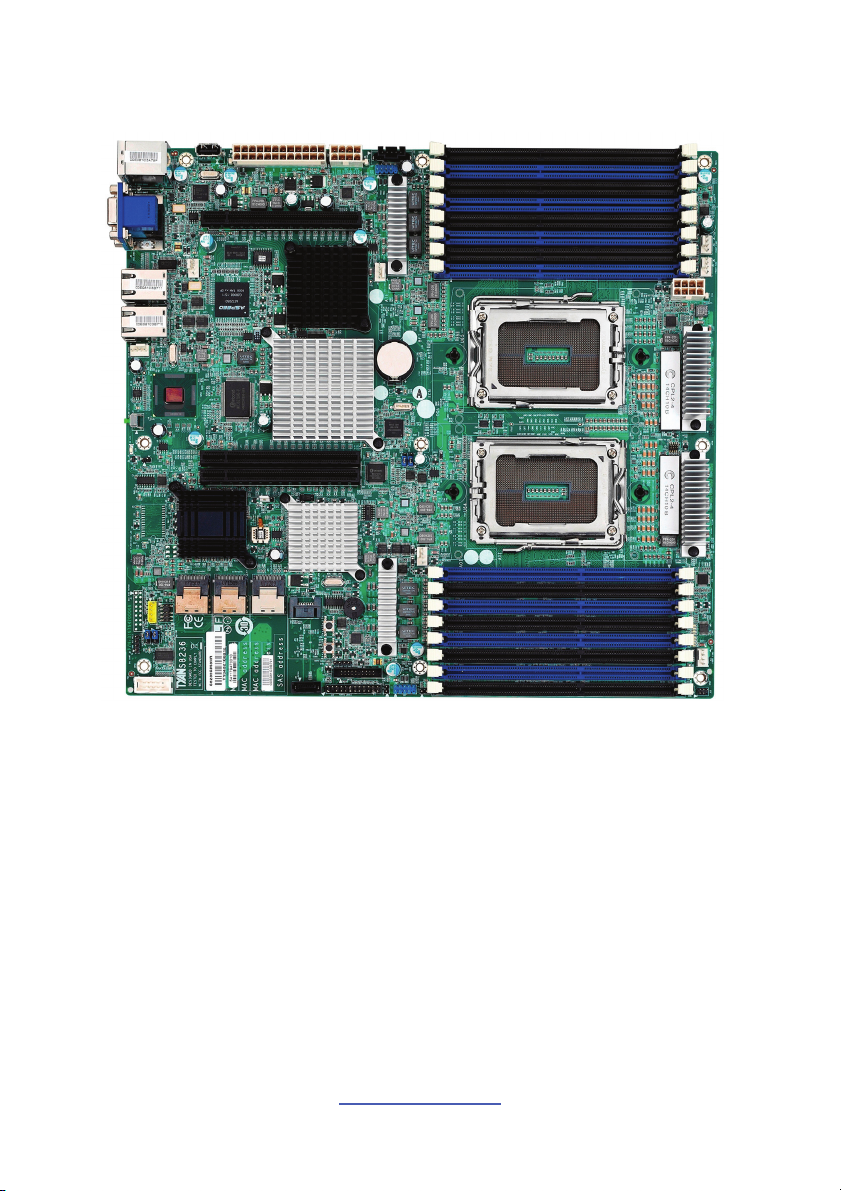

2.1 Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above picture.

Indice

Altri manuali TYAN Scheda madre

TYAN

TYAN TIGER I7320, D, R, RD Manuale utente

TYAN

TYAN TIGER K8W Manuale utente

TYAN

TYAN S5515 Manuale utente

TYAN

TYAN TAHOE PLUS ATX Manuale utente

TYAN

TYAN M4985 Manuale utente

TYAN

TYAN Thunder K8WE S2895 Istruzioni per l'installazione e il funzionamento

TYAN

TYAN S7045 Manuale utente

TYAN

TYAN Tigercub 100 S1894 Manuale utente

TYAN

TYAN Tempest i5000VS S5372 Manuale utente

TYAN

TYAN Tomcat n3400B S2925 Manuale operativo e di manutenzione

TYAN

TYAN Tomcat K8S S2850 Manuale utente

TYAN

TYAN TOMCAT I875P Manuale utente

TYAN

TYAN TOMCAT I875PR Manuale utente

TYAN

TYAN TOMCAT I7230W Manuale utente

TYAN

TYAN Tiger K8W S2875 Manuale utente

TYAN

TYAN Tiger 100 S1832DL Manuale utente

TYAN

TYAN TITAN I Manuale utente

TYAN

TYAN TIGER 133 Manuale utente

TYAN

TYAN Tiger i7525 Manuale utente

TYAN

TYAN Thunder i7501 S2720-533 Manuale utente

TYAN

TYAN S7120 Manuale utente

TYAN

TYAN S5535 Manuale utente

TYAN

TYAN S7086 Manuale utente

TYAN

TYAN TAHOE-A ATX Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
