TYAN Thunder n3600QX Manuale utente

Thunder n3600QX /// S4987

Version 1.00

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Thunder n3600QX are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMIBIOS, and combinations thereof are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation.

IBM, PC, AT, PS/2 are trademarks of IBM Corporation.

InfiniBand is a trademark of Mellanox Technologies.

Winbond is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

Table of Contents

Before you begin 4

Chapter 1: Introduction

1.1 Congratulations………………….…………………….……...…….… 5

1.2 Hardware Specifications…..……..……………………….………....... 5

1.3 Software Specifications………………………………………………. 7

Chapter 2: Board Installation

2.1 Board Image…………………….….…………………………………. 9

2.2 Block Diagram………………….….…………………………………. 10

2.3 Board Parts, Jumpers and Connectors……….….……………………. 11

2.4 Installing the Processors.……….….…………………………………. 18

2.5 Heat Sink Installing……….……….…………………………………. 19

2.6 Thermal Installation Material…..….…………………………………. 20

2.7 Finishing Installing the Heat Sink……….….………..………………. 21

2.8 Tips on Installing Motherboard in Chassis……….….….……………. 22

2.9 Installing the Memory…….…….….…………………………………. 24

2.10 Attaching Drive Cables….……….….………………………………. 27

2.11 Installing Add-in Card……..…….….………………………………. 29

2.12 Installing SO-DIMM Module – OPMA Card…………......…...……. 30

2.13 Connecting External Devices….….…………………………………. 31

2.14 Installing the Power Supply…….….……………..…………………. 32

2.15 Finishing Up…………….……….….………………………………. 33

Chapter 3: BIOS Setup

3.1 About the BIOS…………………………………………………...….. 34

3.2 BIOS Menu Bar…………………………………………………...….. 34

3.3 Setup Basics…..…………………………………………………...….. 35

3.4 Getting Help…..…………………………………..……………….….. 35

3.5 In Case of Problems……………………………………………...…… 35

3.6 BIOS Main Menu…………………………………………………….. 36

3.7 BIOS Advanced Menu……………………………………………..…. 37

3.7.1 CPU Configuration…….………………………………………………. 38

3.7.2 IDE Configuration Sub-Menu…………………………………………. 40

3.7.3 Super I/O Configuration Sub-Menu…………………………………… 44

3.7.4 ACPI Configuration Sub-Menu………………………………………... 45

3.7.5 APM Configuration……………………………………………………. 48

3.7.6 Event Log Configuration Sub-Menu…………………………………... 50

3.7.7 Hardware Health Configuration Sub-Menu……………………………. 51

3.7.8 Remote Access Configuration Sub-Menu……………………………... 54

3.7.9 USB Configuration Sub-Menu………………………………………… 55

3.8 PCI PnP Menu………………………………………………………... 57

3.9 Boot Menu……………………………………………………………. 59

3.9.1 Boot Settings Configuration Sub-Menu……………….………………. 59

3.9.2 Boot Device Priority………………..………………………….............. 61

3.9.3 Hard Disk Drives……………...……………………………….............. 62

3.9.4 Removable Drives…………..…………………………………………. 63

3.9.5 Network Drives..……………………………………………………….. 63

3.10 Security Menu……………………………………………………….. 64

3.11 Chipset Menu………………………………………………………... 65

3.11.1 Northbridge Configuration Sub-Menu………………………………… 66

3.11.2 Southbridge Configuration Sub-Menu………………………………… 73

3.11.3 Hyper Transport MCP55 Configuration Sub-Menu…………………… 74

3.12 Exit Menu…………………………………………………………… 75

Chapter 4: Diagnostics 77

Appendix I: How to Make a Driver Diskette 80

Appendix II: LSI Logic Config Utility 82

Appendix III: InfiniBand Installation Guide 85

Appendix IV: Recommended Accessory List 91

Glossary 93

Technical Support 99

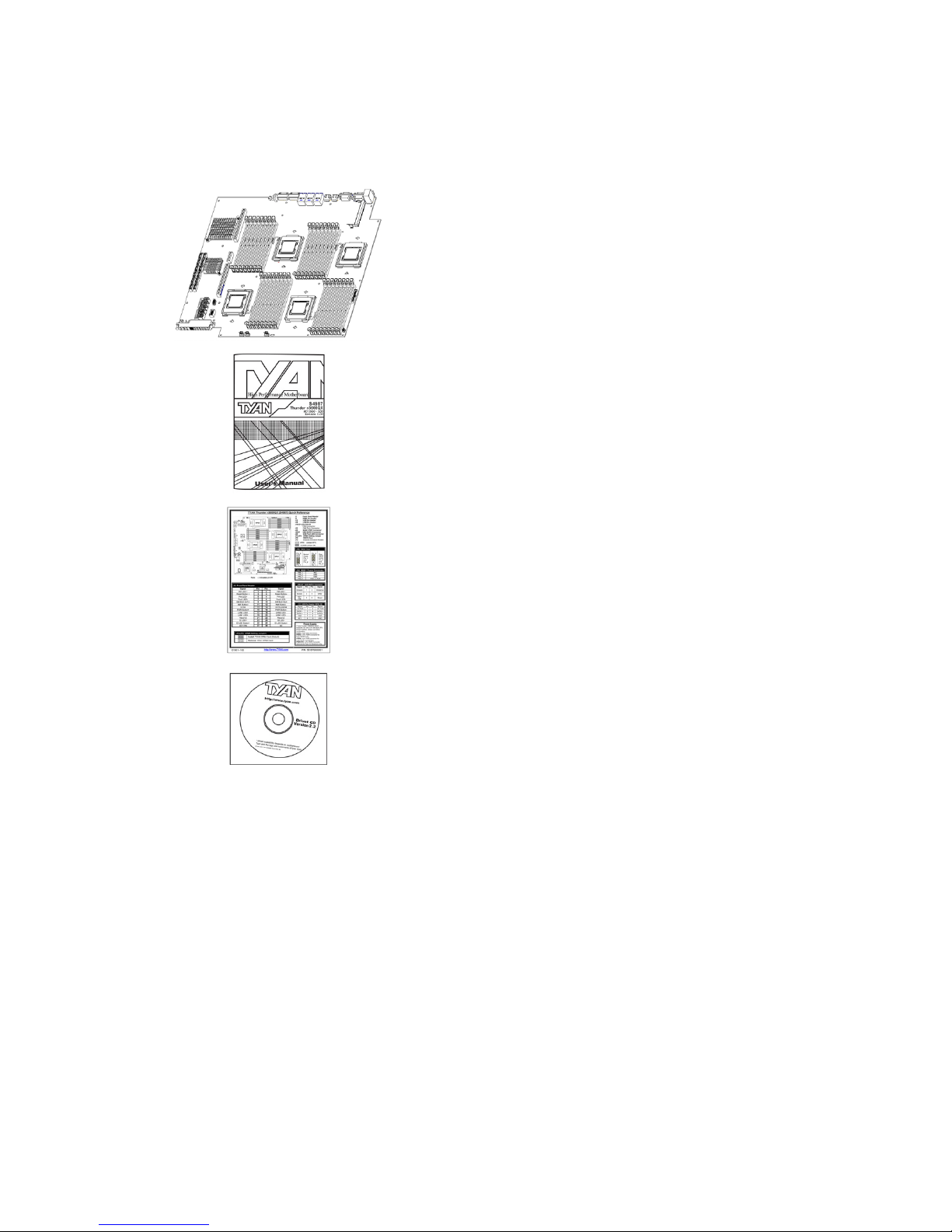

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1 x Thunder n3600QX (S4987) motherboard

1 x Thunder n3600QX user’s manual

1 x Thunder n3600QX quick reference guide

1 x TYAN driver CD

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

NOTE: For other usable accessories, please refer to Appendix IV for more

details.

Chapter 1: Instruction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. Based on

NVIDIA nForce Pro3600 chipset, the Thunder n3600QX (S4987) is designed to

support AMD®Opteron™ Socket F (1207) 8000 series dual-core and Quad-

core processors and up to 128GB DDRII-667 memory, providing a rich feature

set and incredible performance. Leveraging advanced technology from AMD,

the Thunder n3600QX (S4987) is capable of offering scalable 32 and 64-bit

computing, high-bandwidth memory design, and lightning-fast PCI-E, PCI-X bus

or HTX slot implementation.

The Thunder n3600QX (S4987) not only empowers your company in today’s

demanding IT environment but also offers a smooth path for future application

usage. TYAN is also proud to deliver the Thunder n3600QX (S4987) in

SATAII/SAS flavor. All of this provides the Thunder n3600QX (S4987) the

power and flexibility to meet the needs of nearly any server application.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processo

●Quad mPGA 1207-pin sockets

●Supports Four AMD Opteron™

Socket F (1207) 8000 series

processors

Chipset

●nVidia nForce Pro 3600 (MCP55)

●Winbond 83627HG Super I/O

●Winbond w83793G Hardware

Monitoring IC

Memory

●Dual channel memory bus

●Thirty-two (32) DDR2 DIMM

sockets (Eight per CPU)

●Maximum of 128GB Registered

DDR2-400/533/667

●Supports ECC memory

Integrated I/O

●Tyan Barebone 2 x 14 front-panel

Expansion Slots

●One (1) PCI-E x16 slot (w/ x 16

signal), via Riser

---broken into 2 x 8 signals via 2U

Riser (Optional)

●One (1) HTX slot

●200-pin OPMA connector support

M3 OPMA card (LAN onboard)

System Management

●Winbond 83627HF and Winbond

w83793G w/ hardware monitoring

●CPU thermal & voltage monitor

support

●Onboard 8 fan header: 4 CPU fan

connector / 4 system fan header

●One backplane fan control header

for Barebone FAN/HDD

backplane.

●Watchdog timer support

●Port 80 code display LED

pin header

●Four SAS ports

●Four SATA ports

●One IDE connector

●Two USB headers

●One COM port header at 3.0Gb/s

Rear Side

●One InfiniBand connector (apart

from I/O backplane, optional)

●External SAS connector (four-in-

one)

●Three RJ-45 ports with LEDs

- One RJ-45 100 for OPMA card

use

- Two (side by side) RJ-45

10/100/1000 for LAN ports

●Two (side-by-side) USB 2.0 ports

(single port)

●One VGA port

●One COM port

●PS/2 mouse and keyboard

connector

●ID LED

●IB/SAS LED

Onboard InfiniBand Network

Controller (optional)

●Mellanox InfiniHost III Lx DDR

MT25204A0-FCC-D single port

●Memory on DIMM, PCI-E x8

interface

●DDR model as default

●S4987WG2NR: w/o IB onboard;

S4987WG2NRI2: w/ IB onboard.

Onboard Graphics Controller

●ATI® ES1000 controller

●32MB DDR frame buffer

Integrated SAS Controller

●LSI 1068E SAS controller

●PCI-E x4 interface

●Supports eight SAS ports (4 ports

internal, 4 ports external)

●RAID 0,1, and 1E supported

Integrated SATA Controllers

●Supports Four (4) SATA-II ports

running at 3.0Gb/s from MCP55

●RAID 0, 1, 5, 10 capable

Integrated LAN Controllers

●Two GbE via Marvell PHY

88E1121

●Supports WOL and PXE

●Two RJ-45 ports with LED

BIOS

●AMI 8Mbit LPC Flash ROM

●Serial Console Redirect

●USB boot supported

●Supports APM1.2 and ACPI

●PnP, DMI, WfM power

Management

●S0/S1/S4/S5 states supported

Form Factor

●16.63”x 16.098”

Power Supply

●12V and 5VSB input only.

●On board connector : FCI 51915-

080

Regulatory

●FCC Class A (DoC)

●European Community CE (DoC)

●VCCI

●C-tick

●BSMI (Optional)

1.3 - Software Specifications

For OS (operation system) support, please check with Tyan support for latest

information.

Chapter 2: Board Installation

You are now ready to install your motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

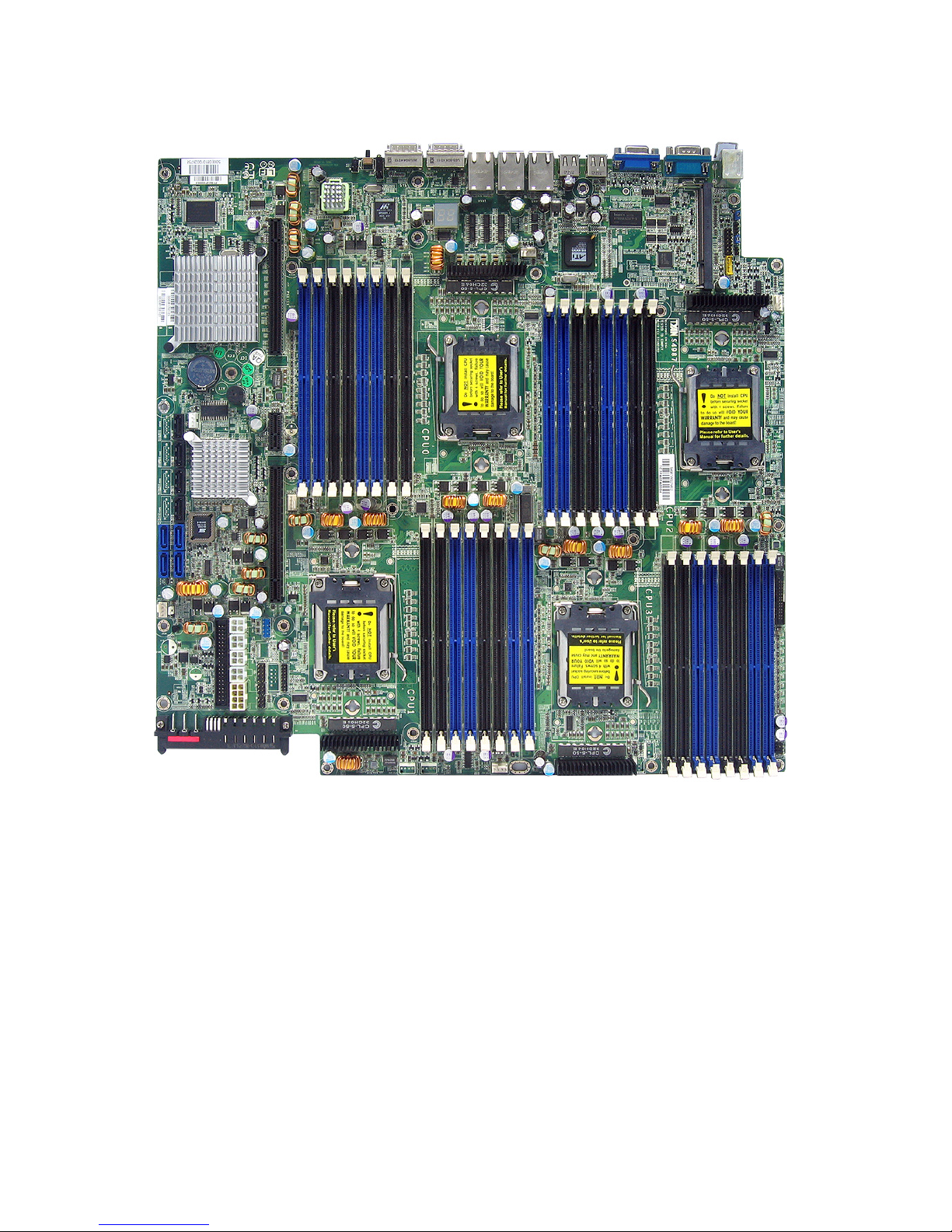

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

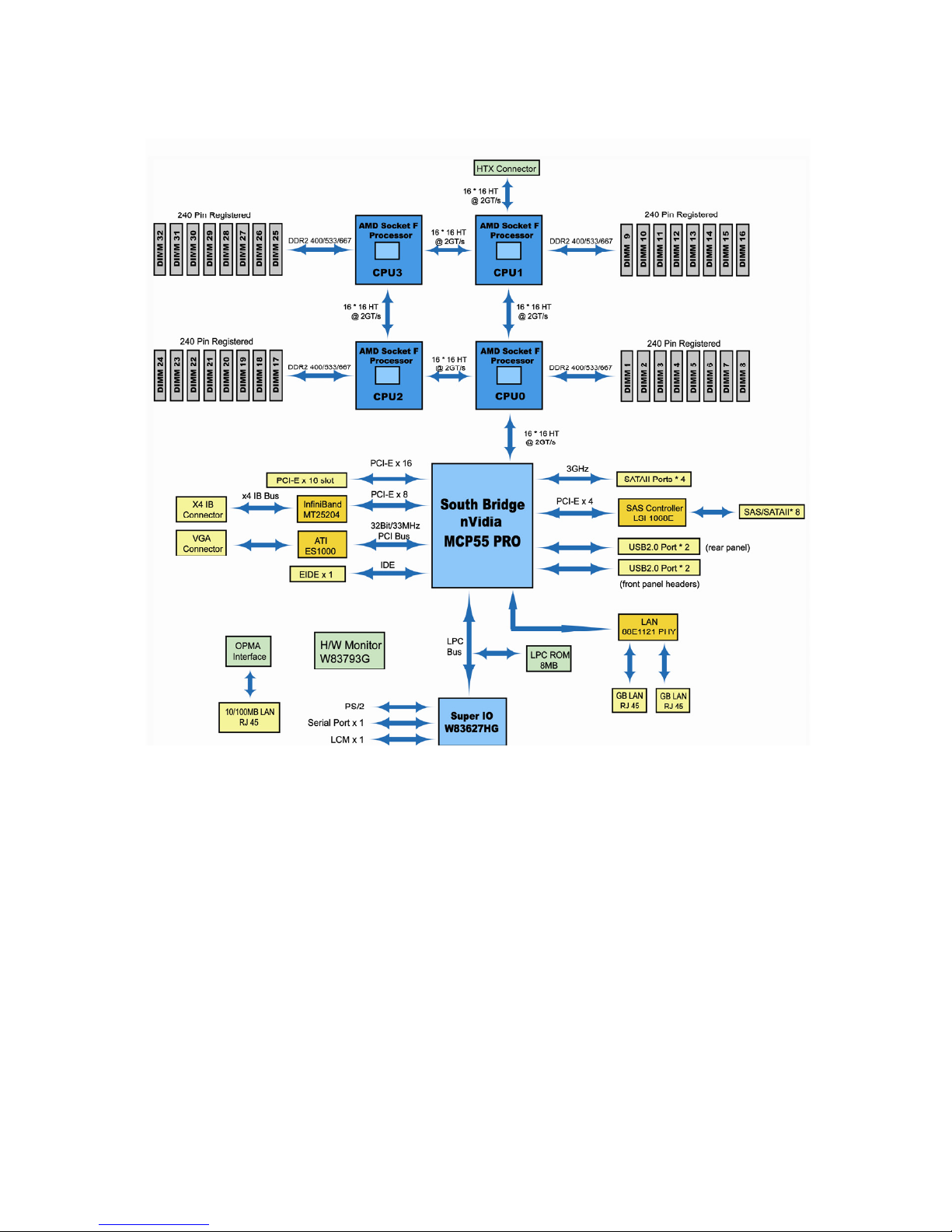

2.2 - Block Diagram

Thunder n3600QX (S4987) Block Diagram
