TYAN THUNDER H2000M Manuale utente

http://www.tyan.com

Thunder h2000M /// S3992-E

Version 1.0

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Taro and Thunder h2000M are trademarks of TYAN Computer

Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of Novell.

Linux is a trademark of Linus Torvalds.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

Chapter 2: Board Installation

2.1 Board Image Page 8

2.2 Block Diagram Page 9

2.3 Board Parts, Jumpers and Connectors Page 10

2.4 Tips on Installing Motherboard in Chassis Page 22

2.5 Installing the Processor(s) Page 23

2.6 Installing the Memory Page 28

2.7 Attaching Drive Cables Page 31

2.8 Installing Add-In Cards Page 33

2.9 Installing Optional SO-DIMM Modules Page 34

2.10 Connecting External Devices Page 35

2.11 Installing the Power Supply Page 36

2.12 Finishing Up Page 37

Chapter 3: BIOS

3.1 BIOS Setup Utility Page 39

3.2 BIOS Menu Bar Page 40

3.3 BIOS Legend Bar Page 40

3.4 BIOS Main Menu Page 42

3.5 BIOS Advanced Menu Page 43

3.6 BIOS PnP/PCI Menu Page 63

3.7 BIOS Boot Menu Page 65

3.8 BIOS Security Menu Page 69

3.9 BIOS Chipset Menu Page 70

3.10 BIOS Exit Menu Page 82

Chapter 4: Diagnostics

4.1 Beep Codes Page 83

4.2 Flash Utility Page 83

4.3 AMIBIOS Post Code Page 84

Appendix: SMDC Information Page 87

Glossary Page 89

Technical Support Page 95

http://www.tyan.com

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder h2000M motherboard

1x 34-Pin floppy drive cable

4 x SATA cable

2 x S-ATA Power cable

1 x Ultra-DMA-100/66 IDE cable

1 x USB2.0 cable

1 x COM Port cable

1 x Thunder h2000M User’s Manual

1 x Thunder h2000M Quick Reference Guide

1 x TYAN driver CD

1 x I/O shield

2 x CPU Retention Frame and Back Plate

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions available. The

Thunder h2000M (S3992-E) is a high-end server motherboard, based on the

ServerWorks BCM5780 & BCM5785 chipsets. It also includes the SMSC

SCH4307 Super I/O and SMSC EMC6D103 Hardware Monitoring chipsets.

This motherboard is designed to support up to two AMD Opteron™ Rev. F 2000

Series / Barcelona Quad core processors and DDRII 667/533 memory. The

S3992-E is ideal for CPU, memory, and network intensive applications required

in the HPC and clustering environments.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processors

•Two uPGA 1207-pin ZIF sockets

•Supports up to two AMD OpteronTM

Rev. F 2000 Series Santa Rosa Dual

core processors, and Barcelona Quad

core processors

•Supports AMD dual dynamic power

feature

•Integrated 128-bit DDRII memory

controller

Chipset

•ServerWorks BCM5780 (HT2000) +

BCM5785 (HT1000) chipsets

•SMSC SCH4307 Super I/O chip*

*S3992 and S3992-E are with

different Super I/O chips.

Memory

•128-bit dual channel memory bus

•Total sixteen (16) 240-pin 1.8V DDRII

DIMM sockets (8 on CPU1 and 8 on

CPU2)

•Supports up to DDRII 667MHz

•Registered, ECC module supported

Integrated Video Controller

•ATI ES1000 controller

•32MB DDR frame buffer

Integrated Enhanced IDE

Controller

•Single-channel master mode supports

up to two IDE devices

•Supports IDE drives and ATAPI-

compliant devices

Integrated SATA Controllers

•Supports four SATA ports at 1.5 Gb/s

with NCQ (BCM5785 Chipset)

•RAID 0/1/5/10 supported

BIOS

•AMI BIOS on 8Mbit LPC Flash ROM

•ACPI 2.0 and SRAT support

•PXE via Ethernet, USB device boot

•SMBIOS 2.3.1, BBS 1.1 compliant

•Headless Operation via serial console

redirect

•48-bit LBA Support

http://www.tyan.com

System Management

•Two (2) EMC6D103 hardware

monitoring IC

•Eight (8) 3+1 fan headers support

tachometer monitoring, six (6) of them

with smart FAN control

•Temperature and voltage monitoring

•Watchdog timer support

Expansion Slots

•Two (2) PCI Express X16 slots (each

w/ x8 signal)

•Two (2) PCI-X 133/100MHz slots

•One (1) PCI-X 100MHz slot

•One (1) PCI 32-bit/33MHz, v2.3

compliant slot

•One (1) TYAN “TARO” SO-DIMM

socket

Integrated I/O

•One floppy connector

•One IDE connector

•Four SATA connectors

•Four USB2.0 ports (2 at rear, 2 via

cable)

•Two COM ports (1 at rear, 1 via cable)

•Tyan 2 x 9 front panel pin header

•Tyan 2 x 6 front panel pin header for

LAN/ID LED

•Tyan 2 x 7 pin header (2.0mm) for

FAN tachometer and PWM

•2 x 25 connector for optional TYAN

IPMI SMDC

Back Panel I/O Ports

•Stacked PS/2 Mouse & Keyboard

ports

•Stacked 2 USB ports and 1 10/100

RJ45 port

•One 9-pin COM port

•One 15-pin VGA connector

•Two side-by-side RJ-45 ports

Form Factor

•Extended ATX footprint (13” x 12”)

•EPS12V/ATX 12V universal power

connectors

Integrated LAN Controllers

•Dual GbE LAN (from BCM 5780)

- Embedded in BCM5780

- Two 10/100/1000 RJ-45 LAN ports

w/LED

•One Intel i82551 QM fast Ethernet

controller

- One 10/100 RJ-45 LAN port w/LED

- Operating on 32bit/33MHz PCI bus

Optional Modules

•M3291, IPMI 2.0 Remote System

Mgmt card

- Renesas H8S2167 BMC controller

- BT, KCS, Logging support

- IPMI-over-LAN

- Remote power on/off and reset

•M7901/M7902, Ultra 320 SCSI TARO

card

- Adaptec AIC-7901/7902 single/dual-

channel Ultra320 SCSI controller

- Adaptec Host RAID 0, 1, 10 supported

•M9000 SAS/SATA II TARO card

- Adaptec AIC-9405/9410 SAS

controller

- Supports up to 4-port (M9000-5) and

8-port (M9000-10) SAS & SATA running

at 3.0Gb/s

- Adaptec HostRAID 0, 1 & 10

supported

Power

•Onboard dual 4-phase VRM

•EPS12V/SSI v3.51 (24+8) power

connectors

Regulatory

•FCC Class B (DoC)

•European Community CE (DoC)

http://www.tyan.com

Chapter 2: Board Installation

Precautions: The Thunder h2000M supports SSI, EPS12V type power supplies

(24pin + 8pin) and will not operate with any other types. For proper power

supply installation procedures see page 36.

DO NOT USE ATX 2.x or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

http://www.tyan.com

2.1- Board Image

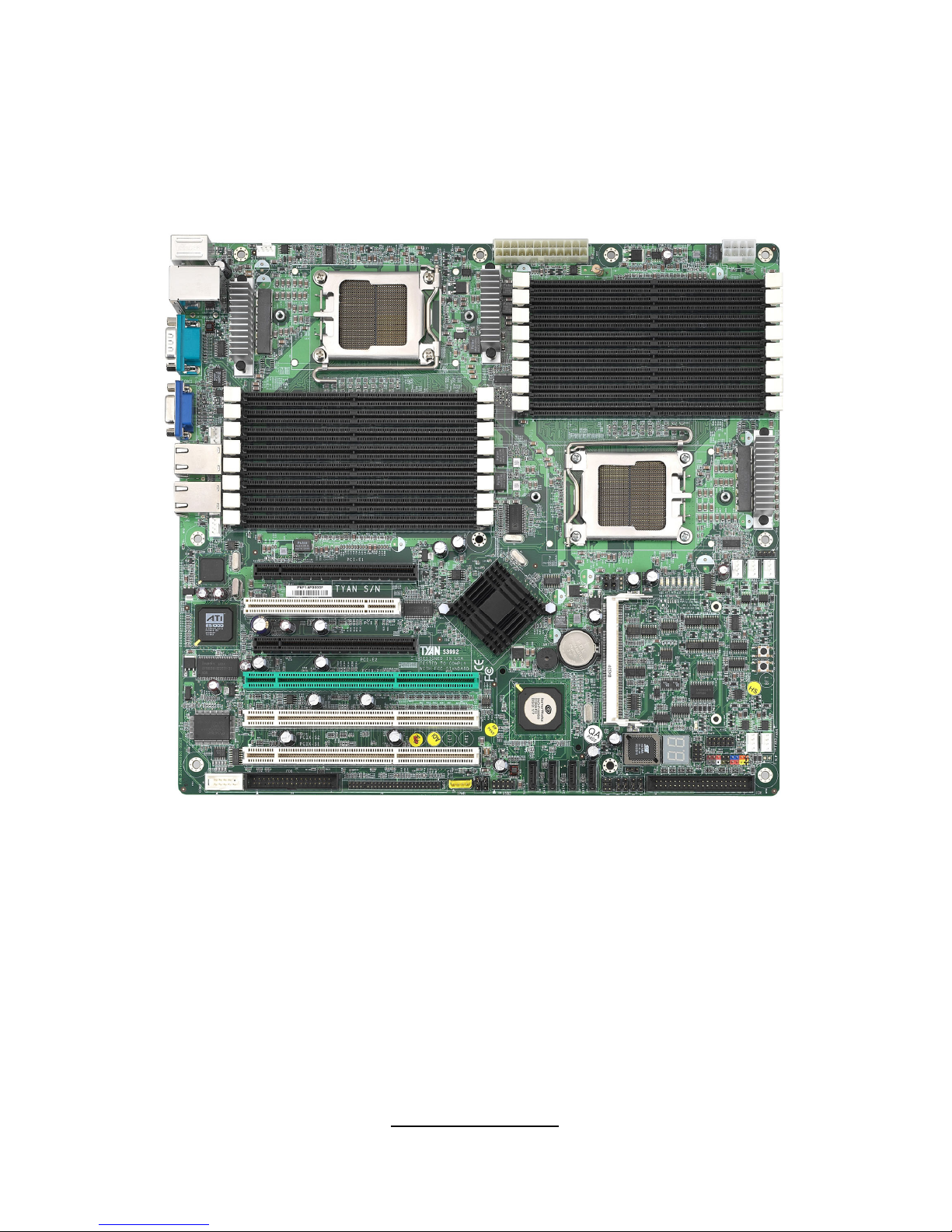

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

The following page includes details on the vital components of this

motherboard.

http://www.tyan.com

2.2 - Block Diagram

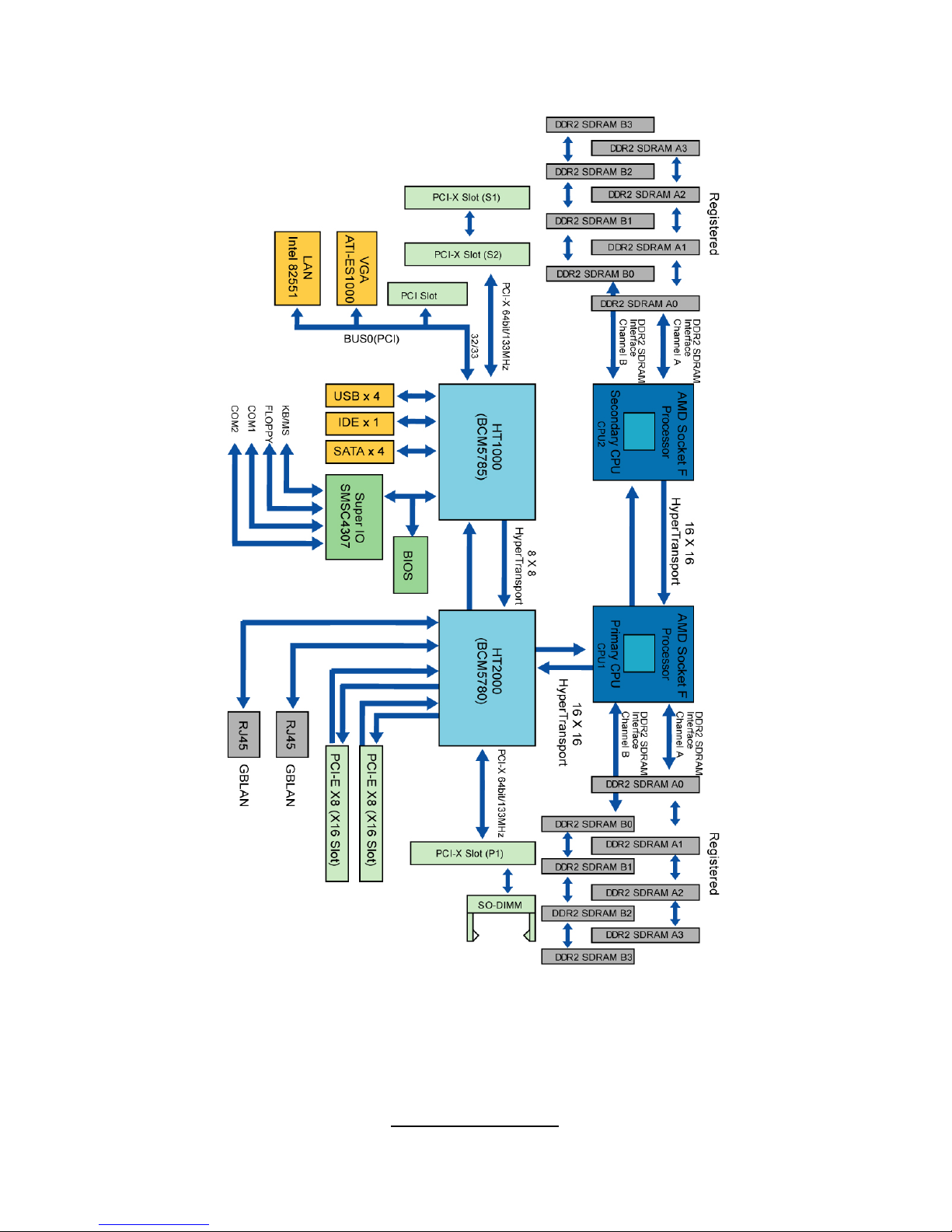

Thunder h2000M (S3992-E) Block Diagram

http://www.tyan.com

2.3 - Board Parts, Jumpers and Connectors

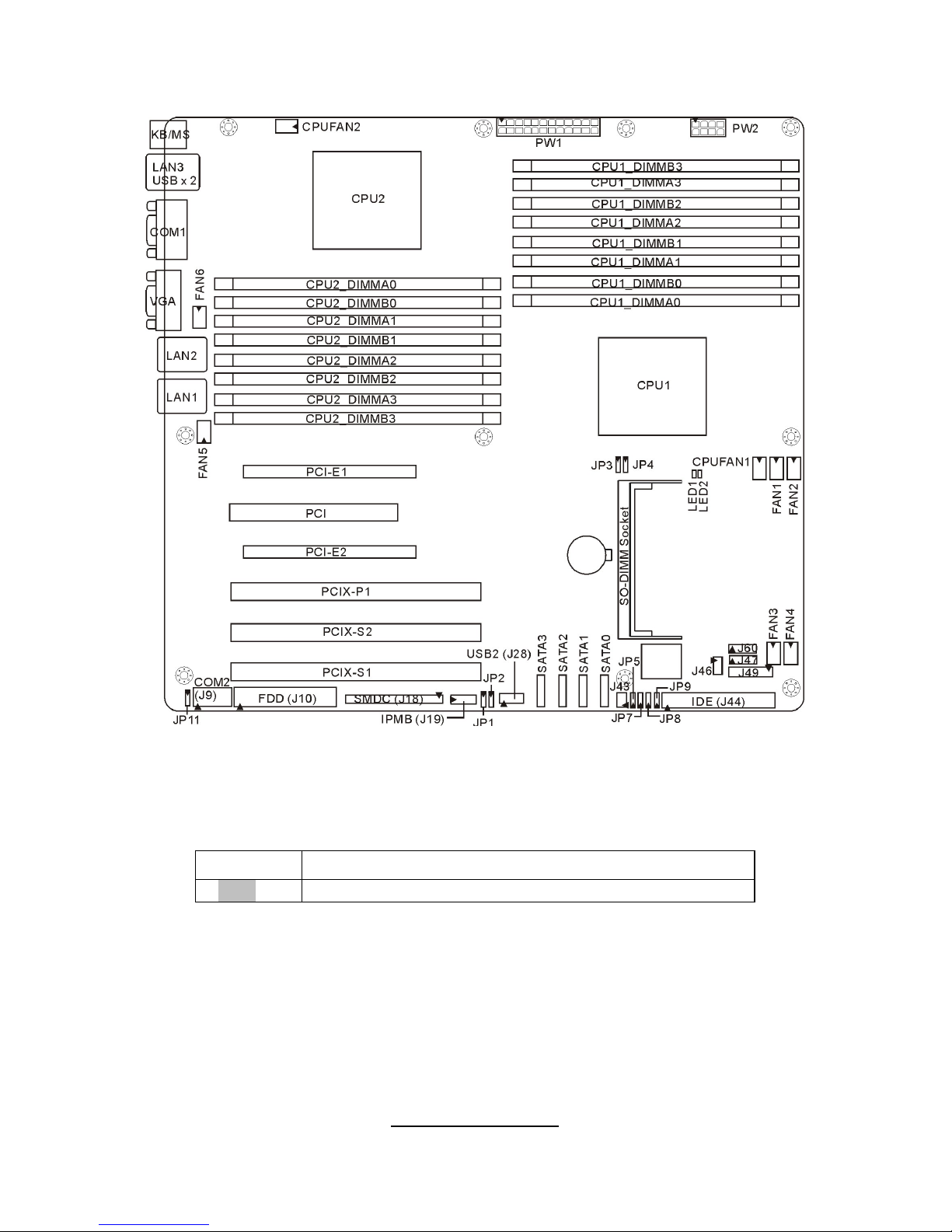

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

 OPEN - Jumper OFF, without jumper cover

 CLOSED – Jumper ON, with jumper cover
