TYAN TIGER I7520SD Manuale utente

Tiger i7520SD /// S5365

Version 1.2

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Tiger i7520SD are trademarks of TYAN Computer Corporation.

Intel, Sossaman, and combinations thereof are trademarks of Intel Corporation.

Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

Table of Contents

Check the box contents! 3

Chapter 1: Introduction

1.1 Congratulations…………………………………………………………… 5

1.2 Hardware Specifications………………………………………………… 5

Chapter 2: Board Installation

2.1 Board Image……………………………………………………………… 8

2.2 Block Diagram……………………………………………………………. 9

2.3 Board Parts, Jumpers and Connectors………………………………... 10

2.4 Tips on Installing Motherboard in Chassis…………………………….. 18

2.5 Installing the Processor, Heatsink &

Fan………………………………........................................................... 19

2.6 Installing the Memory……………………………………………………. 22

2.7 Attaching Drive Cables………………………………………………….. 24

2.8 Installing Add-in Cards………………………………............................ 26

2.9 Connecting External Devices…………………………………………… 27

2.10 Installing the Power Supply……………………………………………... 28

2.11 Finishing up………………………………………………………………. 28

Chapter 3: BIOS Setup

3.1 About the BIOS…………………………………………………………… 29

3.2 BIOS Main Menu…………………………………………………………. 31

3.3 Advanced Menu………………………………………………………….. 39

3.4 Security Menu…………………………………………………………….. 55

3.5 Power Menu………………………………………………………………. 57

3.6 Boot Menu………………………………………………………………… 58

3.7 Exit Menu…………………………………………………………………. 59

Chapter 4: Diagnostics

4.1 Beep Codes………………………………………………………………. 61

4.2 Flash Utility……………………………………………………………….. 61

4.3 BIOS Post Code………………………………………………………….. 62

Appendix: How to Make a Driver Diskette

Glossary

Check the box contents!

1x S5365 motherboard

1 x Ultra-DMA-133/100/66/33 IDE cable

2 x Serial ATA Cable

1 x S5365 user’s manual

1 x S5365 Quick Reference guide

1 x TYAN driver CD

1 x I/O shield

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. The Tiger

i7520SD (S5365) is a flexible Intel®platform for multiple applications, based on

Intel®“E7520 MCH” and “ICH 6300ESB” chipsets.

Designed to support Intel®Sossaman processor and DDRII 400 memory up to

16GB, the S5365 is featured with integrated Dual Gigabit Ethernet LAN, ATI

ES1000 graphics buffer and two serial ATA ports. With the multiple features

designed, the S5365 offers exceptional performance and versatile solution for

your server platform.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processor

•Two mPGA479 sockets support

Intel CPU’s as below: 667MHz

FSB Sossaman (dual core) with

2M L2, up to 1.67GHz (LV) ,

2.0GHz and 2.33GHz

Chipset

•IntelRE7520 Memory Controller

Hub

•IntelR6300ESB I/O Controller Hub

Memory

•Dual channel memory bus (must

be populated in pairs)

•8 DDRII 240-pin DIMM sockets up

to 16GB memory size

•Supports registered DDRII 400

compliant with ECC memory

•Supports 256MB, 512MB, 1GB,

2GB DDRII DIMM

Integrated LAN Controllers

•IntelR82551QM PCI bus single

port FE controller

•IntelR82571EB dual port Gigabit

Ethernet controller

Graphics

•Integrated ATI ES1000 w/16MB

frame buffer

Storage

•Two 1.5Gb SATA ports supported

by south bridge

•IDE supported by south bridge

Expansion Slot

•Supports 2 PCI-E x8 slots

•Supports 2 PCI-X expansion slots

•Supports 2 PCI expansion slots

Integrated I/O

•One (1) 40-pin IDE connector

•One (1) 50-pin Compact Flash

Type II connector

•Two (2) SATA connectors

•One (1) pin header for USB ports

(supports two USB 2.0 devices)

•One (1) SO-DIMM connector

(200pins for TARO)

•One (1) FDD connector

•One (1) shrouded header for

serial port

•One (1) printed port header

•One (1) TYAN FPIO2

•One (1) TYFP FPIO header

Form Factor

•ATX 12” x 9.6”, 305x248mm

Optional Modules

•TYAN: M9000-10, M8110,

M7902, M7901

BIOS

•Phoenix BIOSRon 8Mbit Flash

ROM

•Supports boot from USB device

•Supports ACPI 2.0

•WOL and PXE supported (by Intel

82551QM only)

•Power-on mode control for AC

power loss recovery

Back Panel I/O Ports

•One (1) serial port with D-Sub

connector

•One (1) VGA connector

•Two (2) USB 2.0 ports with a

double-stacked USB connector +

RJ45

•Two LAN ports with RJ45

connector include Transformer &

LED’s (stacked)

•One dual PS2 connector

System Management

•Total five (5) 3-pin fan headers

with control and tachometer

monitoring

•Monitors voltage for CPU,

memory & power supply

•Monitoring temperatures for CPU

& environment

•Pin headers for Fault LED,

Power/Suspend LED & HDD

activity LED

•Chassis intrusion detection

•Watchdog timer supported

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Tiger i7520SD S5365 matches the ATX specification. Before continuing with

installation, confirm that your chassis supports an ATX motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

2.1- Board Image

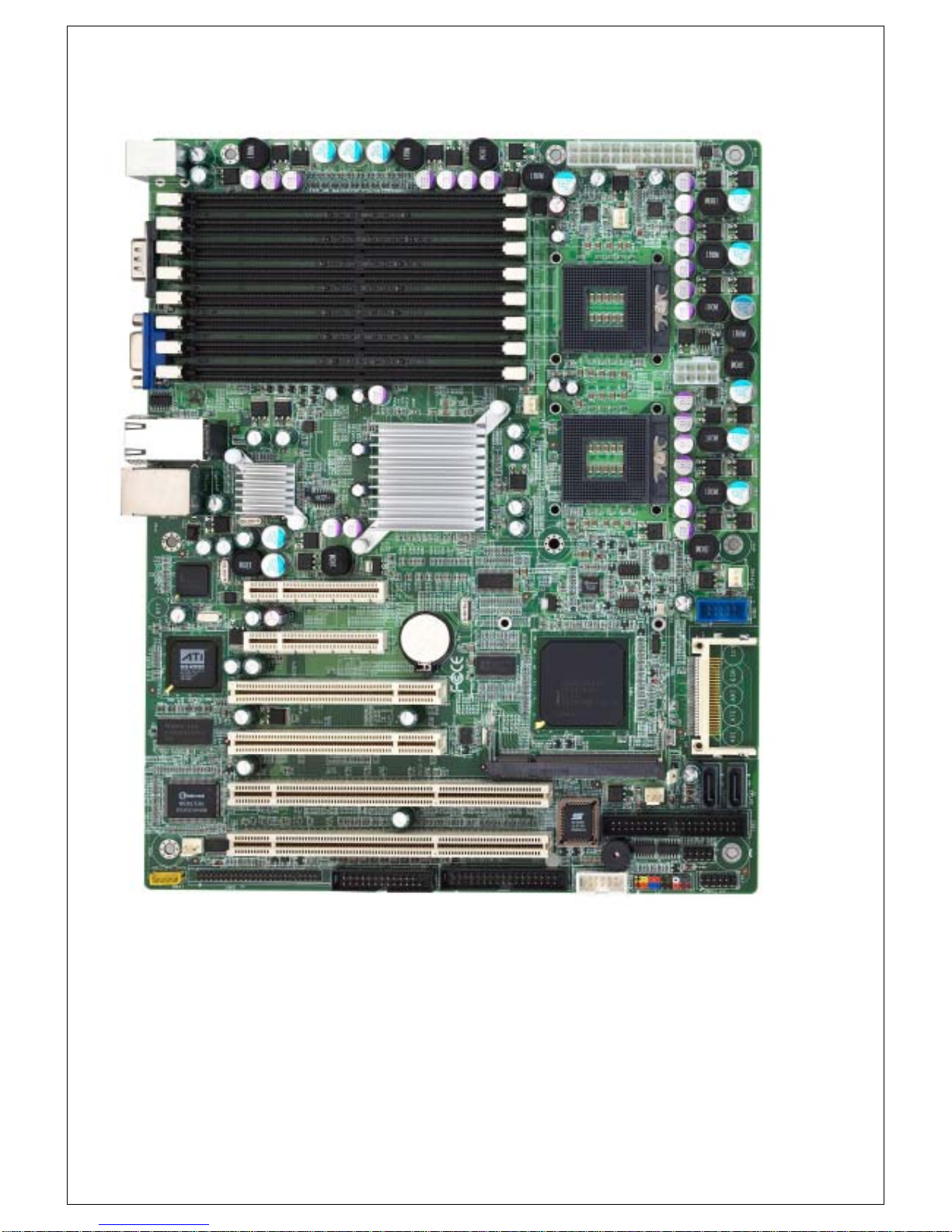

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

2.2 - Block Diagram

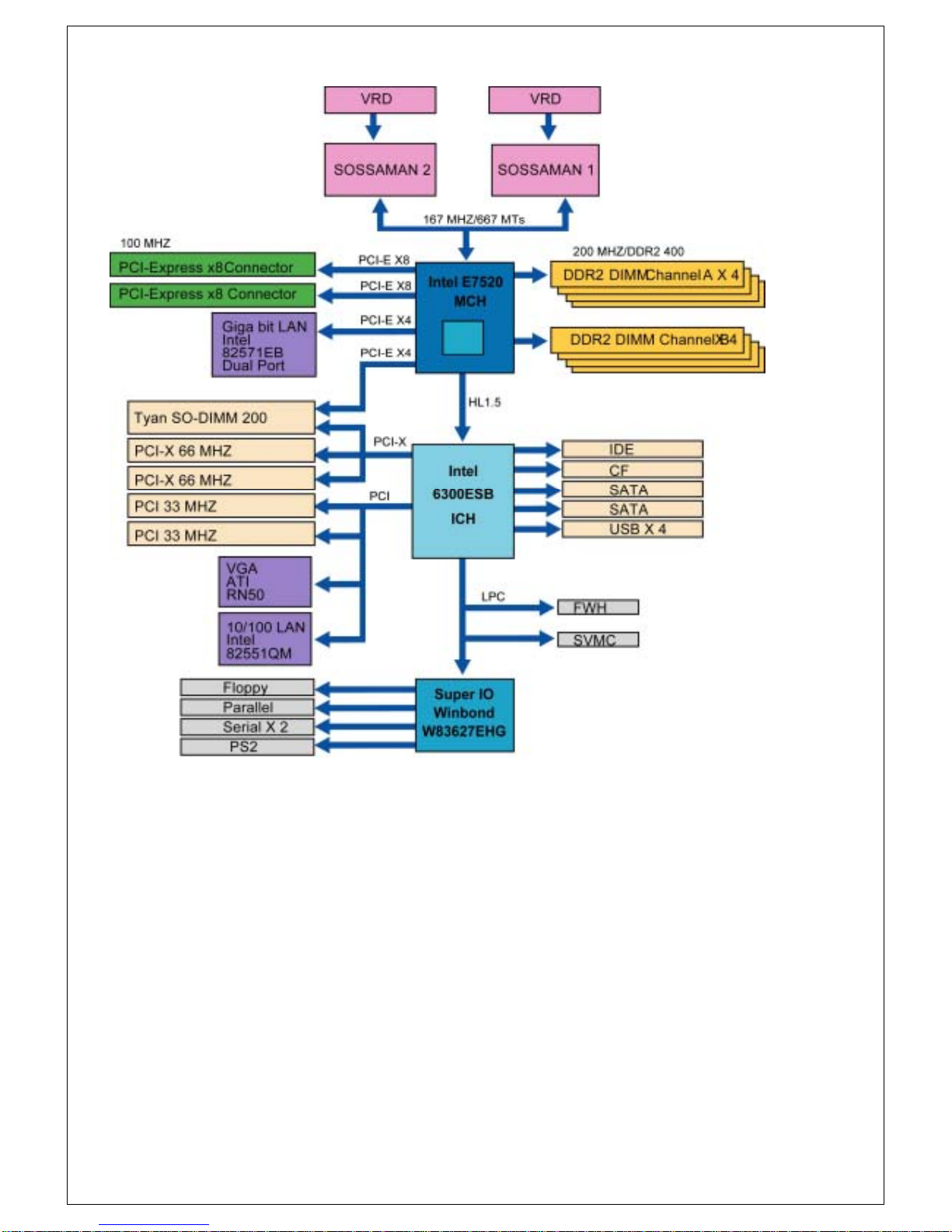

Tiger i7520SD S5365G3NR Block Diagram

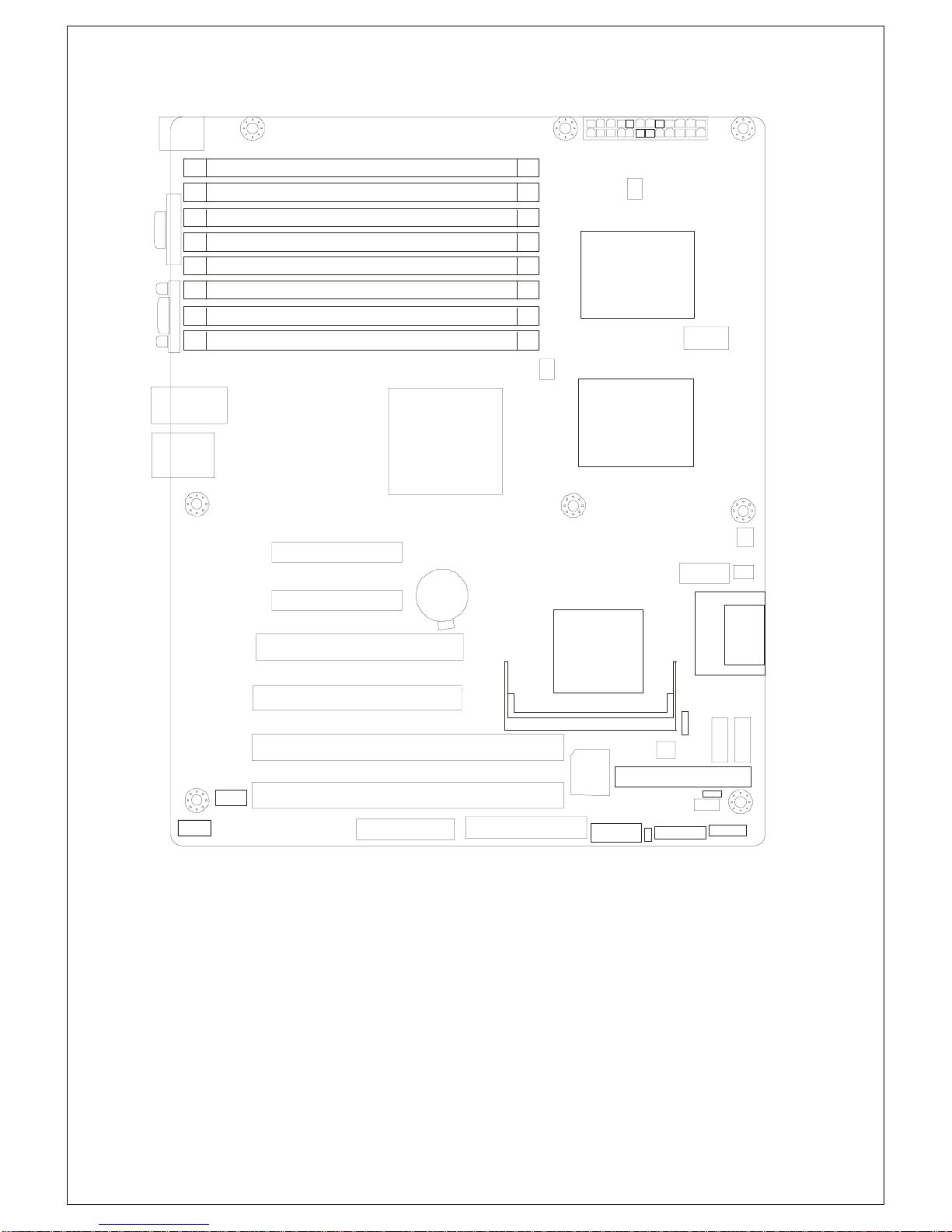

2.3 - Board Parts, Jumpers and Connectors

DDRII B4

DDRII A4

DDRII A3

DDRII B2

DDRII A2

DDRII B1

DDRII A1

CPU1

CPU2

MCH

E7520 CPU2

ICH

6300ESB

PW1

PW2

PCIE

PCI 33

PCI X

J19

LPC1

J15

FDD1J3

J23

J21

J18

IDE1

BIOS

J13

CF1

J20

J22

J16

J14

LAN1

LPT1

J17

CCMOS1

VGA1

DDRII B3

J24

J25

JP1

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.
