TYAN THUNDER N3600S Manuale utente

http://www.tyan.com

Thunder n3600S /// S2933

Version 1.0

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Thunder n3600S are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Marvell®is a trademark of Broadcom Corporation and/or its subsidiaries

XGI and XG20 are trademarks of XGI Corporation

nVIDIA, nForce are trademarks of NVIDIA Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

Chapter 2: Board Installation

2.1 Board Image Page 8

2.2 Block Diagram Page 9

2.3 Board Parts, Jumpers and Connectors Page 10

2.4 Tips on Installing Motherboard in Chassis Page 20

2.5 Installing the Processor(s) Page 21

2.6 Installing the Memory Page 24

2.7 Attaching Drive Cables Page 27

2.8 Installing Add-In Cards Page 29

2.10 Connecting External Devices Page 30

2.11 Installing the Power Supply Page 31

2.12 Finishing Up Page 32

Chapter 3: BIOS Setup

3.1 About the BIOS Page 33

3.2 BIOS Main Menu Page 35

3.3 Advanced Menu Page 36

3.4 PCI/PnP Menu Page 58

3.5 Boot Menu Page 60

3.6 Security Menu Page 67

3.7 Chipset Menu Page 68

3.8 Exit Menu Page 75

Chapter 4: Diagnostics

4.1 Beep Codes Page 77

4.2 Flash Utility Page 77

4.3 AMIBIOS Post Code Page 78

Appendix: SMDC Information Page 81

Glossary Page 83

Technical Support Page 89

http://www.tyan.com

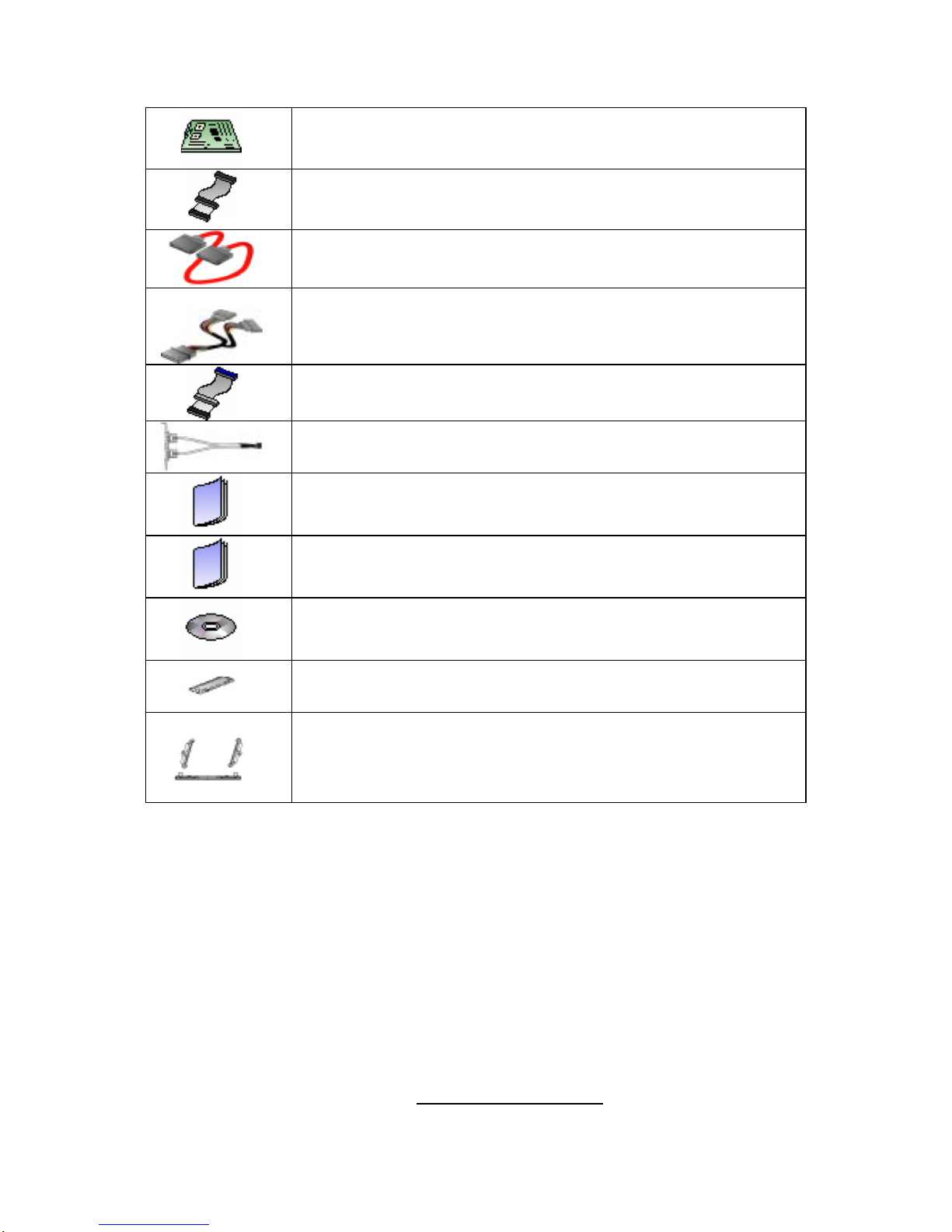

Check the box contents!

1x Thunder n3600S S2933G2NR motherboard

1x 34-Pin floppy drive cable

4 x SATA cable

2 x SATA Drive Power Adapter

1 x Ultra-DMA-100/66 IDE cable

1 x USB2.0 cable

1 x Thunder n3600S user’s manual

1 x Thunder n3600S Quick Reference guide

1 x TYAN driver CD

1 x I/O shield

2 x CPU Retention Frame and Back Plate

If any of these items are missing, please contact your vendor/dealer for

replacement before continuing with the installation process.

http://www.tyan.com

NOTE

http://www.tyan.com

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. The Thunder

n3600S (S2933) is a flexible AMD64 platform for multiple applications, based on

NVIDIA nForce Pro3600 and SMSC SCH5017 chipsets.

Designed to support AMD®Opteron™ 2000 series processors and DDRII-

667/533/400 memory, the S2933 with integrated Dual Gigabit Ethernet LAN,

built-in 16MB XGI XG20TM video and four serial ATA ports, is ideal for CPU,

memory, and video intensive applications such as CAD, Graphics Design, and

High Bandwidth Video Editing, etc.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processor

•Dual 1207-pin ZIF sockets

•Supports up to two AMD Socket F

Opteron 2000 series processors

•Up to 1.0GHz Hyper-Transport link

support

Expansion Slots

•One (1) x16 PCI Express slot with

x16 signal

Chipset

•nVIDIA NFP3600 chipset

•SMSC SCH5017

Memory

•Dual memory channels

•Supports up to 8x (4+4) DDR2

667/533/400 DIMMs

•Up to 32GB of registered, ECC

memory

Back Panel I/O Ports

•Stacked PS/2 mouse & keyboard

ports

•Stacked two USB2.0 ports

•One 9-pin COM1 port

•One 15-pin VGA port

•Stacked two RJ-45 gigabit LAN

ports

Integrated LAN Controllers

•Two NFP3600 integrated MAC

with two Marvell 88E1116 single

port Gigabit Ethernet PHY

- Integrated TCP offload Engine

(TOE)

- IEEE802.3 compliant, WOL/PXE

support

- Pin header for front panel LAN

LED

http://www.tyan.com

System Management

•SMSC SCH5017 w/ 2x

EMC6D103

•2x CPU fAN & 8x 4-pin system fan

headers, with tachometer input

and auto fan control

•Temperature and voltage

monitoring

•Watchdog timer

•Port 80 code display LED

Integrated PCI IDE

•One ATA IDE slot for two IDE

devices

•Support for ATA-133/100/66/33

IDE drives and ATAPI compliant

devices

Integrated 2D/3D PCI Graphics

•XGI Volari Z7 (XG20)

•16MB frame buffer memory

Integrated Serial ATA II

•Supports up to 4 Serial ATA ports

running at 3.0Gb/s

•Serial ATA II specification

compliant

•nVIDIA MediaShieldTM RAID

supports for RAID 0, 1, 0+1, 5,

JBOD

•HDD LED connector

Server Management

•TYAN M3291, IPMI 2.0 Remote

System Mgmt card

•Renesas H8S2167 BMC controller

•BT, KCS, Logging support

•IPMI-over-LAN

•Remote power on/off and reset

Integrated I/O Interface

•One floppy connector (right angle)

•Four SATA ports

•One IDE connector (right angle)

•Two USB 2.0 ports (via cable)

•Front panel 2x14 pin 2.0mm pitch

header

•TYFP1 TYAN 2x9 pin header

•TYFP2 TYAN 2x6 pin header

•One 2x7 pin 2.0mm pitch FAN

•header

•TYAN 6-pin LCM header

•2x25 IPMI pin header for TYAN

SMDC

BIOS

•AMI BIOS 8Mbit Flash

•Supports ACPI 2.0

•PnP, DMI2.0, WfM 2.0 power

management

Power

•EPS12V (24-pin+8-pin+4-pin)

power connectors

•One 4-pin power connector for

HDD (right angle)

•8 layers PCB

MB Form Factor

•265mm x 240mm for TYANGT14

1U chassis

Regulatory

•FCC Class B (Declaration of

Conformity)

•CE (Declaration of Conformity)

SKU

•S2933G2NR-BP

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Thunder n3600S S2933 matches the ATX specification. Before continuing

with installation, confirm that your chassis supports an ATX motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

http://www.tyan.com

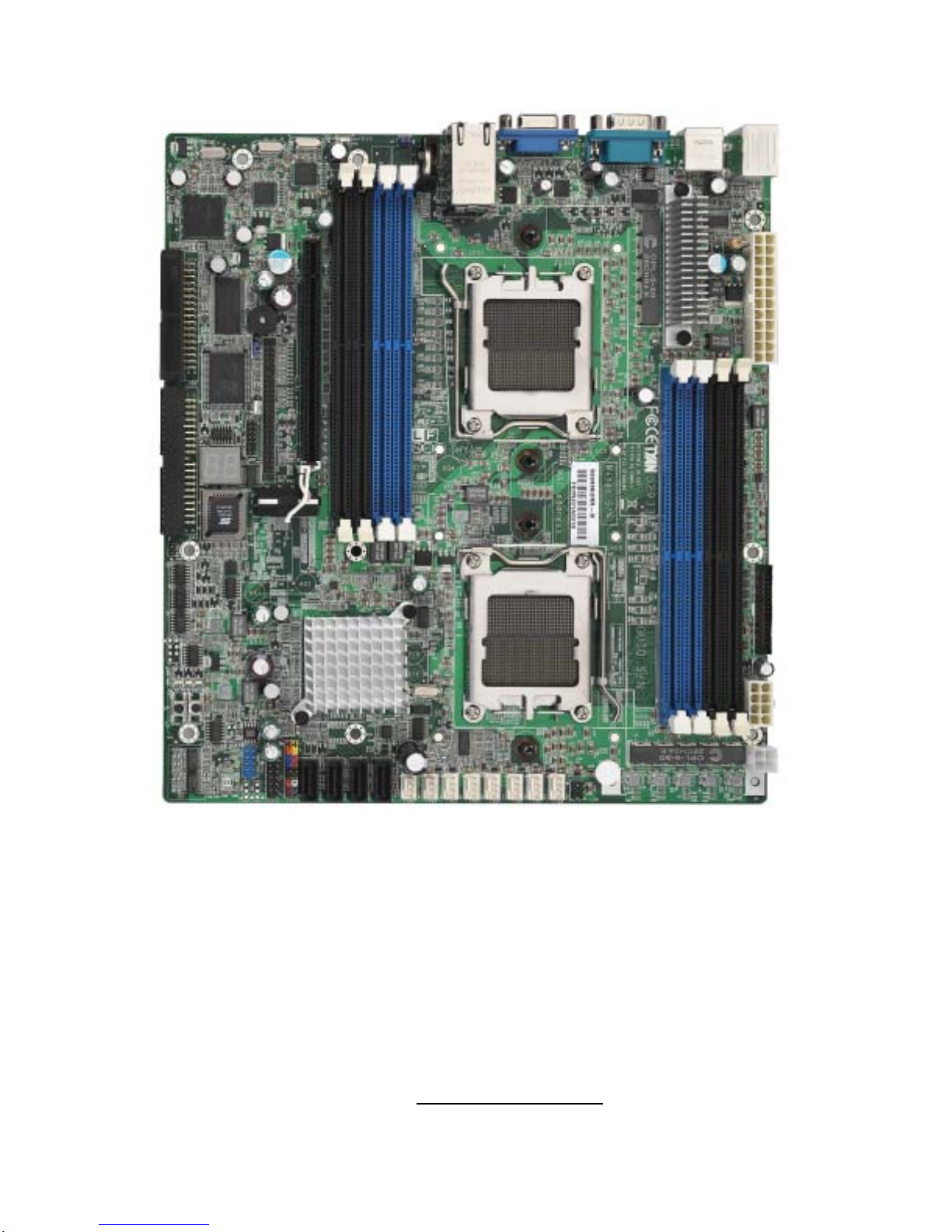

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

http://www.tyan.com

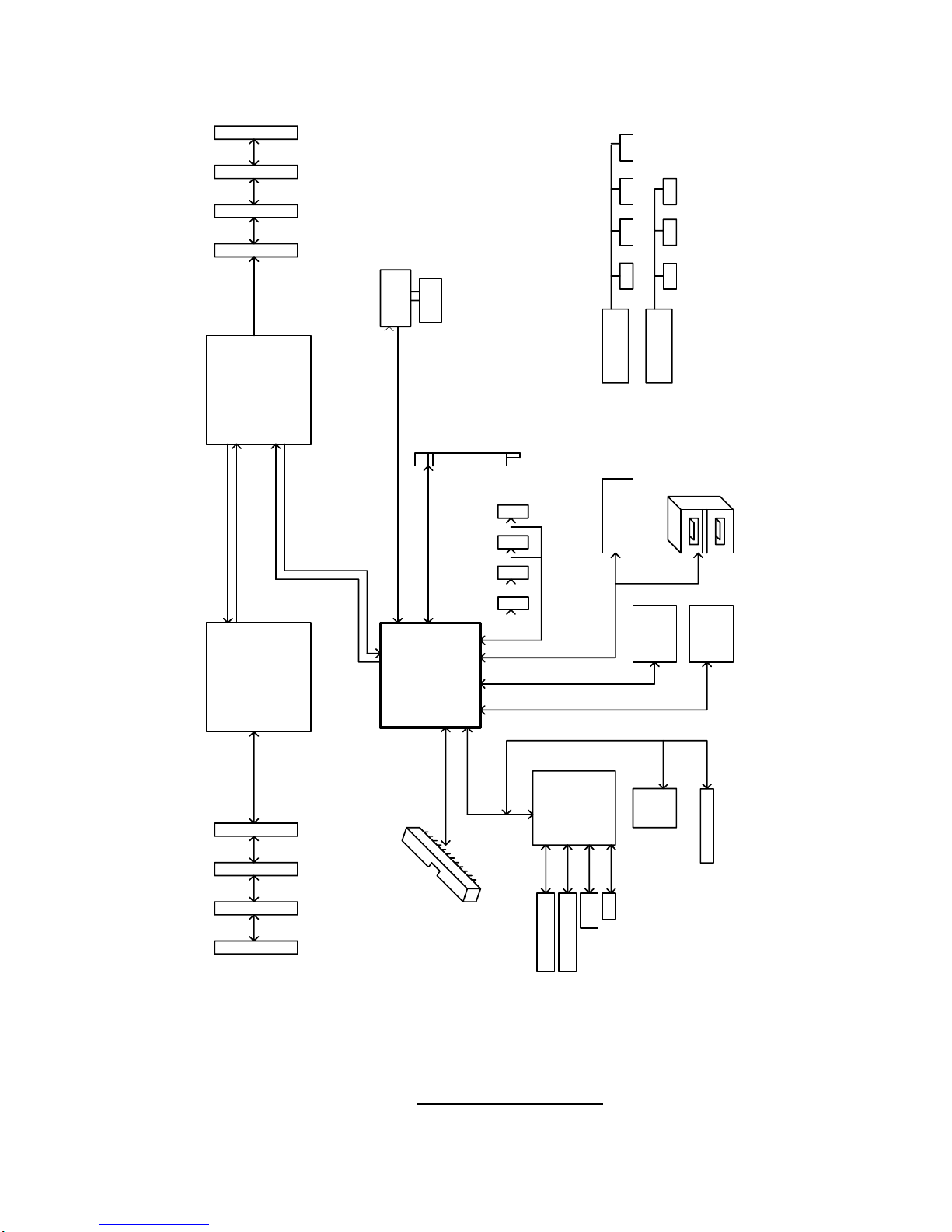

2.2 - Block Diagram

Thunder n3600S S2933 Block Diagram

FAN8

FAN7FAN5 FAN6

FDD R/A

J25 J23J24 J22

SATA3

SATA2

SATA1

FDD

SATA4

USB2.0 x 1 front

panel headers

SMSC SCH5017

Marvell

J12

Marvell

88E1116

GBLAN1

GBLAN2

88E1116

USB1

RGMII BUS

USB2.0 port X 2

rear panel

PCIEX16 BUS

J14J13J12J11J17

U52

U29

U22

U44

16MB RAM

U63

FAN4FAN3

EIDE (ATA/133) x1 R/A

U21

PCI32 BUS

AMD

Socket F

NVIDIA

VGA

16x16 HyperTransportOUT

LPC ROM

011010001000

LINK 1

I N

PS/2 Keyboard & Mouse

SMSC 6D103

I N

OUT

Serial Port I/O Port LPC Super I/O

XG20

Hardware monitor

SMSC 6D103

LINK 0

LPC BUS

NFP3600

SMDC Interface

IDE1

FAN2

Hardware monitor

U42

FAN1

100 101

240 pin

DIMM0

533-667MHz

J16

100

J17

16x16 HyperTransport

J17

100

240 pin

DIMM0

240 pin

DIMM3 240 pin

DIMM2 240 pin

DIMM1 240 pin

DIMM3

240 pin

DIMM2

240 pin

DIMM1

533-667MHz

Socket F

CPU0

AMD

CPU1

http://www.tyan.com

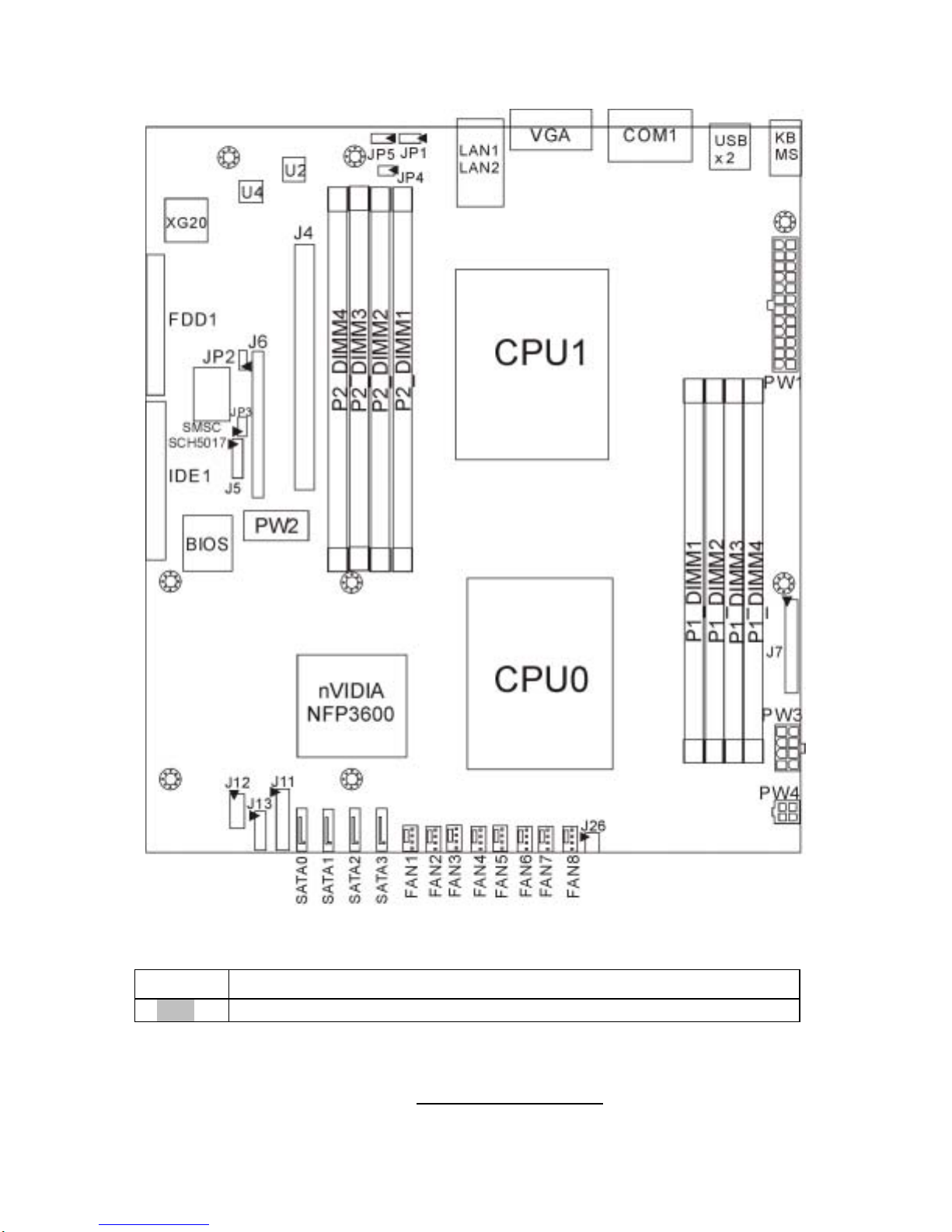

2.3 - Board Parts, Jumpers and Connectors

Jumper Legend

 OPEN - Jumper OFF, without jumper cover

 CLOSED – Jumper ON, with jumper cover
