TYAN TOMCAT K8S Manuale utente

http://www.TYAN.com

Tomcat K8S /// S2850

Revision 1.01

reproduced or translated without prior written consent from TYAN Computer Corp.

All registered and unregistered trademarks and company names contained in this manual are

property of their respective owners including, but not limited to the following.

TYAN, Tomcat K8S S2850 are trademarks of TYAN Computer Corporation.

AMD, AMD Opteron, and combinations thereof, are trademarks of Advanced Micro Devices, Inc.

HyperTransport is a licensed trademark of the HyperTransport Technology Consortium.

AMI, AMIBIOS are trademarks of AMI Software Incorporated.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds.

QLogic, Zircon, and combinations thereof are trademarks of QLogic Corporation.

IBM, PC, AT, PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

Portable Document Format (PDF) is a trademark of Adobe Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and has been

reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and

disclaims any express or implied warranty, relating to sale and/or use of TYAN products including

liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains the

right to make changes to product descriptions and/or specifications at any time, without notice. In

no event will TYAN be held liable for any direct or indirect, incidental or consequential damage,

loss of use, loss of data or other malady resulting from errors or inaccuracies of information

contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin…

Chapter 1: Introduction

1.00 Congratulations!

1.01 Hardware Specifications

Chapter 2: Board Installation

2.00 Block Diagram

2.01 Board Parts, Jumpers and Connectors

2.02 Jumper Settings

2.03 IPMI I2C Bus Connector (J13)

2.04 Clear CMOS Jumper (J14)

2.05 USB Header (J22)

2.06 Serial Port Internal Header (J31)

2.07 FAN Connectors (J32~J37)

2.08 Keyboard Lock Jumper (J41)

2.09 External Speaker Header (J42)

2.10 Front Panel Connector (J43)

2.11 Chassis Intrusion Header (J48)

2.12 Gigabit LAN1 LED Header (J51)

2.13 Gigabit or 10/100M LAN2 LED Header (J52)

2.14 Power LED Connector

2.15 Tips on Installing the Motherboard in Chassis

2.16 Installing the Memory

2.17 Installing the Processor and Heatsink

2.18 Thermal Interface Material

2.19 Heatsink Installation Procedures

2.20 Attaching Drive Cables

2.21 Installing Add-In Cards

2.22 PCI Riser Cards Supported on Tomcat K8S S2850

2.23 Connecting External Devices

2.24 Installing the Power Supply

2.25 Finishing up

Chapter 3: BIOS

3.00 BIOS Setup Utility

3.01 BIOS Menu Bar

3.02 BIOS Legend Bar

3.03 BIOS Main Menu

3.04 BIOS Advanced Menu

3.04.1 IDE Configuration Sub-Menu

3.04.2 Floppy Configuration Sub-Menu

3.04.3 Super I/O Configuration Sub-Menu

3.04.4 Hardware Health Configuration Sub-Menu

3.04.5 Event Log Control Sub-Menu

3.04.6 Remote Access Configuration Sub-Menu

3.04.7 USB Configuration Sub-Menu

3.04.8 Onboard Device Sub-Menu

3.04.9 Watchdog Timer Sub-Menu

3.05 BIOS PCI/PnP Menu

3.06 BIOS Boot Menu

3.06.1 Boot Settings Configuration Sub-Menu

3.07 BIOS Security Menu

3.08 BIOS Chipset Setting Menu

3.08.1 North Bridge Chipset Configuration Sub-Menu

3.08.2 South Bridge Chipset Configuration Sub-Menu

3.09 BIOS –Power Menu

………….………………..Page 4

…………………………..Page 5

………….………………..Page 5

……………….…………..Page 5

…………………………..Page 7

……………….…………..Page 8

…………….……………..Page 9

……………..…………..Page 10

………….…………….. Page 10

………………………… Page 11

………………………… Page 12

……….………..…….… Page 13

…………….…..…….… Page 13

………………………… Page 14

………………………… Page 15

………………………… Page 16

………………………… Page 17

………………………… Page 20

………………………… Page 22

………………………… Page 24

……………..…………..Page 25

……………..…………..Page 27

……………..…………..Page 28

……………..…………..Page 29

……………..…………..Page 30

……………..…………..Page 31

…………………………Page 32

……………….…………Page 33

…………….……………Page 33

…………….……………Page 34

……...……….…………Page 36

…………………………Page 37

…………………………Page 38

…………………………Page 39

…………………………Page 40

…………………………Page 41

……………..…………..Page 42

…………………………Page 43

…………………………Page 44

…………………………Page 45

…………….……………Page 48

http://www.TYAN.com

3.09.1 Advanced ACPI Configuration Sub-Menu

3.09.2 Global Timer Reload Sub-Menu

3.10 BIOS Exit Menu

Chapter 4: Diagnostics

4.00 Beep Codes

4.01 Flash Utility

Appendix I: Glossary

Technical Support

…………….……………Page 50

…………….……………Page 51

…………….……………Page 52

…………………………Page 53

…………………………Page 54

…………………………Page 58

http://www.TYAN.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1 x Tomcat K8S S2850 motherboard

1 x CPU retention frame

1 x CPU back plate with insulation and screws

1 x 34-Pin floppy drive cable

1 x Ultra-DMA-133/100/66/33 IDE cable

4 x SATA cable (optional)

2 x SATA Driver Power Adapter (optional)

1 x 25-pin printer cable (optional)

1 x Tomcat K8S S2850 User’s Manual

1 x Tomcat K8S S2850 Quick Reference

1 x TYAN driver CD

1 x Serial ATA driver diskette (optional)

1x I/O shield

If any of these items are missing, please contact your vendor/dealer for replacement before

continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.00 – Congratulations!

You have purchased one of the most powerful AMD OpteronTM processor solutions, the Tomcat

K8S S2850. The Tomcat K8S S2850 features a high bandwidth integrated memory controller for

superior productivity, HyperTransport™ chipset technology to increase overall performance by

removing or reducing I/O bottlenecks, and low profile I/O ports with strategically placed DIMM slots

to allow maximum airflow across the motherboard for efficient system cooling. This platform offers

convenient remote Intelligent Platform Management Interface (IPMI) monitoring through a Server

Management Daughter Card. The Tomcat K8S S2850 also features an ATX form factor, Single or

Dual Gigabit Ethernet port, an onboard ATI 8MB PCI RAGE XL VGA, and an onboard Quad

channel Serial ATA, which provides an advanced and versatile solution for your server needs.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find information on all of

TYAN’s products with FAQs, distributors list and BIOS setting explanations.

1.01 – Hardware Specifications

Processor

- PGA 940-pin ZIF socket

- Supports one AMD OpteronTM processor

- Onboard 3-phase PWM Controller

- Integrated 128-bit DDR Memory Controller

Chipset

- AMD-8111TM HyperTransportTM I/O Hub

- Winbond W83627HF Super I/O chip

- Winbond W83782D Hardware Monitor

chip

Memory

- 128-bit dual channel memory bus

- Total of four 184-pin 2.5-Volt DDR DIMM

sockets

- Supports up to 8 Gigabytes Registered

DDR *

- Supports ECC type memory modules

- Supports PC1600, PC2100, & PC2700

DDR *

Expansion Slots

- Total of six 32-bit 33MHz (5-Volt) PCI

slots

Integrated Enhanced IDE Controller

- Provides two IDE dual-drive ports for up to

four EIDE devices

- Supports UDMA 33/66/100/133 IDE drives

and ATAPI compliant devices

Integrated I/O

- One floppy connector supports up to

two drives

- Two 9-pin serial ports (one connector

and one header) and One 25-pin

parallel port header (connector is

optional)

- PS/2 mouse and keyboard

connectors

- Four USB v1.1 ports (2 stacked rear

connectors; 2 USB headers)

BIOS

- AMI®BIOS 8.0 on 4Mbit LPC Flash

ROM

- Supports ACPI 1.0b

- 48-bit LBA Support

- Supports PXE via Ethernet

- Supports USB device boot

- Watchdog timer

System Management

- Total of six 3-pin fan headers

- All fan headers with tachometer

monitoring

- One 2-pin Chassis Intrusion header

- Temperature, voltage and fan

monitoring

http://www.TYAN.com

Integrated LAN Controllers

- Dual Broadcom®BCM5705 GbE/100/10

LAN controllers

- Two RJ-45 LAN connectors with LEDs

Integrated PCI Graphics

- ATIRageTM XL PCI graphics controller

- 8MB Frame Buffer of video memory

Integrated Serial ATA Controller (MFG

Option)

- Silicon Image SiI3114 SATA controller

- Supports four-channel SATA RAID (RAID

0,1, 0+1)

- Total of four 7-pin SATA connectors

- Supports SATA 1.0 Specification

*Not validated at the time of print, subject to

change.

Form Factor

- ATX footprint (12” x 8.2”)

- 6-layer board

- ATX12V universal power connectors

- Serial (one) and VGA (one)

connectors

- Stacked USB 1.1 (two) connectors

- Stacked PS/2 keyboard and mouse

connectors

- Two RJ-45 LAN connectors with

LEDs

Regulatory

- FCC Class B (Declaration of

Conformity)

- European Community CE

(Declaration of Conformity)

Software Specifications

OS (Operating System) Support

Microsoft Windows NT 4 Service Pack 6A

Microsoft Windows 2000

Microsoft Windows XP

Microsoft Windows Server 2003

SuSE Server 8.0 for AMD-64

Red Hat 8.0, 9.0

Other distributions of Linux pending validation

TYAN reserves the right to add support or discontinue support for any OS with or

without notice.

http://www.TYAN.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting-hole pattern of the Tomcat K8S

S2850 matches the ATX specification. Before continuing with installation, confirm that your chassis

supports an ATX motherboard.

How to install our products right…. the first time!

The first thing you should do is read this user’s manual. It contains important information that will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch a safely grounded

object to release static charge (i.e. power supply case). For the safest conditions, Tyan

recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the

board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory modules,

and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag that the

board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis, as well as

installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

2.00 – Block Diagram

AMD-8111TM

HyperTransportTM

IO HUB

AMD OpteronTM

Processor

200-333MHz

144bit Reg DDR

8x8 H

erTrans

ort

400MT/s

PCI

32-bit, 33MHz

LPC

Super I/O

SATA SiI3114

BCM5705

/BCM4401

ATI Rage XL

EIDE (ATA 133)

USB 1.1

FDD

Port

PS/2

KB&MS

Printer

Serial ports

LPC

Winbond 83782D

Optional

BMC

(IPMI 1.5)

SMB

IPM

ICM

BIOS

Optional

http://www.TYAN.com

2.01 – Board Parts, Jumpers and Connectors

Note: A □depicts pin #1

This diagram is representative of the latest board revision available at the time of publishing.

The board you receive may not look exactly like the above diagram.

http://www.TYAN.com

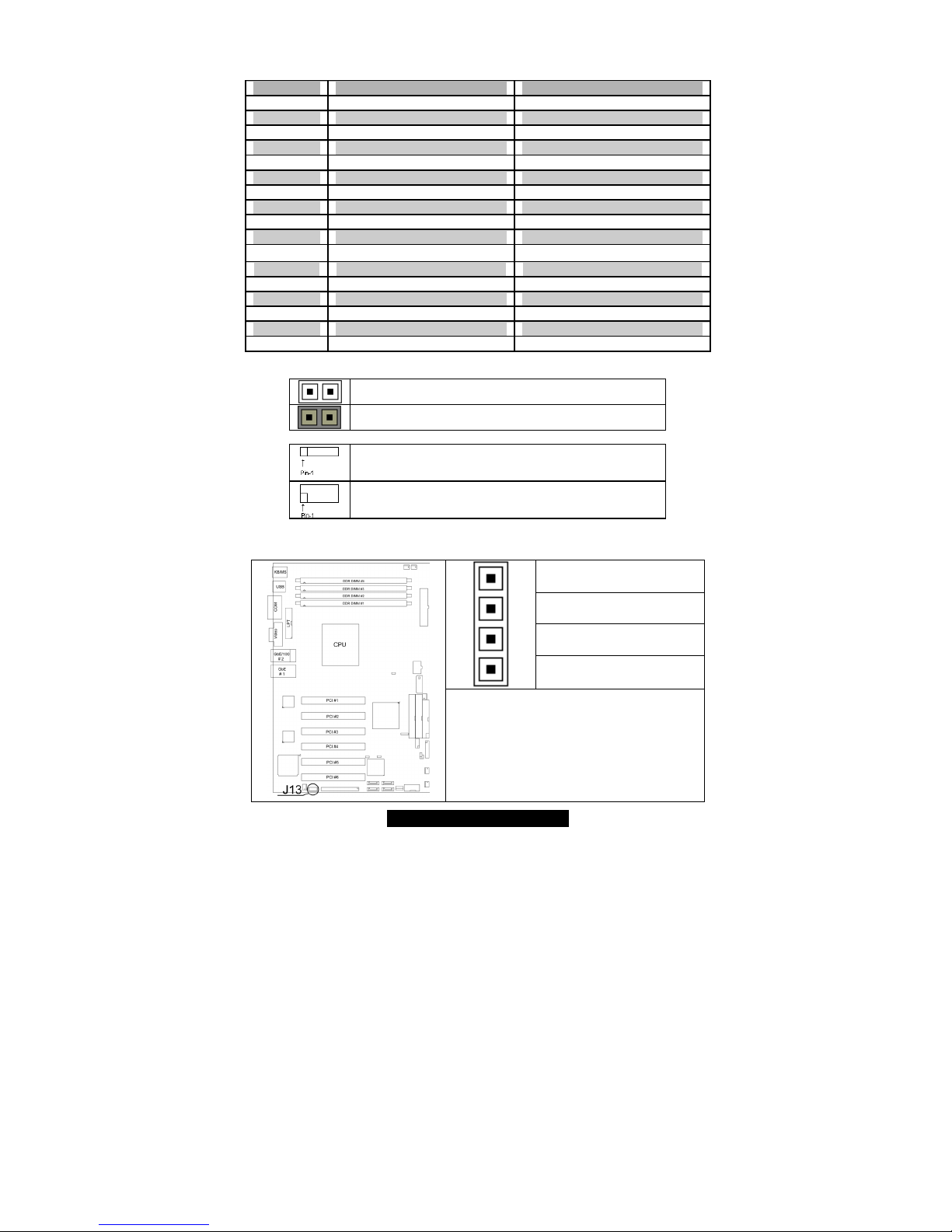

2.02 – Jumper Settings

Jumper Function Settings

J13 IPMI I2C Bus Connector See Section 2.03

J14 Clear CMOS Jumper See Section 2.04

J22 USB Header See Section 2.05

J31 Serial Port Internal Header See Section 2.06

J32 Chassis Fan Connector See Section 2.07

J33 CPU Fan Connector See Section 2.07

J34 Chassis Fan Connector See Section 2.07

J35 Chassis Fan Connector See Section 2.07

J36 Chassis Fan Connector See Section 2.07

J37 Chassis Fan Connector See Section 2.07

J41 Keyboard Lock Connector See Section 2.08

J42 External Speaker Header See Section 2.09

J43 Front Panel Connector See Section 2.10

J48 Chassis Intrusion Header See Section 2.11

J51 LAN 1 LED Header See Section 2.12

J52 LAN 2 LED Header See Section 2.13

J57 Power LED Connector See Section 2.14

Jumper Legend

OPEN - Jumper OFF Without jumper cover

CLOSED - Jumper ON With jumper cover

To indicate the location of pin-1

2.03 – IPMI I2C Bus Connector (J13)

Pin_4 : NC

Pin_3 : SMBUSC_0

Pin_2 : GND

Pin_1 : SMBUSD_0

Use this connector to connect external IPMI

I2C Bus devices

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TYAN Scheda madre

TYAN

TYAN THUNDER I7500 Manuale utente

TYAN

TYAN S7100 Manuale utente

TYAN

TYAN S5548 Manuale utente

TYAN

TYAN S5539 Manuale utente

TYAN

TYAN S2692 Manuale utente

TYAN

TYAN TIGER I7501S Manuale utente

TYAN

TYAN S5620 Manuale utente

TYAN

TYAN THUNDER K7 Istruzioni per l'installazione e il funzionamento

TYAN

TYAN S2505T Istruzioni per l'installazione e il funzionamento

TYAN

TYAN Toledo i965R (S5180AG2N) Manuale utente

TYAN

TYAN TITAN TURBO ATX-2 Manuale utente

TYAN

TYAN S7120 Manuale utente

TYAN

TYAN Tsunami S1846S Manuale utente

TYAN

TYAN Tomcat i7221 S5150 Manuale utente

TYAN

TYAN THUNDER N3600R Manuale utente

TYAN

TYAN Thunder i7501 Pro S2721-533 Manuale utente

TYAN

TYAN S1832DL Manuale utente

TYAN

TYAN TOMCAT K8E Manuale utente

TYAN

TYAN TITAN TURBO AT Manuale utente

TYAN

TYAN TRINITY 400 Manuale utente

TYAN

TYAN Tempest i5000VF S5370 Manuale utente

TYAN

TYAN S5515 Manuale utente

TYAN

TYAN S5376 Manuale utente

TYAN

TYAN Tempest i5000VS S5372-LC Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
